Z-Way Certification Documentation

Version 5

Application Command Classes

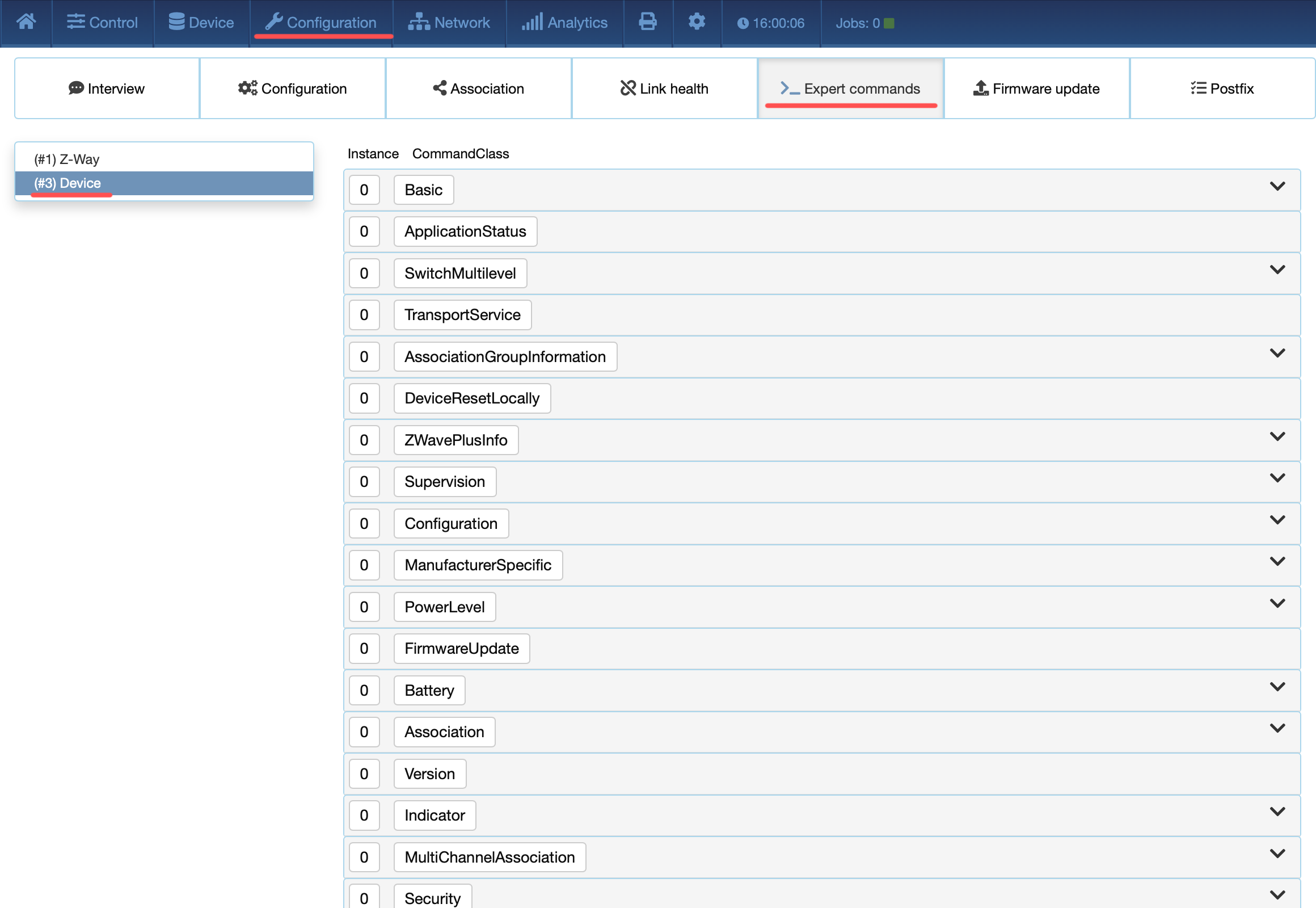

Go to Configuration, select the end device in the left column, go to Expert commands, select command class in the right column.

Barrier Operator Command Class

Configuration -> Expert commands -> BarrierOperator

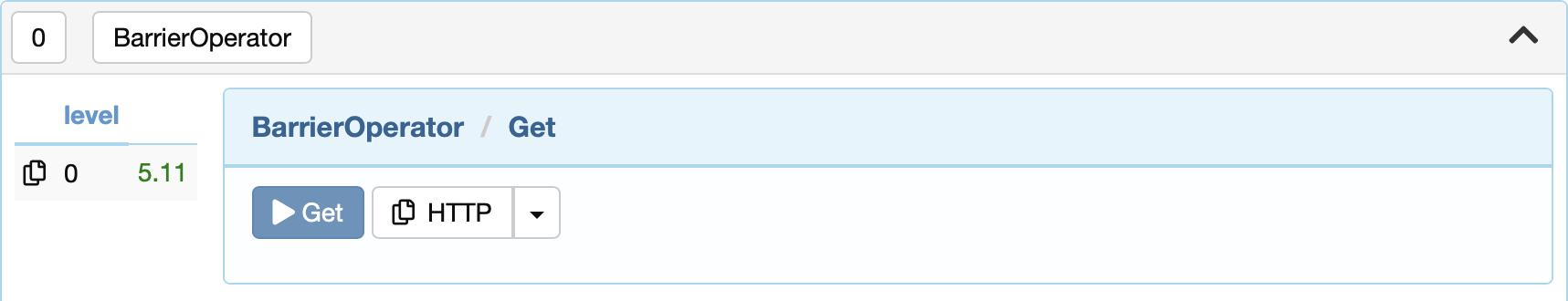

Get

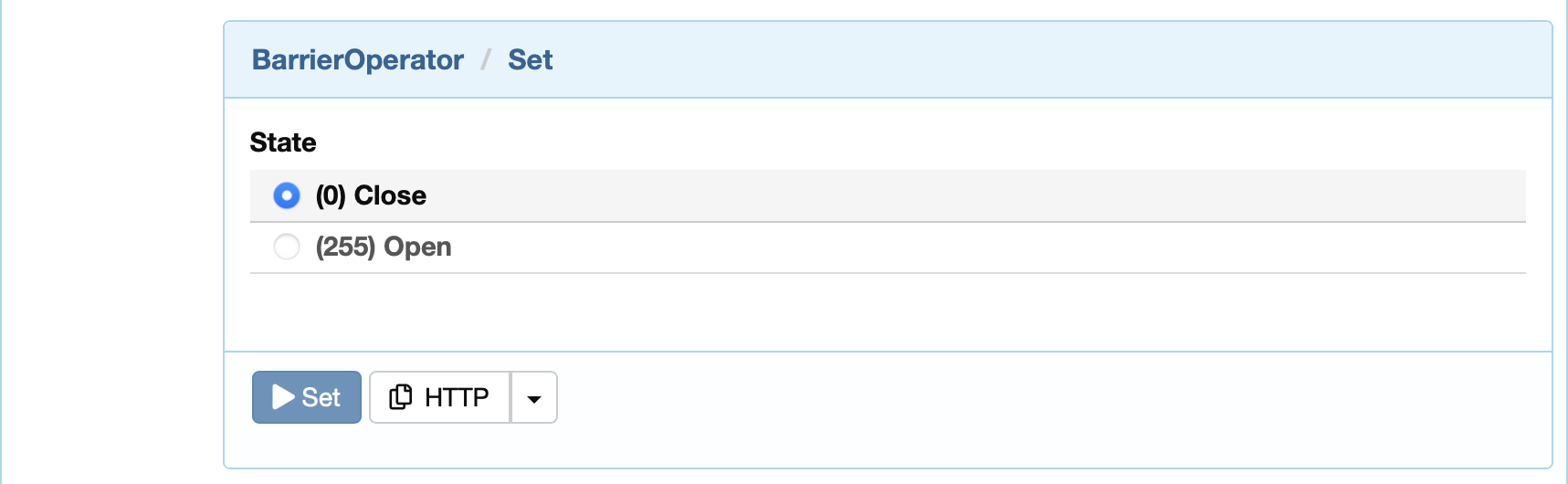

Set

State: 0 - Close, 255 - Open

SignalGet

Signal type: 0 - Not supported, 1 - Audible notification, 2 - Visual notification

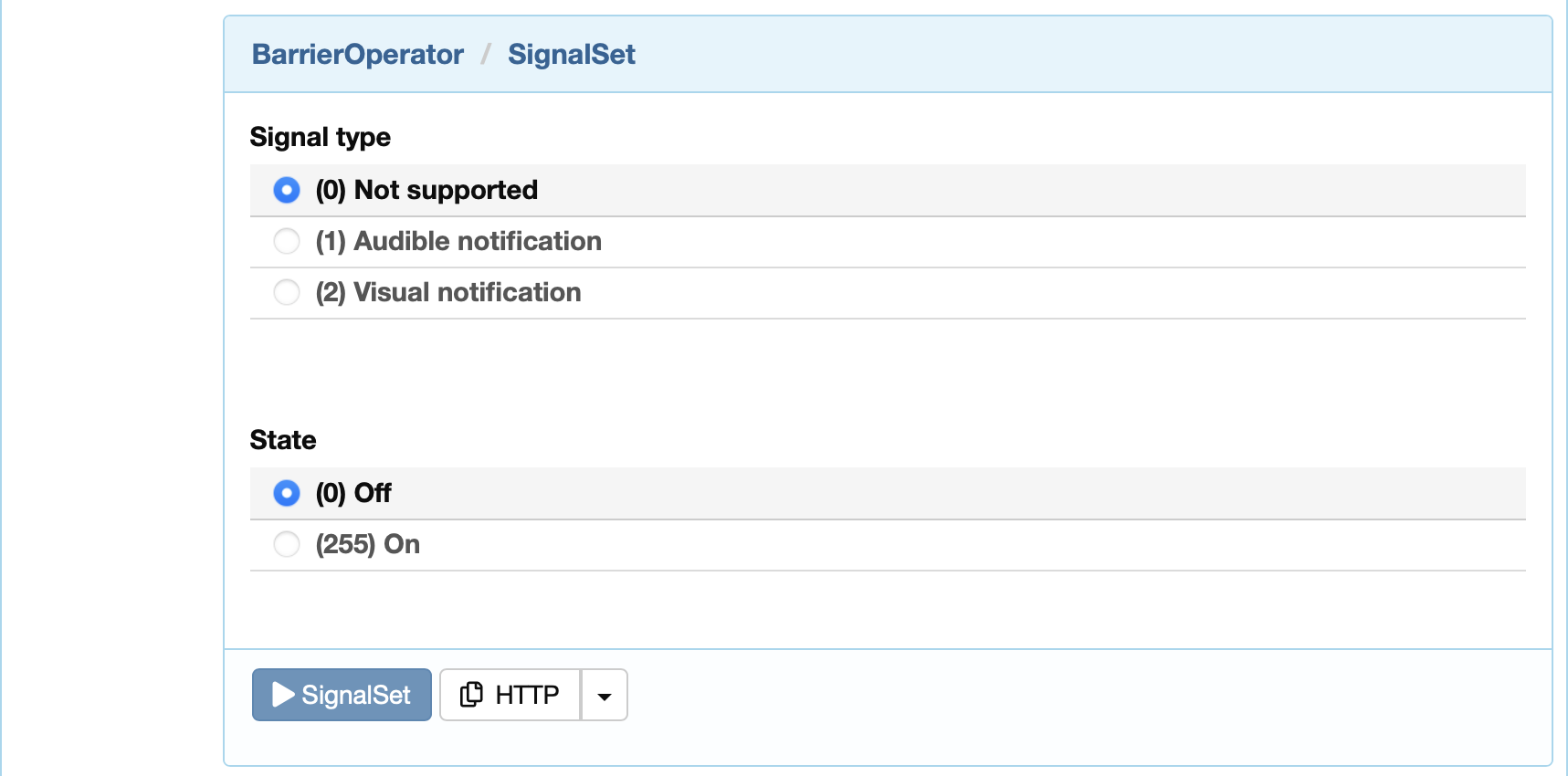

SignalSet

Signal type: 0 - Not supported, 1 - Audible notification, 2 - Visual notification

State: 0 - Off, 255 - On

Basic Command Class

Configuration -> Expert commands -> Basic

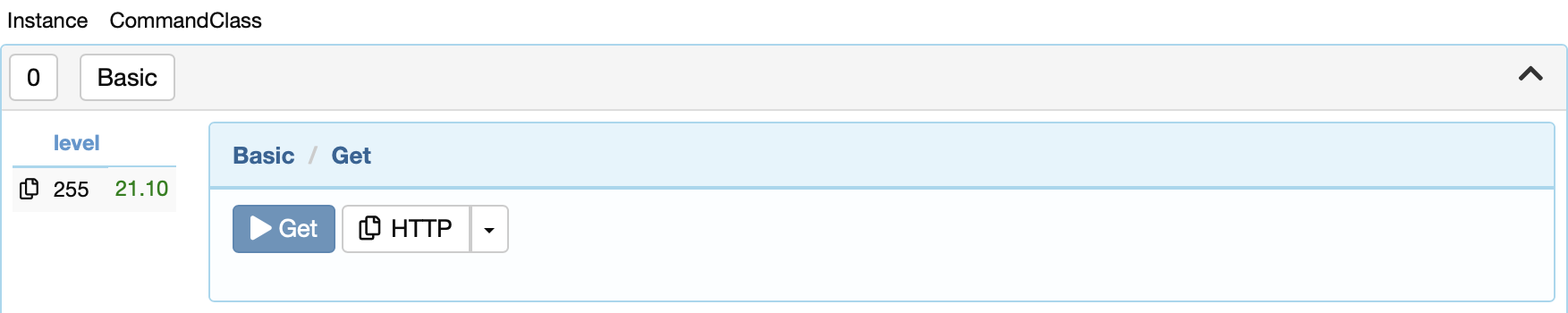

Get

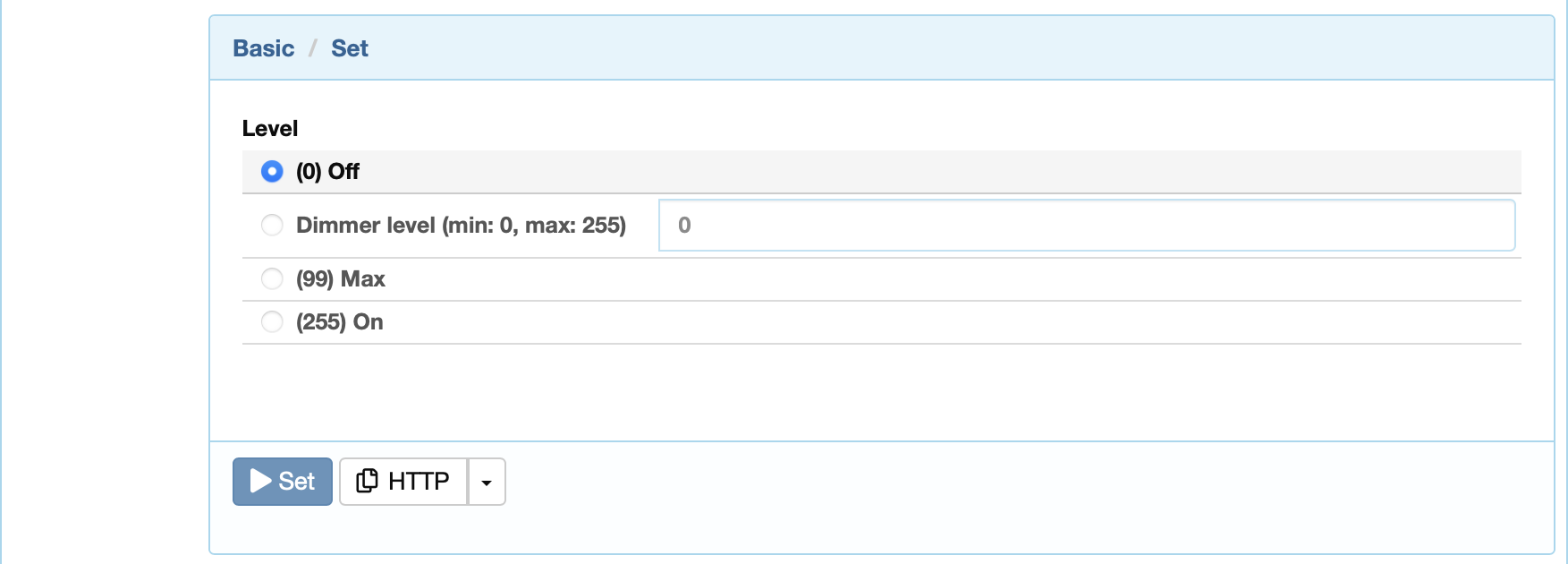

Set

Level: 0 - Off, 0 ... 255 - Dimmer level, 99 - Max, 255 - On

Binary Switch Command Class

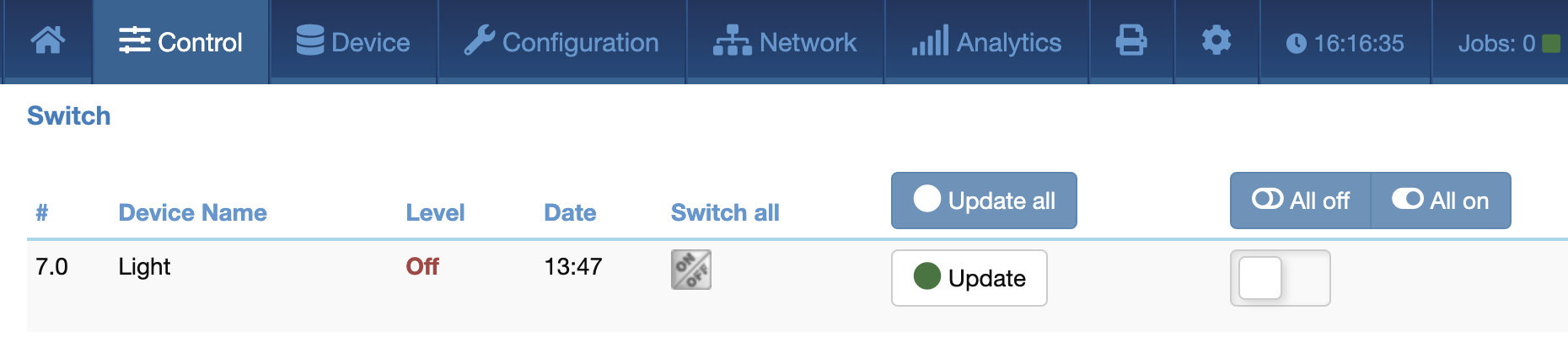

Control -> Switch

Configuration -> Expert commands -> SwitchBinary

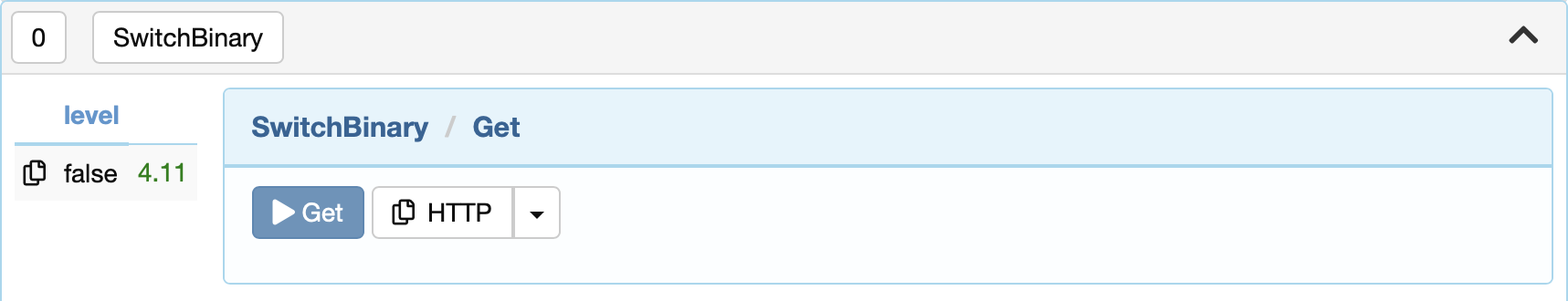

Get

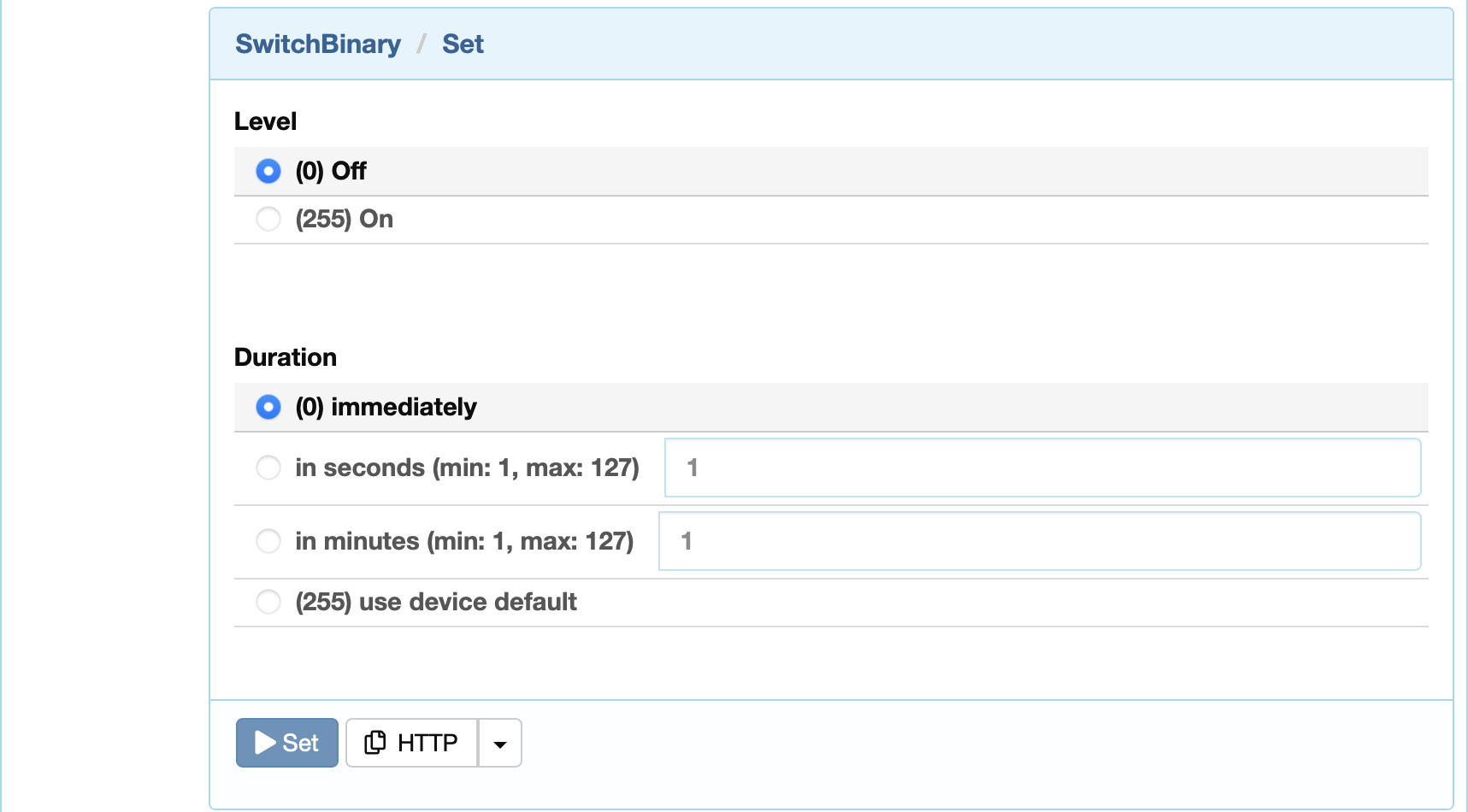

Set

Level: 0 - Off, 255 - On

Duration: 0 - immediately, 1 ... 127 - in seconds, 1 ... 127 - in minutes, 255 - use device default

Central Scene Command Class

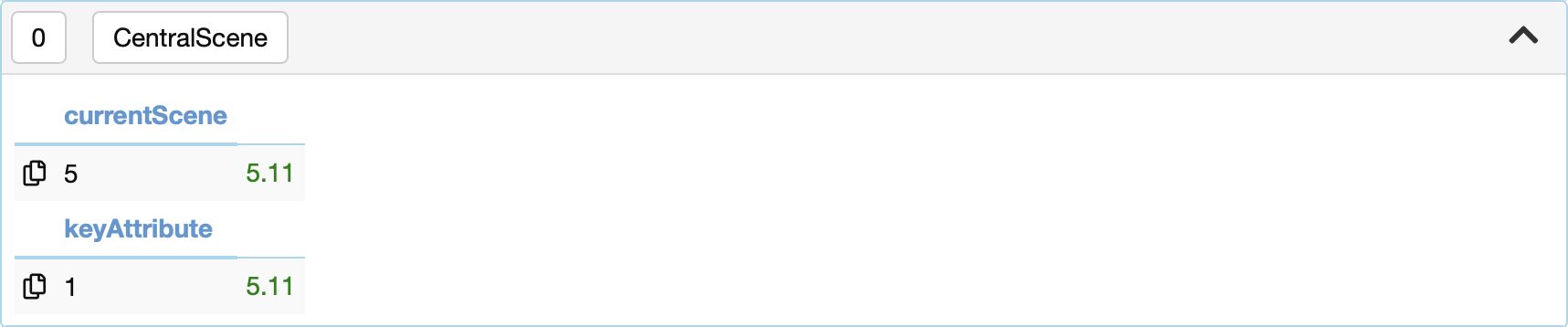

Configuration -> Expert commands -> CentralScene

Key Attribute Description
0 Key Pressed
1 Key Released
2 Key Held Down
3 Key Pressed 2 times
4 Key Pressed 3 times
5 Key Pressed 4 times
6 Key Pressed 5 times

Color Switch Command Class

Configuration -> Expert commands -> SwitchColor

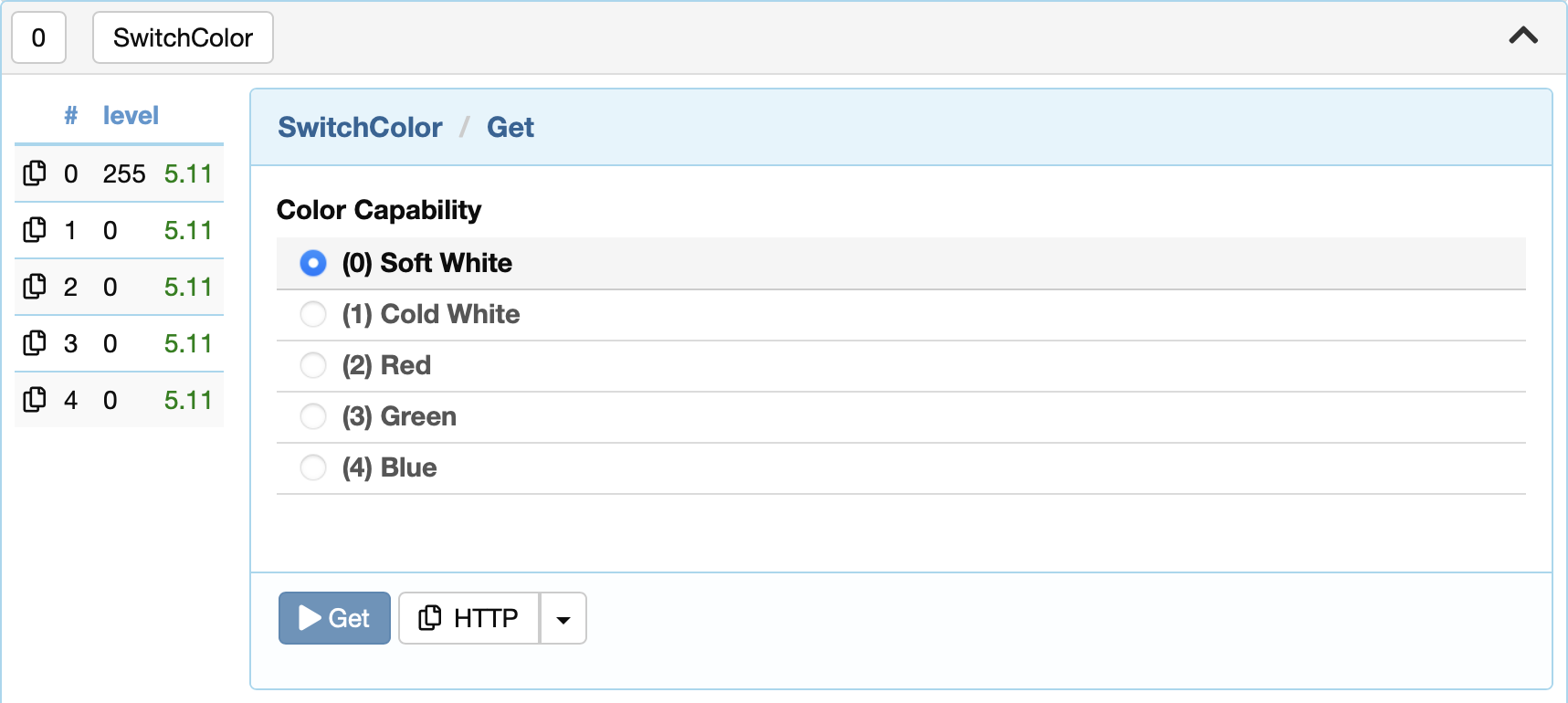

Get

Color Capability: 0 - Soft White, 1 - Cold White, 2 - Red, 3 - Green, 4 - Blue

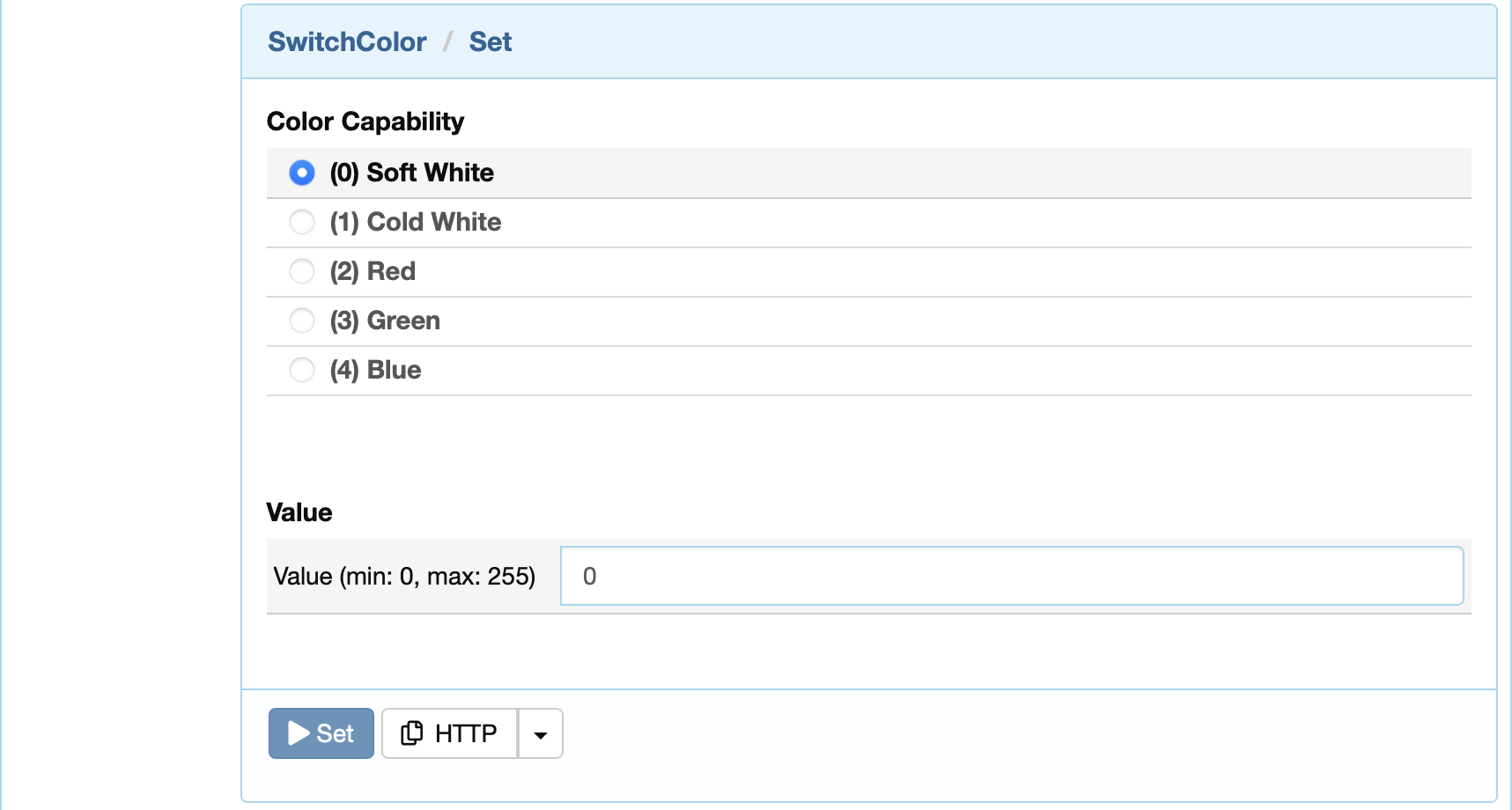

Set

Color Capability: 0 - Soft White, 1 - Cold White, 2 - Red, 3 - Green, 4 - Blue

Value: 0 ... 255

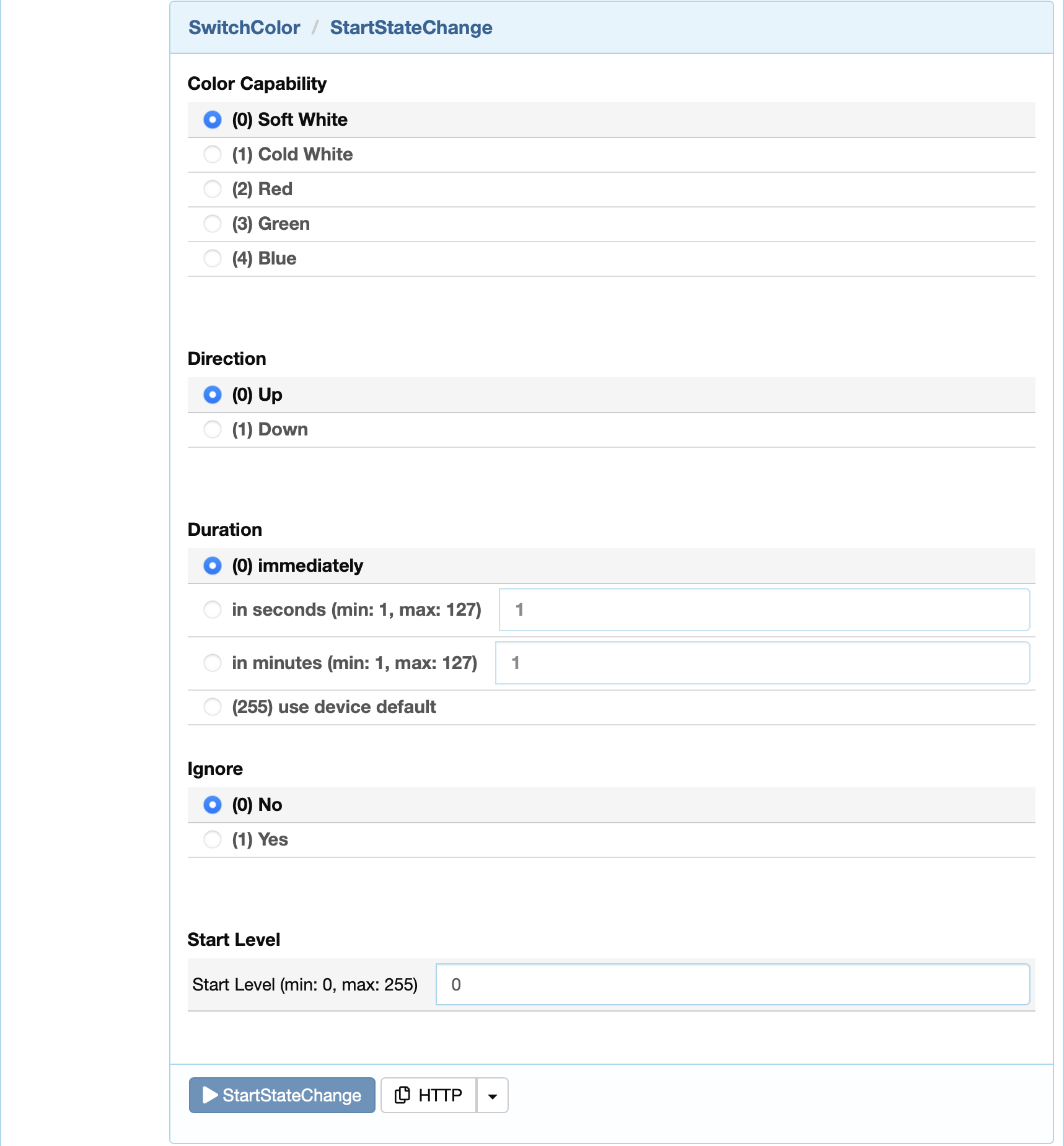

StartStateChange

Color Capability: 0 - Soft White, 1 - Cold White, 2 - Red, 3 - Green, 4 - Blue

Direction: 0 - Up, 1 - Down

Duration: 0 - immediately, 1 ... 127 - in seconds, 1 ... 127 - in minutes, 255 - use device default

Ignore: 0 - No, 1 - Yes

Start Level: 0 ... 255

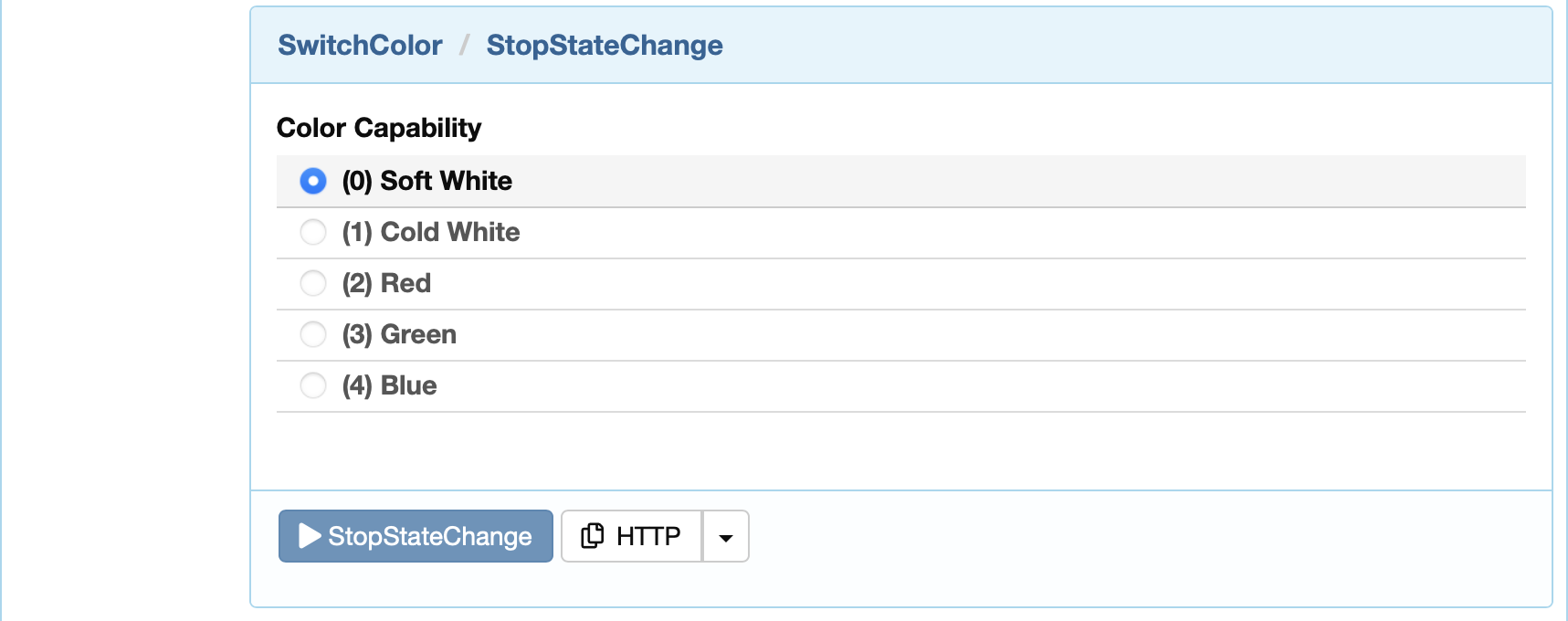

StopStateChange

Color Capability: 0 - Soft White, 1 - Cold White, 2 - Red, 3 - Green, 4 - Blue

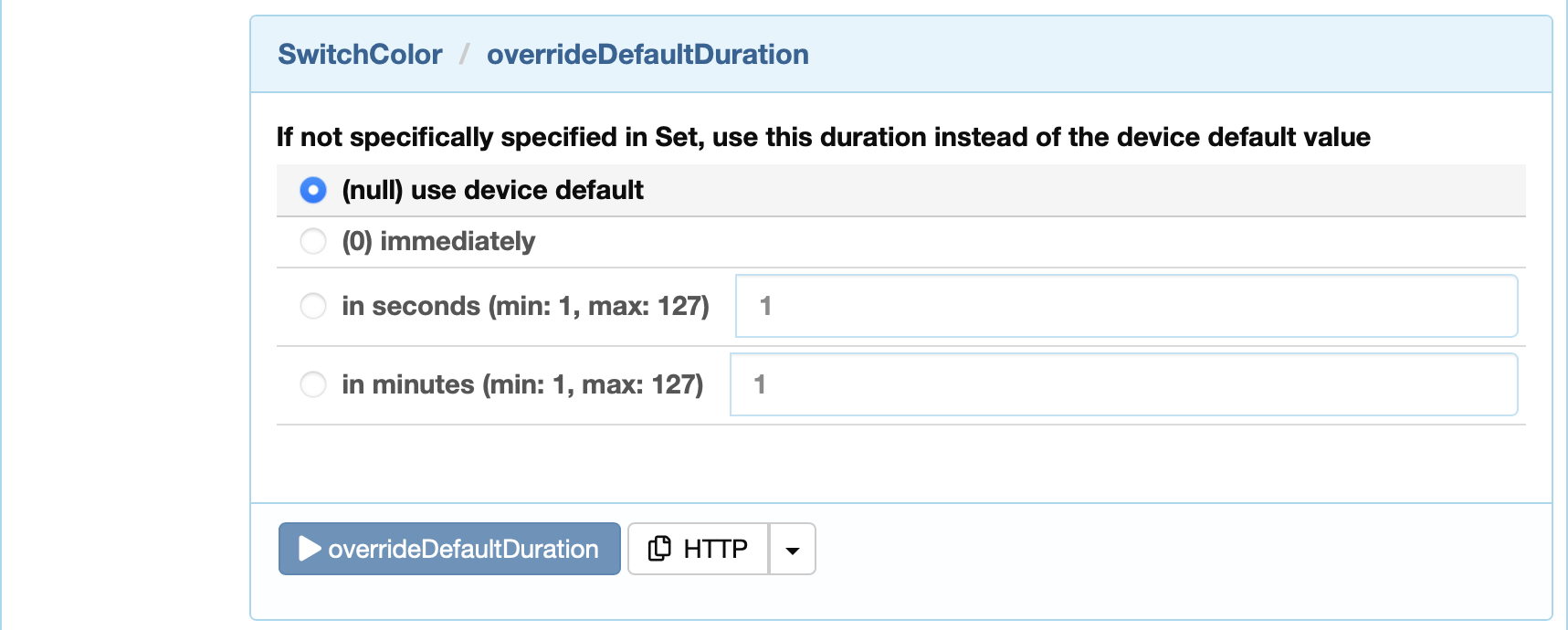

overrideDefaultDuration

If not specifically specified in Set, use this duration instead of the device default value

Duration: null - use device default, 0 - immediately, 1 ... 127 - in seconds, 1 ... 127 - in minutes

Configuration Command Class

For many devices, the UI has a description of the configuration parameters.

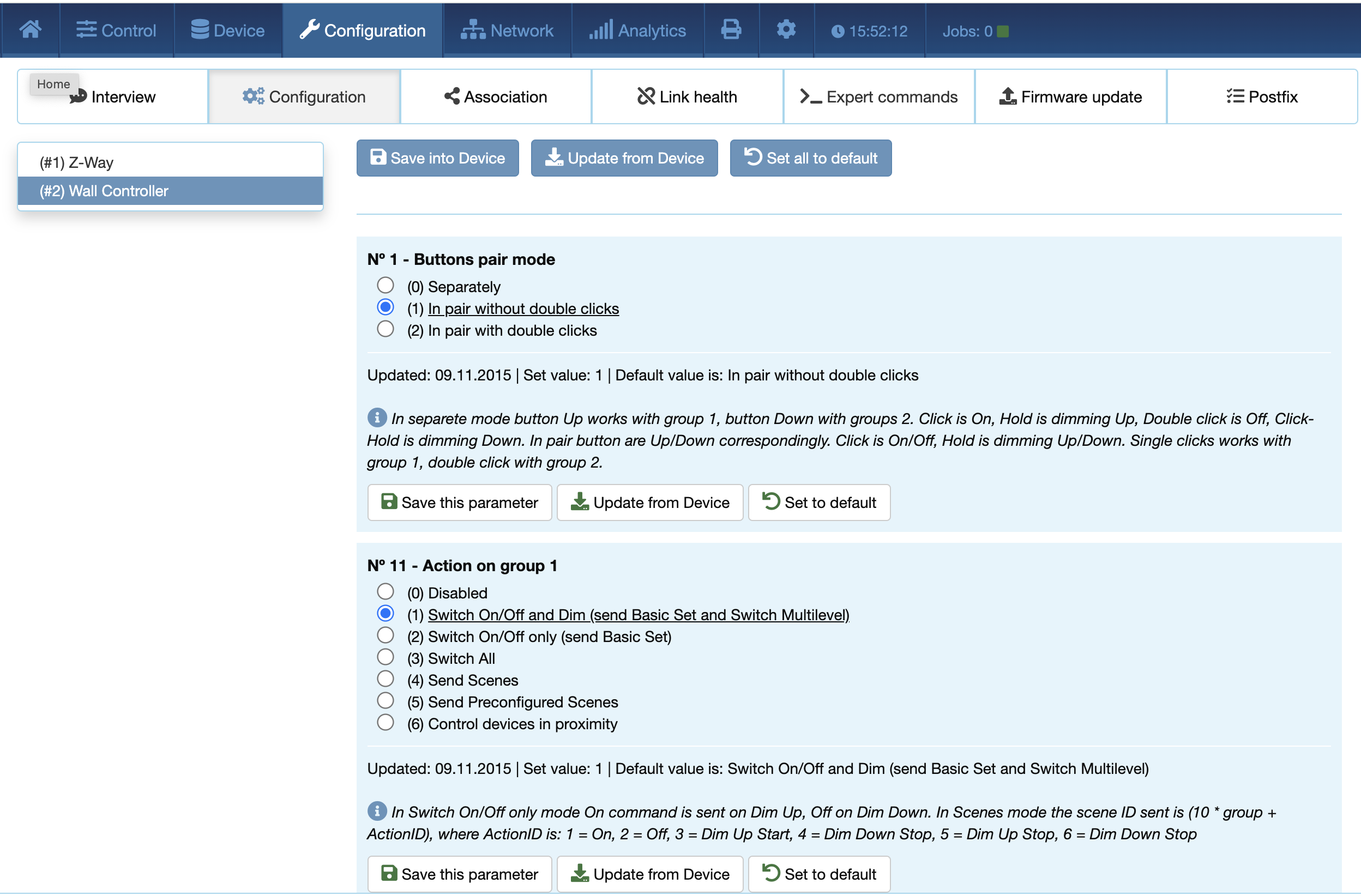

Configuration -> Configuration

If there is no description of the configuration parameters in the UI for the device, then you need to use the user's guide and enter the settings manually in the expert commands.

Configuration -> Expert commands -> Configuration

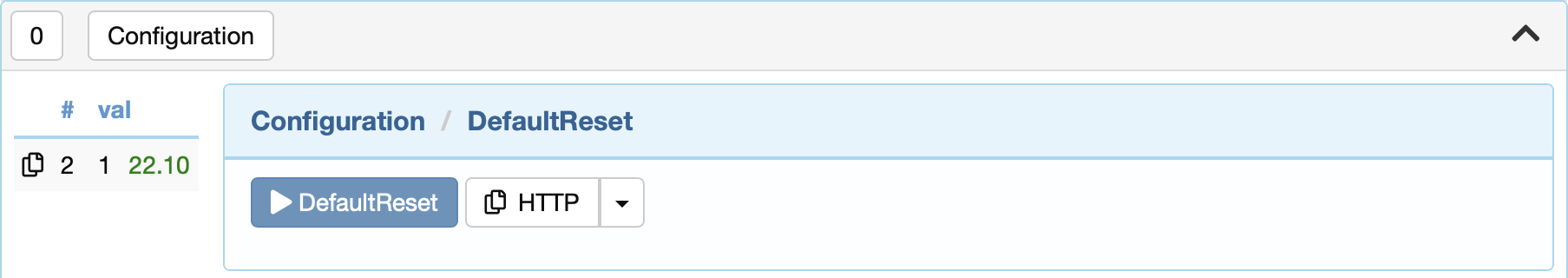

DefaultReset

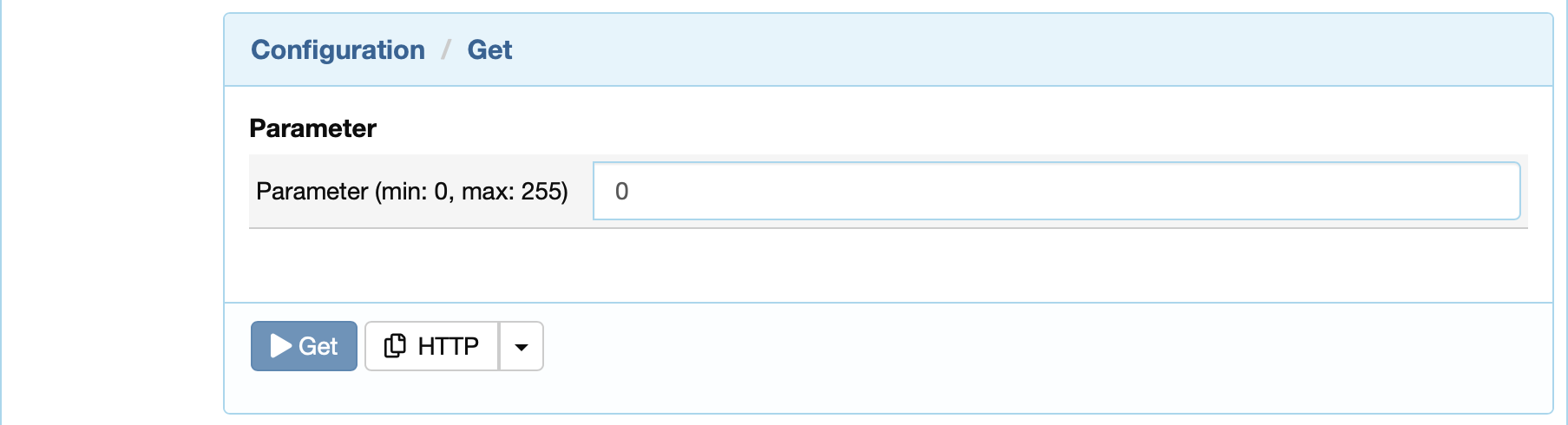

Get

Parameter: 0 ... 255

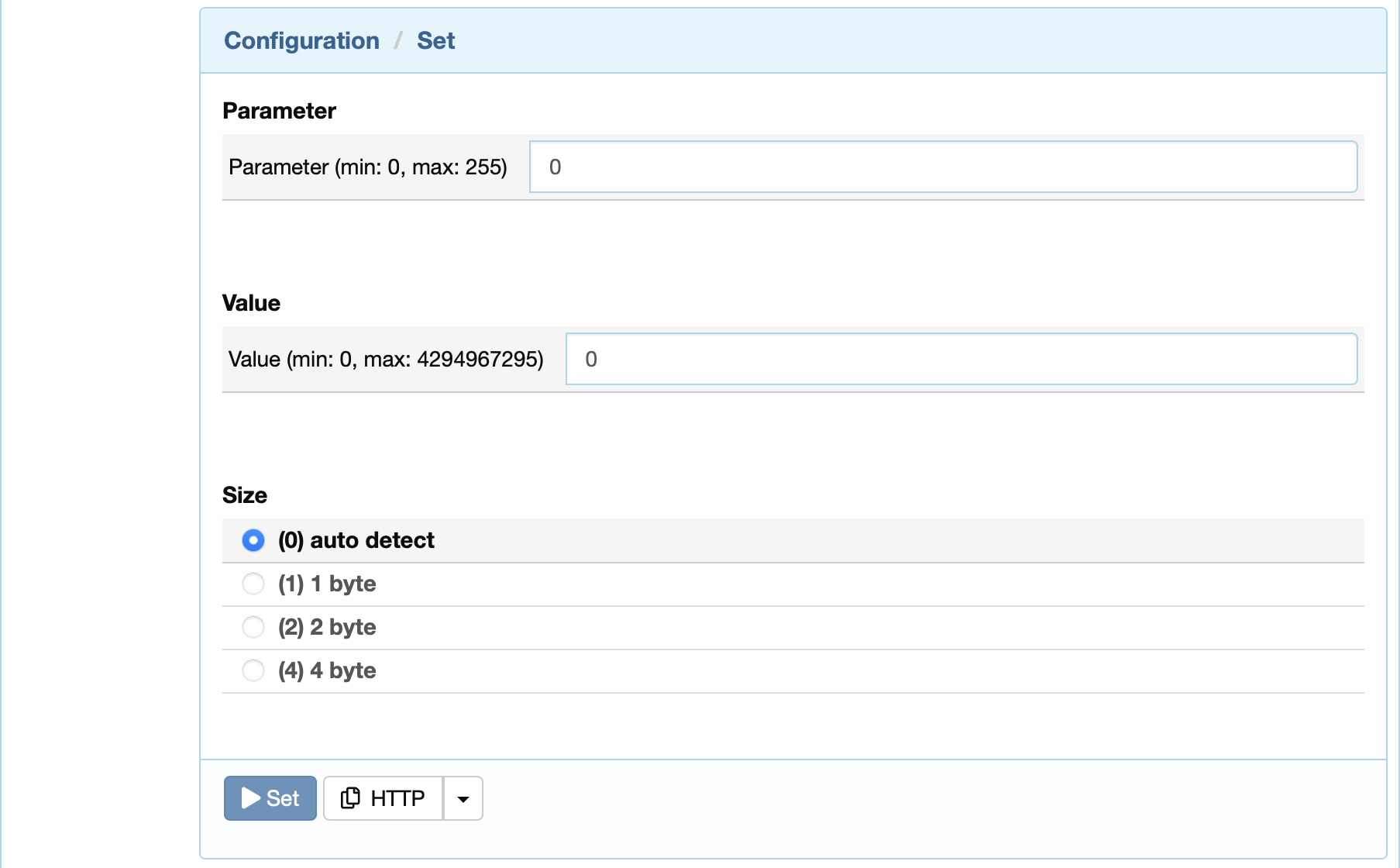

Set

Parameter: 0 ... 255

Value: 0 ... 4294967295

Size: 0 - auto detect, 1 - 1 byte, 2 - 2 bytes, 4 - 4 bytes

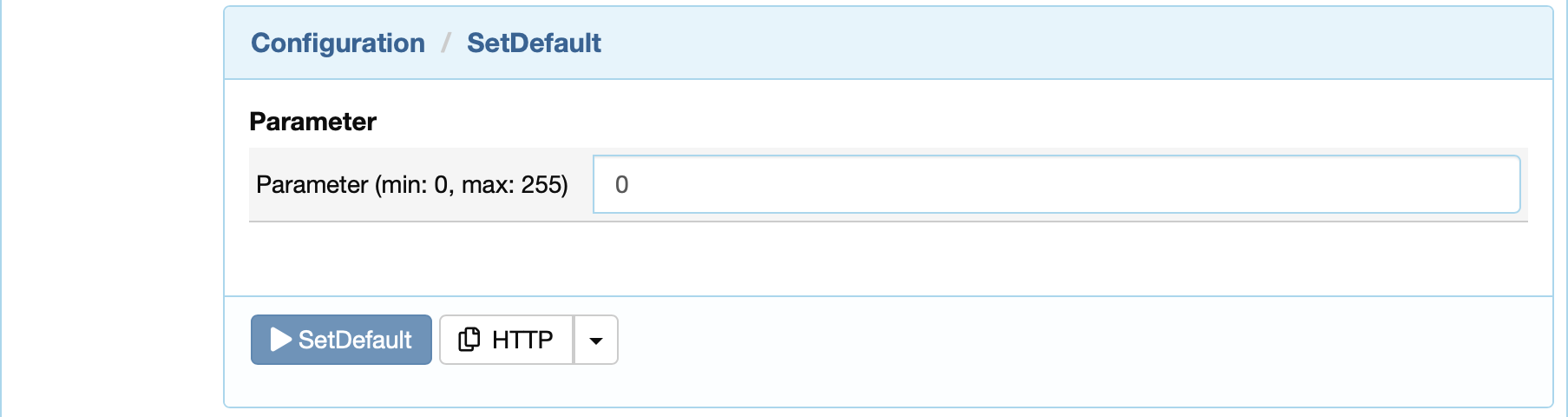

SetDefault

Parameter: 0 ... 255

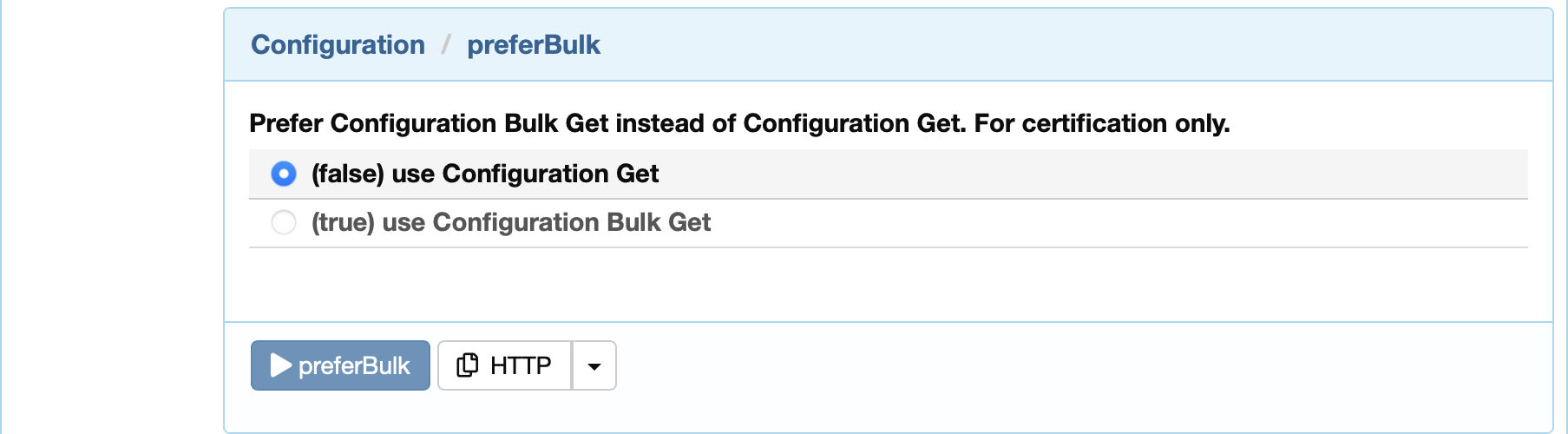

preferBulk

Prefer Configuration Bulk Get instead of Configuration Get: false - use Configuration Get, true - use Configuration Bulk Get

Door Lock Command Class

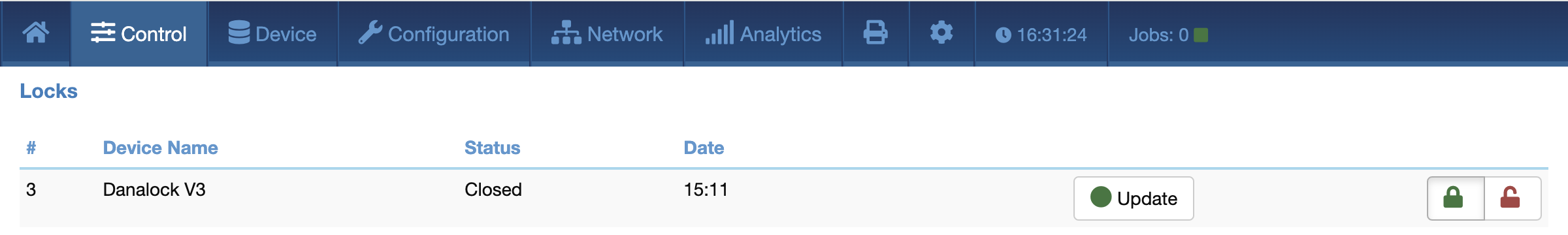

Control -> Locks

Configuration -> Expert commands -> DoorLock

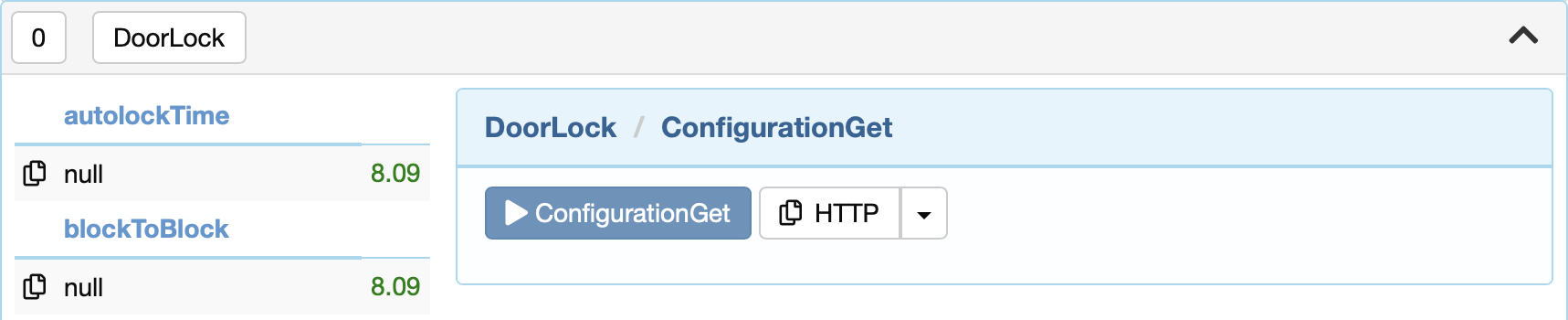

ConfigurationGet

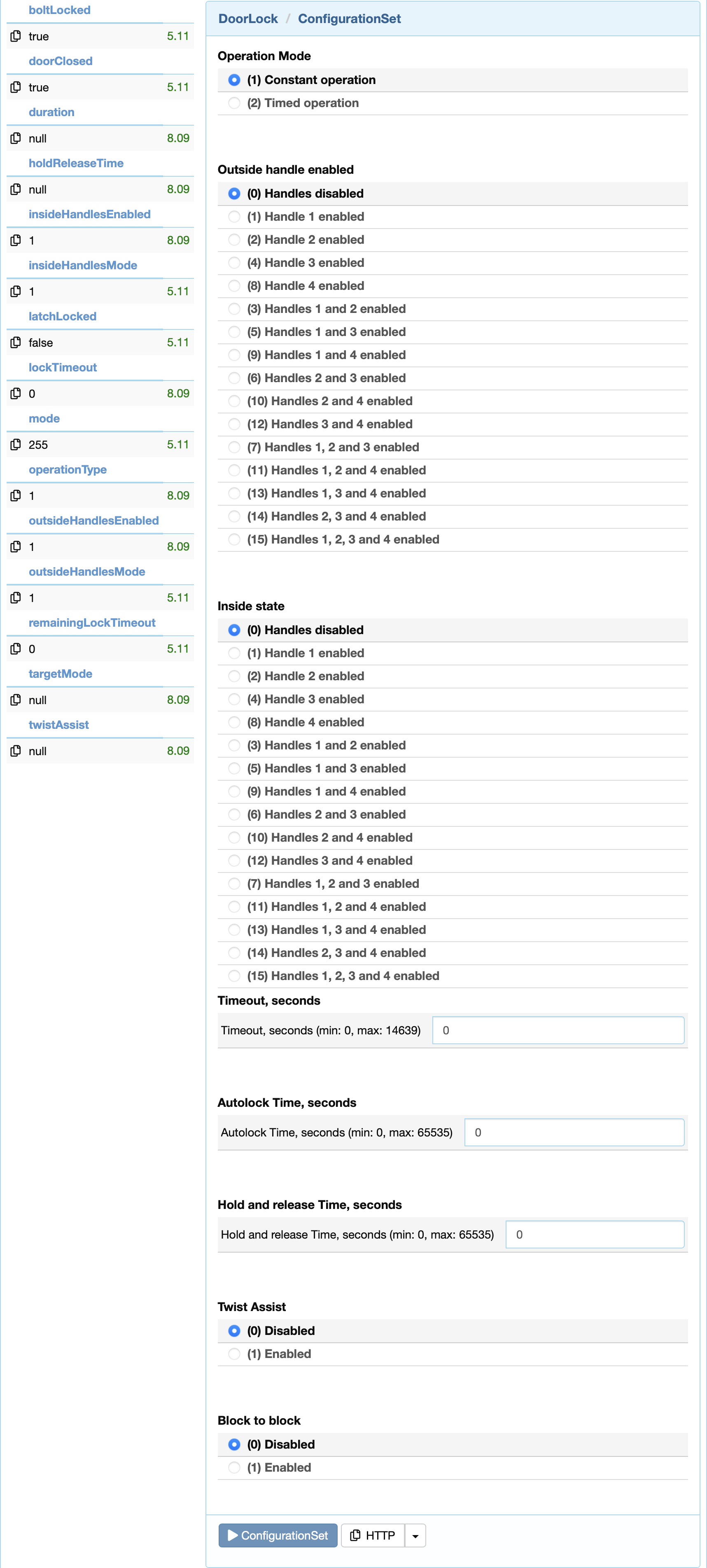

ConfigurationSet

Operation Mode: 1 - Constant operation, 2 - Timed operation

Timeout, seconds: 0 ... 14639

Autolock Time, seconds: 0 ... 65535

Hold and release Time, seconds: 0 ... 65535

Twist Assist: 0 - Disabled, 1 - Enabled

Block to block: 0 - Disabled, 1 - Enabled

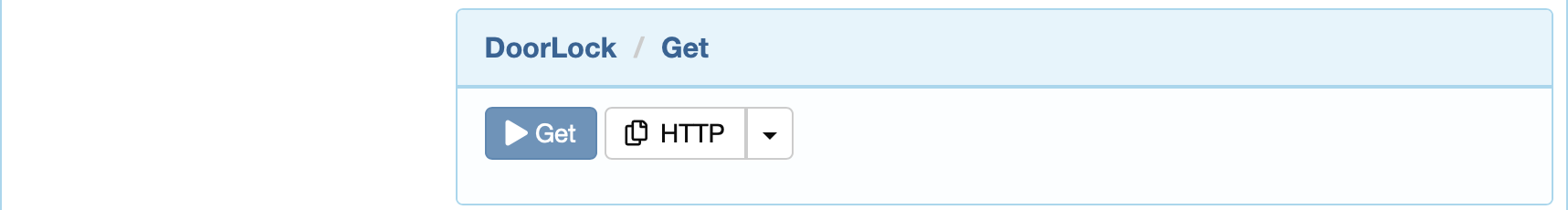

Get

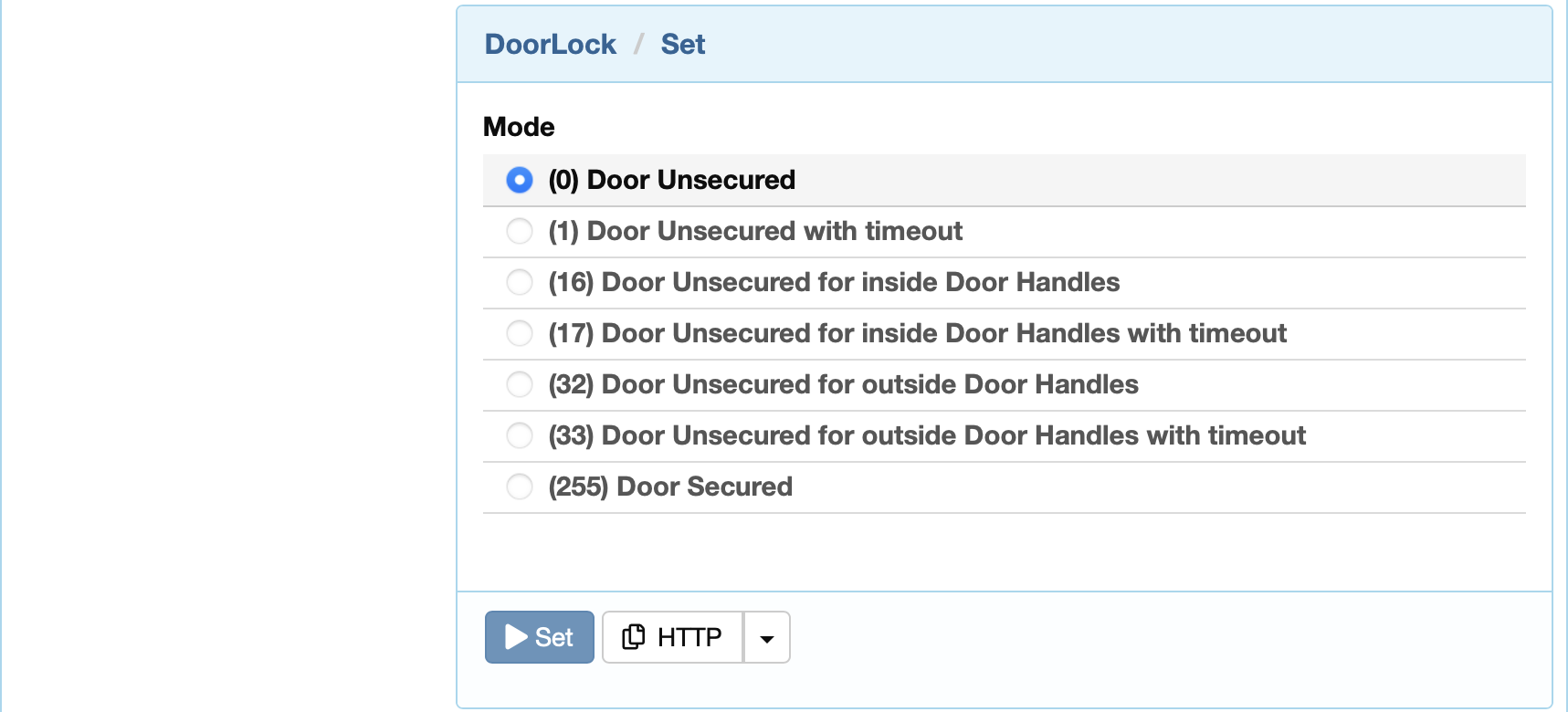

Set

Meter Command Class

Scale

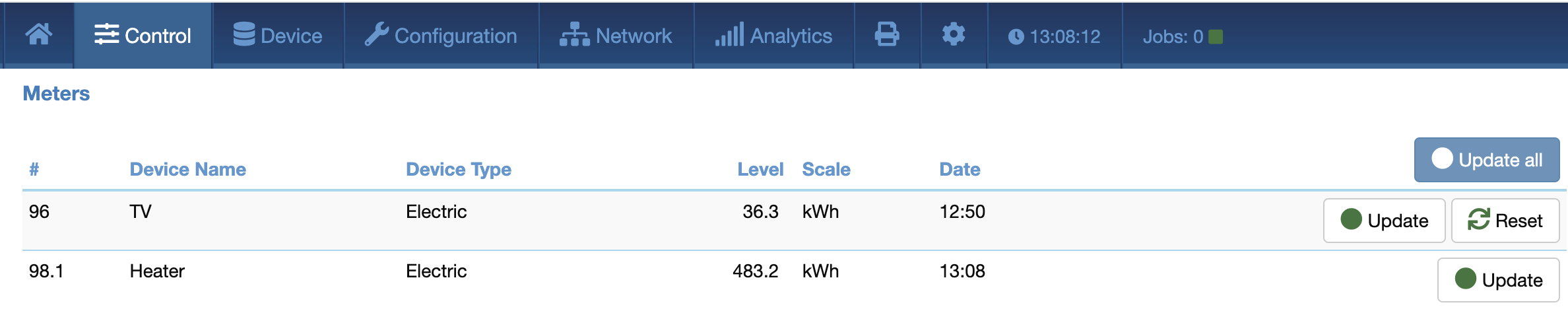

Control -> Meters

Configuration -> Expert commands -> Meter

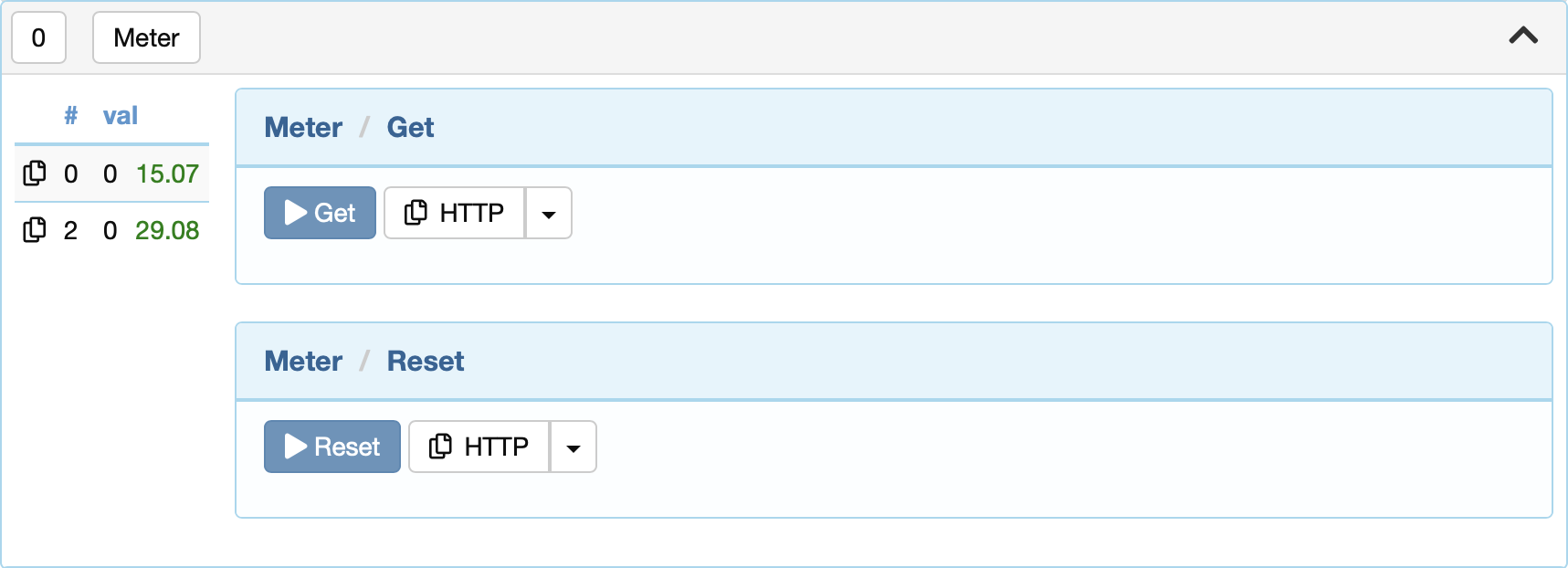

Get/Reset

Scale

Control -> Meters

Multilevel Sensor Command Class

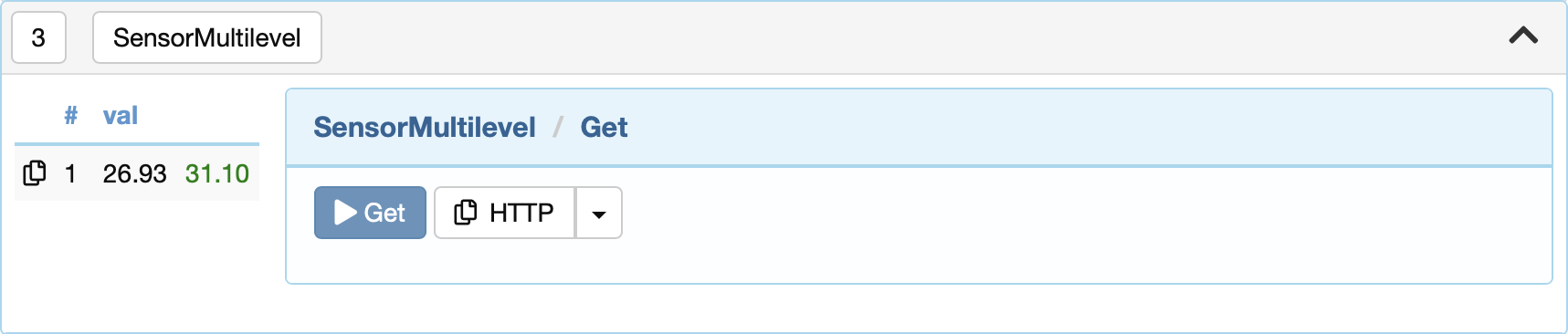

Configuration -> Expert commands -> SensorMultilevel

Get

Scale

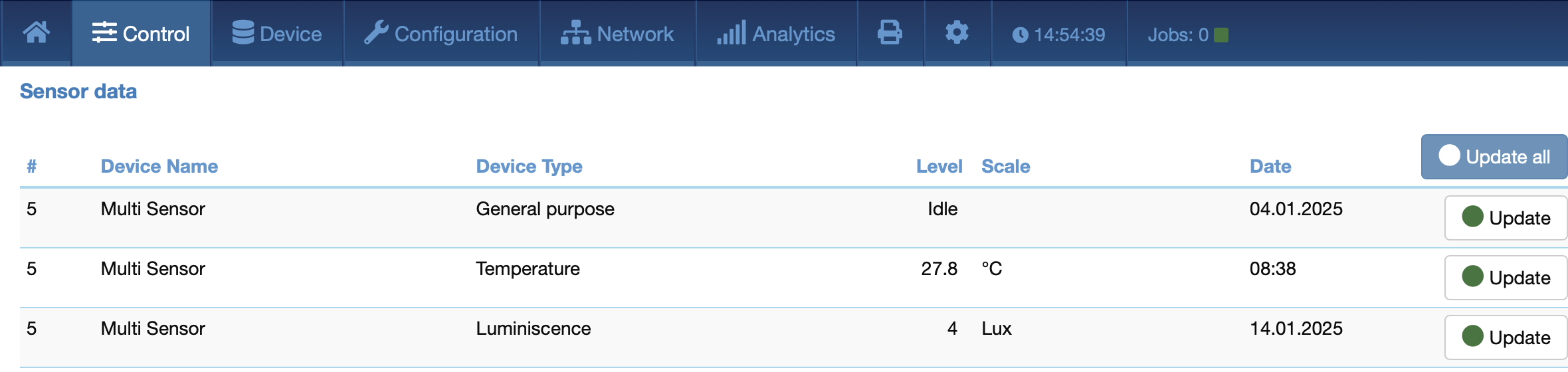

Control -> Sensors

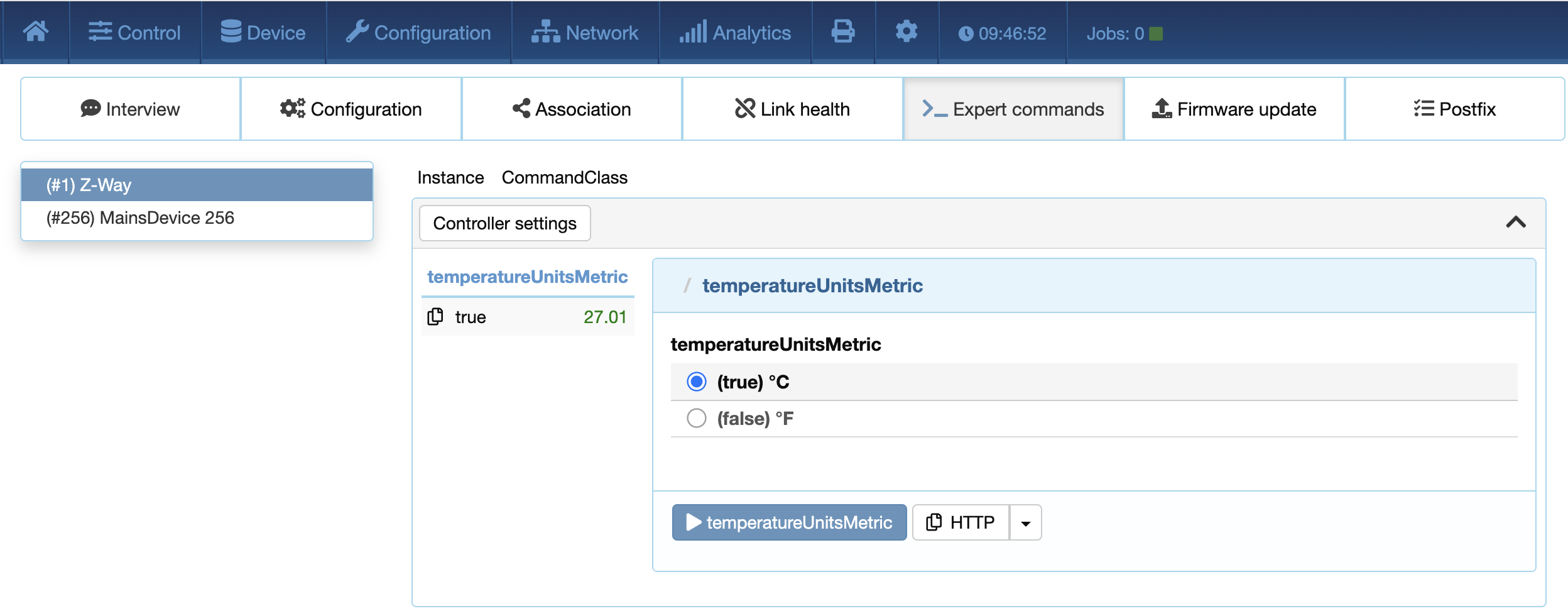

Temperature Units Metric

Temperature scales are automatically converted from device units to controller units °C or °F. Controller units can be changed.

Configuration -> Expert Commands -> Z-Way (usually #1) -> Controller settings

Multilevel Switch Command Class

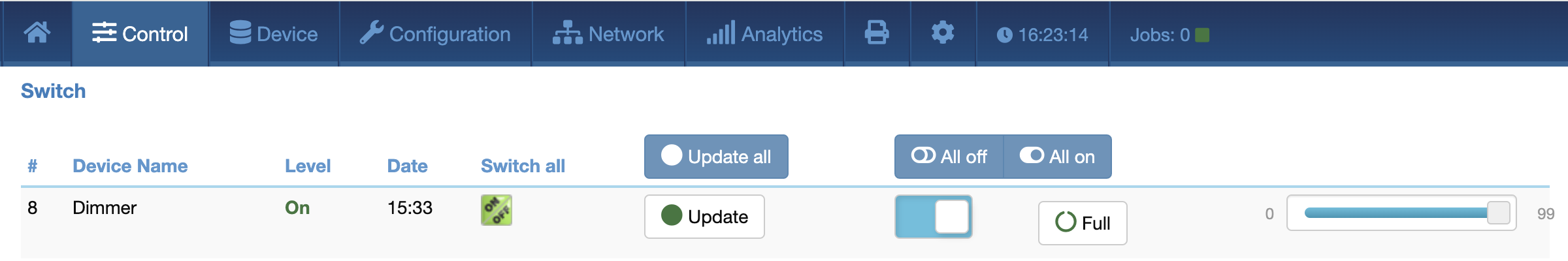

Control -> Switch

Configuration -> Expert commands -> SwitchMultilevel

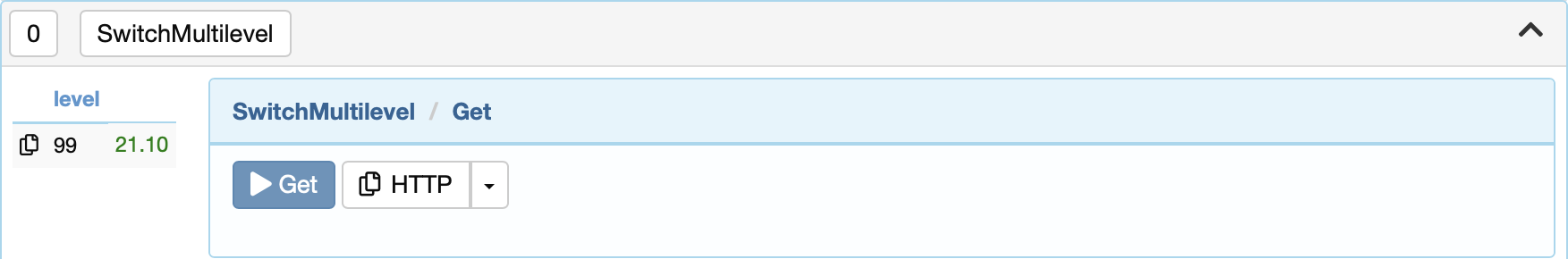

Get

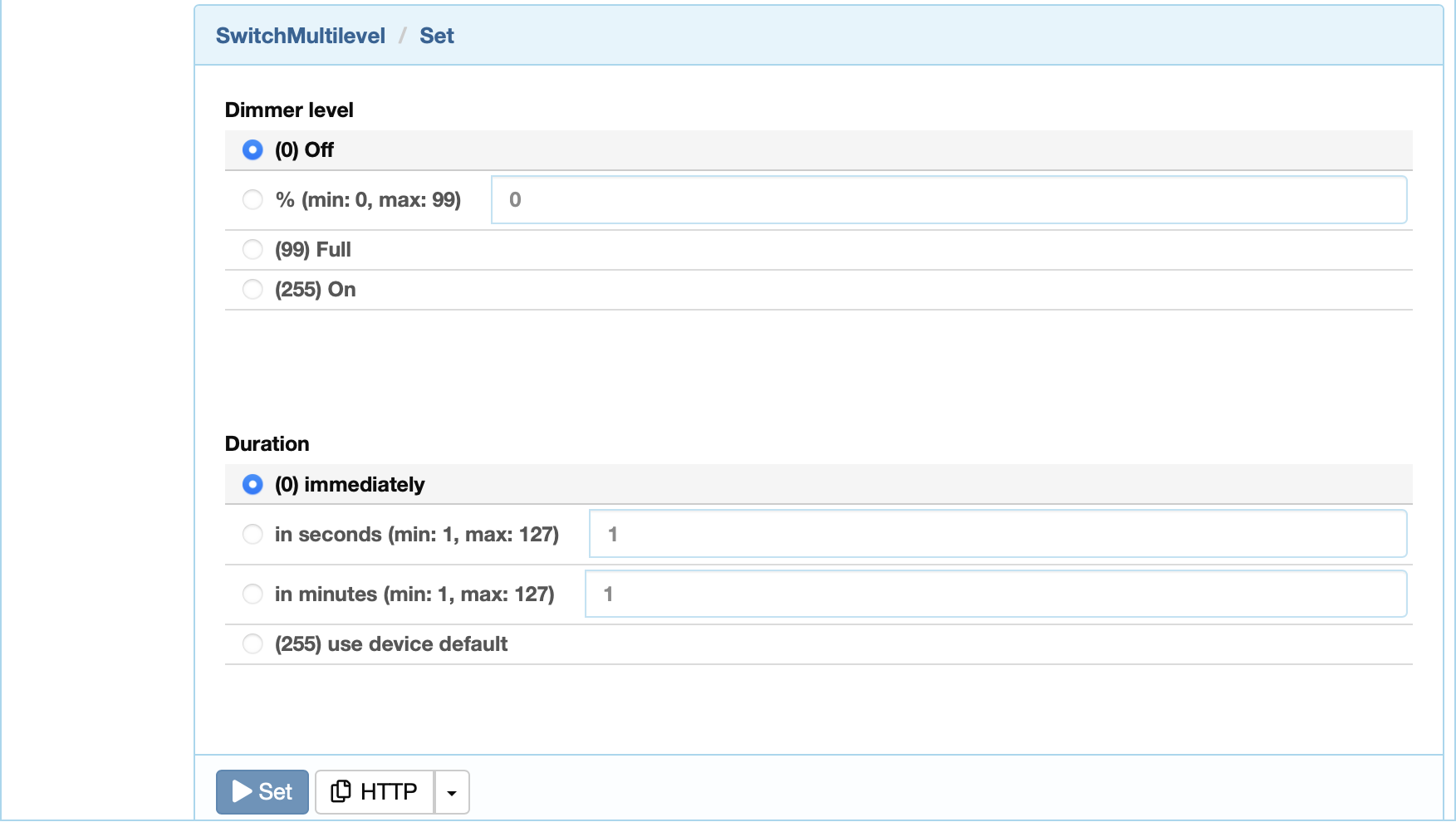

Set

Dimmer level: 0 - Off, 0 ... 99, 99 - Full, 255 - On

Duration: 0 - immediately, 1 ... 127 - in seconds, 1 ... 127 - in minutes, 255 - use device default

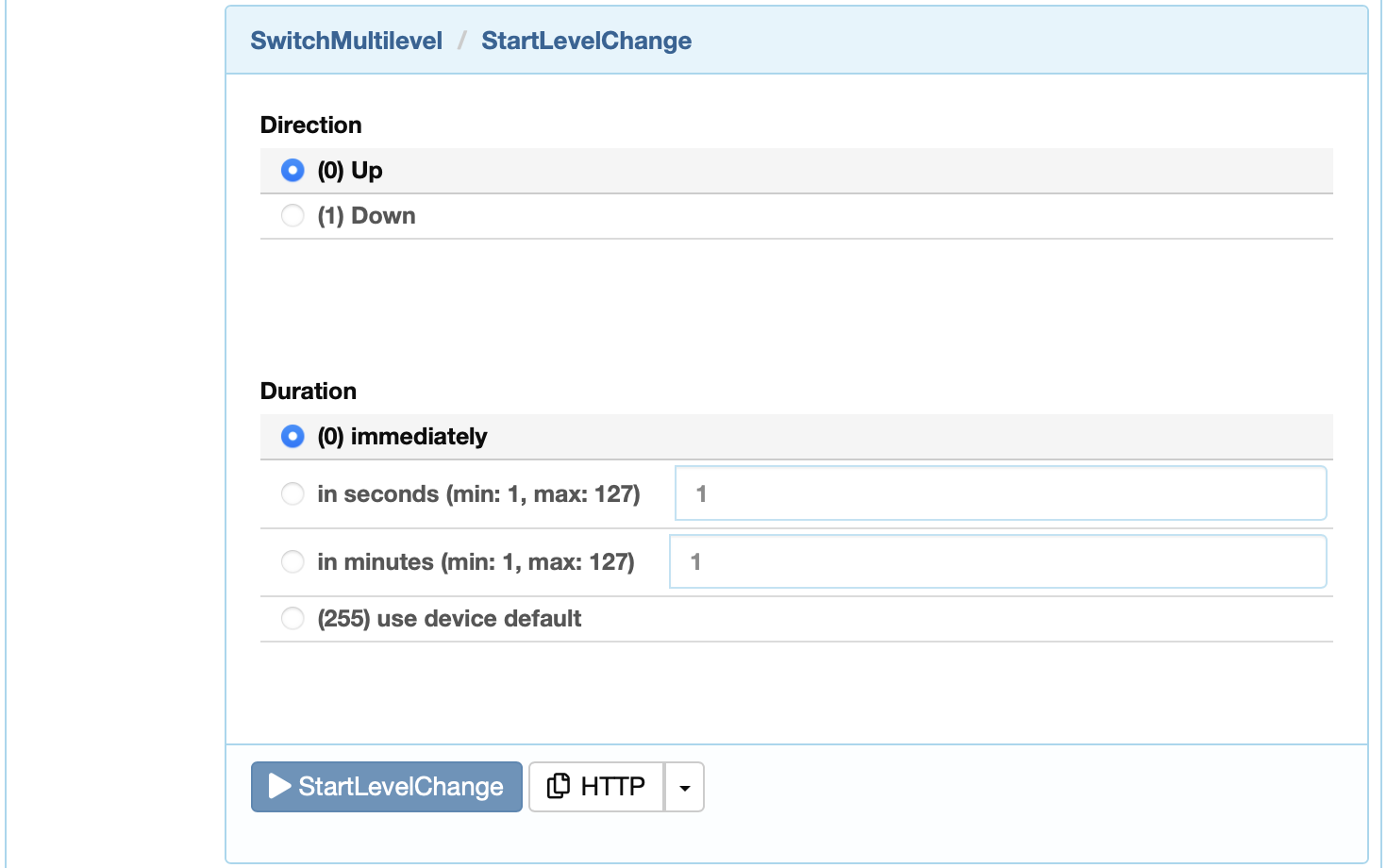

StartLevelChange

Direction: 0 - Up, 255 - Down

Duration: 0 - immediately, 1 ... 127 - in seconds, 1 ... 127 - in minutes, 255 - use device default

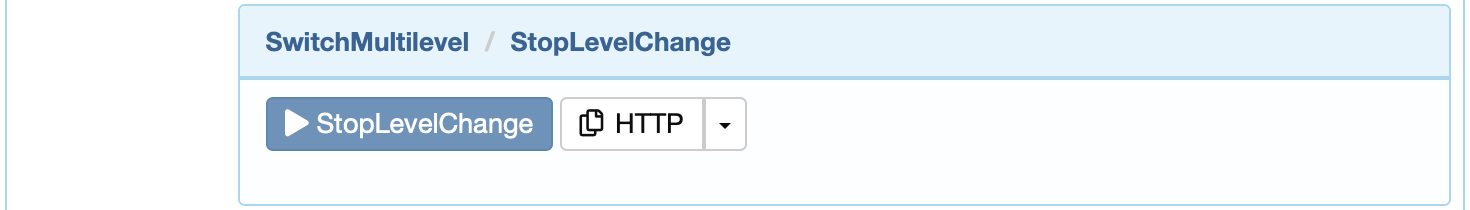

StopLevelChange

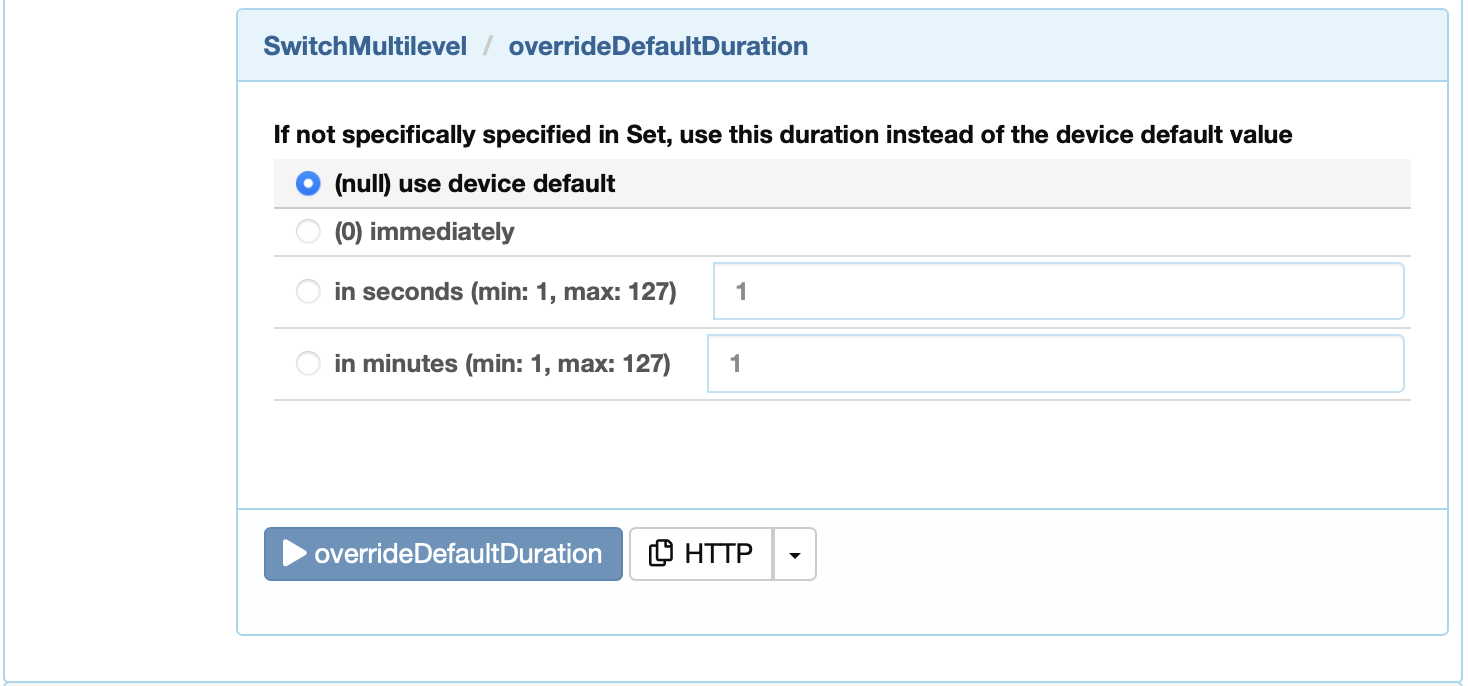

overrideDefaultDuration

If not specifically specified in Set, use this duration instead of the device default value

Duration: null - use device default, 0 - immediately, 1 ... 127 - in seconds, 1 ... 127 - in minutes

Notification Command Class

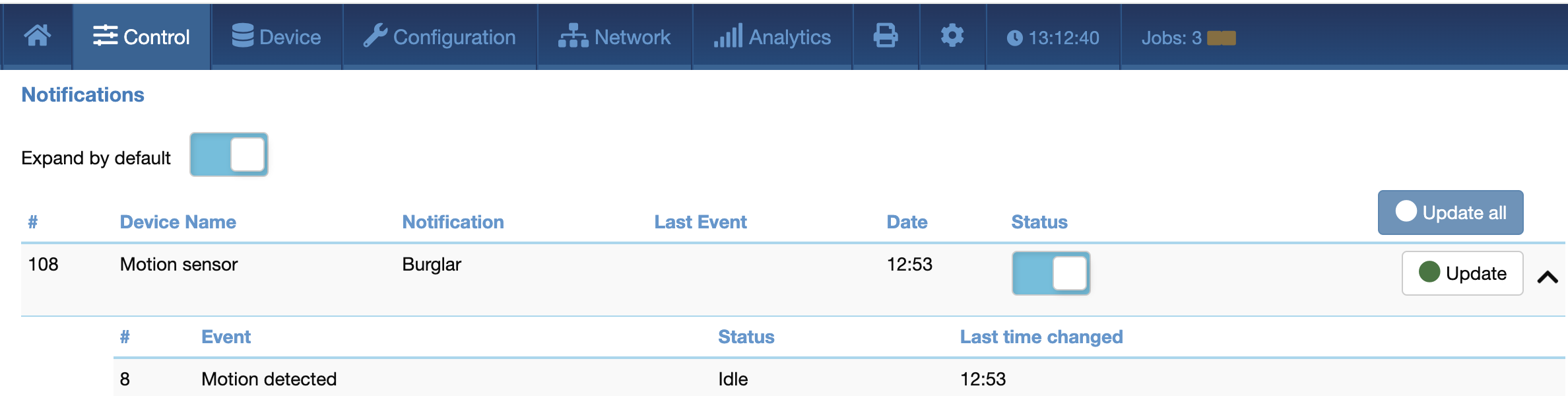

Event

Control -> Notifications

Configuration -> Expert commands -> Notification

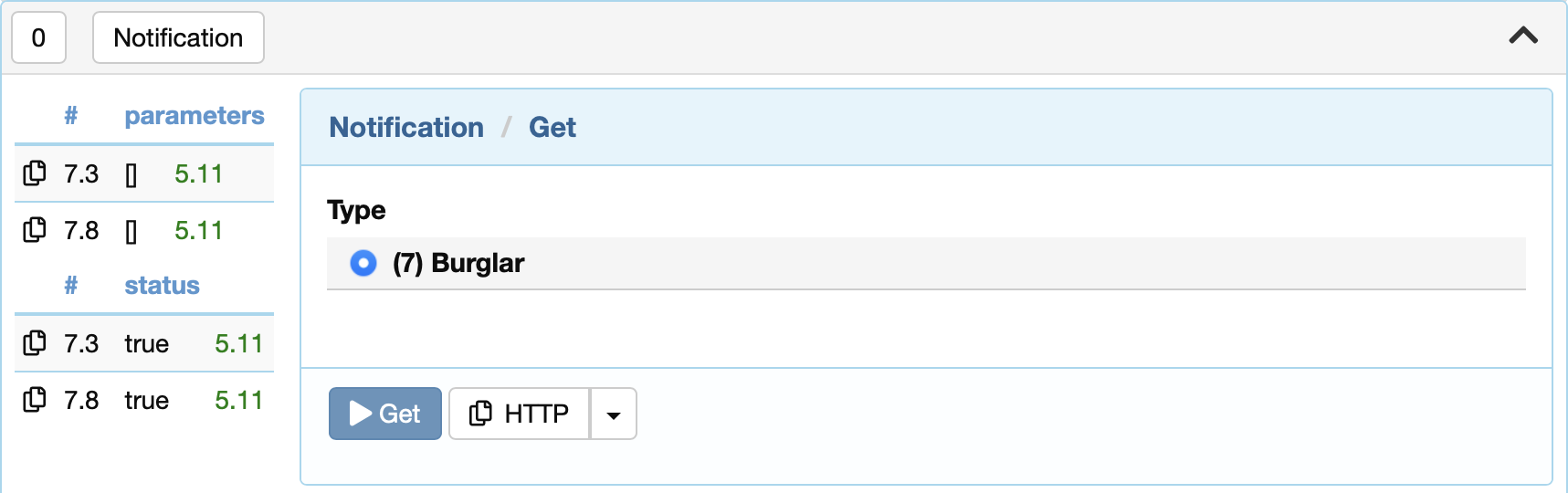

Get

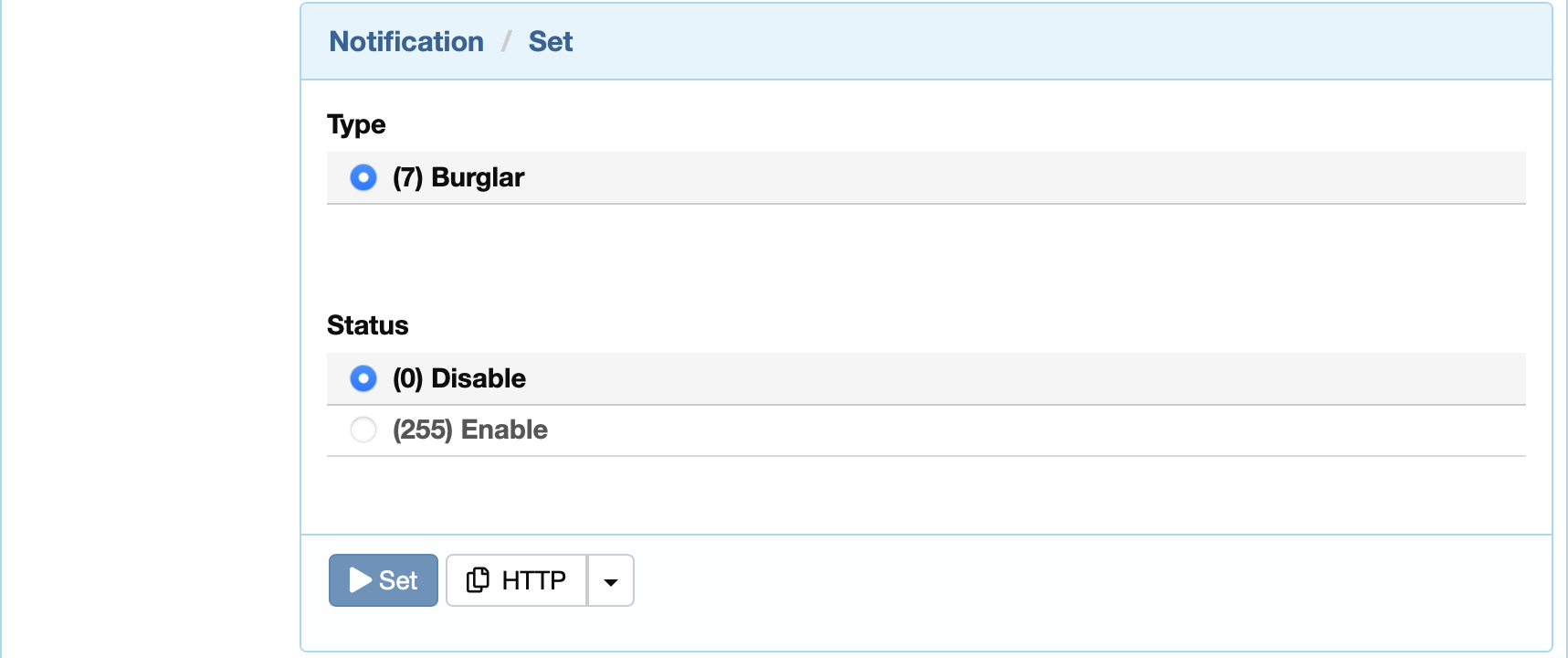

Set

Type, Status: 0 - Disable, 255 - Enable

Sound Switch Command Class

Configuration -> Expert commands -> SoundSwitch

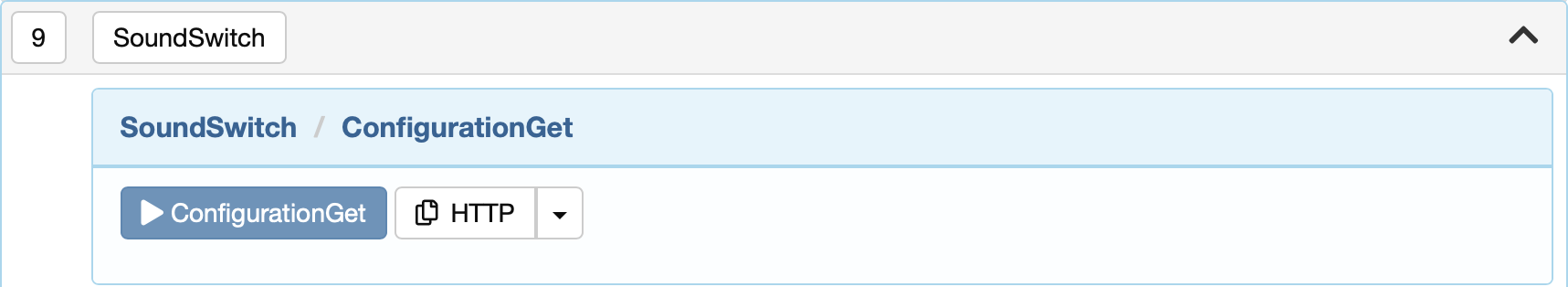

ConfigurationGet

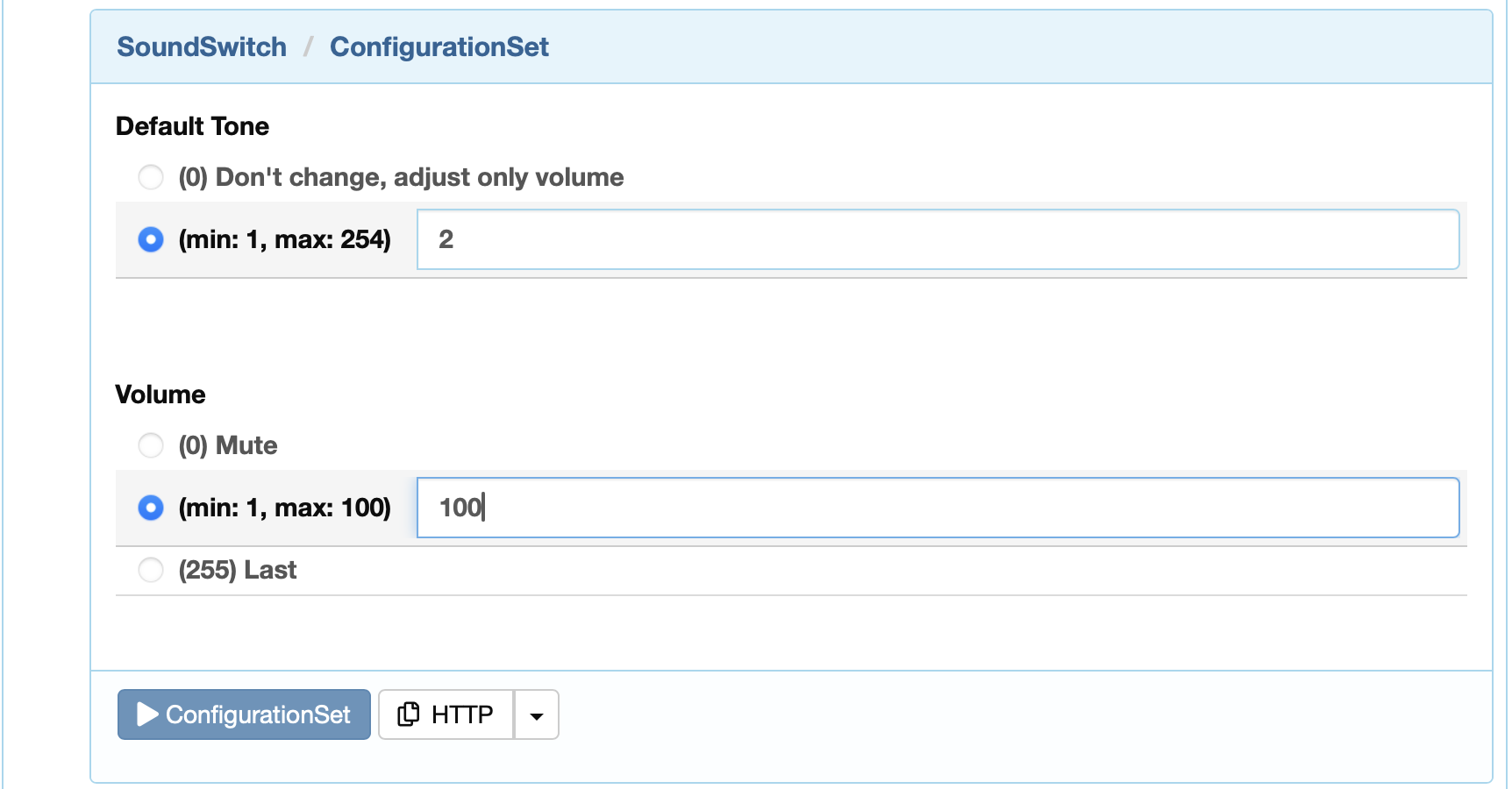

ConfigurationSet

Tone: 0 - Don't change, adjust only volume, 1 ... 254

Volume: 0 - Mute, 1 ... 100, 255 - Last

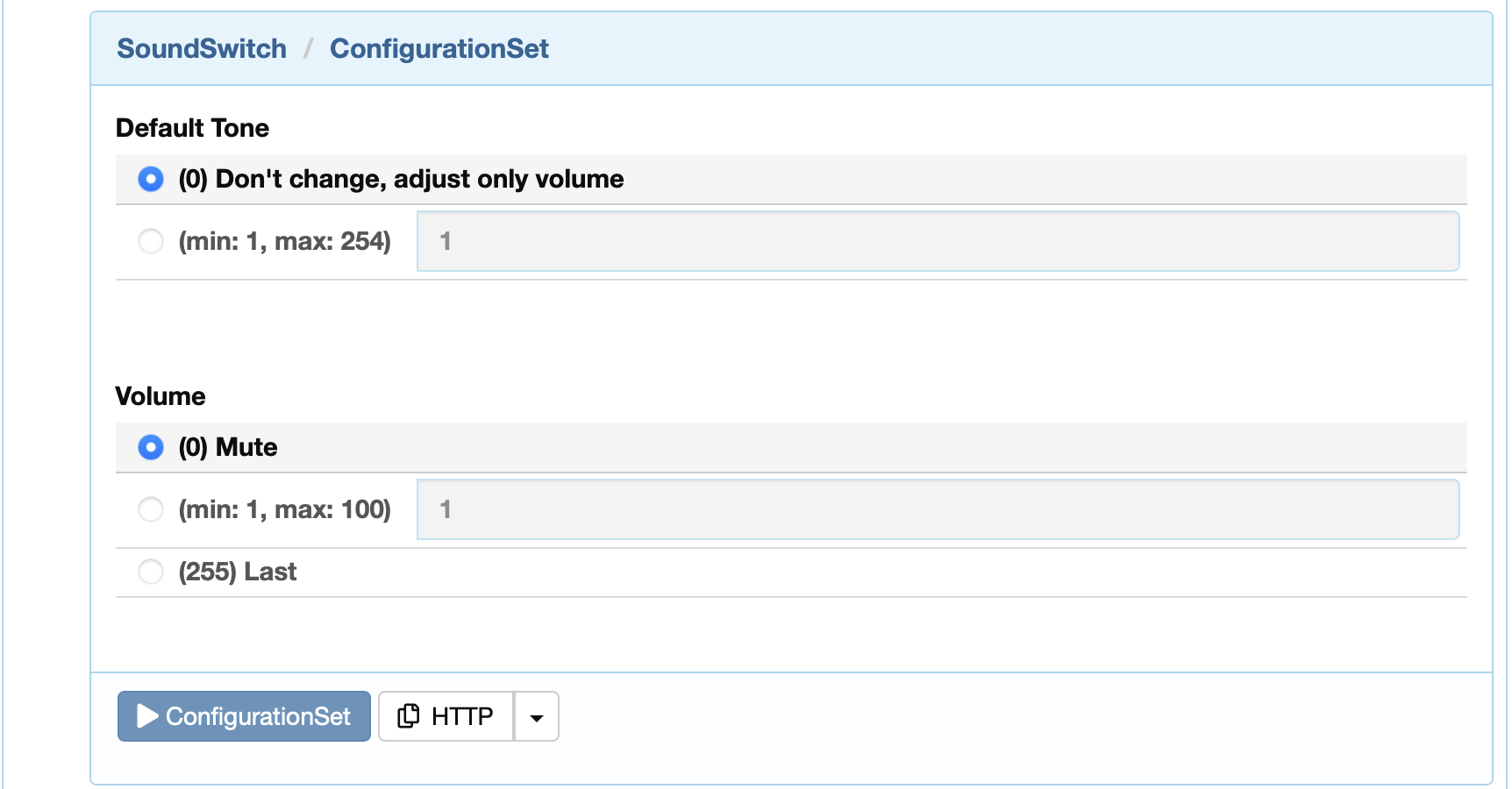

Example: Mute volume (set to 0)

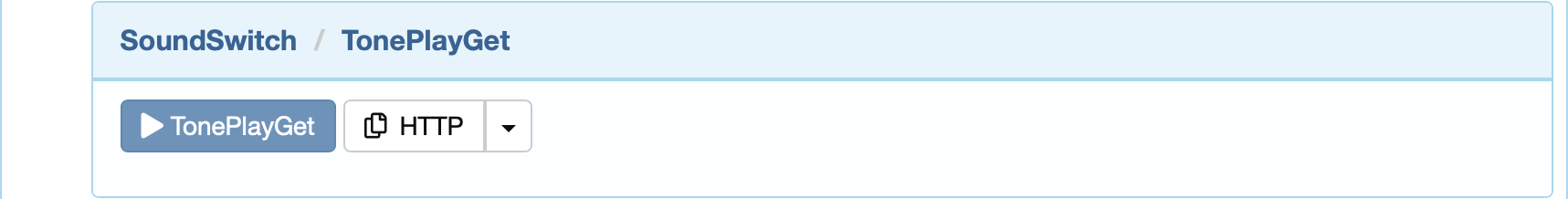

TonePlayGet

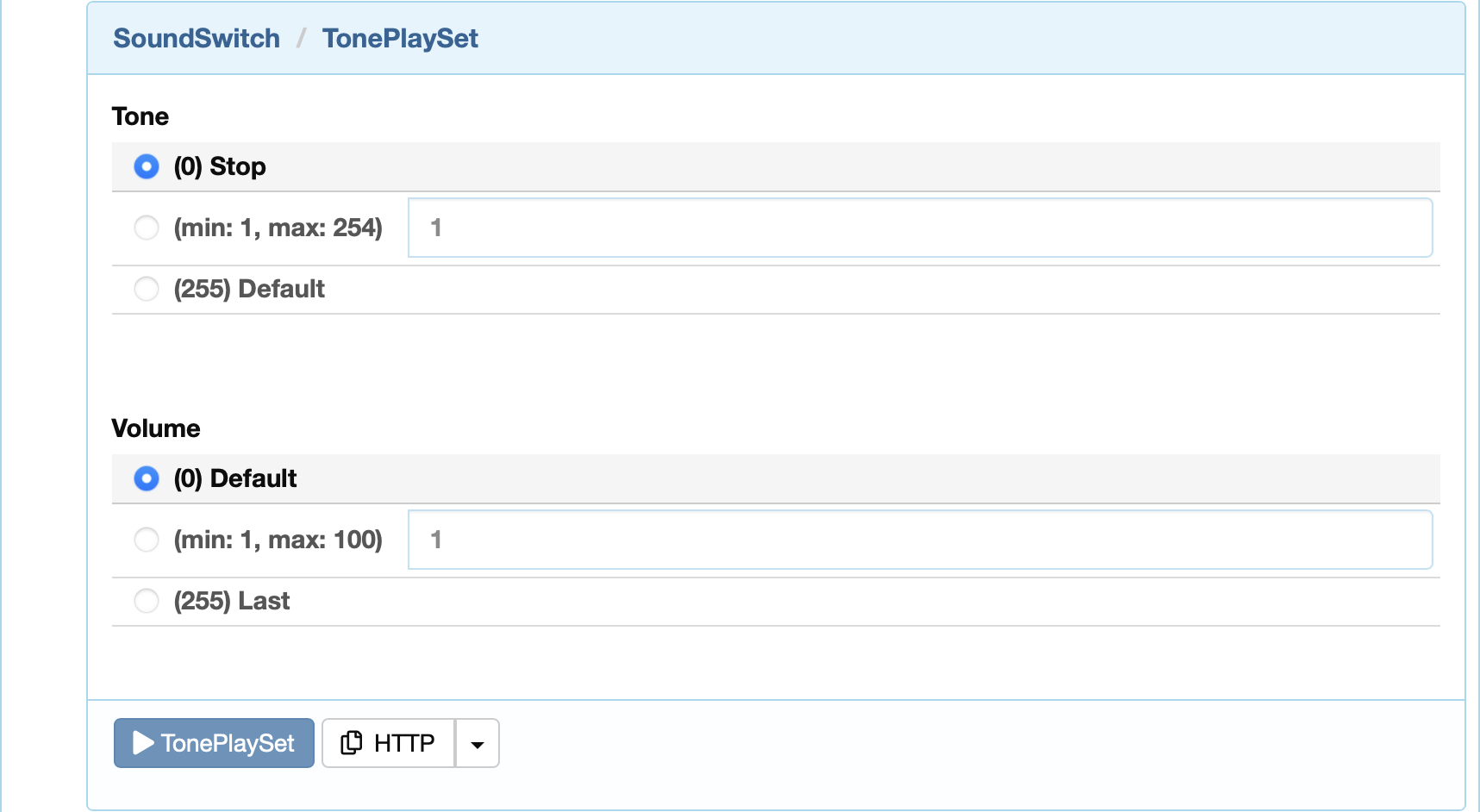

TonePlaySet

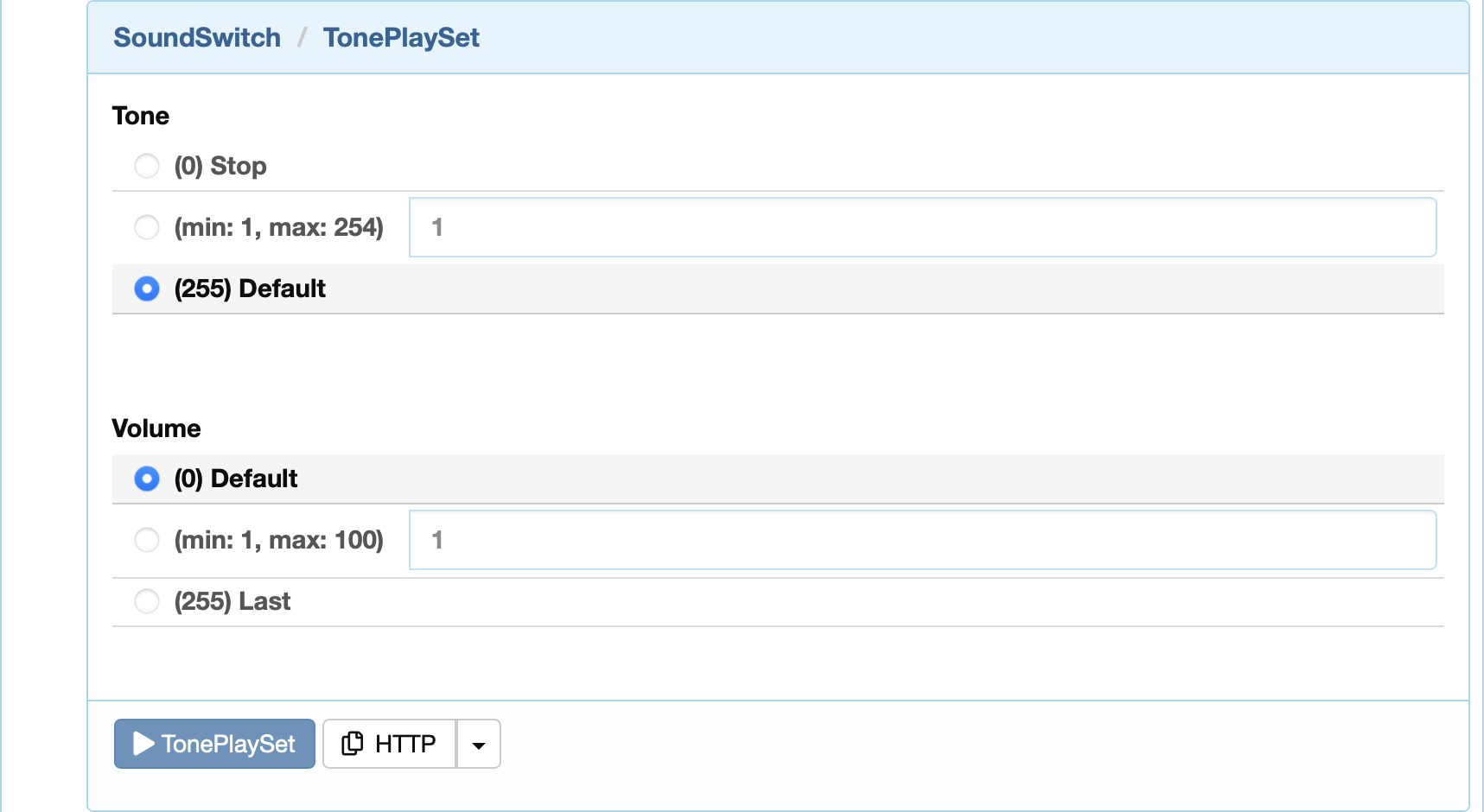

Tone: 0 - Stop, 1 ... 254, 255 - Default

Volume: 0 - Default, 1 ... 100, 255 - Last

TonePlaySet

Example: Stop

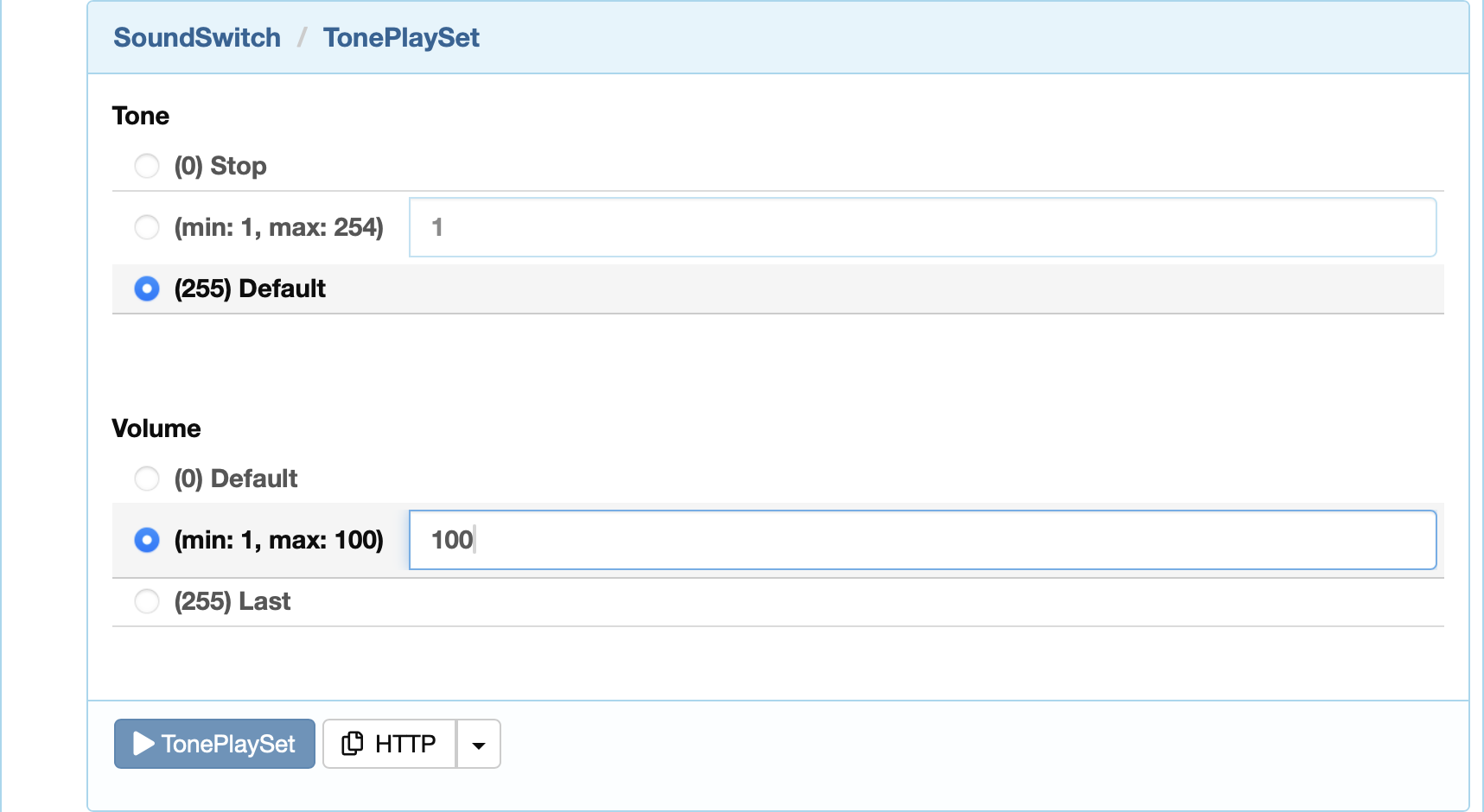

Example: Set volume (to 100)

Example: Play tone (Tone 3)

Example: Play default tone

Thermostat Fan Mode Command Class

Configuration -> Expert commands -> ThermostatFanMode

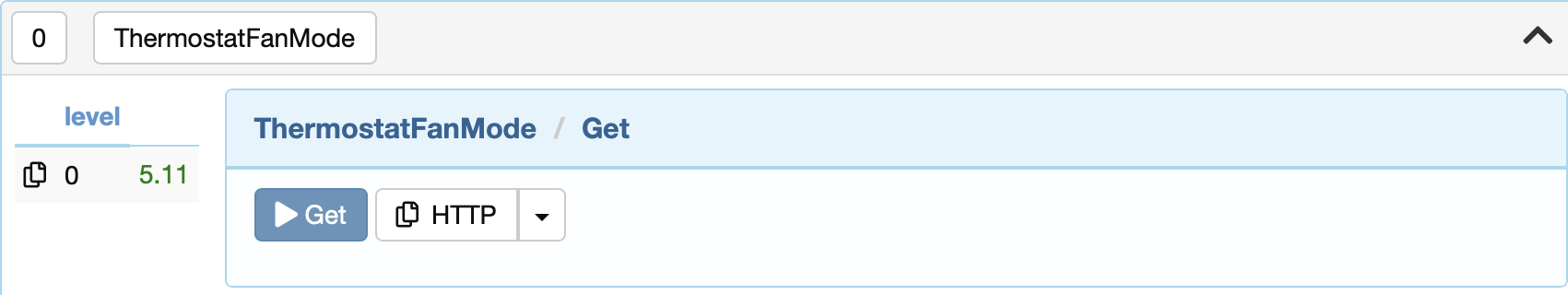

Get

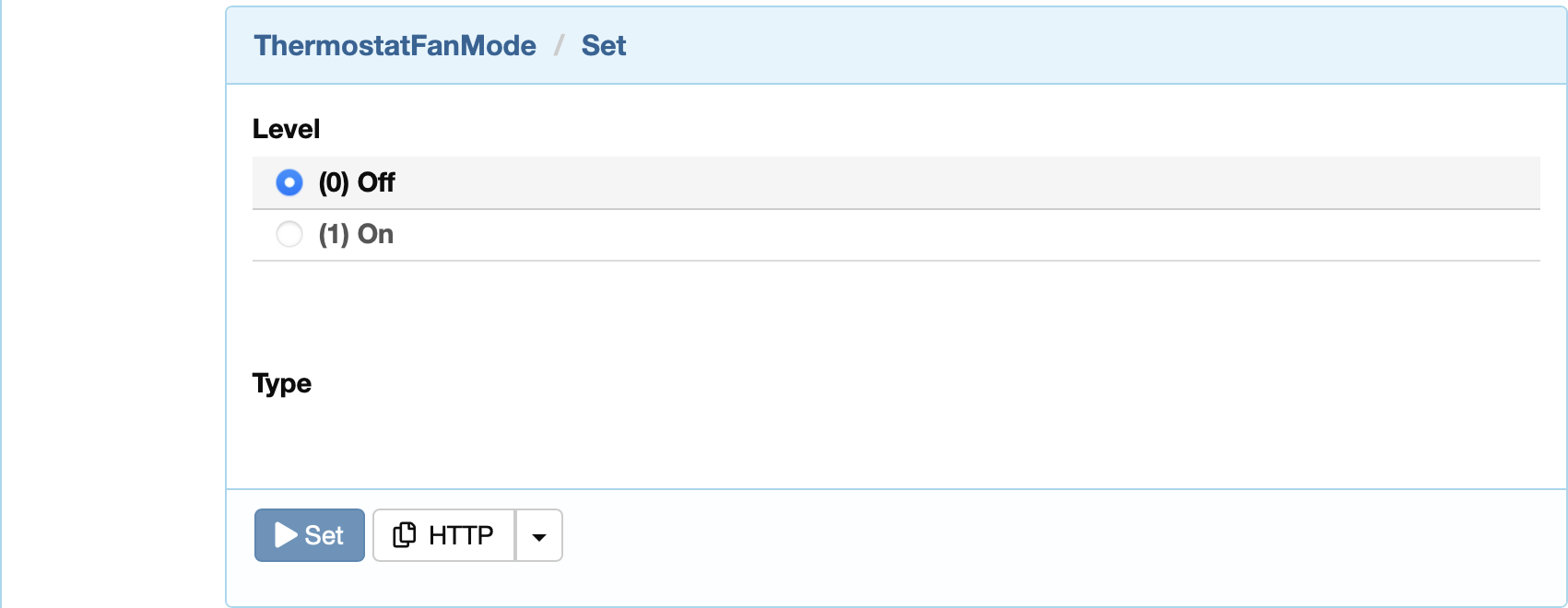

Set

Level: 0 - Off, 1 - On

Thermostat Mode Command Class

Control -> Thermostat

Configuration -> Expert commands -> ThermostatMode

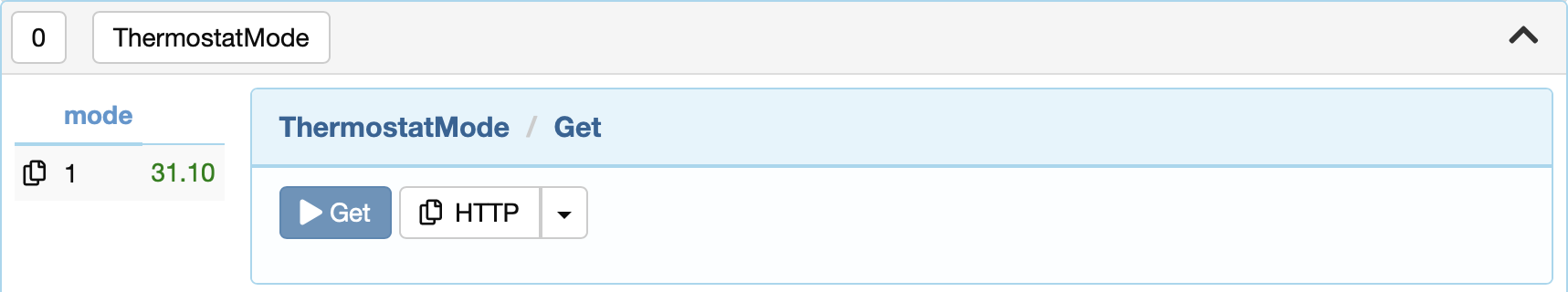

Get

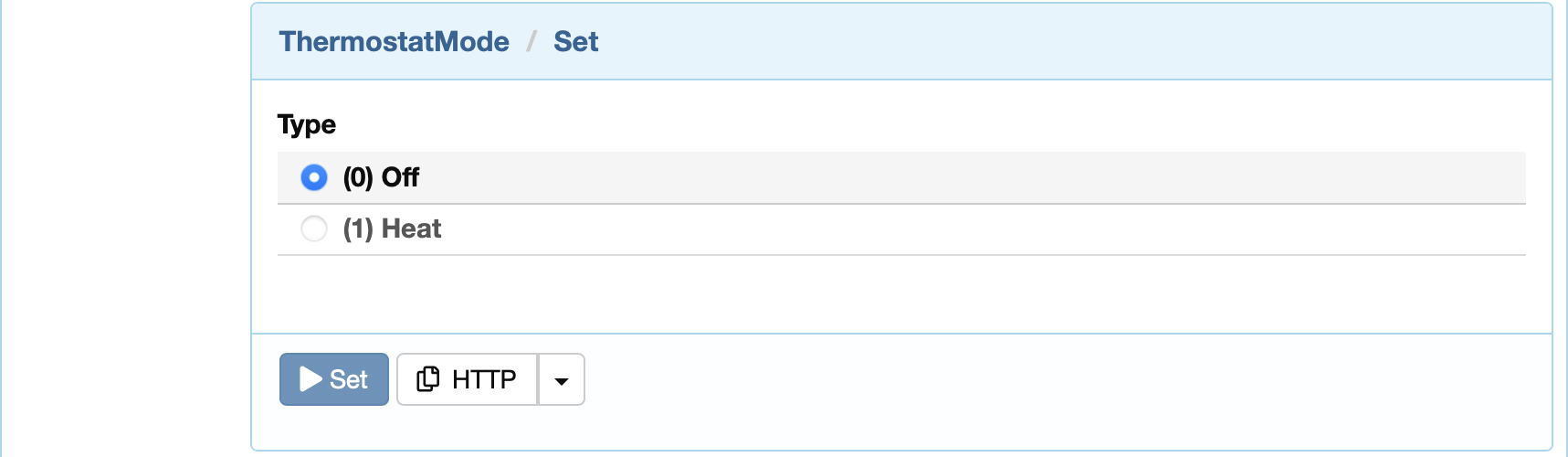

Set

Type: 0 - Off, 1 - Heat

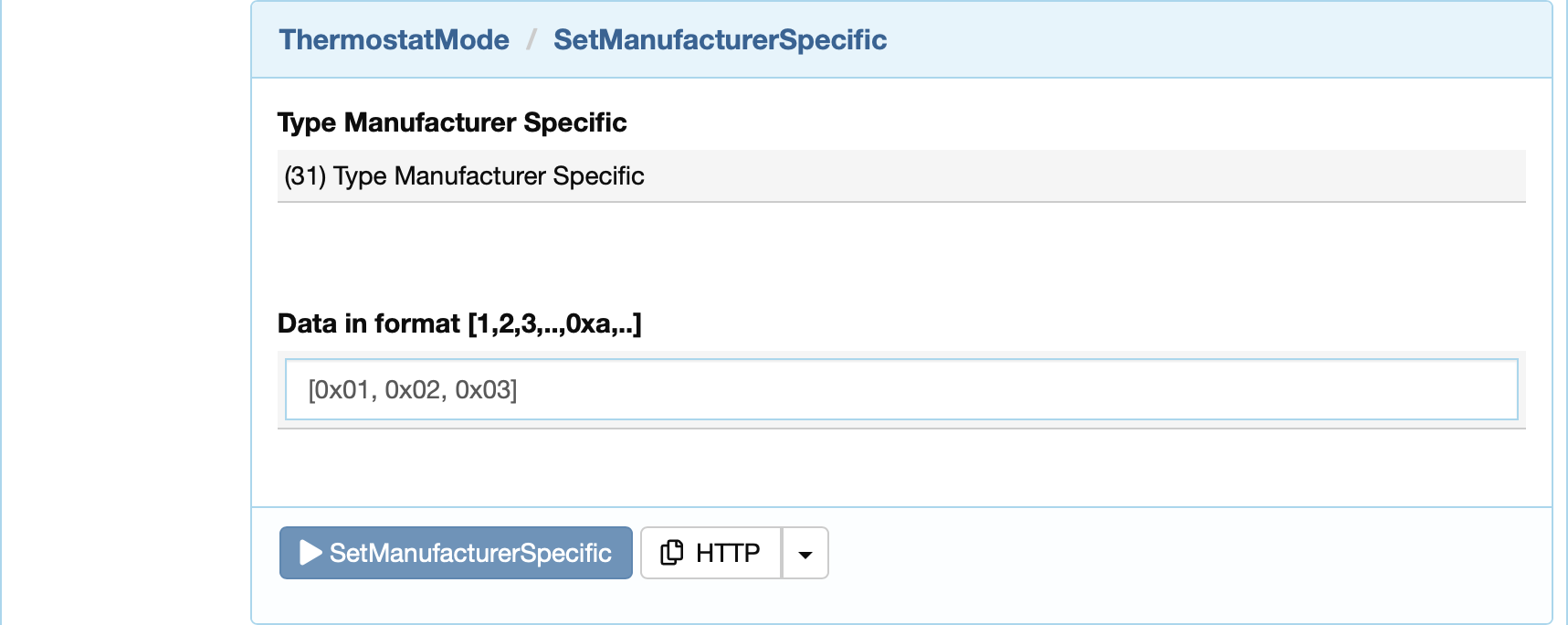

SetManufacturerSpecific

Thermostat Setpoint Command Class

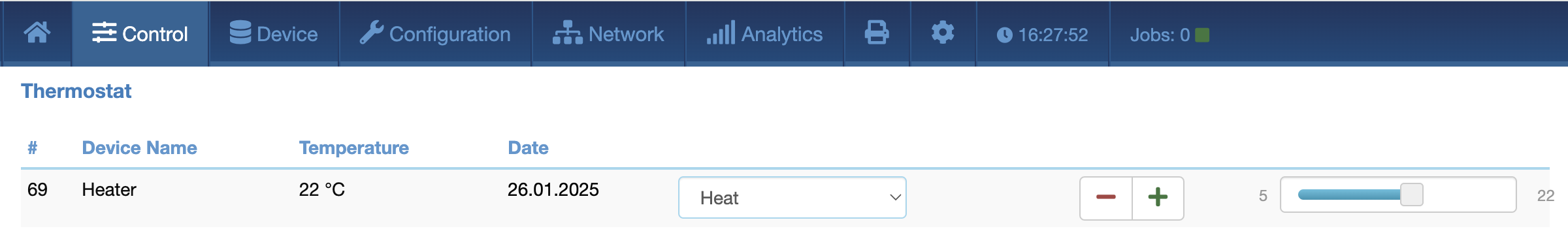

Control -> Thermostat

Configuration -> Expert commands -> Thermostat Setpoint

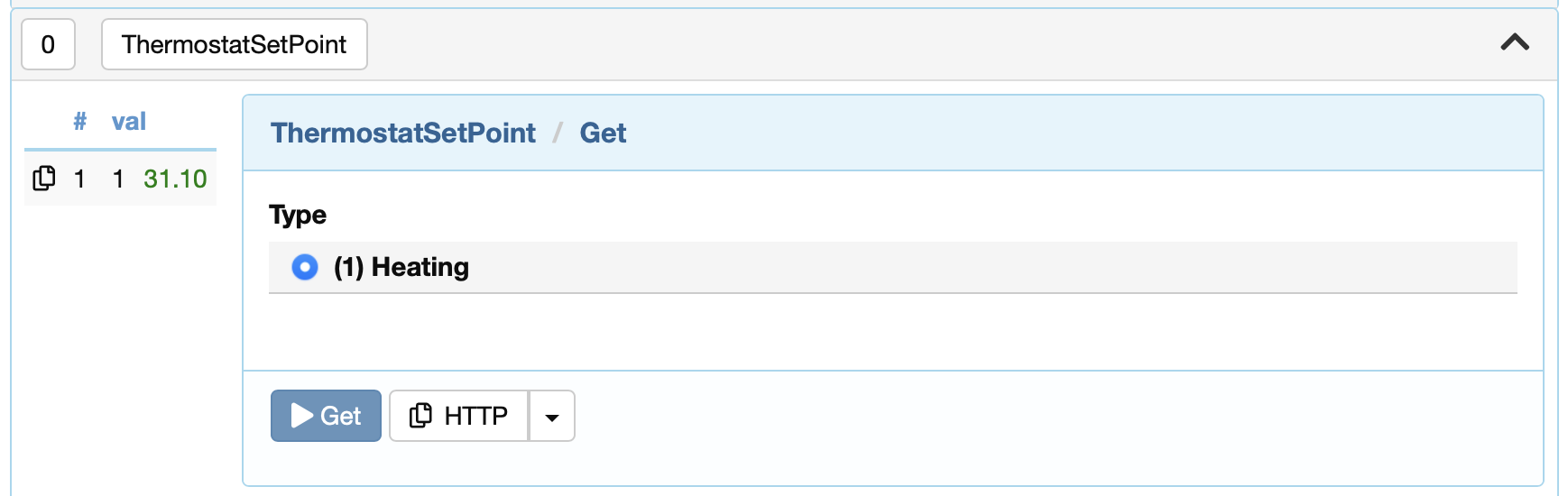

Get

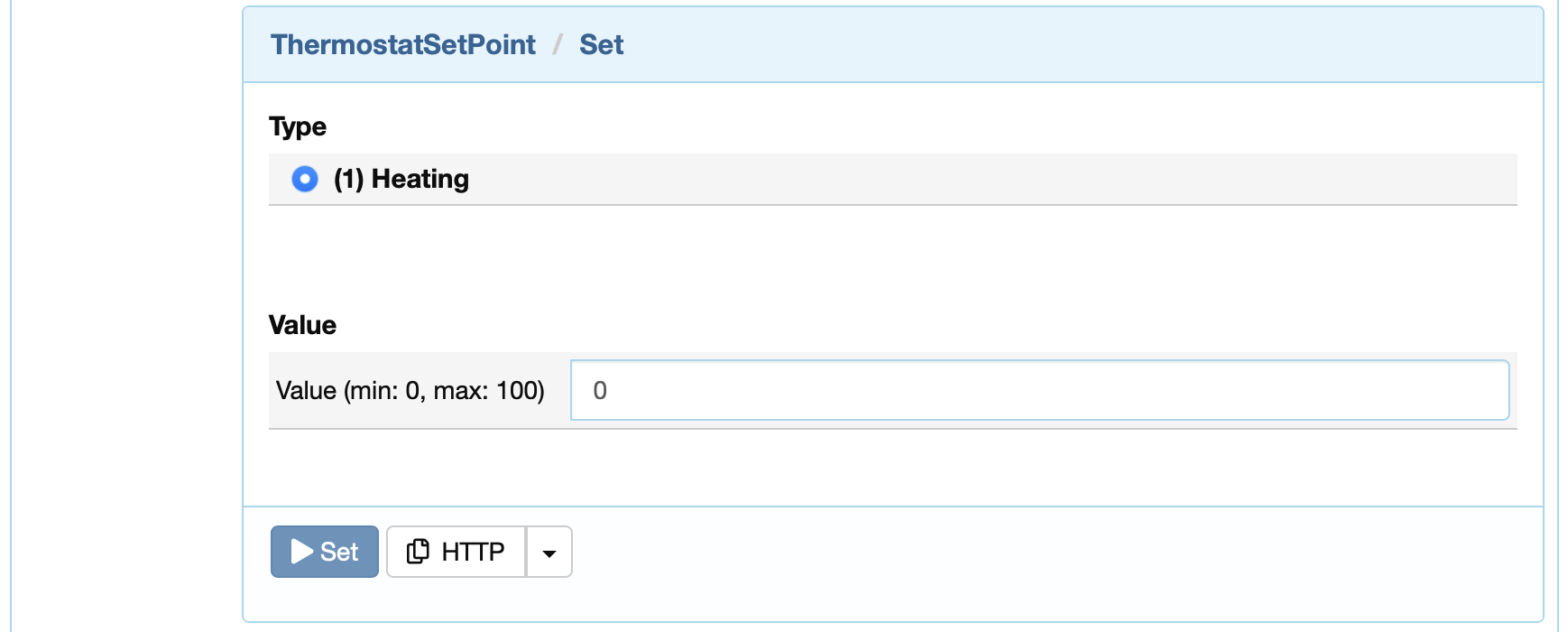

Set

Value: 0 ... 100

Temperature Units Metric

Temperature scales are automatically converted from device units to controller units °C or °F. Controller units can be changed.

Configuration -> Expert Commands -> Z-Way (usually #1) -> Controller settings

User Code Command Class

Configuration -> Expert commands -> UserCode

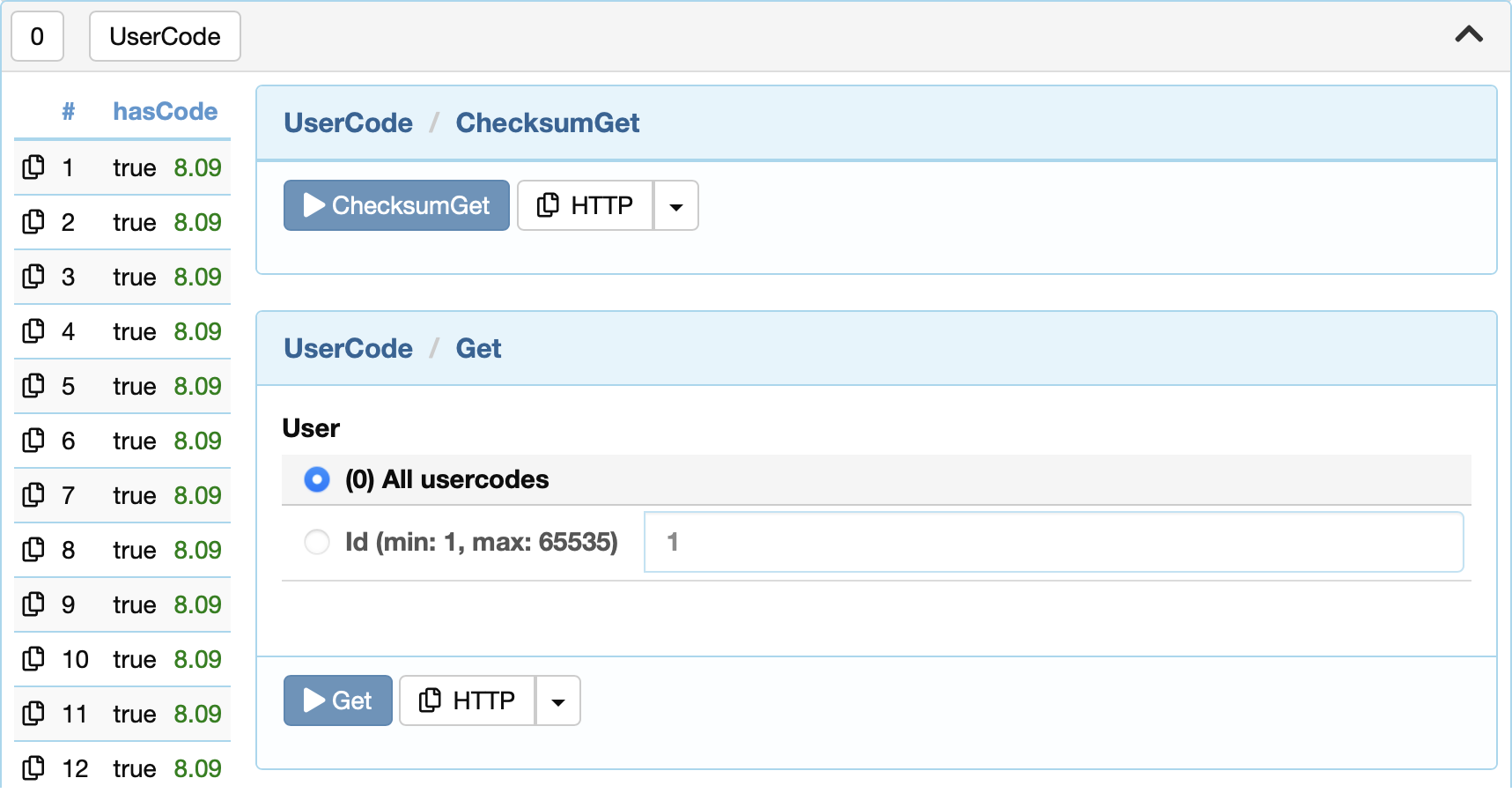

ChecksumGet/ChecksumSet

0 - All udercodes, User Id: 1 ... 65535

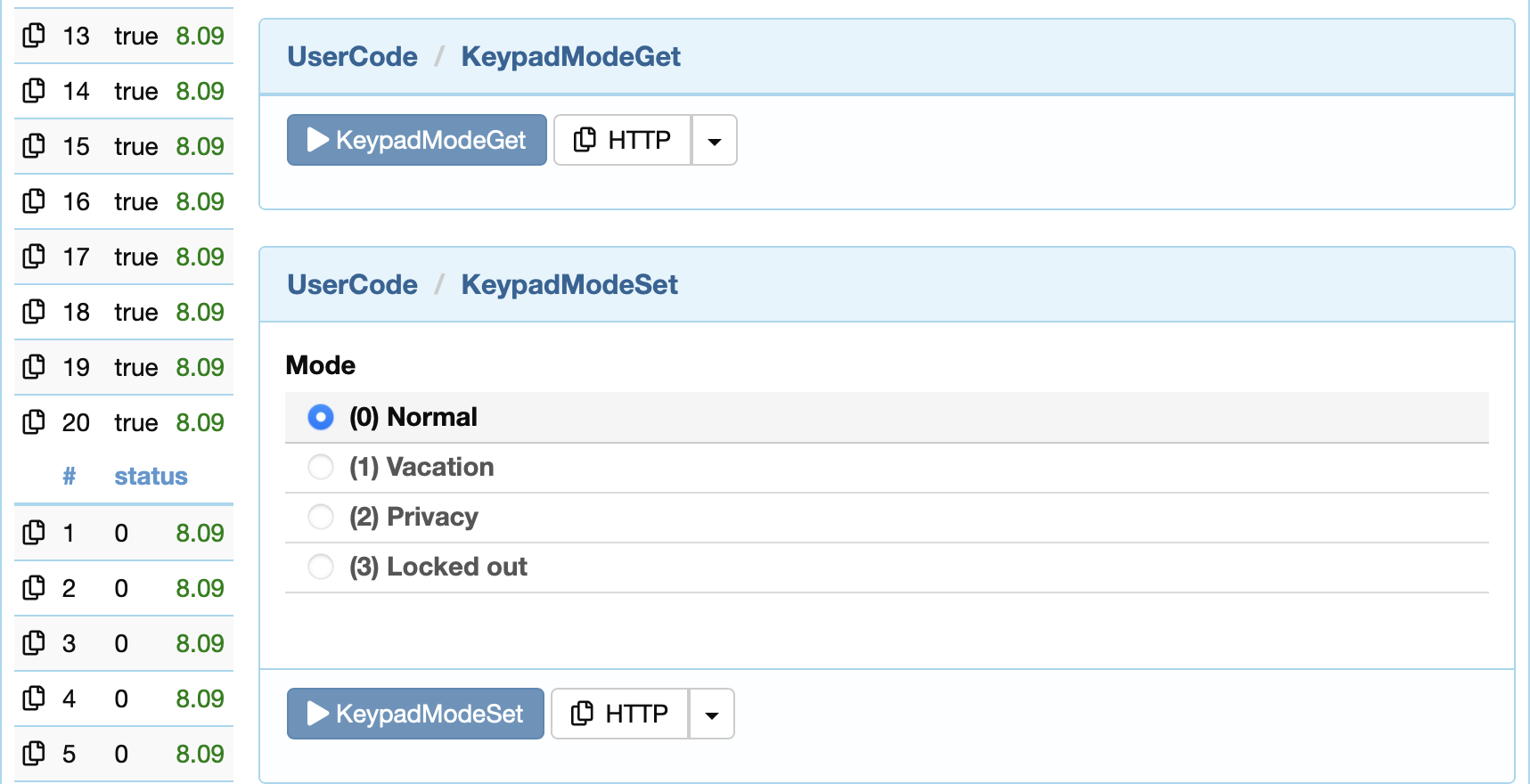

Keypad Mode Get/Keypad Mode Set

Mode: 0 - Normal, 1 - Vacation, 2 - Privacy, 3 - Locked out

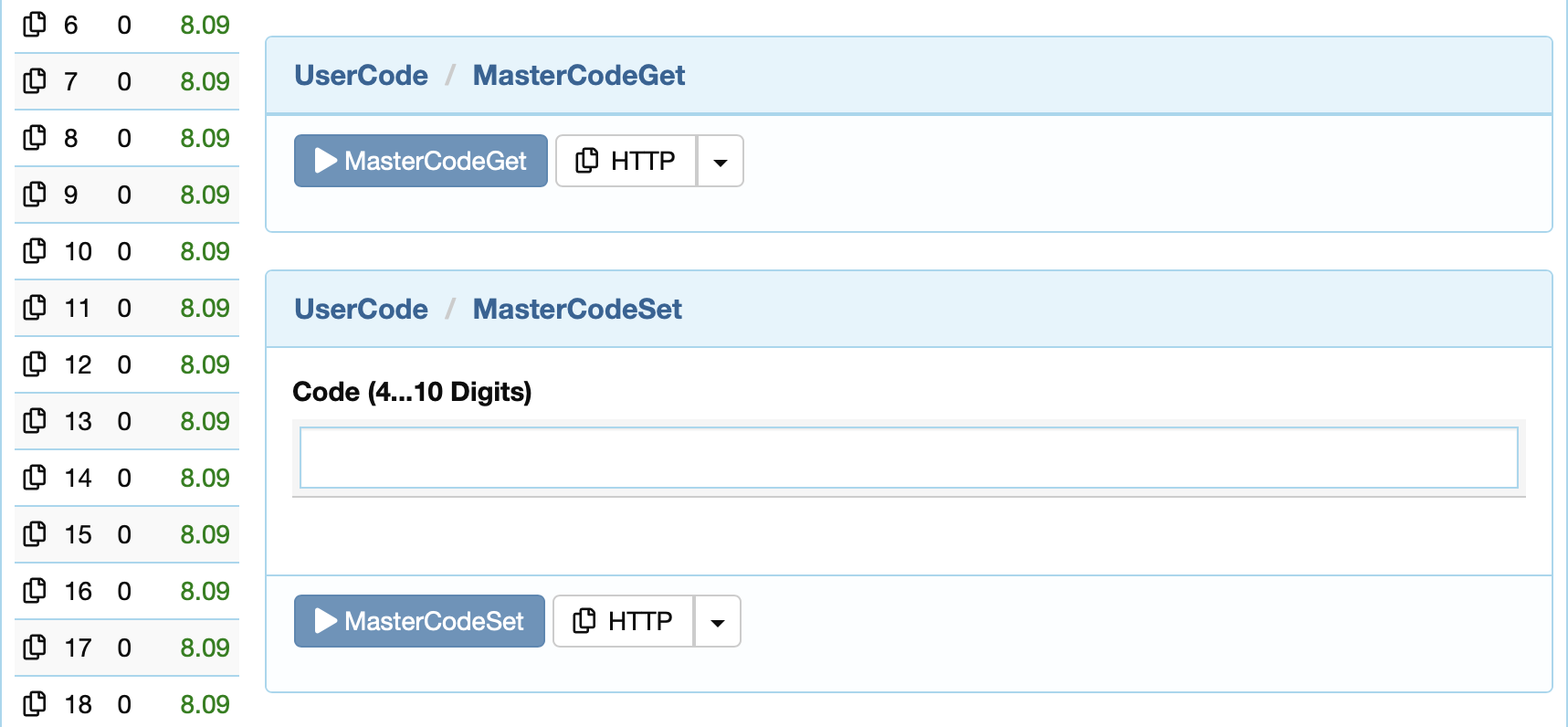

Master Code Get/Master Code Set

Code: 4 ... 10 Digitals

Master Code Disable

To disable the master code, send an empty field.

Set User ID

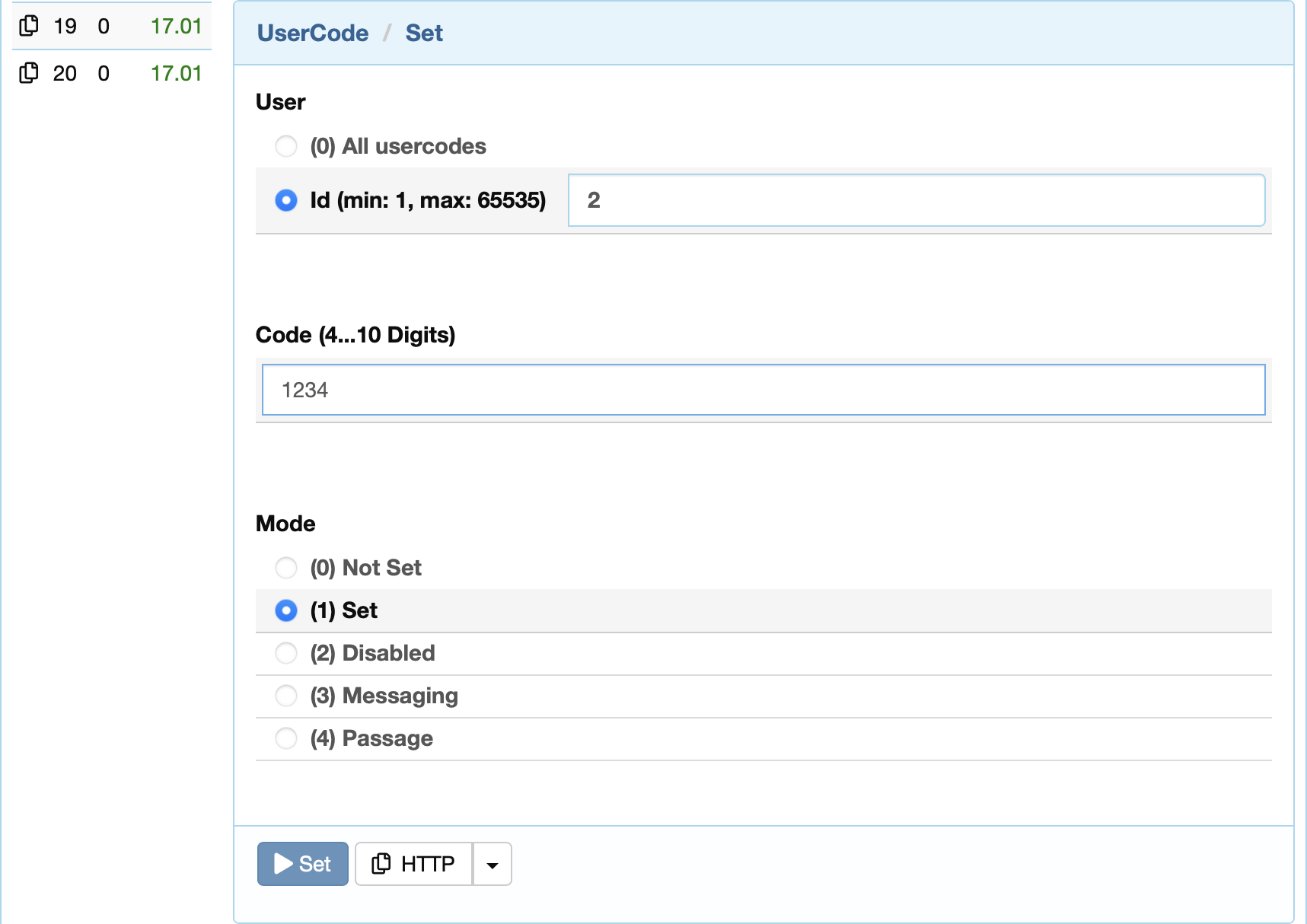

Example: set user ID 2 with code 1234

Erase User ID

Example: erase user ID 2

Management Command Classes

Go to Configuration, select the end device in the left column.

Association Command Class

For many devices, the UI has a description of the associations.

Configuration -> Association

If there is no description of the associations in the UI for the device, then you need to use the user's guide and enter the settings manually in the expert commands.

Configuration -> Expert commands -> Association

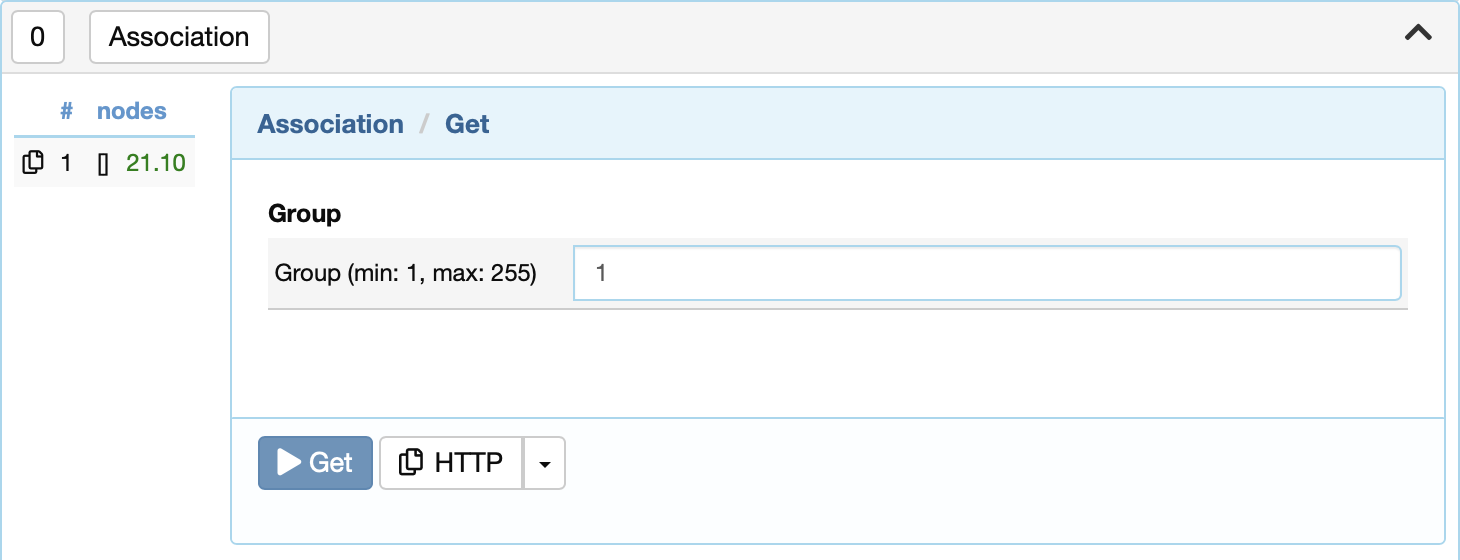

Get

Group: 1 ... 255

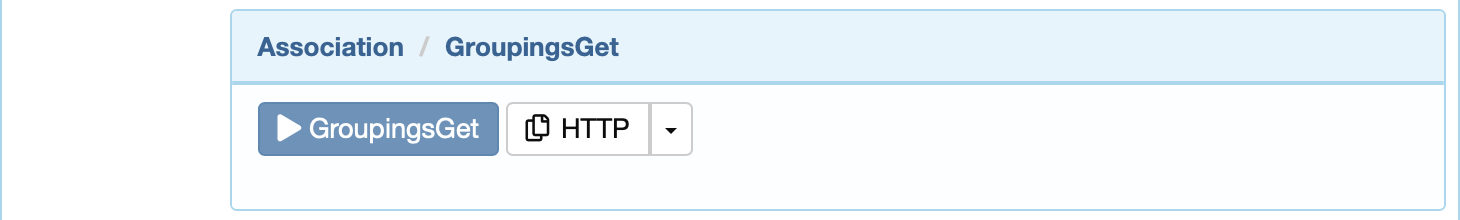

GroupingsGet

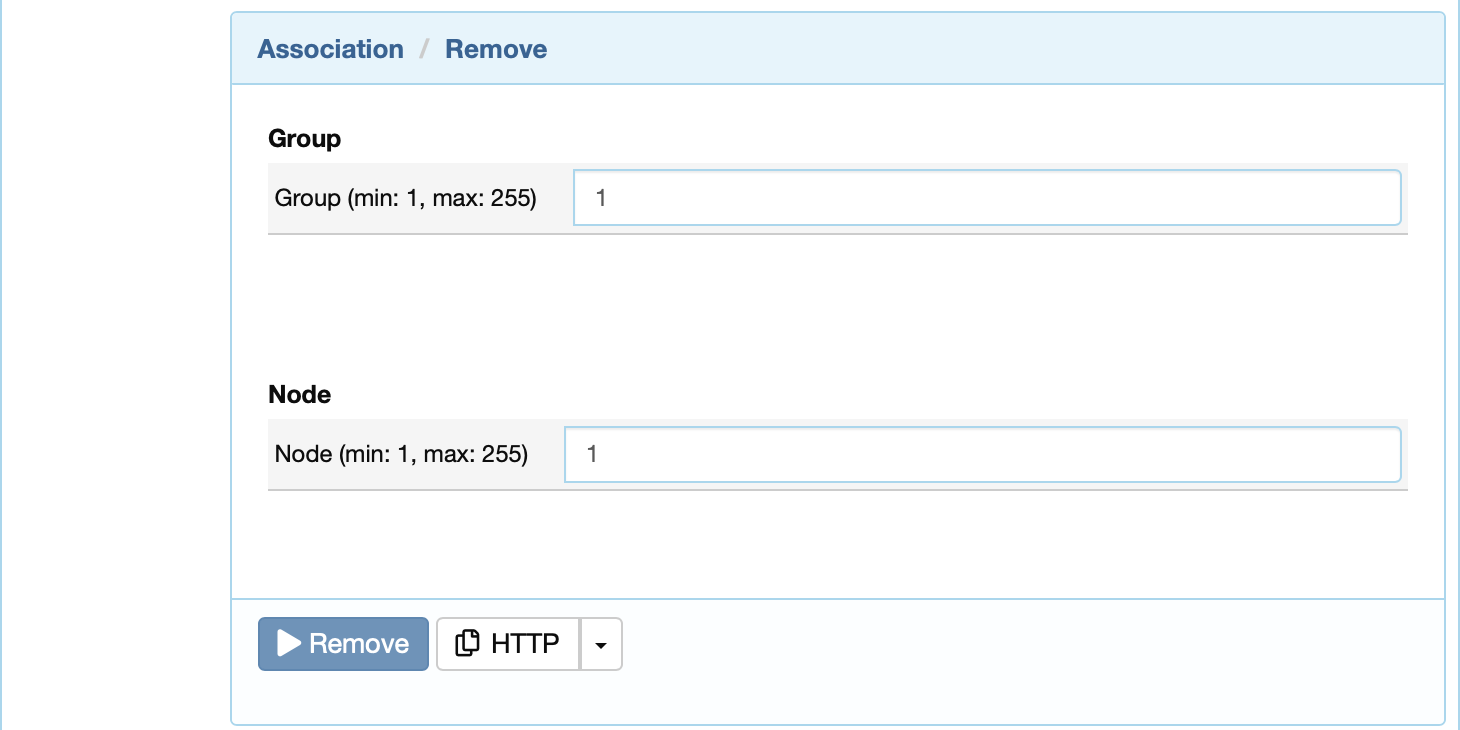

Remove

Group: 1 ... 255

Node: 1 ... 255

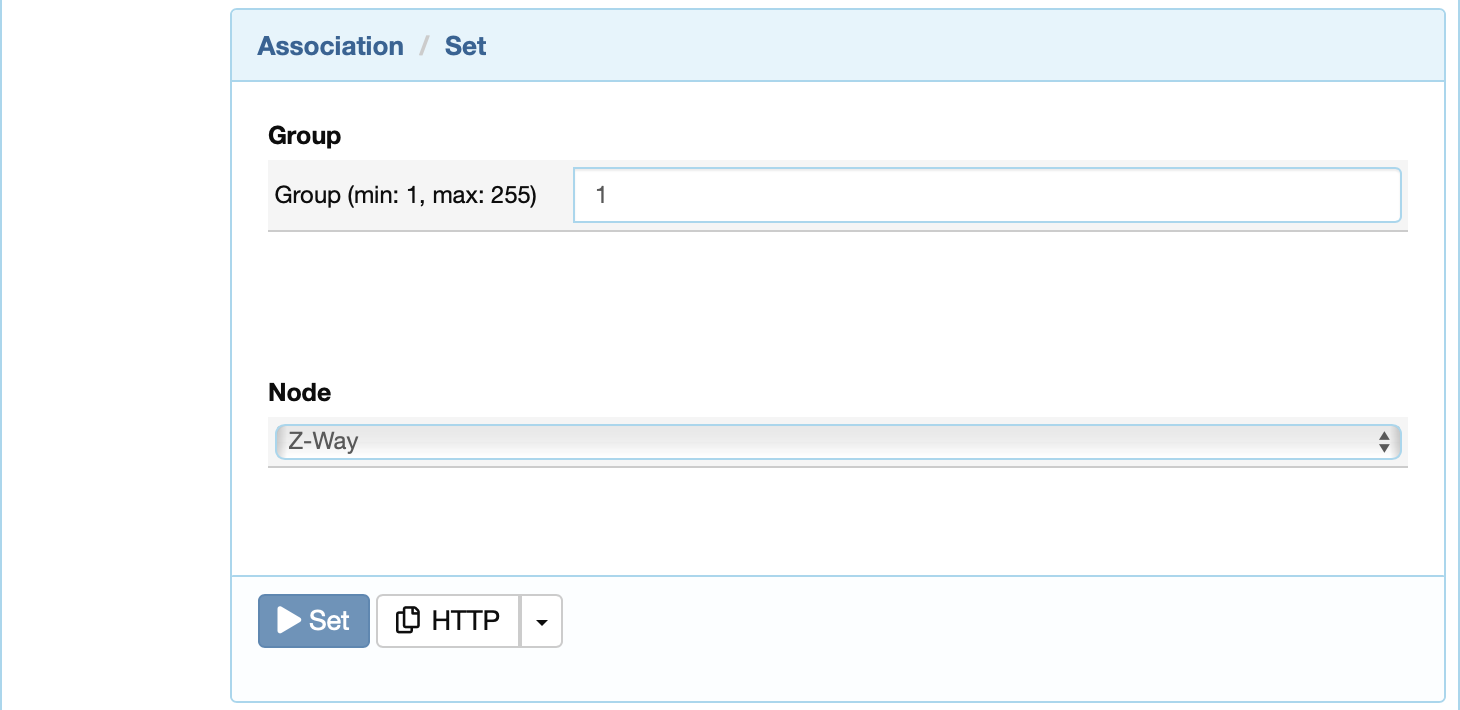

Set

Group: 1 ... 255

Node: 1 ... 255

Association Group Information Command Class

Configuration -> Expert commands -> AssociationGroupInformation

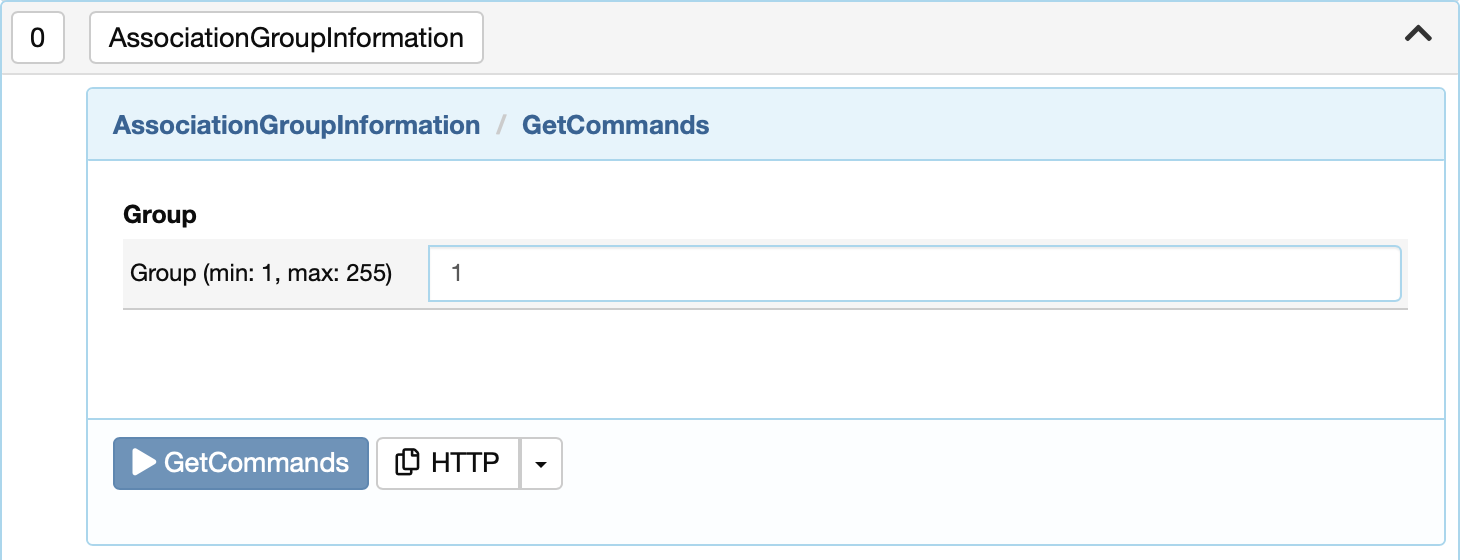

GetCommands

Group: 1 ... 255

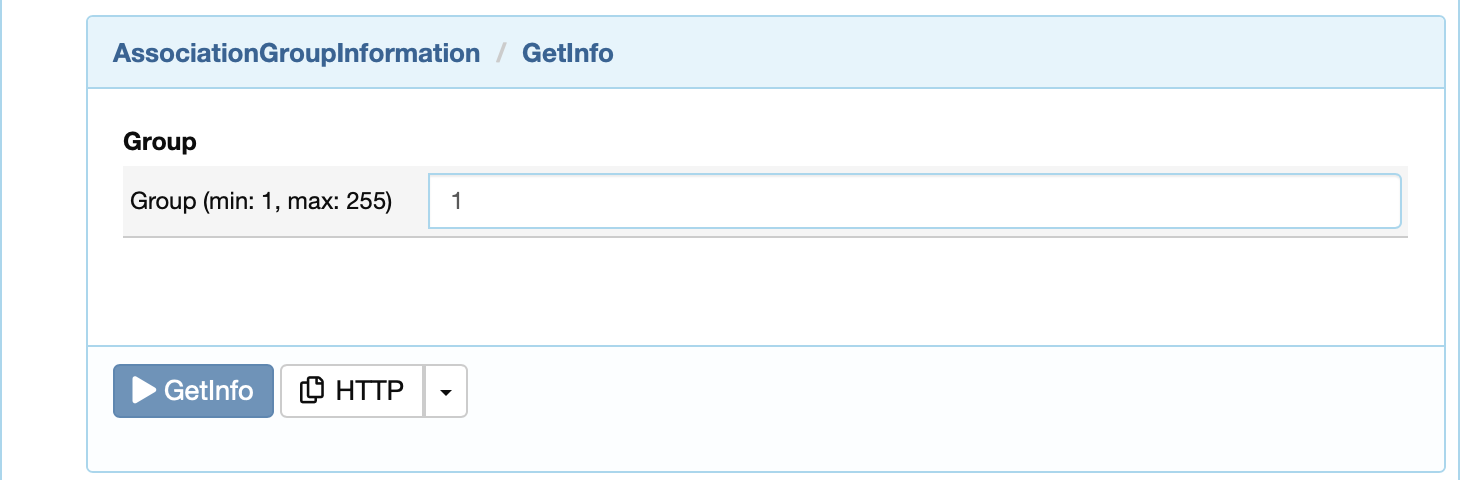

GetInfo

Group: 1 ... 255

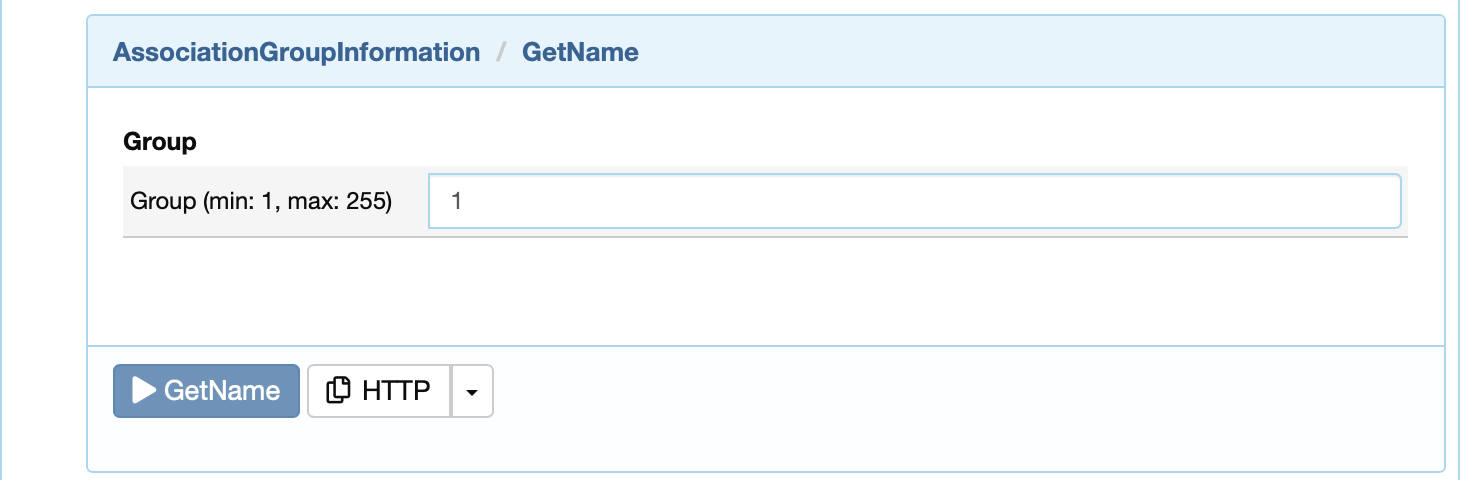

GetName

Group: 1 ... 255

Device Reset Locally Command Class

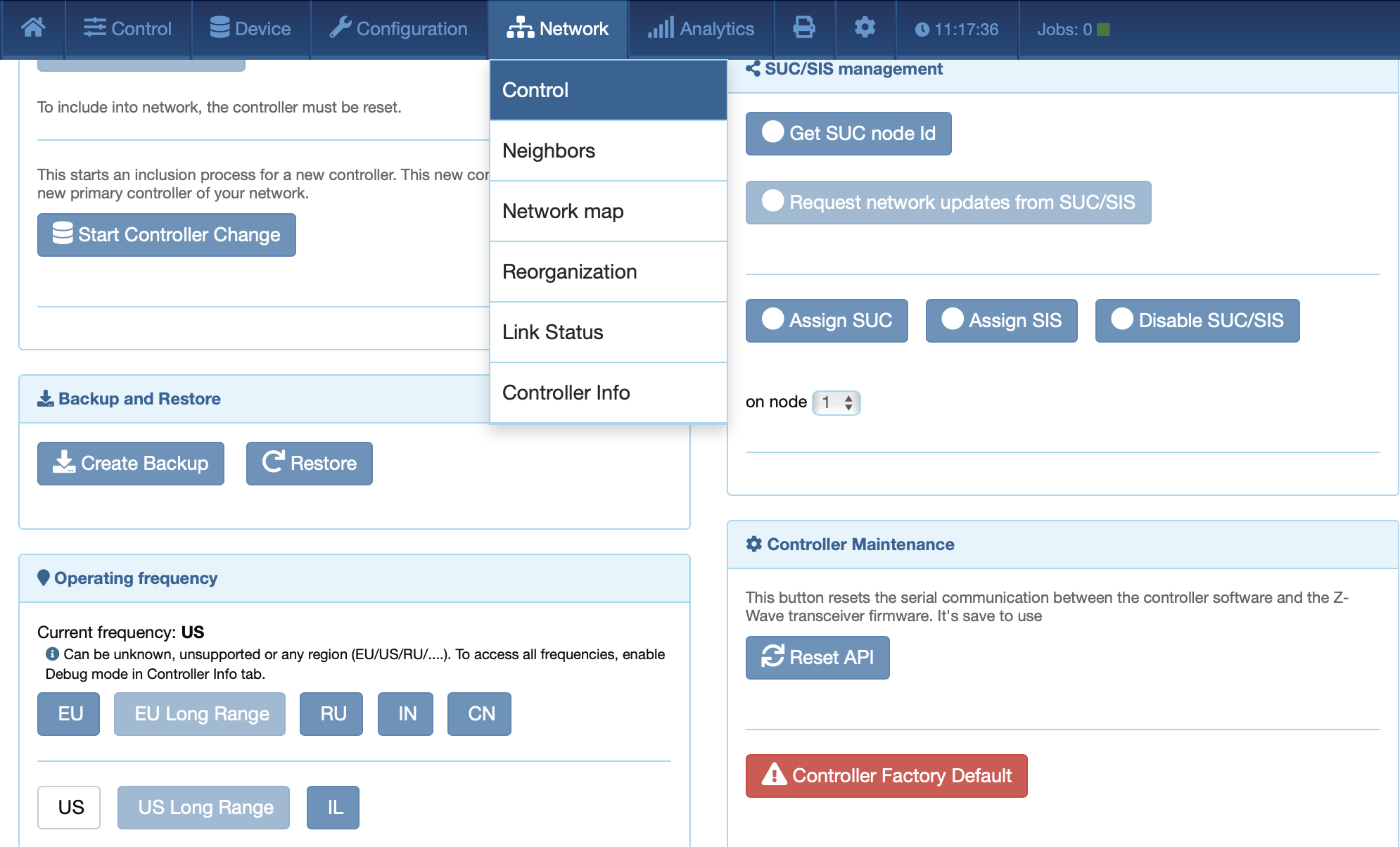

Controller Factory Default Reset

To reset the Z-Way controller, go to Network -> Controller, press red button "Controller Factory Default".

The List Of Reseted End Devices

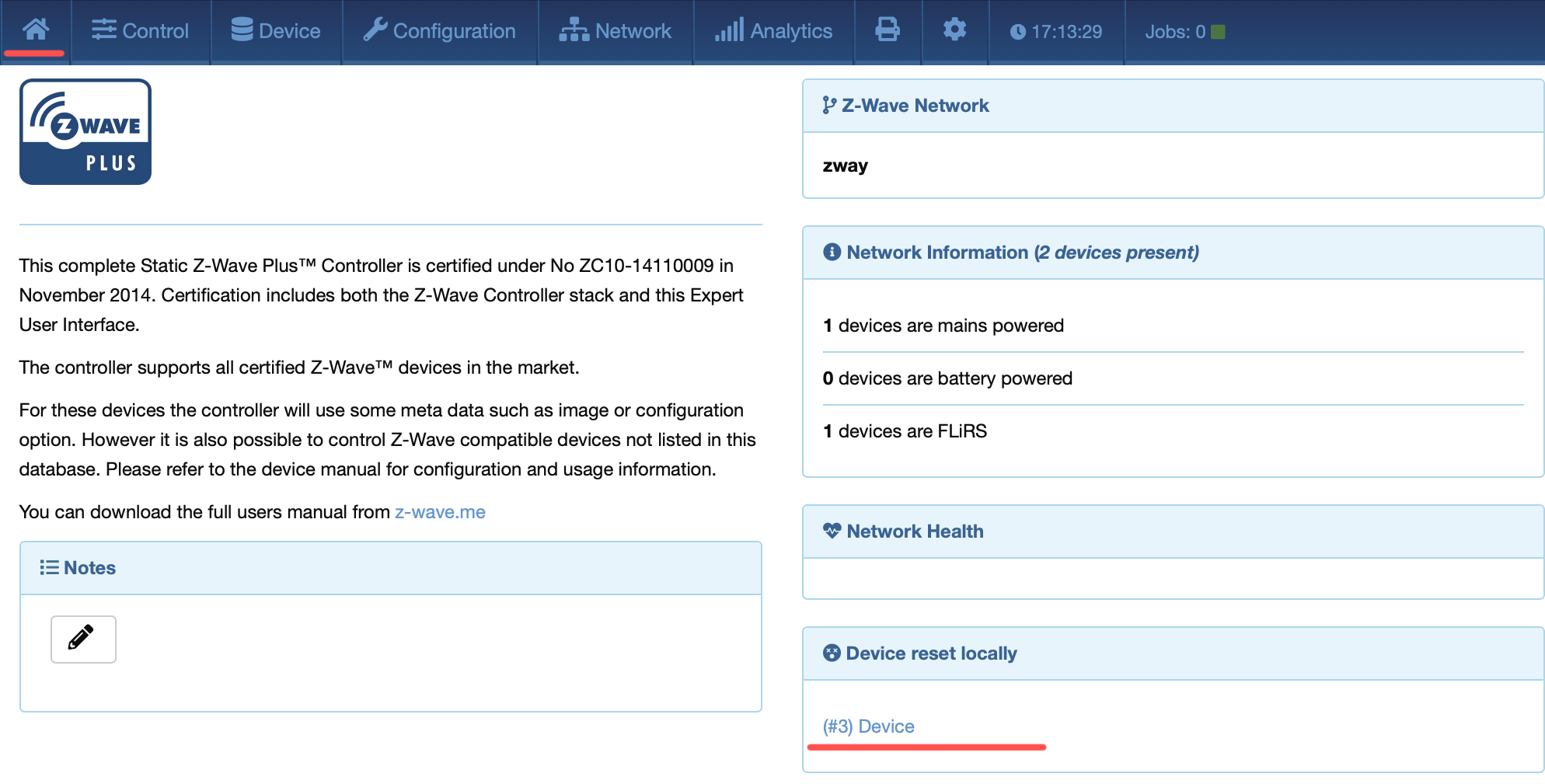

The home page displays the nodeId and name of the list of reseted devices.

Firmware Update Meta Data Command Class

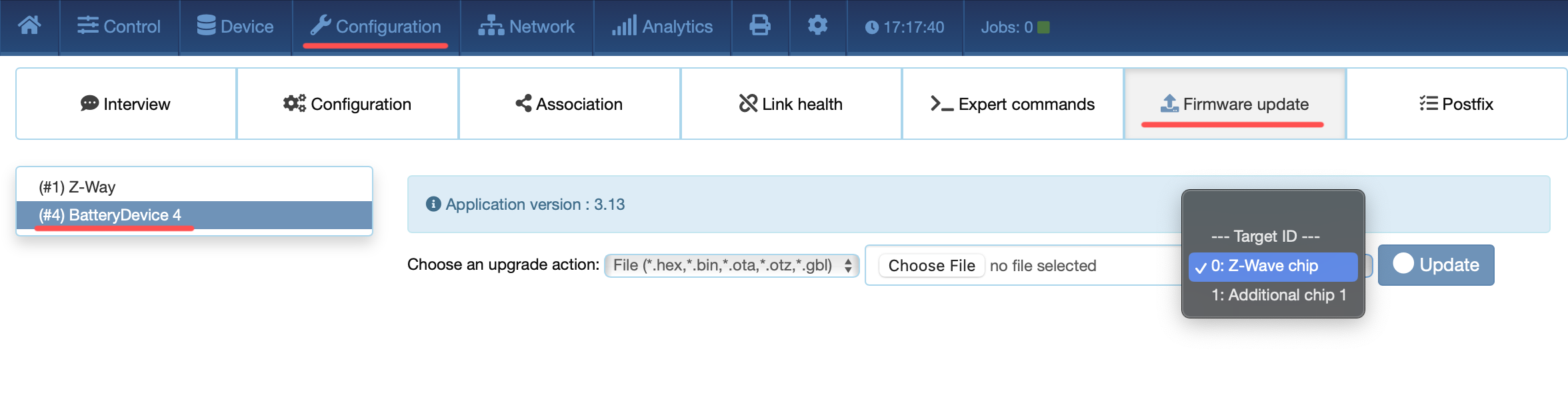

Go to Configuration, select the end device in the left column, go to Firmware update.

IndicatorCommandClass

Configuration -> Expert commands -> Indicator

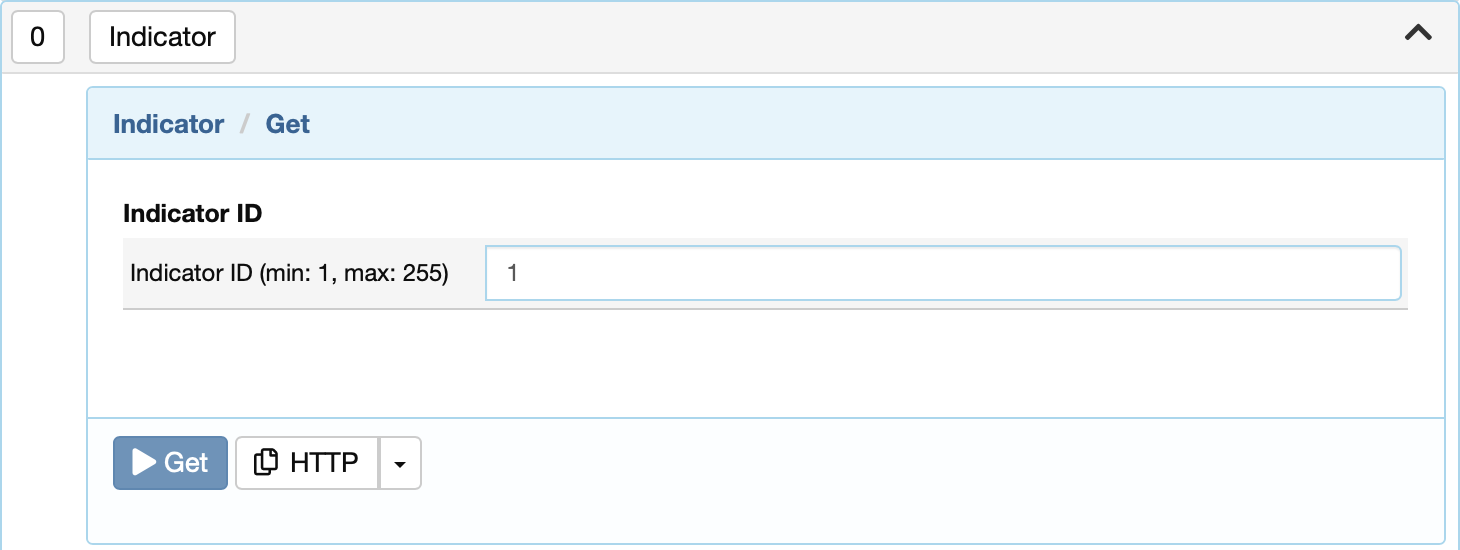

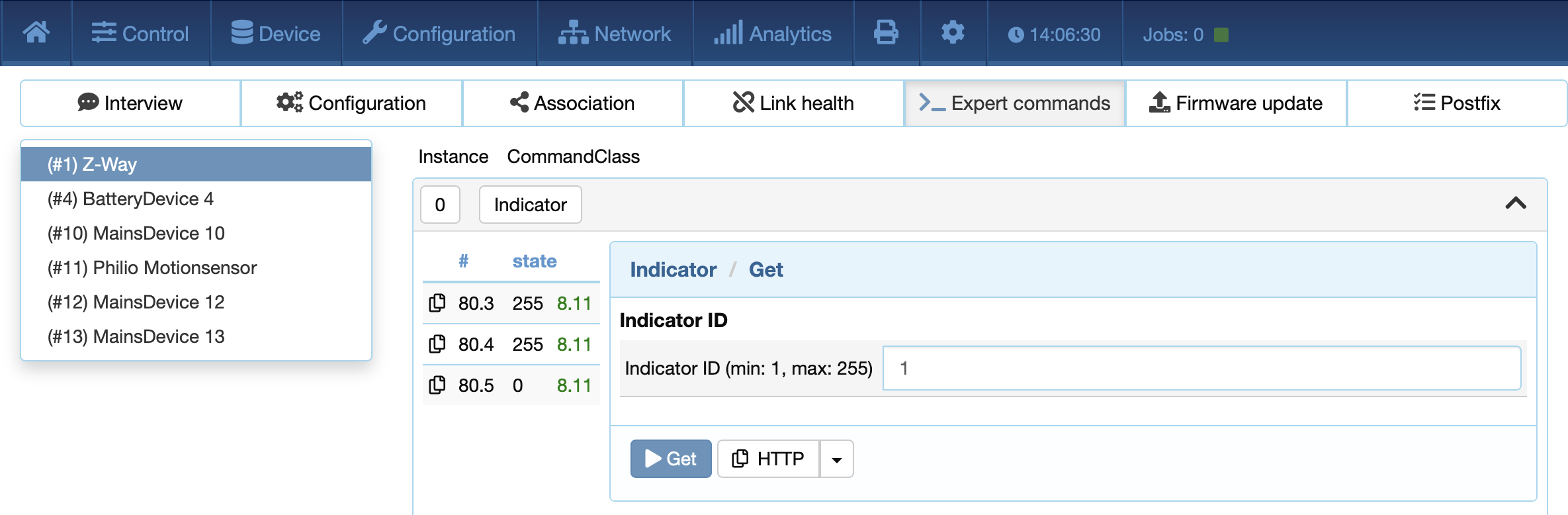

Get

Indicator ID: 1 ... 255

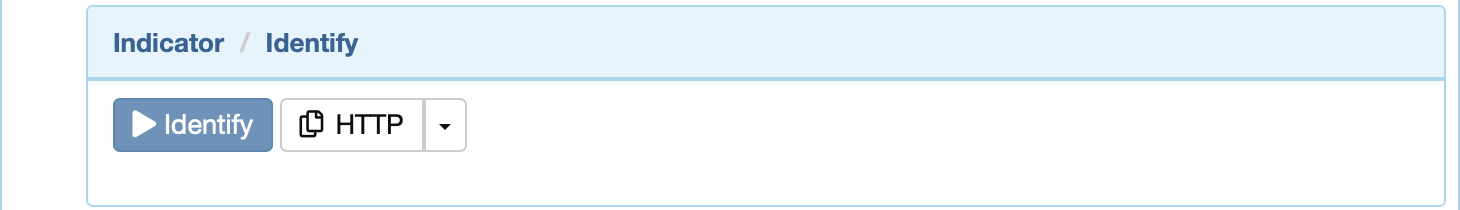

Identify

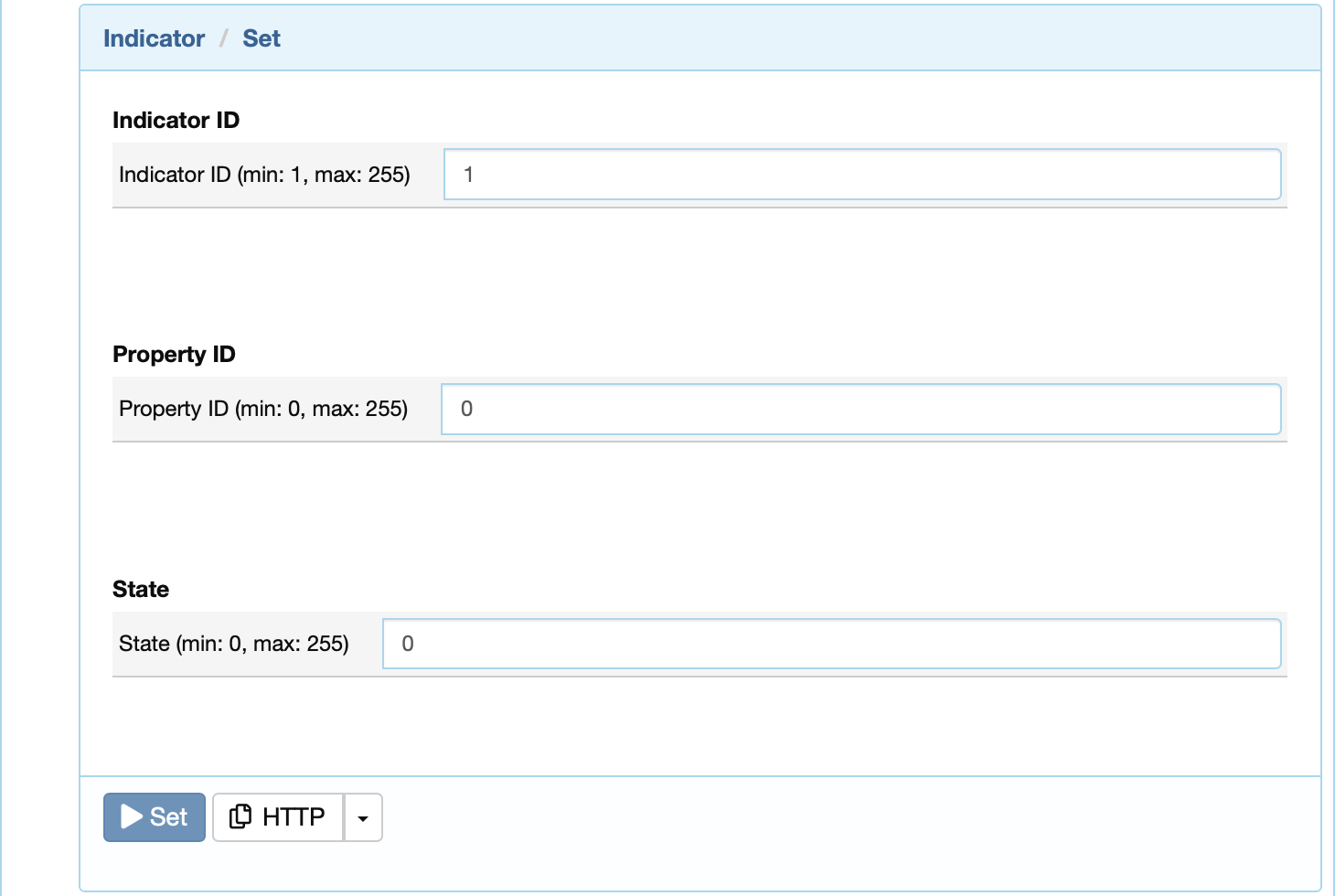

Set

Indicator ID: 1 ... 255

Property ID: 0 ... 255

State: 0 ... 255

Multi Channel Association Command Class

Configuration -> Expert commands -> MultiChannelAssociation

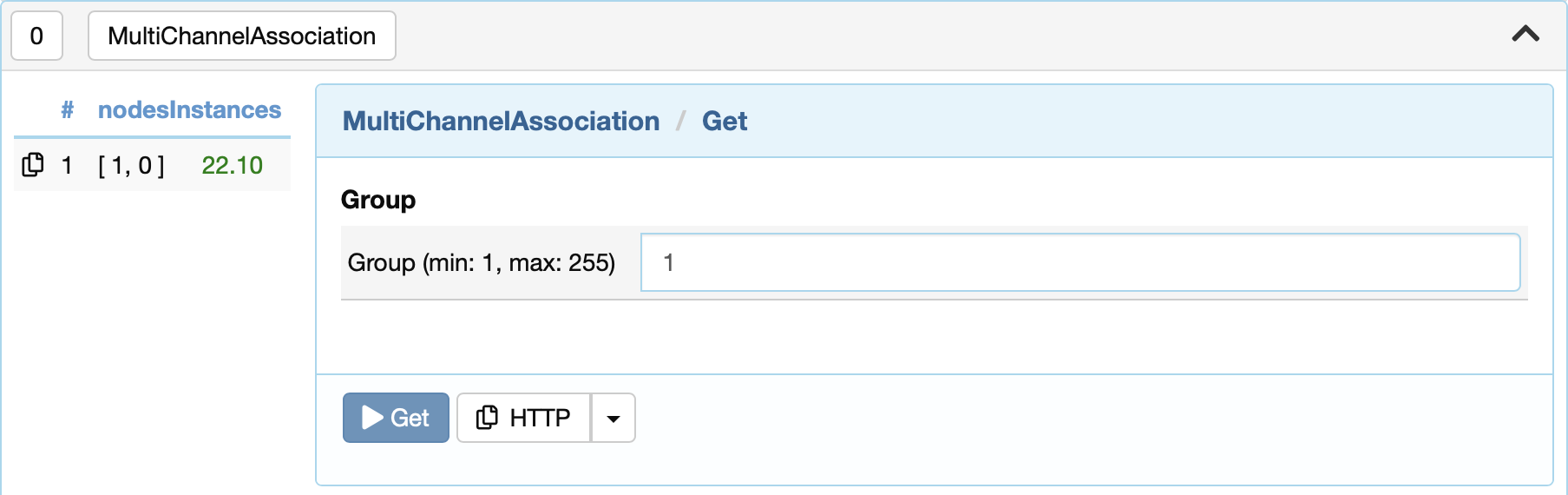

Get

Group: 1 ... 255

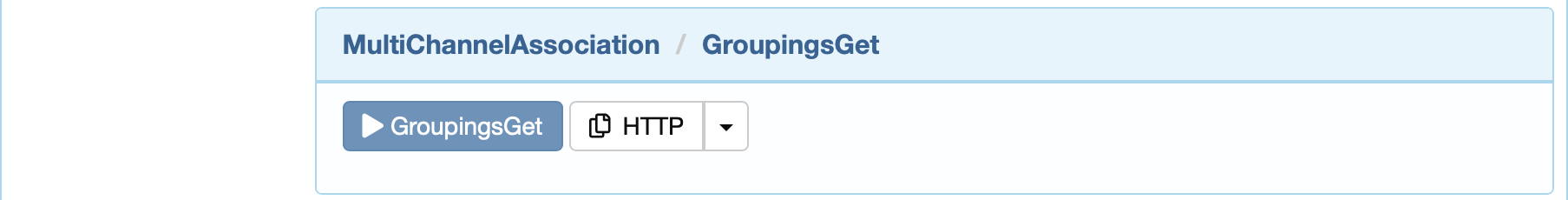

GroupingsGet

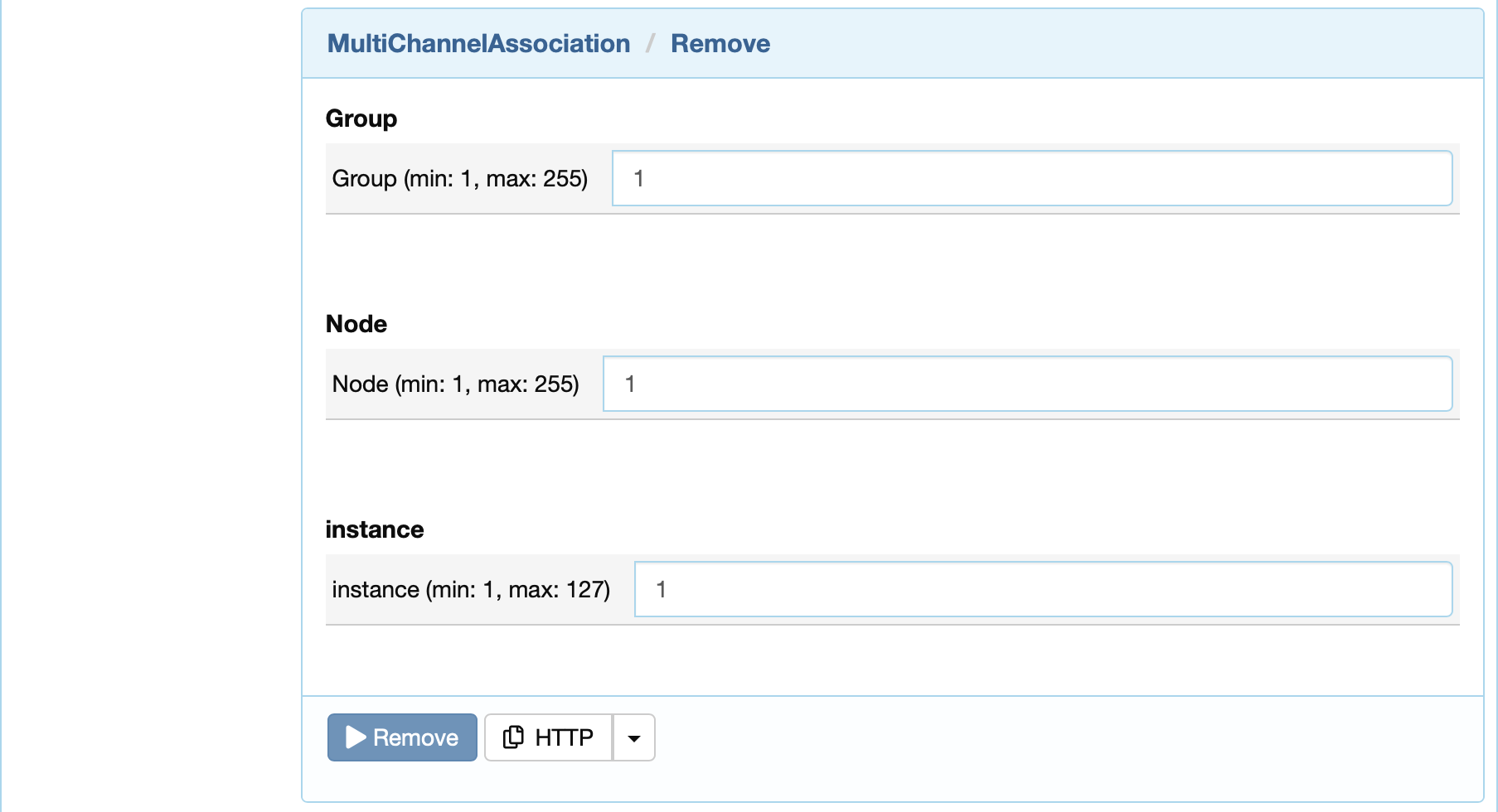

Remove

Group: 1 ... 255

Node: 1 ... 255

instance: 1 ... 127

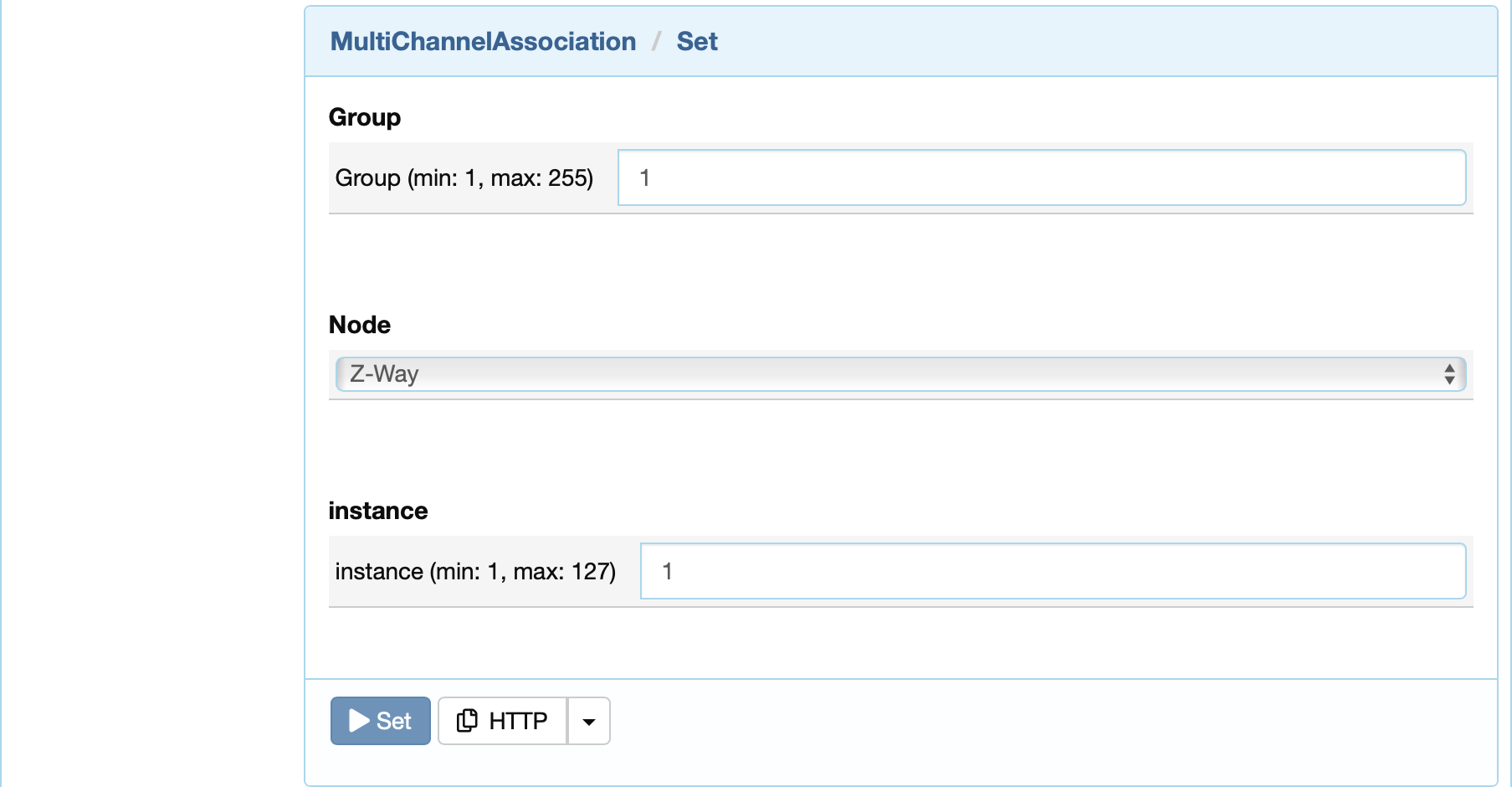

Set

Group: 1 ... 255

Node: 1 ... 255

instance: 1 ... 127

Wake Up Command Class

Configuration -> Expert commands -> Wakeup

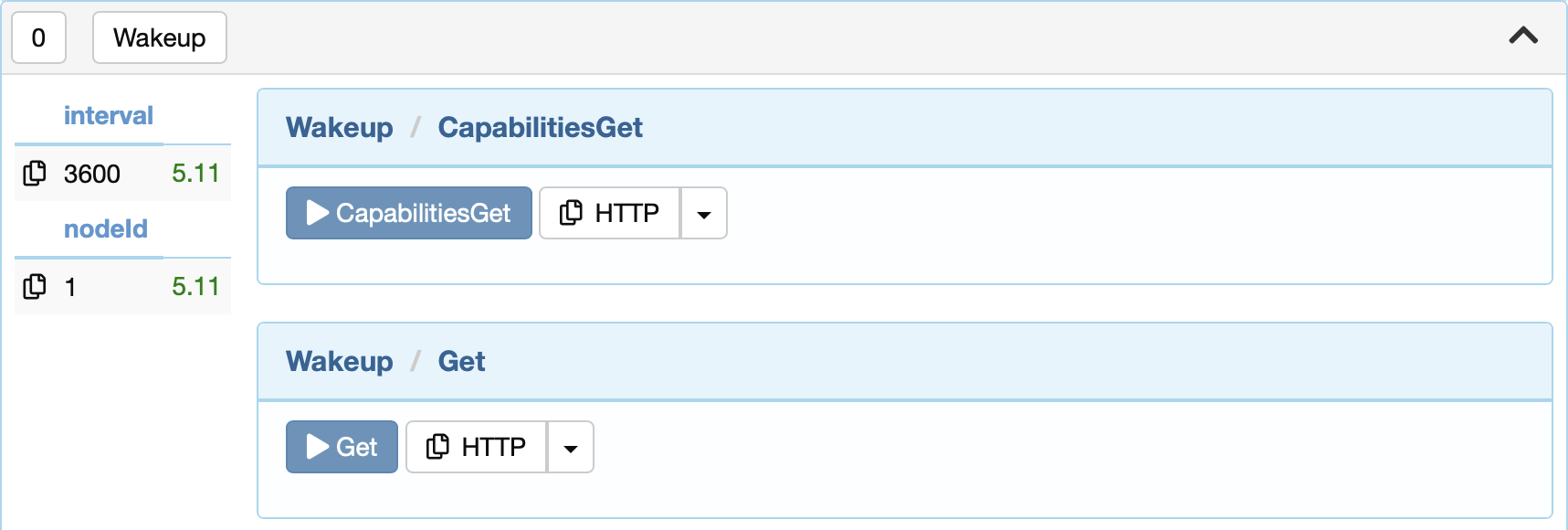

CapabilitiesGet/Get

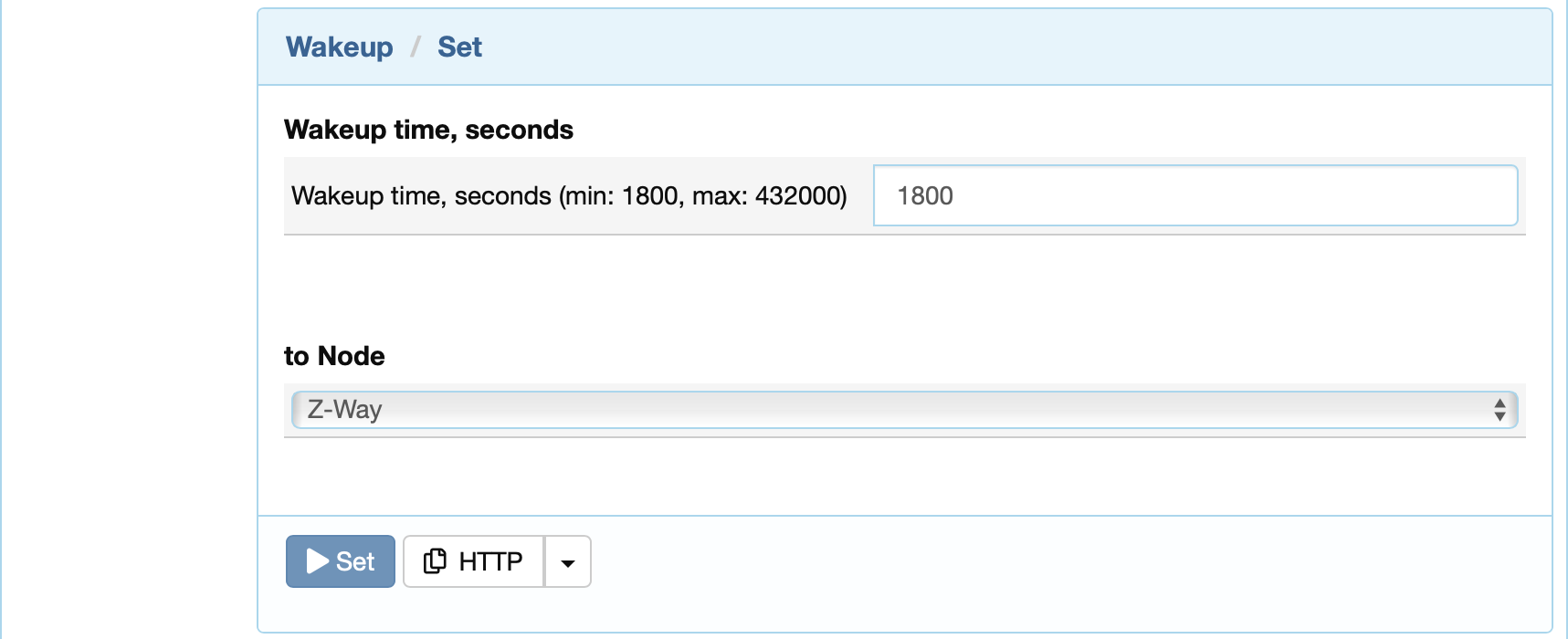

Set

Wakeup time, seconds: 1800 ... 432000

to Node: 1 ... 255

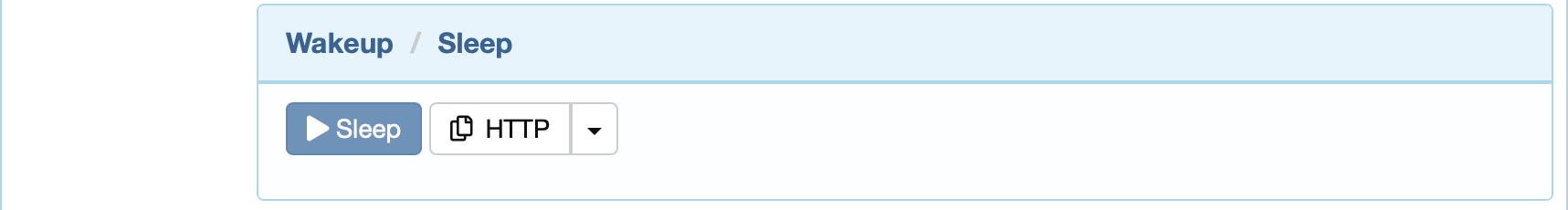

Sleep

Descriptions

Association

Controller Association Groups

The controller supports one group Lifeline with a maximum of 5 devices. A Device Reset Locally Notification is sent to the group.

Configuration -> Association

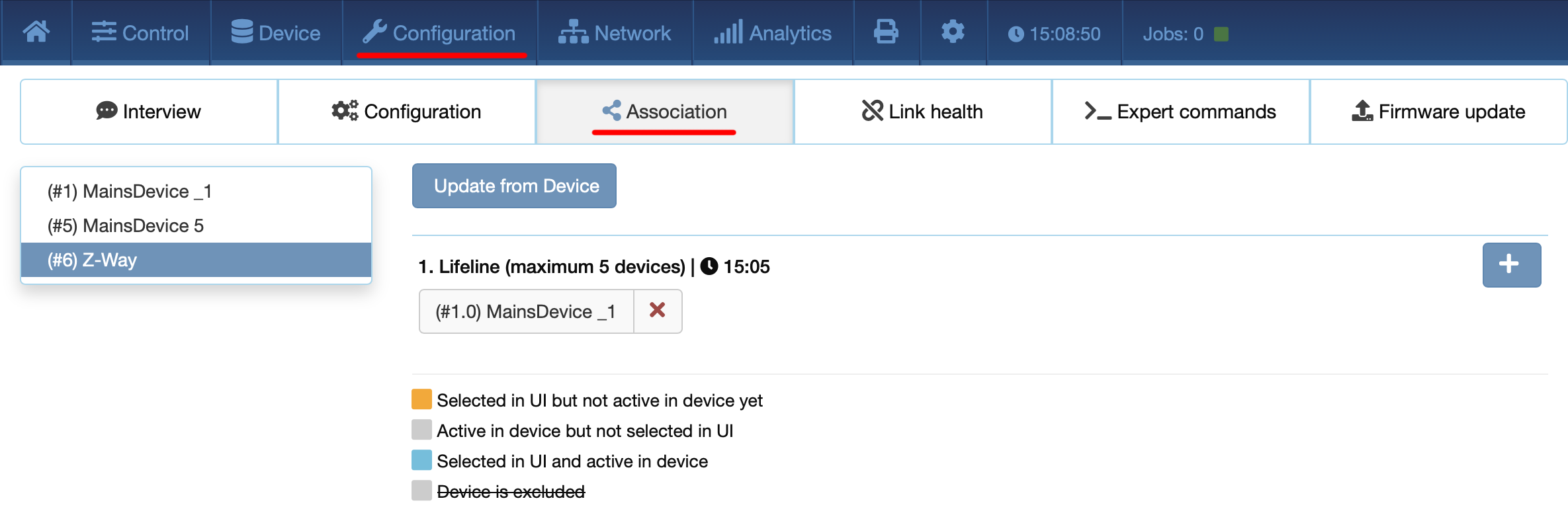

Select Z-Way. To get list of associated devices press button Update from Device.

To remove associated device press red X button.

Get/Remove

Set

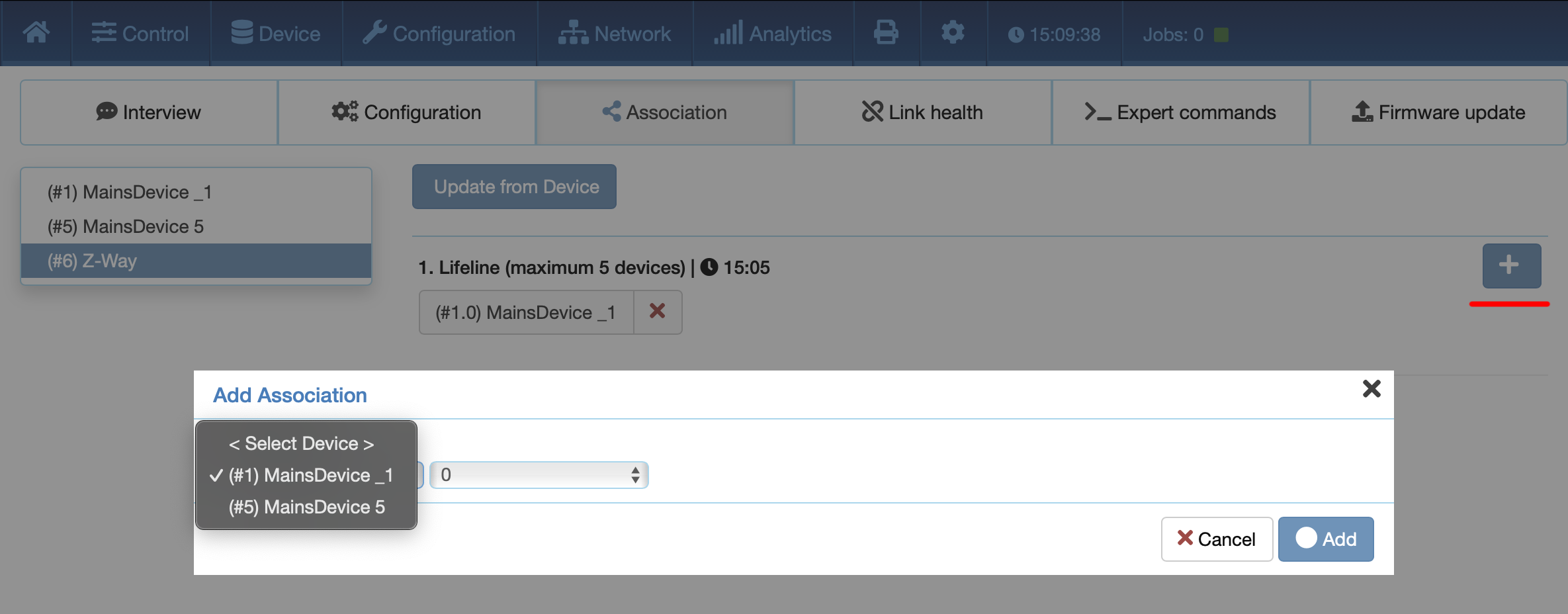

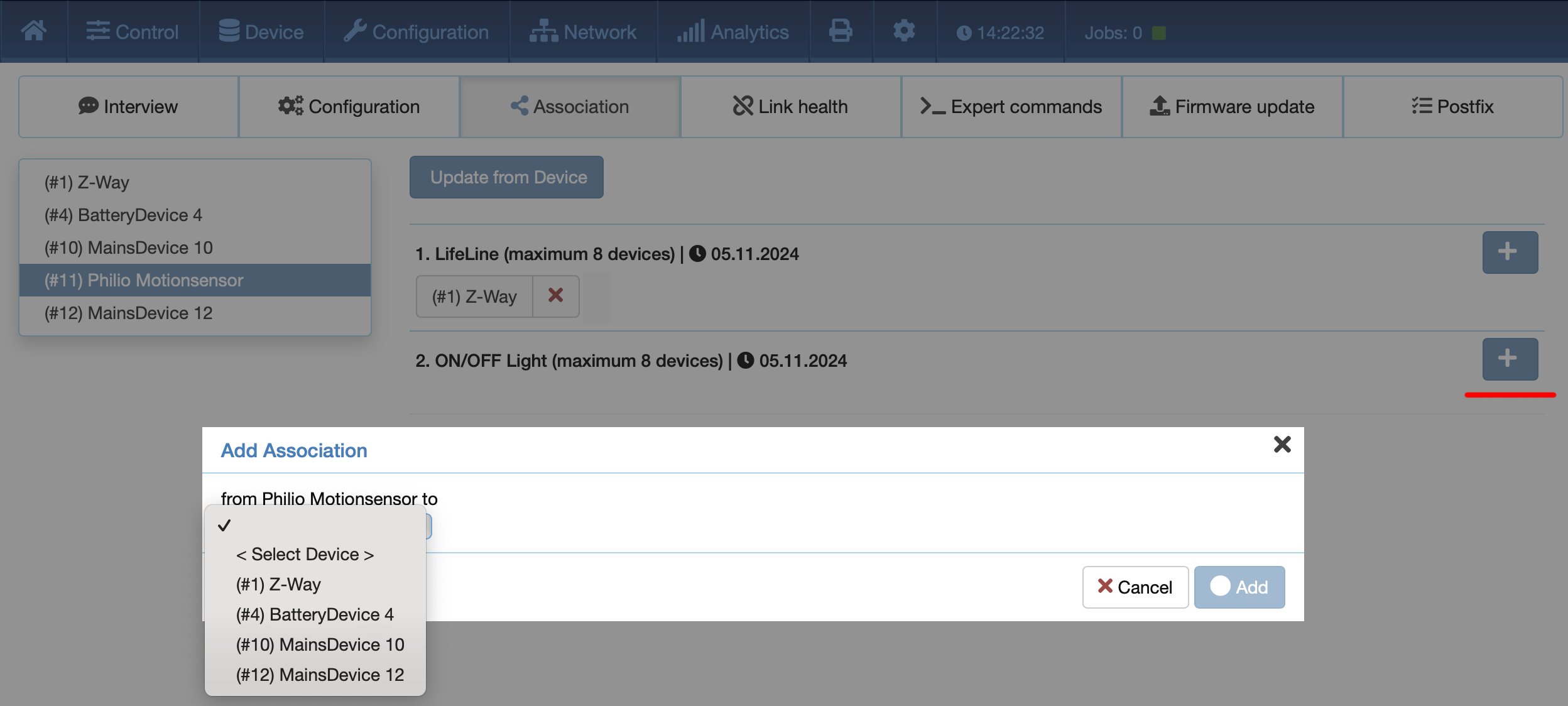

To set new association press plus button, choose device and channel of this device, then press Add button.

End Device Association Groups

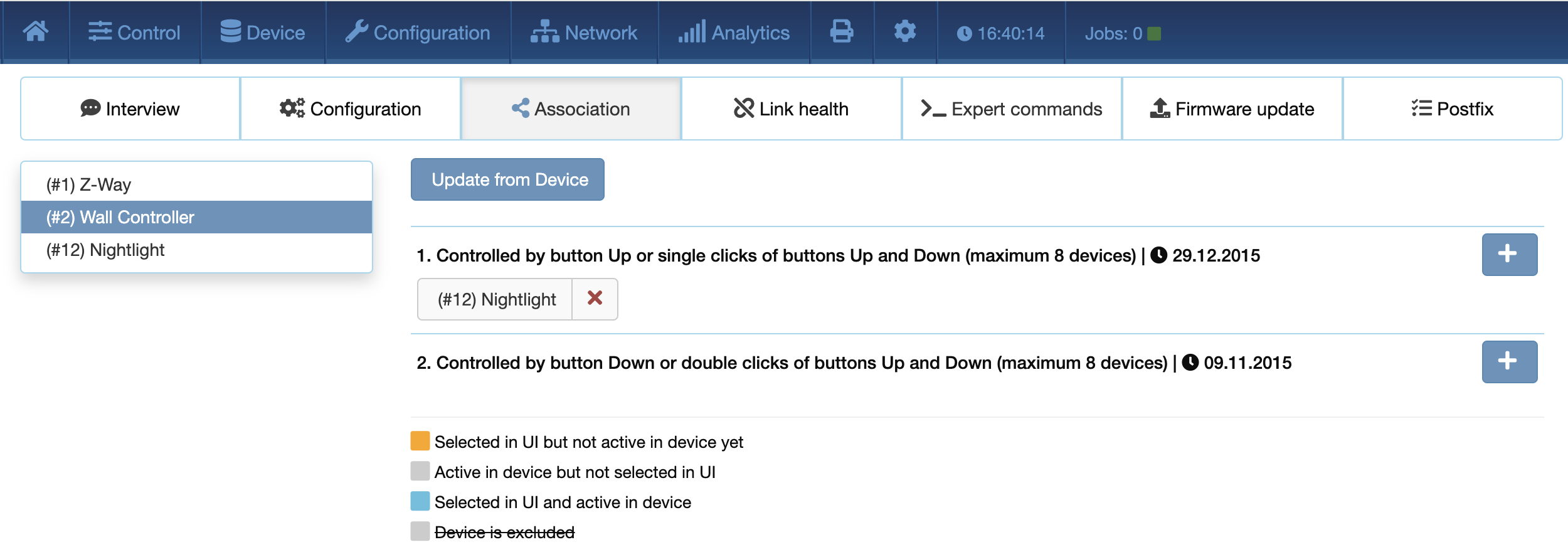

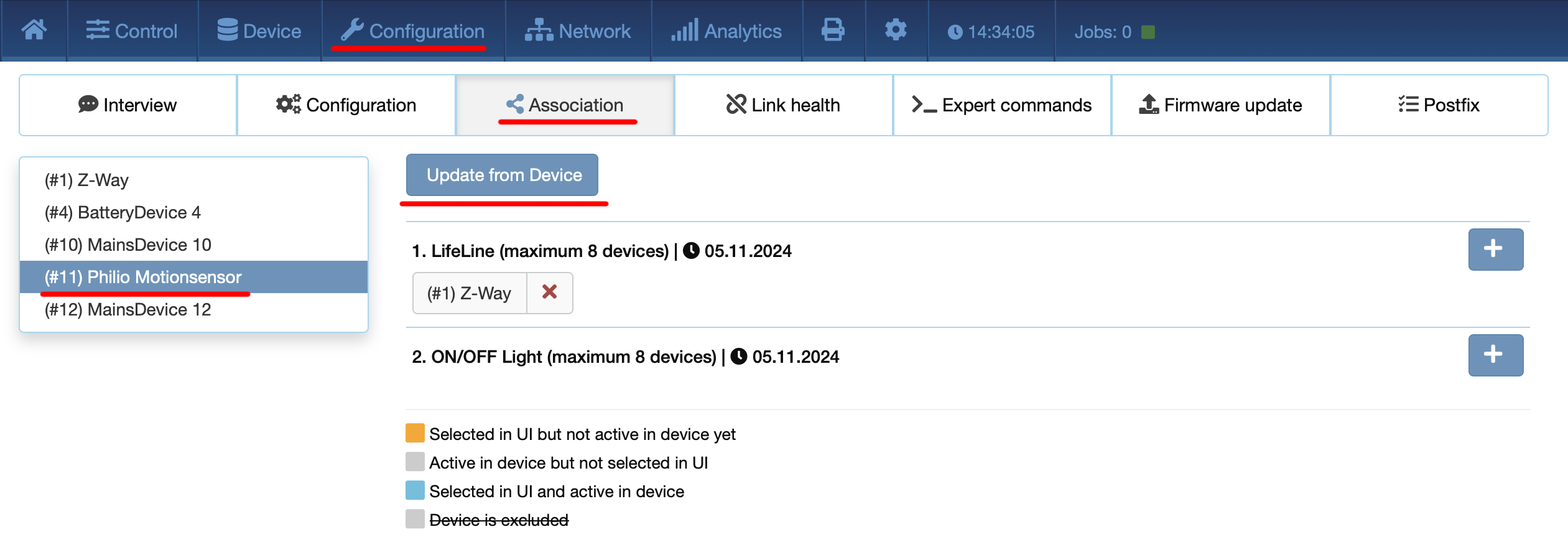

Configuration -> Association

To get list of associated devices press button Update from Device.

To remove associated device press red X button.

Get/Remove

Set

To set new association press plus button, choose device and channel of this device, then press Add button.

Indicator State

The controller supports receiving command Indicator Set and show Indicator ID, Property ID, State. Go to Configuration, select (#1) Z-Way, Expert Commands -> Indicator -> state.

Sending Identify command to controller

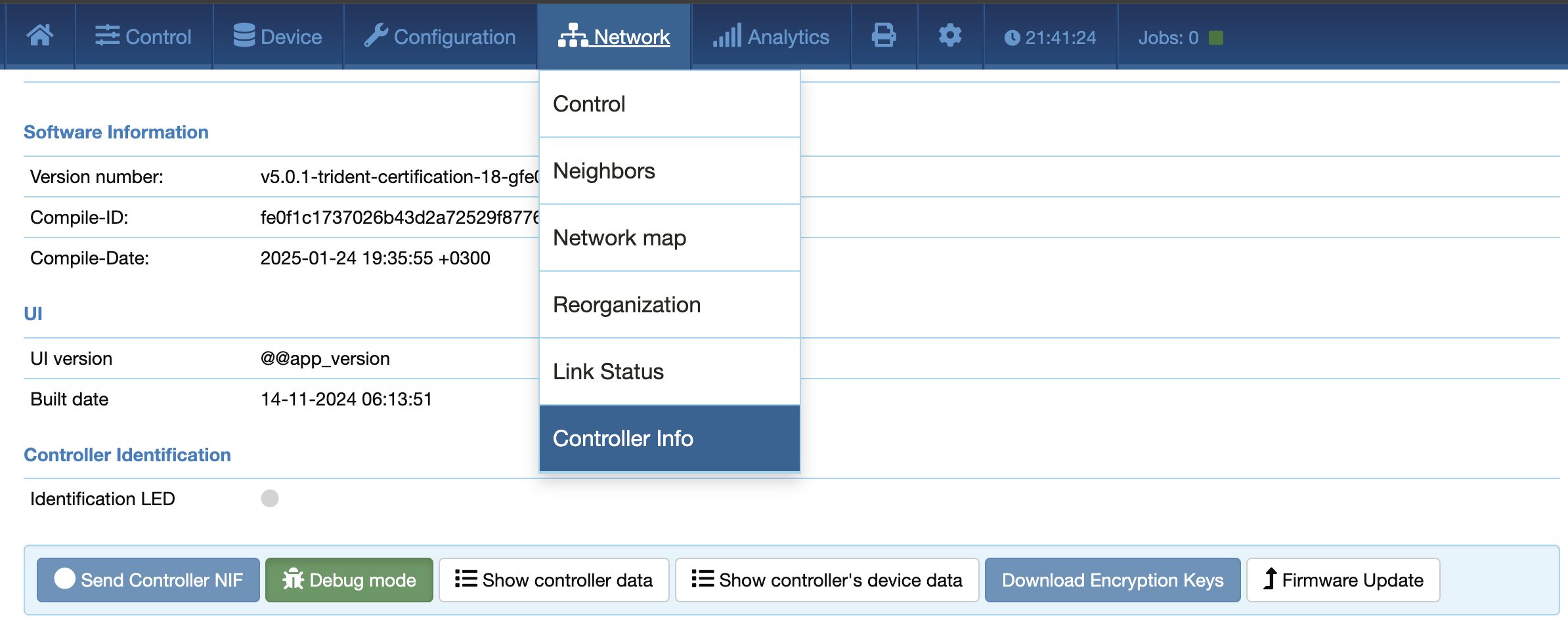

Network -> Controller Info -> Identification LED

Long Range

Network -> Control

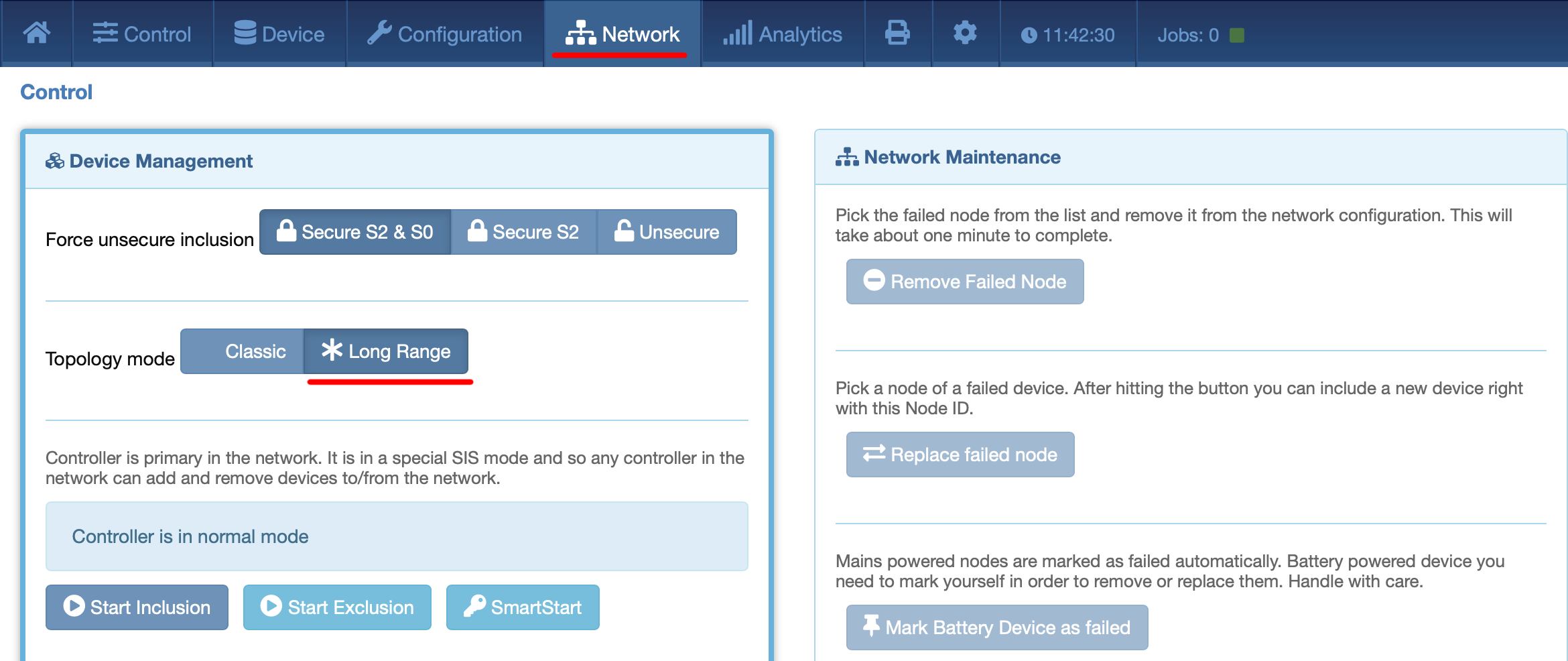

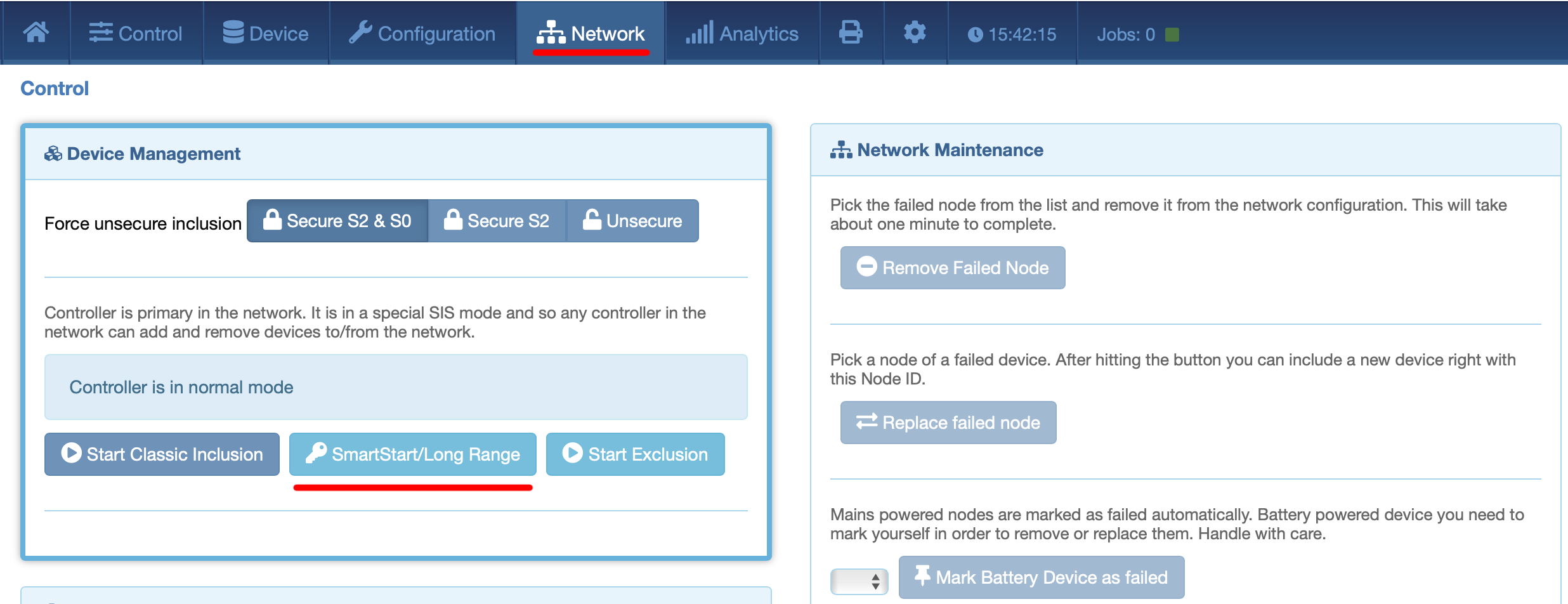

To include device in the Long Range mode open SmartStart/Long Range page. Add the DSK on the SmartStart page and power up the device. The controller will automatically add the device.

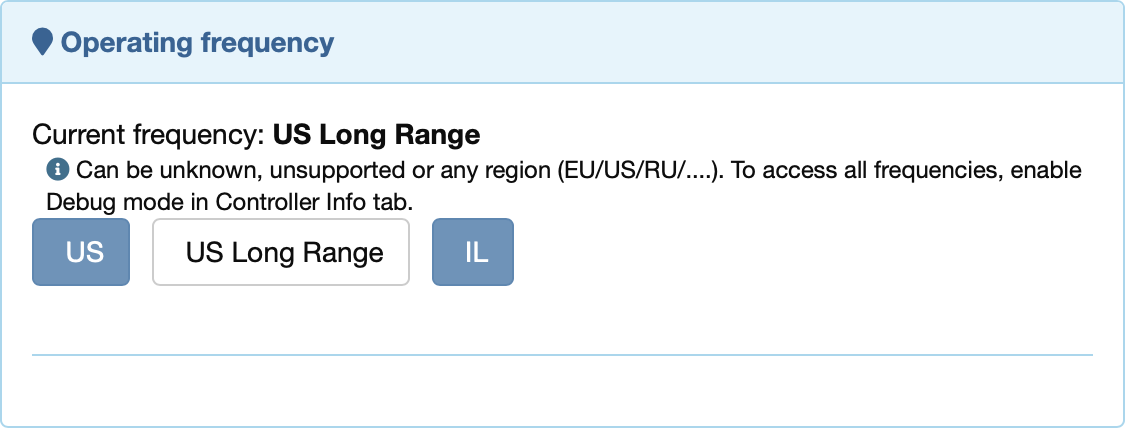

Make sure that the frequency of the controller is selected with Long Range support.

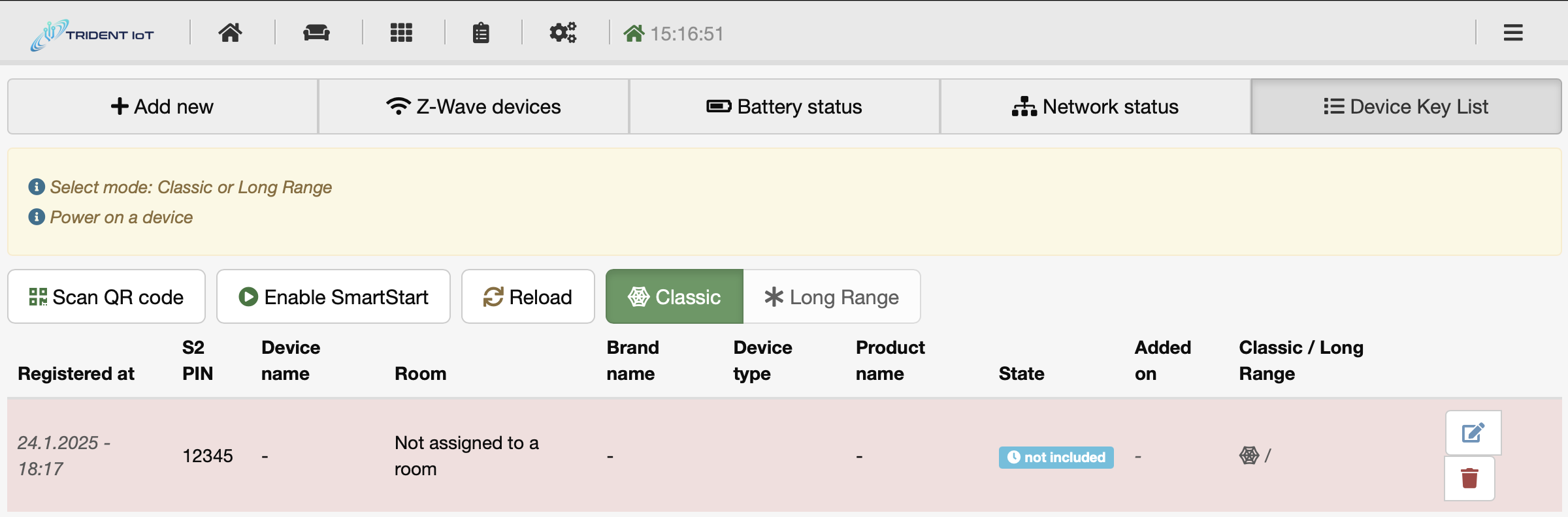

SmartStart

Network -> Control

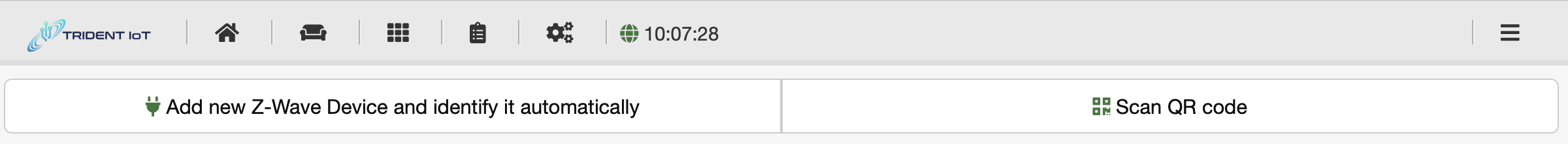

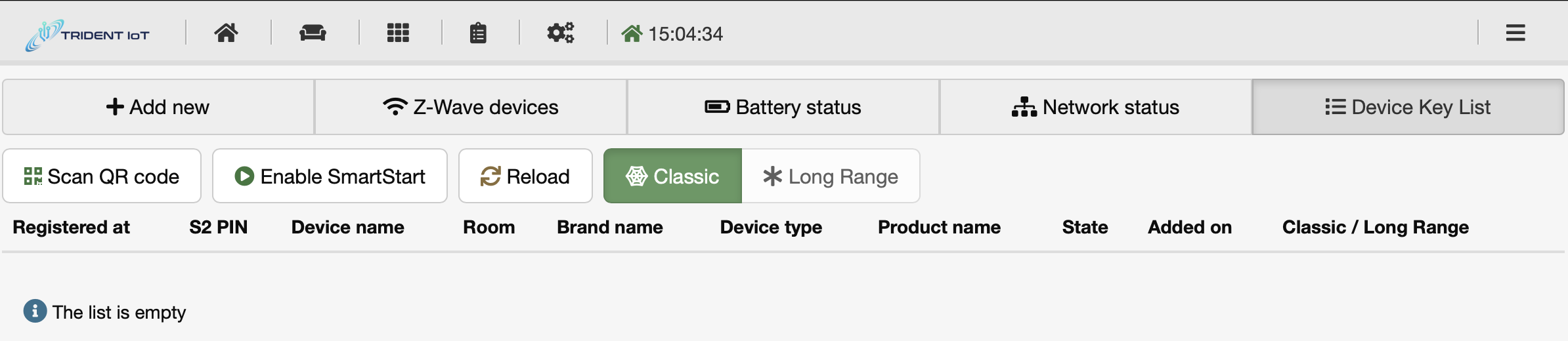

Сlick the SmartStart/Long Range button to open the DSK registration window. To include device via SmartStart add DSK code.

The "Scan QR Code" tab requests access to the camera to scan the QR code. Also you can upload a photo with QR Code.

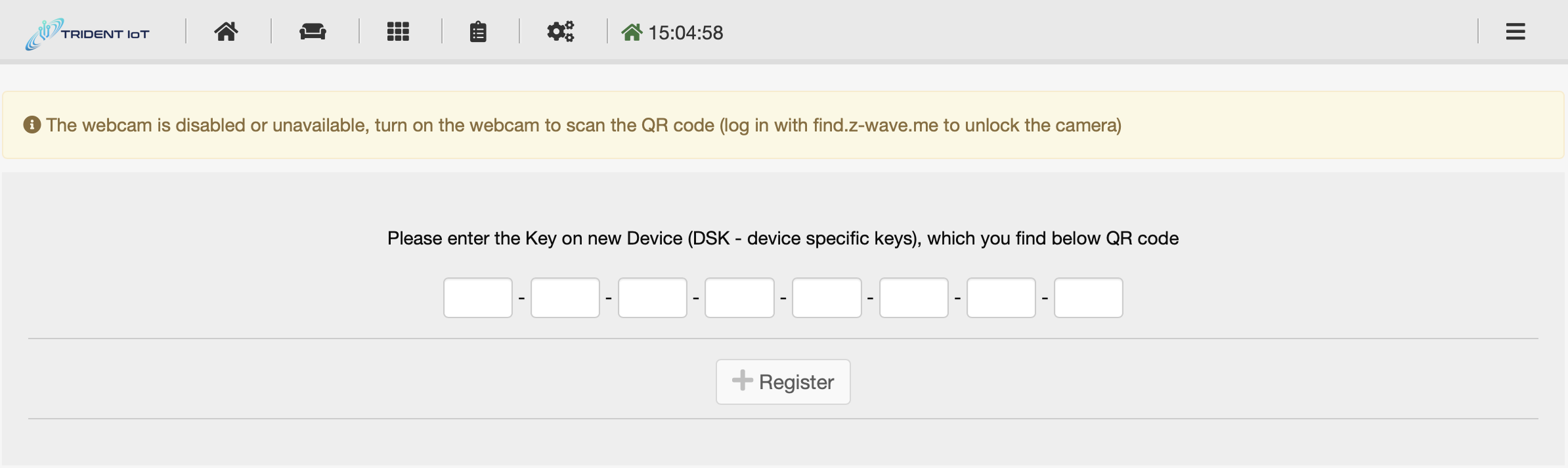

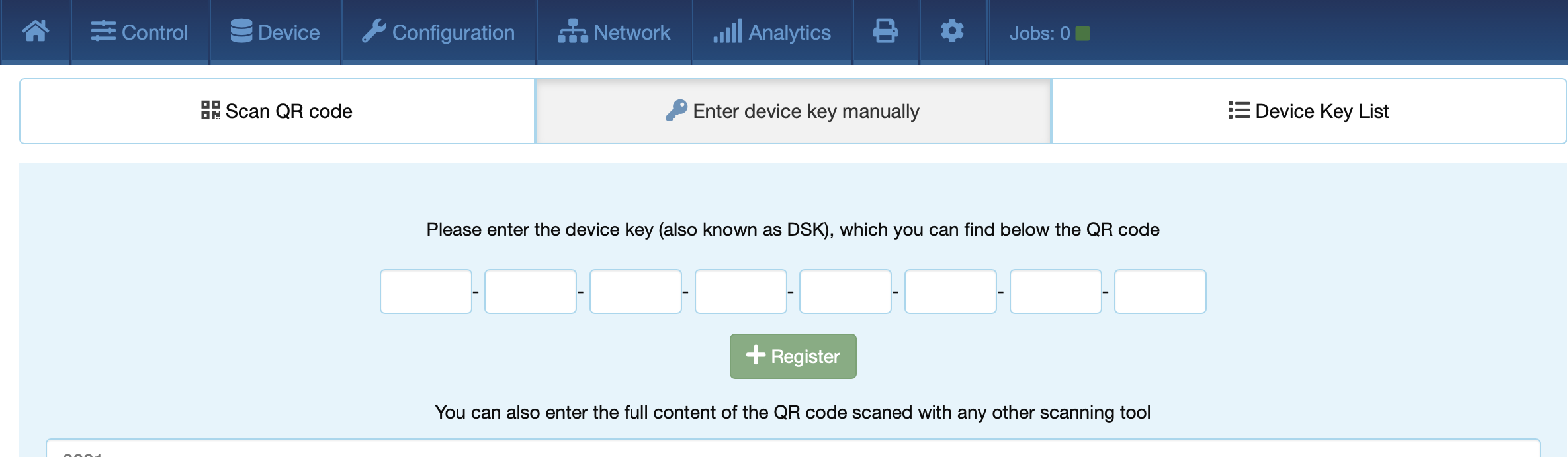

The "Enter device key manually" tab allow you to enter a key manually, then press Register.

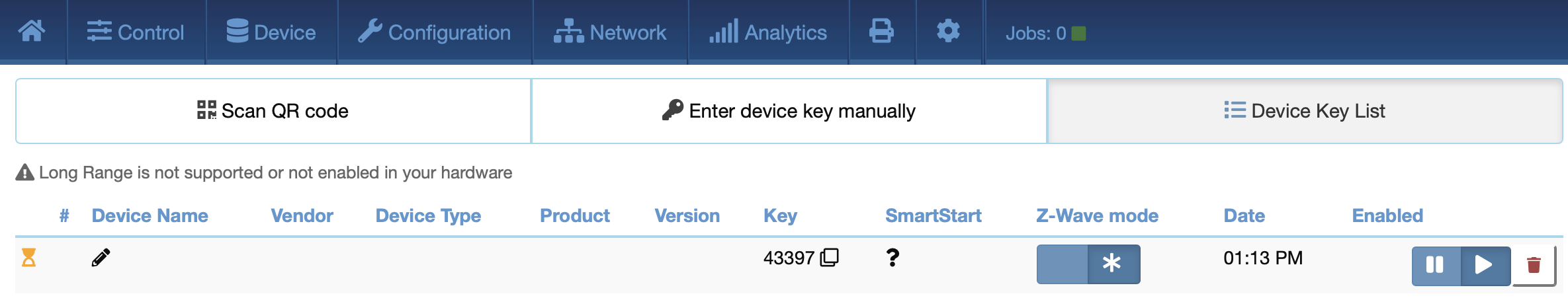

The "Device Key List" tab contains a list of all registered DSK. To delete a key, click on the trash.

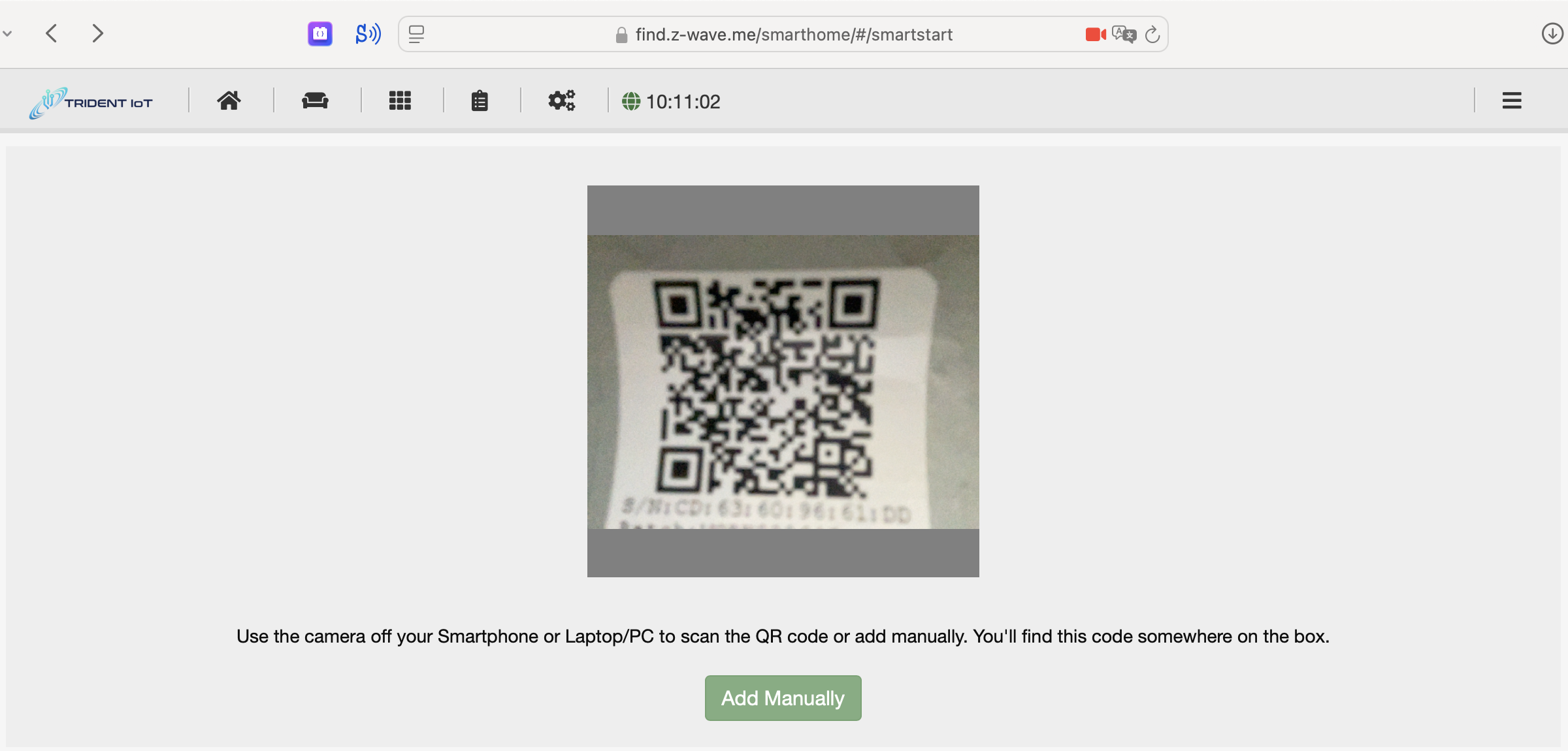

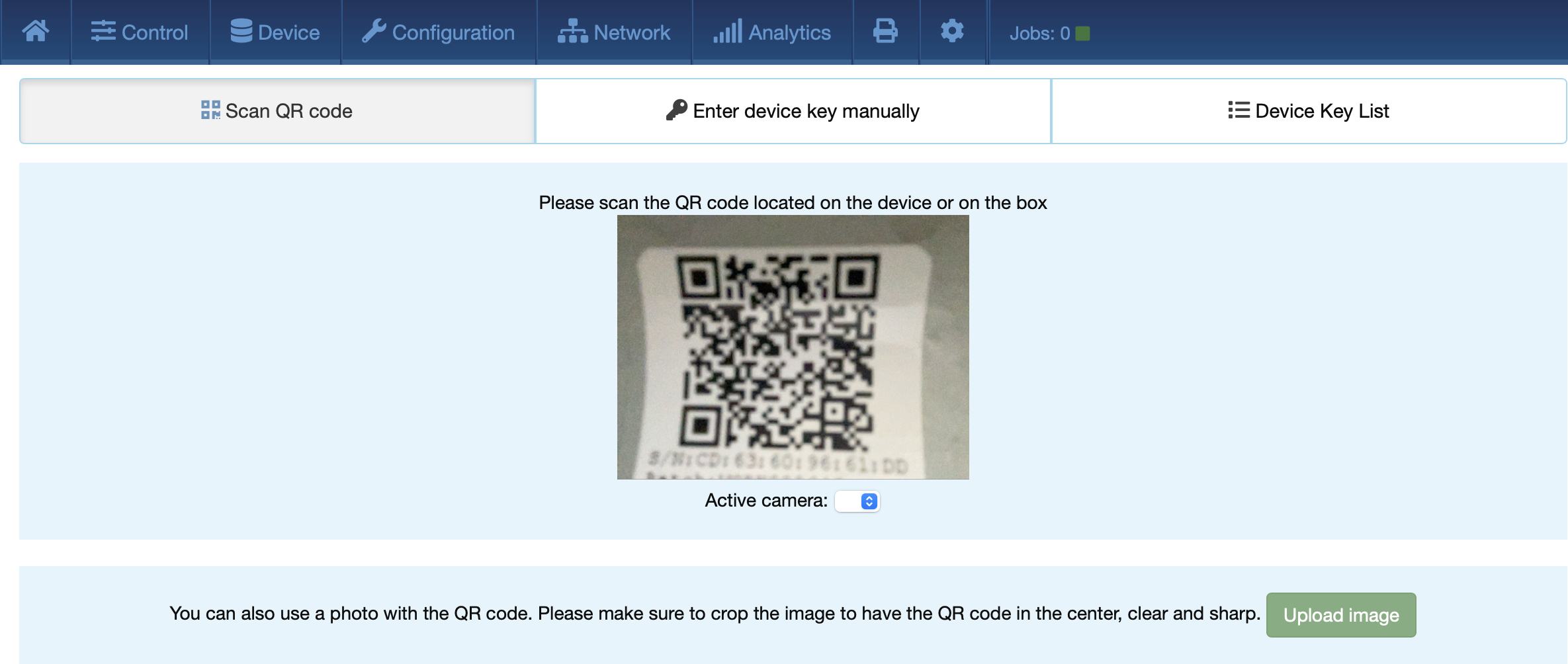

Inclusion via scanning a QR code

Network -> Control -> SmartStart -> Scan QR code

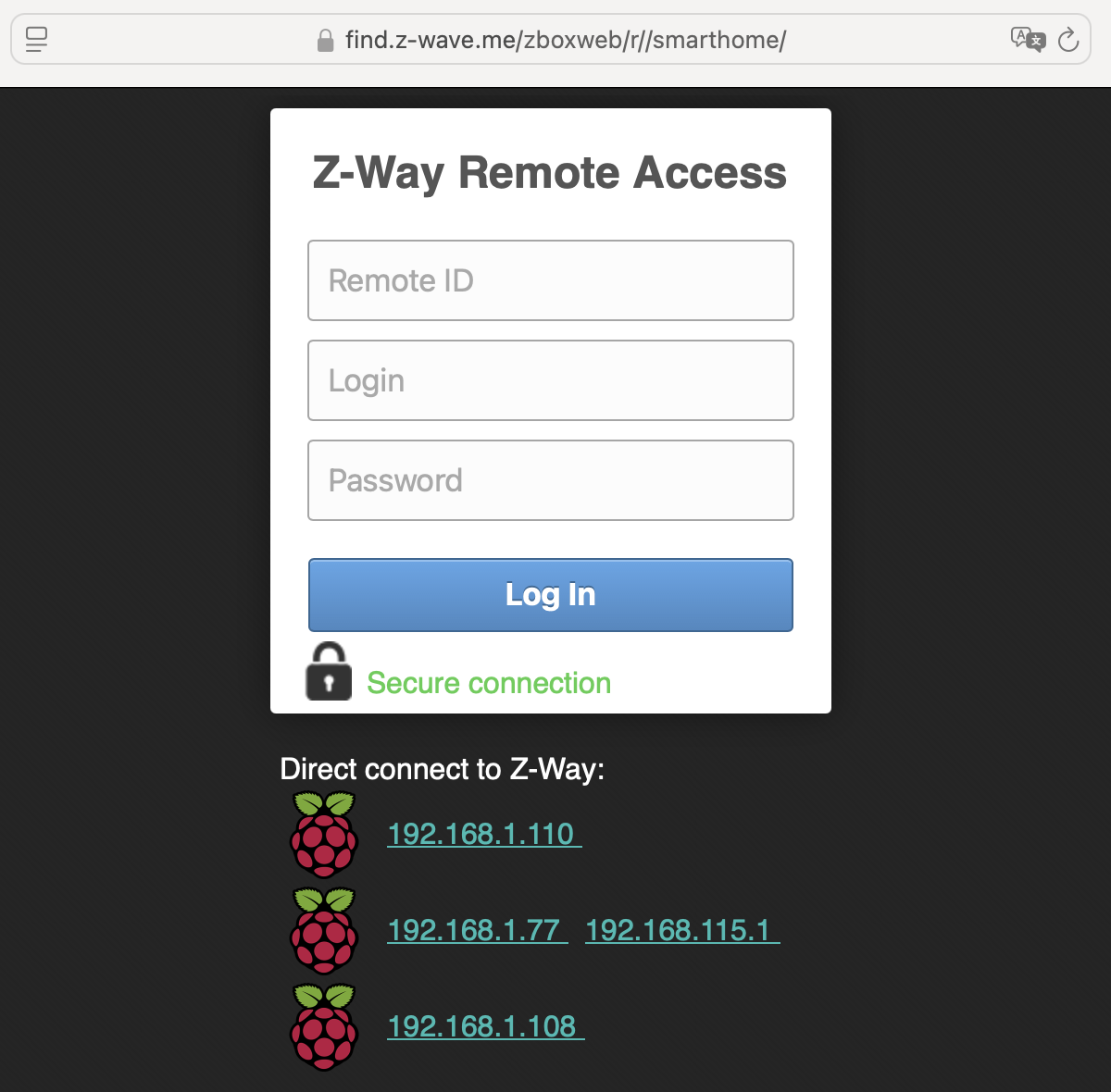

Safari allows you to use the camera on a local network, so you can scan the QR code from your laptop or phone while on the same local network with the Z-Way controller. Chrome allows you to access the camera via https connection or from localhost.

When working with Chrome, you can forward the port from the local network (192.168.2.237:8083) to localhost (localhost:5555).

socat TCP-LISTEN:5555,reuseaddr,fork TCP:192.168.2.237:8083

Supervision

If the end device supports the Supervision command class, the controller will wrap all Set commands in Supervision.

If the end device sends a command wrapped in Supervision to the controller, in case of successful processing, controller will respond with Done, if the command is not supported, controller will respond with Not Supported.

Classic Inclusion and Exclusion

Network -> Control

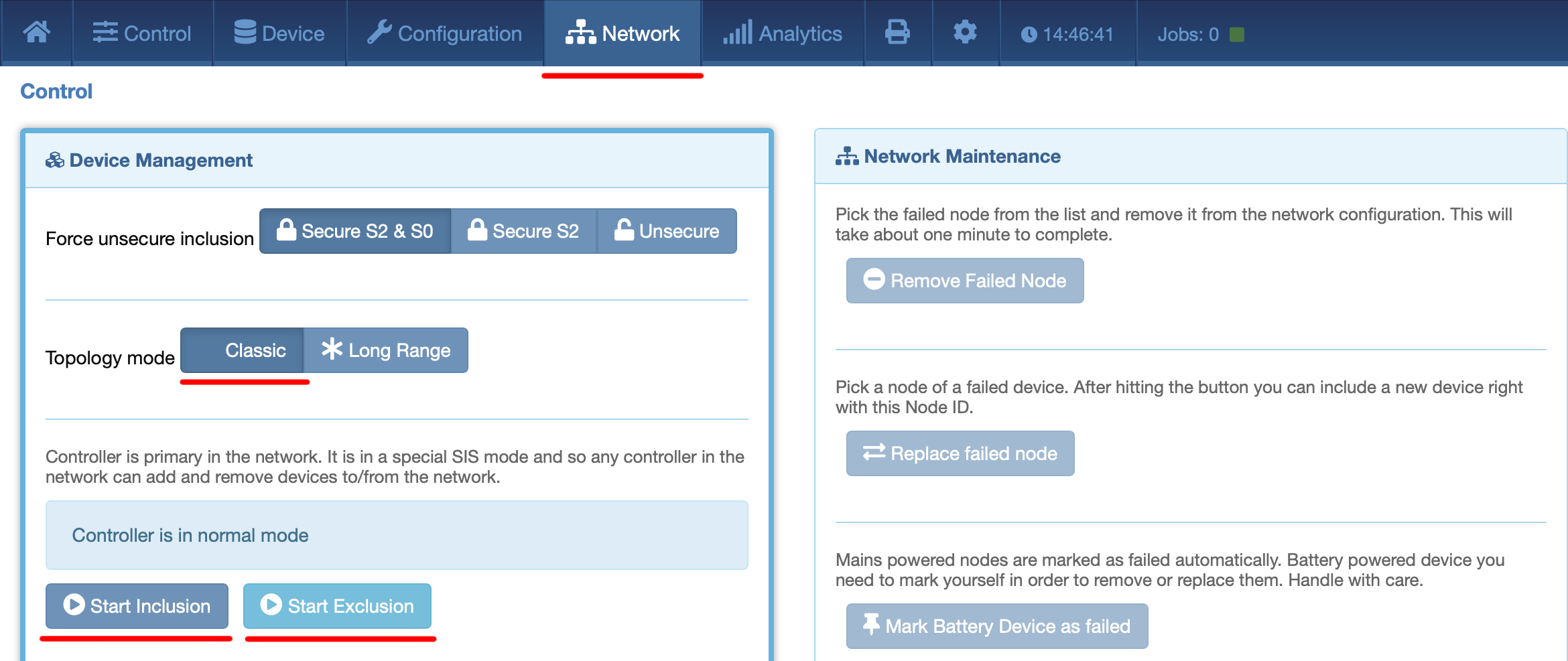

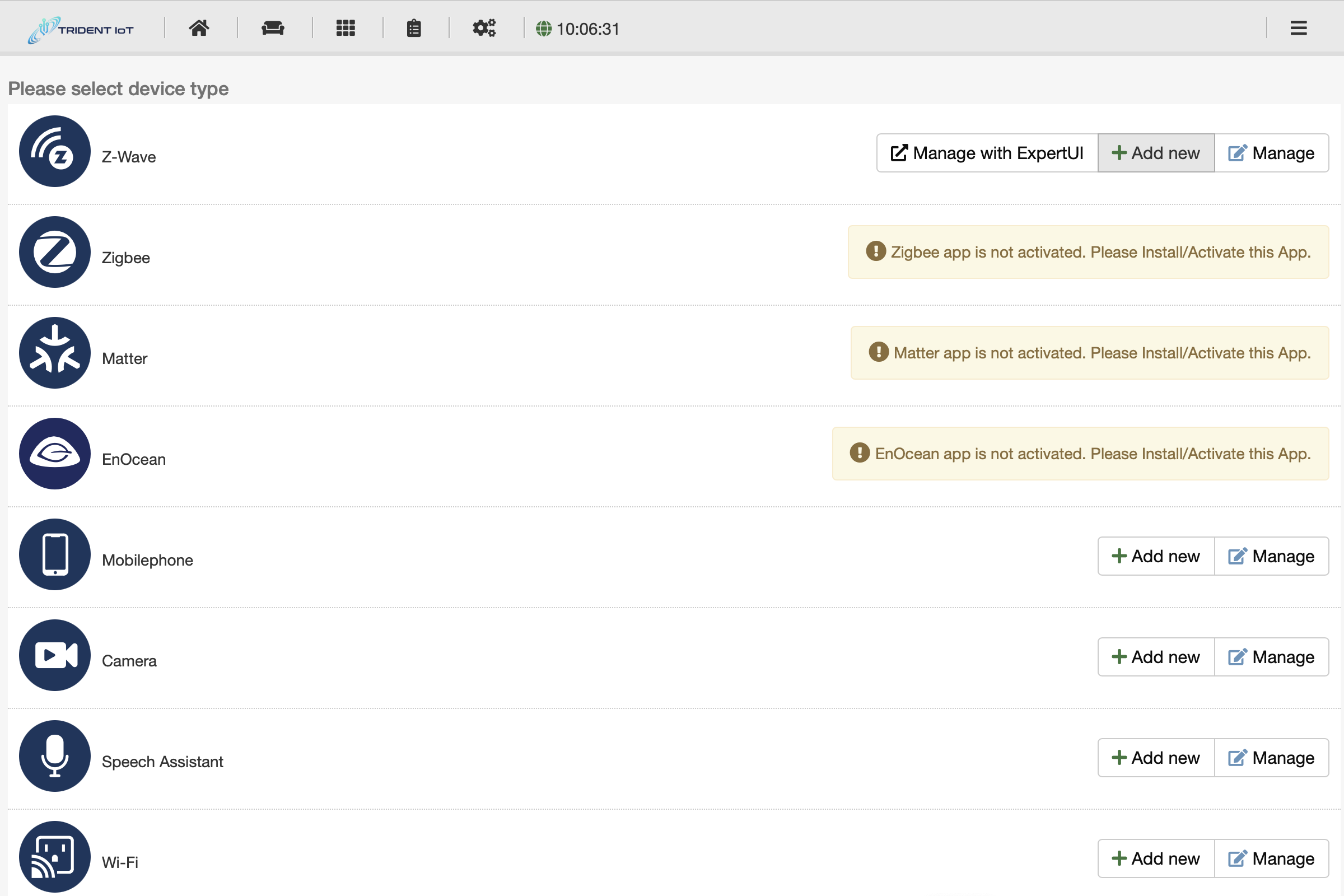

To add new device to the Z-Wave network press Start Classic Inclusion.
To remove device from the Z-Wave network press Start Exclusion.

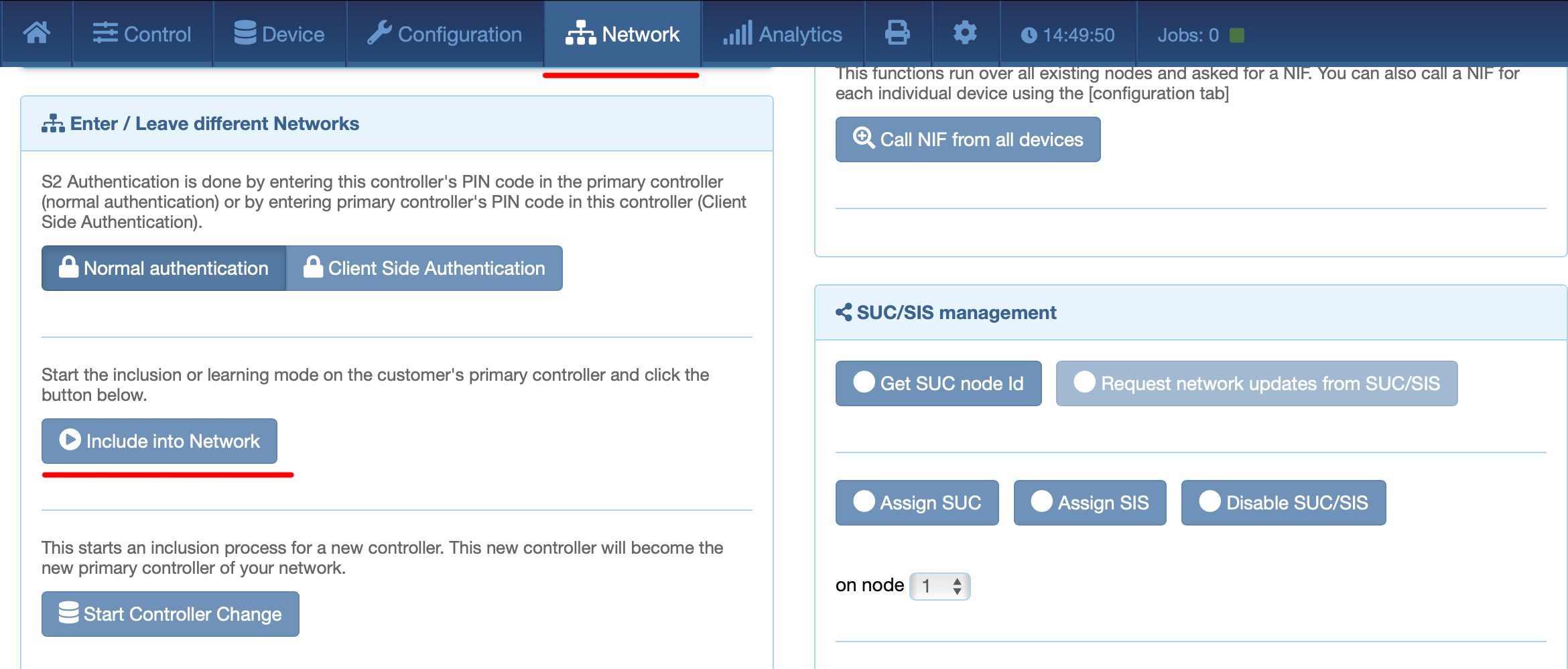

Include into Network

To include Z-Way controller into another controller start the inclusion on the customer's primary controller and press the Include into Network button. The Z-Way must be reset to factory settings before adding.

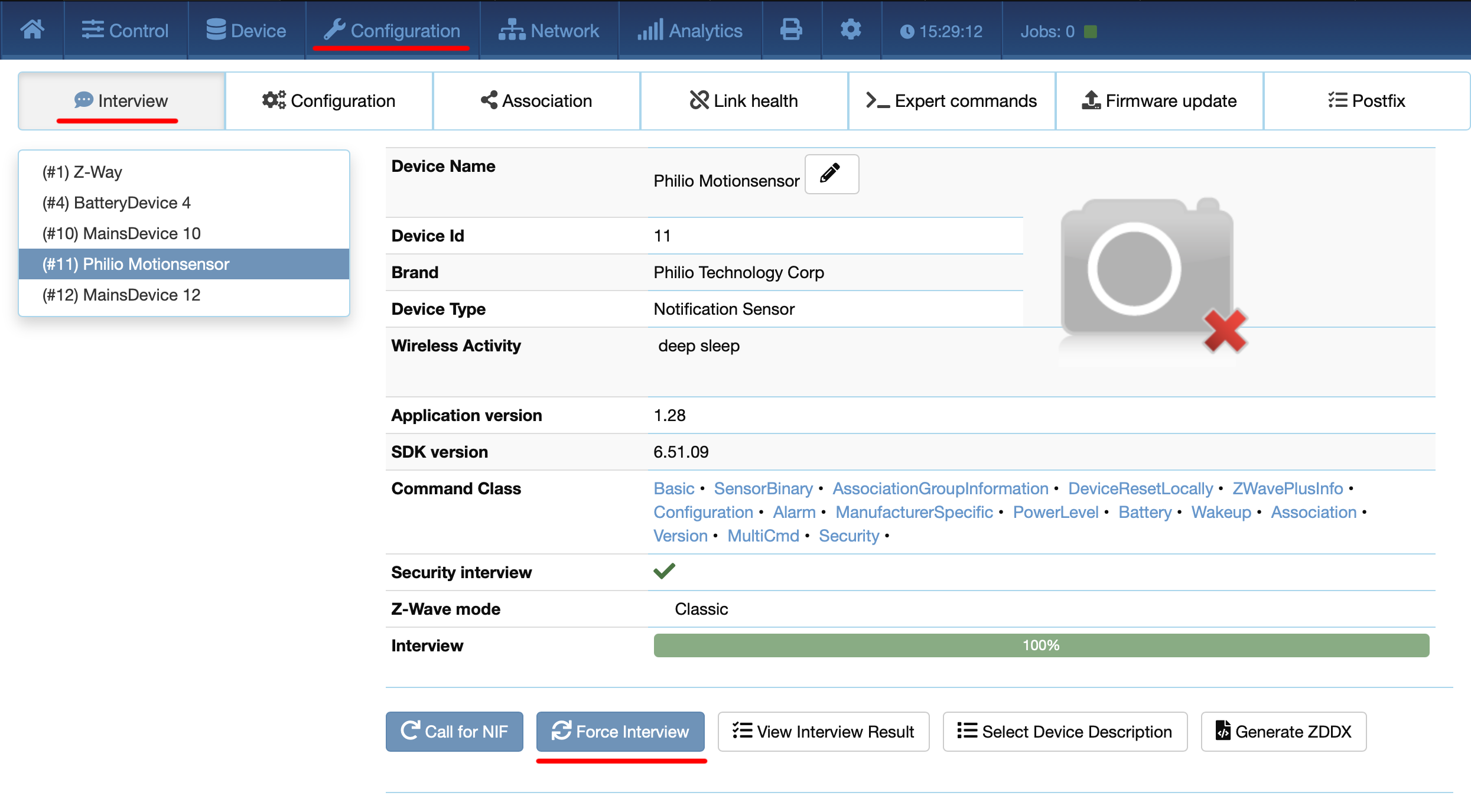

Force Interview

To start re-interview for device go to Configuration, select device, choose Interview tab, press Force Interview button

Terminology

Adding/Removing

On factory default the device does not belong to any Z-Wave network. The device needs to join an existing wireless network to communicate with the devices of this network. This process is called Adding. Devices can also leave a network. This process is called Removing. Both processes are initiated by the primary controller of the Z-Wave network. This controller will be turned into removing respective adding mode. Please refer to your primary controllers manual on how to turn your controller into adding or removing mode. Only if the primary controller is in adding or removing mode, this device can join or leave the network. Leaving the network - i.e. being removed - sets the device back to factory default.

If the device already belongs to a network, follow the removing process before adding it in your network. Otherwise adding of this device will fail. If the controller being added was a primary controller, it has to be reset first.

Copy

Replication function of copying network information from one controller to another is called Copy.

All supported Security S2 Command Classes

Command Class Version Requested Security Class
COMMAND_CLASS_APPLICATION_STATUS V1 S0, Unauthenticated, Authenticated, Access Control
COMMAND_CLASS_ASSOCIATION_GRP_INFO V3 S0, Unauthenticated, Authenticated, Access Control
COMMAND_CLASS_ASSOCIATION V3 S0, Unauthenticated, Authenticated, Access Control
COMMAND_CLASS_CRC_16_ENCAP V1 None
COMMAND_CLASS_DEVICE_RESET_LOCALLY V1 S0, Unauthenticated, Authenticated, Access Control
COMMAND_CLASS_FIRMWARE_UPDATE_MD V7 S0, Unauthenticated, Authenticated, Access Control
COMMAND_CLASS_INCLUSION_CONTROLLER V1 S0, Unauthenticated, Authenticated, Access Control
COMMAND_CLASS_INDICATOR V4 S0, Unauthenticated, Authenticated, Access Control
COMMAND_CLASS_MANUFACTURER_SPECIFIC V2 S0, Unauthenticated, Authenticated, Access Control
COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION V4 S0, Unauthenticated, Authenticated, Access Control
COMMAND_CLASS_MULTI_CMD V1 None
COMMAND_CLASS_NODE_NAMING V1 S0, Unauthenticated, Authenticated, Access Control
COMMAND_CLASS_POWERLEVEL V1 S0, Unauthenticated, Authenticated, Access Control
COMMAND_CLASS_SECURITY V1 None
COMMAND_CLASS_SECURITY_2 V1 None
COMMAND_CLASS_SUPERVISION V2 None
COMMAND_CLASS_TIME V2 S0, Unauthenticated, Authenticated, Access Control
COMMAND_CLASS_TRANSPORT_SERVICE V2 None
COMMAND_CLASS_VERSION V2 S0, Unauthenticated, Authenticated, Access Control
COMMAND_CLASS_ZWAVEPLUS_INFO V2 None
