/ZWaveAPI/Data/<timestamp>

Returns an associative array of changes in Z-Way data tree since <timestamp>. The array consists of (<path>: <JSON object>) object pairs. The client is supposed to assign the new <JSON object> to the subtree with the <path> discarding previous content of that subtree. Zero (0) can be used instead of <timestamp> to obtain the full Z-Way data tree.

The tree have same structure as the backend tree (Figure 1.2) with one additional root element "updateTime" which contains the time of latest update. This "updateTime" value should be used in the next request for changes. All timestamps (including updateTime) corresponds to server local time.

The object looks like:

{
  "[path from the root]": [updated subtree],
  "[path from the root]": [updated subtree],
  ...
  updateTime: [current timestamp]
}


Examples for Commands to update the data tree look like:

/ZWaveAPI/Data/0

/ZWaveAPI/Data/134500000

Please note that during data updates some values are updated by big subtrees. For example, in Meter Command Class value of a scale is always updated as a scale subtree by [scale].val object (containing scale and type descriptions).

/ZWaveAPI/InspectQueue

This function is used to visualize the Z-Way job queue. This is for debugging only but very useful to understand the current state of Z-Way engine.

The information given on this page is only relevant for advanced Z-Wave developers and for debugging.

The table shows the active jobs with their respective status and additional information.

Table 11.2 summarizes the different values displayed on the Job Queue visualization. While this info is certainly not relevant for end users of the system it is a great debug tool.

Handling S2 inclusion process

Security S2 inclusion process require additional interaction with the user during inclusion process. In addition to putting the device in Learn Mode and Z-Way in Add mode the user will be asked to grant different Security S2 keys and enter the PIN code.

To implement Security S2 inclusion process in your own app follow the steps below:

• Include the device
• Check if it supports S2 (if the Command Class exists)
• If Smart Start is in progress, nothing to be done — Z-Way will handle everything automatically
• Wait for devices[N].instances[0].commandClasses[159].data.requestedKeys to become True
• Check data.requestedKeys children and set data.grantedKeys children accordingly or set this value to an integer value as Granted Key mask (0x80 (S0) | 0x01 (S2 Unauthenticated) | 0x02 (S2 Authenticated) | 0x04 (S2 Access Control)). In most cases you would just copy from requested to granted (grant all keys the device requested for).
• Set data.grantedKeys to True or to Integer value as Granted Key mask (0x80 (S0) | 0x01 (S2 Unauthenticated) | 0x02 (S2 Authenticated) | 0x04 (S2 Access Control)) to notify Z-Way that you are done with keys selection
• Wait for data.publicKeyAuthenticationRequired to be set. If False (device was not granted Access or Authenticated keys), copy in data.publicKeyVerified the data.publicKey (it is recommended to show first two bytes in decimal form to the user to confirm). Otherwise copy and fill first two bytes with the PIN code.
• A failed Security S2 interview will result in data.securityAbandoned to be set to True. A successfull one will have data.securityAbandoned equal to False and data.interviewDone equal to True.

C-Library API and a general view on the Z-Way file structure

Files in the /zway folder

Z-Way keeps all files in one folder with exception of the log files. In Unix based platforms such as Linux PC, Raspberry Pi or OpenWRT the standard install folder is usually /opt/z-way-server. The logfile is typically placed in /var/log/z-way-server.log but this location of the log file can be reconfigured in the config file.

On Windows, the installation wizard asked where to place Z-Way and where to place the log file.

Right after installation, the standard folder has the following content:

/opt/z-way-server:
.
|-- automation
|-- ChangeLog
|-- colorize-log.sh
|-- config
|-- config.xml
|-- htdocs
|-- libs
|-- libzbee
|-- libzenocean
|-- libzmatter
|-- libzway
|-- libzwaysrv
|-- modules
|-- modules-includes
|-- reset-z-way.sh
|-- translations
|-- ZDDX
|-- z-get-tty
|-- z-get-tty-config
`-- z-way-server


config.xml - the main config file

The main config file in the root folder has XML file format. If only allows setting the log level (0 = log all, 9 = log almost nothing), the path to the log file and a debug port if needed. Don't change the setting for automation folder unless you really know what you do and why.

This is an example for the standard config.xml displaying all log right into the console.

<config>
    <automation-dir>automation</automation-dir>
    <log-file>0</log-file>
    <log-level>0</log-level>
    <debug-port>0</debug-port>
</config>


config: Various configuration xml files

This subfolder has the following structure:

/opt/z-way-server/config:
.
|-- Defaults.xml
|-- Profiles.xml
`-- zddx
    |-- e8ed2d2c-DevicesData.xml
    `-- known_dsk


The file Defaults.xml allows defining various behavior of Z-Way, among them the appearance of Z-Way as secondary controller:

• AutoConfig: Flag if Z-Way shall interview the device right after inclusion (default = 1)
• DeepInterview: Flag that Interview is only completed after all values are received back. This includes asking the device for all initial values of sensor or status data (default = 1)
• SaveDataAfterInterviewSteps: Flag whether or not all device data will be saved after each interview step (default = 1)
• TryToBecomeSIS: Will Z-Way try to become networks SIS if transceiver hardware allows it to (default = 1)?
• SecureInterviewAsInclusionController: Z-Way will initiate interview as Inclusion Controller, if 0 - only as Primary/SIS
• SecureInterviewAcceptedWithoutSchemeInherit: If 1 - Z-Way will not fail secure interview as secondary/inclusion controller if Scheme Inherit is not received, if 0 - fail interview as by Z-Wave protocol
• SecureAllCCs: Always use Security if possible (even for CCs allowed as non-secure)
• DeviceReplyTimeout: Delay to wait (in seconds) for a device to reply with a REPORT on a GET command
• DeviceRelaxDelay: Delay between two subsequent packets sent to one device, measured in ticks (10 ms). Some slow devices might need about 10 to respond correctly to burst of packets
• SerialAPITimeout: Extra time to be added to Serial API timouts. Set up to 1.0-3.0 sec in case of slow channel toward Z-Wave chip (e.g. in cloud applications)
• Command Class-Specific Settings
  • Wakeup -> WakeupInterval: Default Wakeup Interval
  • Scene Actuator Conf -> Max Scenes: Maximum number of Scenes supported
  • Scene Controller Conf -> Max Scenes: Maximum number of Scenes supported
  • Protection -> Mode: Default Protection Mode
  • SensorMultilevel -> Fahrenheit: Flag what temperature scale is used
  • SwitchAll -> Mode: Default Switch All mode
  • MultiCmd -> MaxNum: The maximum number of commands within multi-command encapsulation. The optimal value would be even, but there are many broken devices in the market that do not support this. A lower number means less efficient but more robust against faulty devices.
  • Firmware Update -> Fragment Size: Fragment size on 3rd gen RaZberry and 3rd gen UZB cannot be more than 32 (max packet size was 37, with possible CRC it gives 32). On UZB and new 5gen it can be up to 40 bytes
  • ThermostatSetPoint: -> Fahrenheit: Flag what temperature scale is used
• Controller: Description of how Z-Way will behave as a device in the network. This entry has the following subentries:
  • NodeInformationFrame: The command class Z-Way is described as “supported’’ in the network
  • SecureNodeInformationFrame: Command Classes available in secure environment
  • InstanceNodeInformationFrame: Command Classes in Instances if Multi Channel is emulated
  • VersionID =iD: Versions to be reported in Command Class Version Get Command for all Command Classes announced in NIF
  • Name: Default Node Name reported by NodeNaming Report
  • Location Default Node Location of Controller reported by NodeNaming Report
  • AppVersion: Application Version reported by ManufacturerSpecific Report
  • Manufacturer Specific: Values report by ManufacturerSpecific Report
  • SpecificDeviceClass: Specific Device Class reported
  • GenericDeviceClass: Generic Device Class reported
  • Icons: Z-Wave Plus Icons
  • Lifeline: Defines how many devices will be in Lifeline Association Group
  • CommandClassSupportedVersion: Defines the version numbers of the supported command classes
  • Channels: Defines the simulated channels

The file Profiles.xml contains the EnOcean profile definition. This clearly reflects the official profile definitions published by the EnOcean alliance.

translations: XMLs mapping Ids to text

/opt/z-way-server/translations:
.
|-- AEC.xml
|-- Alarms.xml
|-- BarrierSignals.xml
|-- ColorCapabilities.xml
|-- DeviceClasses.xml
|-- DoorLock.xml
|-- Indicators.xml
|-- LockEvents.xml
|-- Scales.xml
|-- SDKIds.xml
|-- ThermostatModes.xml
|-- UpdateVendors.sh
|-- UserCode.xml
|-- VendorIds.xml
`-- ZWavePlus.xml


All files in this subfolder are XML files and some of them require local language translations, as described in Chapter 10.3.

ZDDX: Device Description Files

ZDDX files (Z-Wave Device Description XML Files) are XML files containing verbal description of a specific Z-Wave device that cannot be called from the device itself during the interview process: They are:

• The naming of Association Groups. Modern Z-Wave device provides them in English language using the Association Group Information Command Class. The ZDDX file provides this information for older devices and in various languages.
• Configuration Parameters and Values: It is always possible to set a configuration value knowing the integer values from the device manual. Z-Way offers a convenient way to set Z-Wave configuration values utilizing the information from ZDDX files.
• An Image of the device.
• Information on inclusion, exclusion and wakeup processes.

It is possible to add your own ZDDX files, but Z-Way uses an index file ZDDX.indx to access them. Once a new file is added, run python MakeIndex.py.

Chapter 13.5 explain how to add and to submit new own ZDDX files and how to extend them.

Htdocs: The web servers document folder

/opt/z-way-server/htdocs:
.
|-- config -> ../config
|-- expert
|-- index.html
|-- lite
|-- smarthome
|-- translations -> ../translations
|-- ZDDX -> ../ZDDX
`-- zigxpert


This subfolder is the root folder of the embedded webserver. The index.html redirects to smarthome/index.html.

Header files: used to develop applications

/opt/z-way-server:
.
|-- libzbee
|-- libzenocean
|-- libzmatter
|-- libzway
|-- libzwaysrv


The use of the C-Library

The Z-Way library is a middleware between Z-Wave transceiver and your application. Z-Way offers pretty high level API to control Z-Wave devices and manage wireless network.

Interaction with the library covers three aspects:

• sending commands to Z-Wave devices;
• sending network management commands to the transceiver;
• receiving updates from the network.

Sending commands

Every command request generates an outgoing packet (job). Before generating a packet, library will validate parameters and check whether the command is supported by the recipient. In case of failure command will return error immediately.

Once a job is generated, it is placed into outgoing queue for future send. The queued jobs are handled internally by Z-Way engine according to commands priorities, nodes states and capabilities, transceiver state etc.

Once the job is sent, it must be first confirmed it was successfully delivered to the Z-Wave stack, and then confirmed it was delivered to the recipient. All these operations are performed asynchronously, so command may provide a callback function to call in case of success or failure if it is needed to know delivery result.

After the delivery was confirmed, command is considered executed. If it was a state request command (i.e. SensorMultilevel Get), response packet may be delayed (or even not sent at all), so command's success/failure callbacks cannot be used to get requested state immediately.

Receiving updates

All incoming packets from the Z-Wave network are automatically parsed by Z-Way and stored in special variables called data holders. Data holder is a named variable that stores a value along with it's data type and time the value was last updated and "invalidated". Each data holder may also contain a set of child data holders, so they form a hierarchical data storage. Data holders also support callbacks, so custom code may be executed each time the value is updated.

For example, level data holder stores dimming level of a dimmer. Once application executes a Get command for that dimmer, Z-Way will update invalidateTime property on the level data holder, so application knows the current value is assumed to be outdated, but the new one was not received yet.

Once Z-Way received a packet with new value of the dimmer, it will store it in level data holder and update updateTime property. Since updateTime is greater that invalidateTime, the value is considered valid now.

Z-Wave device can also send unsolicited state reports to controller (without a request from controller's side; e.g. due to local operation or periodically). Due to asynchronous nature of Z-Wave protocol, controller can't tell whether the packet was sent unsolicited or it is a response to the previous command. So unsolicited packet will be handled the same way exactly.

Command Classes

Z-Way inherits structure of Z-Wave protocol and divides data holders and commanda on different Command Classes (CC). Command Classes are building blocks of Z-Wave functionality. For example, dimming is provided by Command Class SwitchMultilevel, relay operation by Command Class SwitchBinary, sensors by command class SensorMultilevel and SensorBinary etc. Please consult Z-Wave protocol basics to understand Z-Wave Command Classes.

All Command Classes share a minimal subset of common data holders:

• supported says if CC is supported by the device (it implements that functionality) or only controlled (it can control other devices implementing that functionality).
• version stores version of the CC. Used internally to know how to deal with that Command Class.
• security tells if CC communications should be encrypted using Z-Wave AES security mechanism.
• interviewDone and interviewCounter describe the status of initial interview process during which Z-Way asks the device about its CC capabilities. If the interview is incomplete, Z-Way might fail to use some Command Classes with this device. All Z-Wave certified devices MUST pass interview process.

All the other data holders are specific to each Command Class. For example, SwitchMultilevel Command Class contains level data holder, SensorBinary has two-level storage, grouping data by sensor types: 0 -> sensorTypeString, level, 5 -> sensorTypeString, level, ... where type identifiers are Z-Wave specific constants. Every Z-Wave specific constant value will have corresponding verbal description (in case of SensorBinary it is in sensorTypeString data holder).

Some Command Classes are hidden under the hood of Z-Way: MultiCmd, Security, CRC16, MultiChannel, ApplicationStatus. They're handled internally by Z-Way software, and shouldn't be used directly.

Some Command Classes have no public APIs, but their data holders may be very useful in your application: AssociationGroupInformation, DeviceResetLocally, ManufacturerSpecific, Version, ZWavePlusInfo.

All the remaing Command Classes have their Get and Set commands specific to functionality of the Command Class. Consult CommandClassesPublic.h header file for more info about available commands for different Command Classes and their meaning.

Network management

Z-Way offers API for network management operations: include new devices, exclude devices, discover neighbor devices, remove failed nodes, frequency selection, controller reset etc. These functions are described in ZWayLib.h header file.

Z-Way also provides a low level access to Z-Wave transceiver functionality through Z-Wave Serial API. These functions are provided by Function Classes. You should use them only if you have deep knowledge of Z-Wave networking. Check FunctionClassesPublic.h for more info.

Using Z-Way Library in C-Code

To use Z-Way one need to include few header files:

#include <ZWayLib.h>
#include <ZLogging.h>

Z-Way will need to know where to write the log to, so first of all you need to create logging context using zlog_create() call. You can disable logging by passing NULL instead of logging context to Z-Way.

Then create new a Z-Way context using zway_init(). It will only allocate memory, open log files, initialize internal structures. At this point you can already attach your handlers on new device/instance/Command Class creation (you will also be able to do it at any time later). Do it using zway_device_add_callback() call.

Warning: you should initialize ZWay pointer with NULL before passing it to zway_init!

Executing zway_start() will open serial port and start a new thread that will handle all communications with the transceiver. From now Z-Way can receive packets from the network, but can not parse them yet, since devices were not discovered yet. All received packets will just be queued to be parsed later after discovery process.

Last step to run Z-Way is zway_discover() call. It will start communications with the Z-Wave transceiver and ask about devices in the network, their capabilities, network state etc. During discovery phase Z-Way will create structures for all devices and load saved data from file stored in config/zddx folder.

From now on, Z-Way is ready to operate. Incoming events will trigger callback functions attached by application, and executing commands will put new packets in the queue.

You will also need few other functions zway_is_running(), zway_is_idle(), zway_stop(), zway_terminate() to handler termination process.

Handling secure inclusion

Security S0 inclusion is completely handled by the Z-Way library.

Security S2 inclusion with Z-Way library requires user interaction. Z-Way offers various options:

• Use Smart Start technology: Call zway_fc_smart_start_enable() on start (this is done by the library on start).

  Add the device DSK using zway_node_provisioning_dsk_add() with a pointer to 16 bytes DSK and filled the NodeProvisioningData structure (instead of filling it one can fill it with zeros).

  The inclusion and key exchange will happen automatically on the device's power-up.

  All keys will be granted to the device.

  zway_dsk_string_to_bytes() can be used to convert AAAAA-BBBBB-...-HHHHH into 16 bytes.

• Use the standard key grant process:

  After inclusion start subscribe to Command Classes creation (using zway_device_add_callback() with CommandAdded flag) and wait for SecurityS2 creation. Then subscribe to the change of requestedKeys and puclickKey data holders on SecurityS2 Command Class data (using zdata_add_callback()).

  On requestedKeys change inspect inner data holders for the list of requested keys and fill all grantedKeys inner data holders (by setting TRUE or FALSE).

  Once done, set grantedKeys data holder to TRUE.

  Alternatively, set grantedKeys to an integer value as Granted Key mask (0x80 (S0) | 0x01 (S2 Unauthenticated) | 0x02 (S2 Authenticated) | 0x04 (S2 Access Control)).

  On puclickKey update check it against the DSK on the device (it is good to show the full key to the customer to allow full check).

  Copy the key in the puclickKeyVerified data holder to confirm. If publicKeyVerificationRequires is set to TRUE, the user should also be asked for the PIN code. This two-bytes code should replace the two leading zero bytes of the puclickKey.

• Set the PIN and the list of desired security keys before inclusion:

  Just before starting the inclusion process with zway_controller_add_node_to_network set data holders on the controller S2AutoInclude.pin=XXXXX (PIN number) and S2AutoInclude.keys=Y (-1 for all keys, 0x80 for S0 only, 0x01 for S2 Unauthenticated, 0x02 for S2 Authenticated, 0x04 for S2 Access, or any ORed combination to provide multiple keys)

  If there is no need for S2 Authentication or S2 Access keys, just specify pin=0 and keys=0x01. This will give S2Unauthenticated without entering the PIN code. keys=0x81 will grant S0 and S2 Unauthenticated.

Example of C-level code usage

Init:

ZWLog logger = zlog_create(stdout, Debug); ZWErr err; ZWay zway; err = zway_init(&zway, ZSTR("/dev/ttyACM0"), 0, NULL, NULL, NULL, NULL, logger); err = zway_start(zway, NULL, NULL); err = zway_discover(zway);

Get:

ZWError zway_cc_switch_binary_get(zway, nodeId, 0, NULL, NULL, NULL);

Turn on/off:

ZWError zway_cc_switch_binary_set(zway, nodeId, 0, TRUE, 0xFF, NULL, NULL, NULL);

Subscribe to devices changes:

zway_device_add_callback(zway, DeviceAdded | CommandAdded, onDeviceAdded, NULL);

Subscribe to status change:

ZDataHolder dh = zway_find_device_instance_cc_data(zway, nodeId, 0, SENSOR_MULTILEVEL, "1.val"); err = zdata_get_integer(dh, ∫_val); zdata_add_callback(dh, onLevelChange, FALSE, NULL);

Working with data holders

To access data holders one can use zdata_... functions defined in ZData.h (e.g. zdata_get_integer_array(), zdata_get_binary(), zdata_get_string()). zdata_get_... functions return pointers to the memory inside data holders. The caller should never directly alter or free that memory in any case. Instead use zdata_set_... functions.

A lock should always be aquired before working with data holders and held until the value is not used anymore (using zway_aquire_lock() and zway_release_lock()). For long term usage copy the value in your own memory.

Offline data storage

Z-Way is storing network topology and devices' information in memory. To remember that data over restarts, Z-Way is storing this information in a special XML file config/zddx/xxxxxxxx-DevicesData.xml, where xxxxxxxx is the Z-Wave Home ID. This file contains the fill datas holder tree for all devices and of the controller.

This file is updated on topology changes, device's interview steps as well as on Z-Way stop. Daily changes (devices' status updates) might be lost on inappropriate Z-Way stop or hardware power off. To reduce the impact of old values stored in the offline storage, it is recommended to save this information hourly using the call zddx_save_to_xml().

Z-Way API change

Z-Way C library API changes are registered in the Z-Way Change Log. In addition to the C API, sometimes the data holder structre is also changed. This affects the format of the offline stroage. To transform Z-Way offline storage from the old format to the new one the z-cfg-update tool can be used. It updates the format of xxxxxxxx-DevicesData.xml file. It should be called before Z-Way start after each update or on each Z-Way start.

Z-Way SDK presentation

The WebSocket (JSON) API in detail for Z-Way-Srv-Test

Connect to the WS API

To test open Chrome web console and connect to the Z-Way WebSocket server. You must be on the page you are connecting to.
All events will be displayed in the log.

const ws = new WebSocket("ws://192.168.8.55:8083", "http-only");
ws.onmessage = (event) => {
  console.log(event.data);
};

Another way to test is to use a extension "Simple WebSocket Client" for Chrome.

Examples of WS API

Examples of access to various command classes can be found in the section View Data Tree.

Get Info

Get the tree for Basic CC on device 2:

ws.send(JSON.stringify({method: "ZWave.Command", params: "devices[2].Basic.data"}));

{
"result": {
  "value": null,
  "type": "empty",
  "supported": {
    "value": true,
    "type": "bool",
    "invalidateTime": 1738868568,
    "updateTime": 1738868569
  },
  "version": {
    "value": 2,
    "type": "int",
    "invalidateTime": 1738868571,
    "updateTime": 1738868572
  },
  "security": {
    "value": true,
    "type": "bool",
    "invalidateTime": 1738868568,
    "updateTime": 1738868571
  },
  "interviewDone": {
    "value": true,
    "type": "bool",
    "invalidateTime": 1738868568,
    "updateTime": 1738868574
  },
  "interviewCounter": {
    "value": 9,
    "type": "int",
    "invalidateTime": 1738868568,
    "updateTime": 1738868574
  },
  "level": {
    "value": 0,
    "type": "int",
    "invalidateTime": 1738868573,
    "updateTime": 1738868574
  },
  "invalidateTime": 1738868568,
  "updateTime": 1738868569
}, "id": 0}

Get Z-Way version:

ws.send(JSON.stringify({method: "ZWave.GetStatus"}));

{"result": {"fw":"v5.0.1-trident-certification-26-gef20ab88","nodes":2,"sleeping":0,"online":2}, "id": 0}

Control devices

Turn On device #2 for SwitchBinary CC

ws.send(JSON.stringify({method: "ZWave.Command", params: "devices[2].instances[0].commandClasses[37].Set(255)"}));

ws.send(JSON.stringify({method: "ZWave.Command", params: "devices[2].instances[0].commandClasses[37].Set(0)"}));

ws.send(JSON.stringify({method: "ZWave.Command", params: "devices[2].instances[0].commandClasses[38].Set(10)"}));

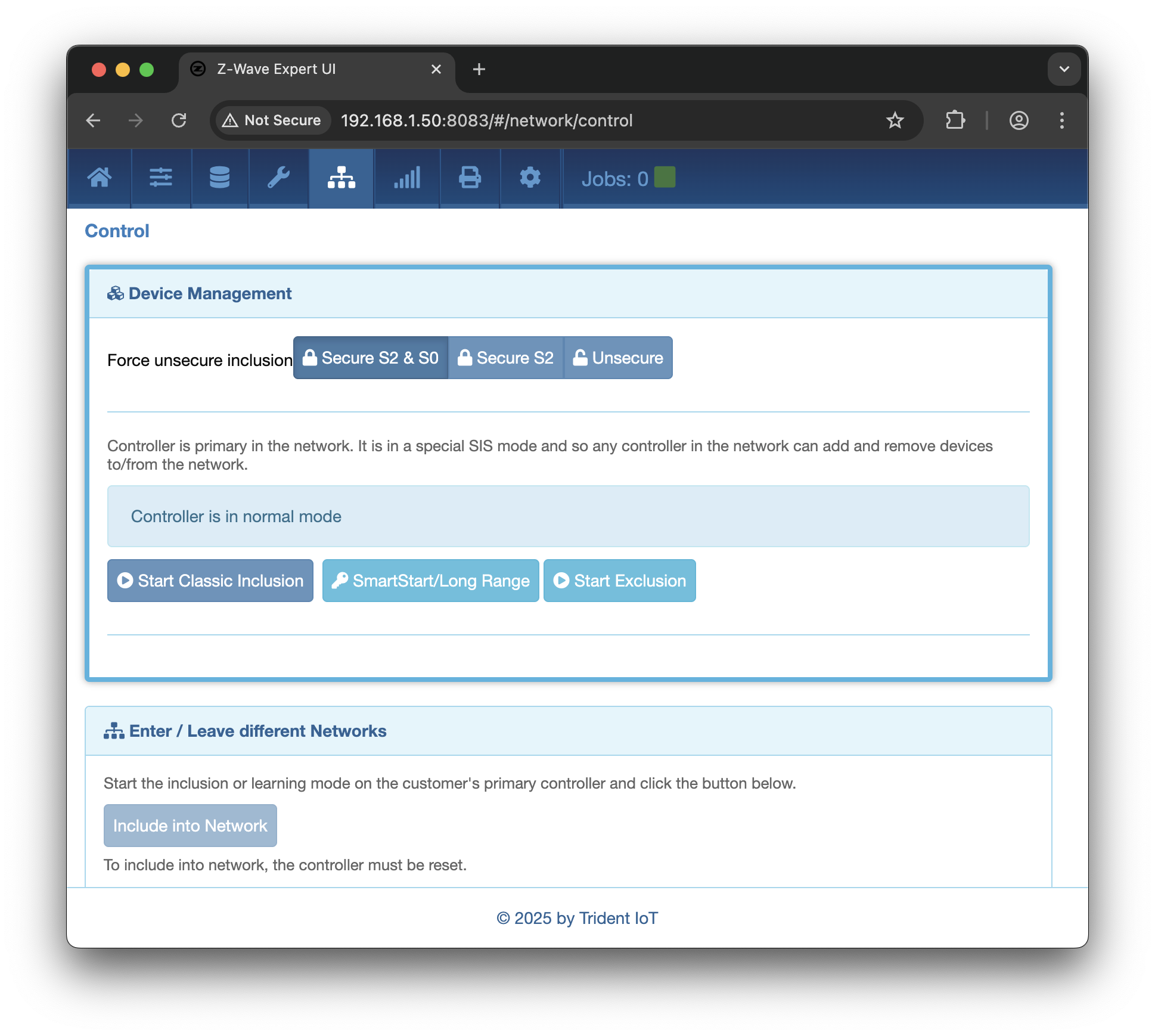

Inclusion in Classic mode

Start inclusion:

ws.send(JSON.stringify({method: "ZWave.Command", params: "controller.AddNodeToNetwork(true)"}));

ws.send(JSON.stringify({method: "ZWave.Command", params: "controller.AddNodeToNetwork(false)"}));

ws.send(JSON.stringify({method: "ZWave.Command", params: "controller.RemoveNodeFromNetwork(true)"}));

ws.send(JSON.stringify({method: "ZWave.Command", params: "controller.RemoveNodeFromNetwork(false)"}));

Inclusion S2 devices

For S2 devices you will have to grant keys.
Call this prior to starting the inclusion to add a device with PIN 12345 and grant all keys requested by the device:

ws.send(JSON.stringify({method: "ZWave.Command", params: "controller.data.S2AutoInclude.pin=12345"}));
ws.send(JSON.stringify({method: "ZWave.Command", params: "controller.data.S2AutoInclude.keys=-1"}));

and start inclusion using

ws.send(JSON.stringify({method: "ZWave.Command", params: "controller.AddNodeToNetwork(true)"}));

Inclusion via SmartStart typical and LongRange devices

To add device via SmartStart you need to add full DSC to dskProvisioningList

ws.send(JSON.stringify({method: "ZWave.Command", params: "controller.data.smartStart.dskProvisioningList=[\"12345-67890-12345-67890-12345-67890-12345-67890\"]"}));

Z-Way Data Model Reference

Data

This is the description of the data object (called Data Holder or DH).

• value: the value itself
• name: the name of the data object
• updateTime: timestamp of the last update of this particular value
• invalidateTime: timestamp when the value was invalidated by issuing a Get command to a device and expecting a Report command from the device
• type

Object zway

• Description: zway is the Z-Wave part of the object tree
• Syntax: zway.X with X as child object
• Child objects
  • controller: controller object, see below for details
  • devices: devices list, see below for details

controller

You can access the data elements of "controller" in the Z-Wave Expert User Interface in menu Network > Controller Info using the buttons Show controller data and Show controller's device data.

• Description: Controller object
• Syntax: controller.X with X as child object
• Child objects
  • data: Data tree of the controller
    • homeId: Home ID of the controller
    • nodeId: Node ID of the controller
    • SISPresent: is SIS available (if TRUE, SUCNodeId is a SIS, otherwise it is SUC)
    • SUCNodeId: Node ID of SUC or SIS or 0 if no SUC/SIS present
    • isInOtherNetworks: is controller the original Primary or it is in other's network
    • isPrimary: can controller include devices (Primary or Inclusion controller)
    • isRealPrimary: is controller Primary Controller or SIS in the network
    • isSUC: is SUC present
    • libType: Z-Wave library type
    • frequency: current frequency of the transceiver
    • controllerState: current network management state of the controller
    • lastExcludedDevice: Node ID of last excluded device
    • lastIncludedDevice: Node ID of last included device
    • secureInclusion: shall inclusion be done using Security: 0 (unsecure inclusion), 1 (S2 if possible, otherwise unsecure), 2 (S2 or S0 if possible, otherwise unsecure), 3 (S0 if possible, otherwise unsecure)
    • caps: Z-Way license information
    • softwareRevisionVersion: version of Z-Way build
    • softwareRevisonDate: date of Z-Way build
    • softwareRevisionId: git commit of Z-Way build
    • manufacturerId / manufacturerProductId / manufacturerProductTypeId: IDs to identify the transceiver hardware
    • vendor: name of hardware vendor
    • APIVersion: Version of the Serial API of the transceiver firmware
    • SDK: Z-Wave SDK version of the transceiver firmware
    • ZWVersion: ZWave Version (firmware)
    • ZWaveChip: Serie of the transceiver Z-Wave chip
    • ZWlibMajor / ZWlibMinor: library version
    • capabilities: array of Function Class IDs supported by the transceiver firmware
    • functionClasses: ordered array of IDs of Function Classes
    • functionClassesNames: ordered array of Names of Function Classes
    • uuid: Z-Way transceiver firmware unique ID
    • memoryGetAddress: address of last data stored in memoryGetData read by one of memory read function
    • memoryGetData: last data read by one of memory read function
    • countJobs: shall job be counted (nonManagementJobs and devices[x].data.queueLength)
    • nonManagementJobs: number of non-management jobs in the queue
    • deviceRelaxDelay: time in 10ms to wait before sending next command to same device (configurable in Defaults.xml)
    • promiscMode: true if Zniffer promiscuous mode is enabled
    • incomingPacket: last incoming packet from Z-Wave network
      • nodeId: source Node Id
      • dstNodeId: destination NodeId (usually the controller Id, but in primiscuous mode it will show the real destination)
      • securePayload: decoded payload for secure packet (if decoding was possible)
      • RSSI: RSSI level
      • frameType: packet type: "Explore Frame", "broadcast", "multicast", "singlecast"
      • hops: array of repeaters nodes, zero means no more repeaters
      • duplicate: the number of repetition of this packet, >0 means it is a duplicate
    • outgoingPacket: last outgoing packet to Z-Wave network
      • delivered: was the packet delivered
      • deliveryTime: delivery time in 10 ms
      • packetLength: packet length
      • nodeId: nodeId
      • returnRSSI: array of RSSI levels the recipient and hops have detected
      • hops: array of repeaters nodes, zero means no more repeaters
      • returnChannel: the channel of the ACK
      • txChannel: the channel of the outgoing packet
      • speed: used speed
      • schemeState: used scheme state
      • tries: number of retries
      • lastFailPath: array of two nodes at which the last failure occured (if the packet was not delivered): last working repeater on the path and the unreachable repeater
      • securePayload: unencrypted payload for a secure packet
    • curSerialAPIAckTimeout10ms: timing parameter of Serial API
    • curSerialAPIBytetimeout10ms: timing parameter of Serial API
    • oldSerialAPIAckTimeout10ms: previous timing parameter of Serial API
    • oldSerialAPIBytetimeout10ms: previous timing parameter of Serial API

Function classes as shown in section are called as methods of the object zway.controller.

Devices

The devices object contains the array of the device objects. Each device in the network - including the controller itself - has a device object in Z-Way.

• Description: list of devices
• Syntax: devices.X with X as child object
• Child objects
  • Device object
    • length: Length of the list
    • SaveData(): Save Z-Way Z-Wave data for hot start on next run (in config/zddx/HOMEID-DevicesData.xml)

Device

The data object can be accesses in the Z-Wave Expert User Interface in advanced mode of 'Configuration'

• Description: the device object
• Syntax: devices[n].X with X as child object
• Child objects
  • id: (node) Id of the device
  • Data: Data tree of the device
    • SDK: SDK used in the device firmware
    • ZDDXMLFile: file of the Devcie Description Record
    • ZWLib: Z-Wave library used in the device firmware
    • ZWProtocolMajor / ZWProtocolMinor: Z-Wave protocol version
    • applicationMajor / ApplicationMinor: Application Version of devices firmware
    • manufacturerId / manufacturerProductId / manufacturerProductTypeId: ids used to identify the device
    • basicType: Z-Wave Basic Type
    • genericType: Z-Wave Generic Type
    • specificType: Z-Wave Specific Type
    • deviceTypeString: verbal Z-Wave Device Class
    • vendorString: verbal vendor name
    • nodeInfoFrame: Node Information Frame (NIF) array
    • isLR: is device a Long Range device
    • isSmartStart: was the device included using SmartStart inclusion
    • isListening: is always listening
    • isAwake: is currently awake
    • keepAwake: shall the device be kept awake even if there is nothing to send to it
    • isRouting: is abale to send routed unsolicited packets
    • sensor1000: device is a FLiRS with 1000 ms wakeup
    • sensor250: device is a FLiRS with 250 ms wakeup
    • isVirtual: is virtual device from a bridge controller
    • option: are optional Command Classes present in addition to mandatory for this Device Class
    • infoProtocolSpecific: internal information about the device
    • interviewDone: set to true when device finishes the interview (might not match with interviewDone on individual CCs if they appear after interview done)
    • unsolicitedReportOnSet: if set, do not send a Get after Set and wait for an unsolicited Report. If no Report within few seconds, send an explicit Get. By default for all Z-Wave Plus product where Z-Way is in association group 1 (LifeLine group).
    • acceptSetSecurityLevel: accept Set commands from devices to Z-Way with lower security levels. 0 - accept all packets, 128 - accept S0 and S2 packets, 1 - accept S2 packets, 2 - accept S2 Authenticated and Access packets, 4 - accept only S2 Access packets, -1 or not set - use the most secure level (default).
    • acceptReportSecurityLevel: accept Report commands from devices to Z-Way with lower security levels. 0 - accept all packets, 128 - accept S0 and S2 packets, 1 - accept S2 packets, 2 - accept S2 Authenticated and Access packets, 4 - accept only S2 Access packets, -1 or not set - use the most secure level (default).
    • mapBasicSetToSpecificReport: if set, interpret Basic Set commands as if it was a specific Report (Sensor Binary or Switch Binary report)
    • securityS2ExchangedKeys: the bitmast of exchanged security keys. 128 for S0, 1 for S2 Unauthenticated, 2 for S2 Authenticated, 4 for S2 Access
    • secureChannelEstablished: set to true if secure channel was established
    • guessS2Keys: set to true to force guest security keys on force interview
    • secureAllCCs: if set, Z-Way will encrypt all packets a device with negociated security even if the CC is allowed unsecure (default is from Defaults.xml SecureAllCCs)
    • neightbours: list of neighbour nodes
    • priorityRoutes: list of priority routes assigned to the node (via AssignPrioritySUCReturnRoute and AssignPriorityReturnRoute) used to restore routes on network reorganization
      • hop 1, hop 2, hop 3, hop 4, speed: route hops node Id (1..232 or 0 for end of route), speed flag
    • givenName: name for Expert UI
    • isFailed: is failed
    • failureCount: number of tries since last device failed
    • lastRecevied: timestamp of last packet received
    • lastSend: timestamp of last sent operation
    • lastPacketInfo: structure with deliveryTime, delivered and packetLength information about last packet sent
    • queueLength: length of device specific send queue (if countJobs is enabled)
    • lastNonceGet: internal
    • acceptSetSecurityLevel: minimal security level that is accepted for Set commands from the device: 0 - accept both secure S0/S2 or unsecure Set commands, 128 - accept S0 and all S2 levels, 1 - accept all S2 levels (Unauthenticated, Authenticated and Access), 2 - accept S2 Authenticated and S2 Access, 4 - accept only S2 Access
  • instances: Instances list of the device
  • RequestNodeInformation(): Request NIF
  • RequestNodeNeighbourUpdate(): Request routes update
  • InterviewForce(): Purge all command classes and start interview based on device's NIF
  • RemoveFailedNode(): Remove this node as failed. Device should be marked as failed to remove it with this function.
  • SendNoOperation(successCallback = NULL, failureCallback = NULL): Ping the device with empty packet (even if device is not reachable successCallback is called - use isFailed to check device availability)
  • LoadXMLFile(file): Load new Z-Wave Device Description XML file. See http://pepper1.net/zwavedb/
  • GuestXML(): Return the list of all known Z-Wave Device Description XML files with match score. [score, file name, brand name, product name, photo]
  • WakeupQueue(): Pretend the device is awake and try to send packets
  • AssignReturnRoute(target): Send device new routes to target node
  • DeleteReturnRoute(): Clear routes in device
  • AssignSUCReturnRoute(): Inform device about SUC and route to reach it

Instances

Each device may have multiple instances (similar functions like switches, same type sensors, ...) If only one instance is present the id of this instance is 0. Command classes are located in instances only.

• Description: list of instances
• Syntax: devices[n].instance[m].X with X as child object
• Child objects

  m	: instance object

• length: Length of the list
• commandClasses: list of command classes of this instance. In case there is only one instance, this is equivalent to the list of command classes of the device. For details see below.
• Data: data object of instance
  • dynamic: flag if instance is dynamic
  • genericType: generic Z-Wave device class of instance
  • specificType: specific Z-Wave device class of instance

CommandClass

This is the Command Class object. It contains public methods and public data elements that are described in chapter

• Description: Command Class Implementation
• Syntax: device[n].instance[m].commandclass[id].X with X as child object
• Child objects
  • id: Id of the Command Class of the instance of the device
  • data: Data tree of the Command Class
    • interviewCounter: number of attempts left until interview is terminate even if not successful
    • interviewDone: flag if interview of the command class is finished
    • security: flag if Command Class is operated under Security Command Class
    • version: version of the Command Class implemented in the device
    • supported: flag if Command Class is supported or only controlled
    • commandclass data: Command Class specific data - see chapter for details.
  • name: Command Class name
  • Method: Command Class method - see chapter for details.

Command Class Reference

Command Classes are groups of wireless commands that allow using certain functions of a Z-Wave device. In Z-Way each Z-Wave device has a data holder entry for each Command Class supported. During the inclusion and interview of the device the Command Class structure is instantiated in the data holder and filled with certain data. Command Class commands change values of the corresponding data holder structure. The follow list shows the public commands of the Command Classes supported with their parameters and the data holder objects changed.

In Z-Wave Expert User Interface navigate to Configuration > Expert Commands to execute commands of the supported Command Classes and visualizes all data holder elements in as tree in a simplified user interface.

Command Class Basic (0x20/32)

Version 1, Supported and Controlled

The Basic Command Class is the wildcard command class. Almost all Z-Wave devices support this command class but they interpret it's commands in different ways. A thermostat will handle a Basic Set Command in a different way than a Dimmer but both accept the Basic Set command and act. Used for generic interoperability between devices. You should always use more specific Command Classes where possible.

Data holders:

• level: Generic switching level of the device controlled

Command Basic Get

Syntax: Get(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_basic_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Basic Get

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: level updated

Command Basic Set

Syntax: Set(value, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_basic_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE value, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Basic Set

Parameter value: Value

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: level updated

Command Class Wakeup (0x84/132)

Version 3, Controlled

Allows to manage periodical wakeup of sleeping battery operated device. Upon wakeup device will notify one node listed in nodeId. NB! If the device can wake up by interrupt (user interaction, button press, sensor trigger), it might happen that the device never wakes up. This can happen if you wake up the device by interrupe each time before internal chip wakeup period (usually from 1 to 4 minutes) reaches. (Z-Wave chip can not count for remaining time to next wakeup, so will restart timer again). This means that strictly speaking you can not rely on long time no wake up as an indicator of lost/damaged device or battery empty. NB! To save battery it is recommended to tune wakeup period to one week or even more for devices that do only need to report battery on wakeup (remote controls). For sensors it is recommended to have at least one hour wakeup period.

Data holders:

• interval: Wakeup interval in seconds
• nodeId: Node to notify about wakeup
• min: Minimal possible wakeup interval
• max: Maximal possible wakeup interval
• default: Factory default wakeup interval
• step: Step for wakeup interval (values are rounded to next or previous step)
• lastWakeup: Last time the device has sent us wake notification (Unix timestamp)
• lastSleep: Last time the device was sent into sleep mode (Unix timestamp)

Command Wakeup Get

Syntax: Get(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_wakeup_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Wakeup Get

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: interval and nodeId updated

Command Wakeup CapabilitiesGet

Syntax: CapabilitiesGet(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_wakeup_capabilities_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Wakeup CapabilityGet

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: min, max, default, step updated

Command Wakeup Sleep

Syntax: Sleep(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_wakeup_sleep(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Wakeup NoMoreInformation (Sleep)

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: lastSleep updated

Command Wakeup Set

Syntax: Set(interval, notificationNodeId, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_wakeup_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, int interval, ZWNODE notification_node_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Wakeup Set

Parameter interval: Wakeup interval in seconds

Parameter notificationNodeId: Node Id to be notified about wakeup

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: interval and nodeId updated

Command Class NoOperation (0x00/0)

Used to check if device is reachable by sending empty packet.

Command Class Battery (0x80/128)

Version 1, Controlled

Allows monitoring the battery charging level of a device.

Data holders:

• last: Last battery level reported (0..100%)
• lastChange: Time (UNIX timestamp) when the battery was replaced last time (time of the moment when the value reported was way bigger than previous one)
• history: Subtree with history
• [% value]: Time when battery level reached this % value (0, 10, 20,... 100)

Command Battery Get

Syntax: Get(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_battery_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Battery Get

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: last updated. lastChange updated if battery level is way higher than it was before, history updated if reached next 10% step

Command Class ManufacturerSpecific (0x72/114)

Version 2, Supported and Controlled

Reports vendor information, product type and ID and device serial number.

Data holders:

• vendorId: Vendor ID assigned by Z-Wave Alliance
• vendor: Vendor name
• productId: Product ID
• productType: Product Type ID
• serialNumber: Product Serial Number

Command ManufacturerSpecific Get

Syntax: Get(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_manufacturer_specific_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send ManufacturerSpecific Get

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command ManufacturerSpecific DeviceIdGet

Syntax: DeviceIdGet(type, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_manufacturer_specific_device_id_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE type, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send ManufacturerSpecific Device Id Get

Parameter type: Device Id type to request

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command Class Proprietary (0x88/136)

Version 1, Controlled

Allows to transfer manufacturer proprietary data. Data format is manufacturer specific.

Data holders:

• bytes: Binary bytes array of raw data

Command Proprietary Get

Syntax: Get(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_proprietary_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Proprietary Get

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command Proprietary Set

Syntax: Set(data, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_proprietary_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE length, const ZWBYTE * data, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Proprietary Set

Parameter data: Data to set

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command Class Configuration (0x70/112)

Version 4, Controlled

Used to set certian configuration valeus that change the behavior of the device. Z-Wave requires that every device works out of the box without further configuration. However different configuration value significantly enhance the value a device. Z-Wave does not provide any information about the configuration values by wireless commands. User have to look into the device manual to learn about configuration parameters. The Device Description Record (ZDDX), incoprotated by Z-Way gives information about valid parameters and the meaning of the values to be set.

Data holders:

• [paramId]: Configuration parameter subtree.
• val: Value assigned
• size: Size of that parameter (1, 2 or 4 bytes)

Command Configuration Get

Syntax: Get(parameter, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_configuration_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, unsigned short int parameter, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Configuration Get

Parameter parameter: Parameter number

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: parameter subtree updated or created if absent

Command Configuration Set

Syntax: Set(parameter, value, size = 0, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_configuration_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, unsigned short int parameter, int value, ZWBYTE size, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Configuration Set

Parameter parameter: Parameter number

Parameter value: Value to be sent (negative and positive values are accepted, but will be stripped to size)

Parameter size: Size of the value (1, 2 or 4 bytes). Use 0 to guess from previously reported value if any. 0 means use size previously obtained Get

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: parameter subtree updated or created if absent

Command Configuration SetDefault

Syntax: SetDefault(parameter, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_configuration_set_default(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, unsigned short int parameter, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Configuration SetDefault

Parameter parameter: Parameter number to be set to device default

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: parameter subtree updated or created if absent

Command Configuration DefaultReset

Syntax: DefaultReset(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_configuration_default_reset(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Configuration DefaultReset

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: parameter subtree updated or created if absent

Command Class SensorBinary (0x30/48)

Version 2, Controlled

Allows receive binary sensor states.

Data holders:

• typemask: Internal. Bit mask of the supported types
• [sensorType]: Subtree for sensor type Id
• sensorTypeString: Description of sensor type
• level: Triggered/idle status

Command SensorBinary Get

Syntax: Get(sensorType = -1, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_sensor_binary_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, int sensorType, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send SensorBinary Get

Parameter sensorType: Type of sensor to query information for. 0xFF to query information for the first available sensor type. -1 to query information for all supported sensor types

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: sensorType subtree updated

Command Class Association (0x85/133)

Version 2, Supported and Controlled

Allows to manage the association groups: adding and removing nodeIDs in the association groups.

Data holders:

• groups: Number of association groups in the device
• [groupId]: Group subtree, where groupId = 1..groups
• max: Number of nodes the group can hold
• nodes: Array with nodes in the group
• nodesToFollow: Internal
• specificGroup: Number of specific association groups in the device

Command Association Get

Syntax: Get(groupId = 0, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_association_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE group_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Association Get

Parameter groupId: Group Id (from 1 to 255). 0 requests all groups

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: Subtree corresponding to the group updated

Command Association Set

Syntax: Set(groupId, includeNode, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_association_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE group_id, ZWNODE include_node, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Association Set (Add)

Parameter groupId: Group Id (from 1 to 255)

Parameter includeNode: Node to be added to the group

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: Subtree corresponding to the group updated

Command Association Remove

Syntax: Remove(groupId, excludeNode, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_association_remove(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE group_id, ZWNODE exclude_node, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Association Remove

Parameter groupId: Group Id (from 1 to 255)

Parameter excludeNode: Node to be removed from the group

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: Subtree corresponding to the group updated

Command Association GroupingsGet

Syntax: GroupingsGet(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_association_groupings_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Association GroupingsGet

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: Update number of supported groups and interview all groups

Command Class Meter (0x32/50)

Version 4, Controlled

Allows to read different kind of meters. Z-Wave differentiates different meter types and different meter scales. Please refer to the file translations/Scales.xml for details about possible meter types and values.

Data holders:

• scalemask: Internal. Bit mask with supported scales
• resettable: Flag to indicate of the meter can be resetted
• [scaleId]: Meter scale subtree
• scale: Meter scale id
• scaleString: Meter scale name
• sensorType: Sensor type id
• sensorTypeString: Sensor type name
• val: Meter value
• ratetype: Rate type
• delta: Delta from the last value requested
• previous: Previous value requested

Command Meter Get

Syntax: Get(scale = -1, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_meter_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, int scale, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Meter Get

Parameter scale: Desired scale. -1 for all scales

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: scale subtree updated

Command Meter Reset

Syntax: Reset(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_meter_reset(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Meter Reset

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: scale subtree updated

Command Meter Supported

Syntax: Supported(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_meter_supported(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Meter SupportedGet

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command Class Meter Pulse (0x35/53)

Version 1, Controlled

Allows to gather information from pulse meters.

Data holders:

• val: Meter pulse value

Command MeterPulse Get

Syntax: Get(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_meter_pulse_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send MeterPulse Get

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command Class SensorMultilevel (0x31/49)

Version 11, Controlled

Allows to read different kind of sensor. Z-Wave differentiates different sensor types and different scales of this sensor. Please refer to the file /translations/scales.xml for details about possible sensor types and values.

Data holders:

• typemask: Internal. Bit mask of the supported types
• [sensorTypeId]: Subtree for sensor type Id
• sensorTypeString: Description of sensor type
• scale: Scale Id
• scaleString: Scale description
• val: Value
• size: Internal. Size of the value (1, 2 or 4 bytes)
• precision: Internal. Precision used in value (number of digits after decimal dot)
• deviceScale: Internal. Scale Id on the device's side (if local conversion is used, like C->F)

Command SensorMultilevel Get

Syntax: Get(sensorType = -1, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_sensor_multilevel_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, int sensor_type, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send SensorMultilevel Get

Parameter sensorType: Type of sensor to be requested. -1 means all sensor types supported by the device

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: sensorTypeId subtree updated

Command Class Sensor Configuration (0x9E/158)

Version 1, Controlled

Allows to configure senors specific configuration like trigger level. Works in conjunction with SensorMultilevel Command Class. In modern devices replaced by Configuration Command Class.

Data holders:

• sensorType: Sensor type Id
• sensorTypeString: Sensor type descirption
• val: Trigger value
• scale: Scale of trigger value
• scaleString: Scale description
• size: Internal. Size of the value (1, 2 or 4 bytes)
• precision: Internal. Precision used in value (number of digits after decimal dot)

Command SensorConfiguration Get

Syntax: Get(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_sensor_configuration_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send SensorConfiguration Get

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: all dataholders are updated

Command SensorConfiguration Set

Syntax: Set(mode, value, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_sensor_configuration_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE mode, float value, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send SensorConfiguration Set

Parameter mode: Value set mode

Parameter value: Value

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: all dataholders are updated

Command Class SwitchAll (0x27/39)

Version 1, Supported and Controlled

Controls the behavior of a actuator on Switch All commands. Also allows to send Switch All commands.

Data holders:

• mode: Which type of SwitchAll On/Off commands to react on: 0 for none, 1 to reacto on Off only, 2 to react on On only, 255 to react on both
• onOff: Allows to trigger SwitchAll On/Off commands from other devices. Set to False on Off command received and True on On command.

Command SwitchAll Get

Syntax: Get(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_switch_all_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send SwitchAll Get

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: mode updated

Command SwitchAll Set

Syntax: Set(mode, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_switch_all_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE mode, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send SwitchAll Set

Parameter mode: SwitchAll Mode: see definitions below

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: mode updated

Command SwitchAll SetOn

Syntax: SetOn(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_switch_all_set_on(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send SwitchAll Set On

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command SwitchAll SetOff

Syntax: SetOff(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_switch_all_set_off(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send SwitchAll Set Off

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command Class SwitchBinary (0x25/37)

Version 1, Supported and Controlled

Allows to control On/Off switches, actuators, electrical power switches and trap On/Off control commands from other devices.

Data holders:

• level: State: False for Off, True for On
• overrideDefaultDuration: Override default duration (0xff) with this value

Command SwitchBinary Get

Syntax: Get(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_switch_binary_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send SwitchBinary Get

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: level updated

Command SwitchBinary Set

Syntax: Set(value, duration = 0xff, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_switch_binary_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBOOL value, ZWBYTE duration, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send SwitchBinary Set

Parameter value: Value

Parameter duration: Duration of change:. 0 instantly. 0x01...0x7f in seconds. 0x80...0xfe in minutes mapped to 1...127 (value 0x80=128 is 1 minute). 0xff use device factory default

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: level updated

Command Class SwitchMultilevel (0x26/38)

Version 1, Supported and Controlled

Allows to control all actuators with multilevel switching functions, primarily Dimmers and Motor Controlling devices as well as trap dim events sent by remotes.

Data holders:

• level: State 0...99 = 0...100%, 255 for On on last value (or on maximum - device specific)
• startChange: Dimming up or down. Updated on dimming start. Allows to trap events from remotes to controller.
• stopChange: Updated on dimming end. Allows to trap events from remotes to controller.
• prevLevel: Internal
• overrideDefaultDuration: Override default duration (0xff) with this value
• primary: Unused
• secondary: Unsued

Command SwitchMultilevel Get

Syntax: Get(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_switch_multilevel_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send SwitchMultilevel Get

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: level updated

Command SwitchMultilevel Set

Syntax: Set(level, duration = 0xff, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_switch_multilevel_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE level, ZWBYTE duration, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send SwitchMultilevel Set

Parameter level: Level to be set

Parameter duration: Duration of change:. 0 instantly. 0x01...0x7f in seconds. 0x80...0xfe in minutes mapped to 1...127 (value 0x80=128 is 1 minute). 0xff use device factory default

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: level updated

Command SwitchMultilevel StartLevelChange

Syntax: StartLevelChange(dir, duration = 0xff, ignoreStartLevel = TRUE, startLevel = 50, incdec = 0, step = 0xff, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_switch_multilevel_start_level_change(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE dir, ZWBYTE duration, ZWBOOL ignoreStartLevel, ZWBYTE startLevel, ZWBYTE incdec, ZWBYTE step, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send SwitchMultilevel StartLevelChange

Parameter dir: Direction of change: 0 to incrase, 1 to decrase

Parameter duration: Duration of change:. 0 instantly. 0x01...0x7f in seconds. 0x80...0xfe in minutes mapped to 1...127 (value 0x80=128 is 1 minute). 0xff use device factory default

Parameter ignoreStartLevel: If set to True, device will ignore start level value and will use it's curent value

Parameter startLevel: Start level to change from

Parameter incdec: Increment/decrement type for step:. 0 Increment. 1 Decrement. 2 Reserved. 3 No Inc/Dec

Parameter step: Step to be used in level change in percentage. 0...99 mapped to 1...100%. 0xff uses device factory default

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: level updated

Command SwitchMultilevel StopLevelChange

Syntax: StopLevelChange(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_switch_multilevel_stop_level_change(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send SwitchMultilevel StopLevelChange

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: level updated

Command Class MultiChannelAssociation (0x8E/142)

Version 3, Supported and Controlled

This is an extention to the Association Command Class. It follows the same logic as the Association Command Class and has the same commands but accepts different instance values.

Data holders:

• groups: Number of association groups in the device (can be smaller than the number of groups in Association)
• [groupId]: Group subtree, where groupId = 1..groups
• max: Number of nodes/instances the group can hold
• nodesInstances: Array with nodes/instances in the group. Each pair is represented by two elements (node, instance).
• nodesInstancesToFollow: Internal

Command MultiChannelAssociation Get

Syntax: Get(groupId = 0, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_multichannel_association_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE group_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send MultiChannelAssociation Get

Parameter groupId: Group Id (from 1 to 255). 0 requests all groups

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: Subtree corresponding to the group updated

Command MultiChannelAssociation Set

Syntax: Set(groupId, includeNode, includeInstance, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_multichannel_association_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE group_id, ZWNODE include_node, ZWBYTE include_instance, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send MultiChannelAssociation Set (Add)

Parameter groupId: Group Id (from 1 to 255)

Parameter includeNode: Node to be added to the group

Parameter includeInstance: Instance of the node to be added to the group

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: Subtree corresponding to the group updated

Command MultiChannelAssociation Remove

Syntax: Remove(groupId, excludeNode, excludeInstance, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_multichannel_association_remove(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE group_id, ZWNODE exclude_node, ZWBYTE exclude_instance, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send MultiChannelAssociation Remove

Parameter groupId: Group Id (from 1 to 255)

Parameter excludeNode: Node to be removed from the group

Parameter excludeInstance: Instance of the node to be removed from the group

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: Subtree corresponding to the group updated

Command MultiChannelAssociation GroupingsGet

Syntax: GroupingsGet(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_multichannel_association_groupings_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send MultiChannelAssociation GroupingsGet

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command Class MultiChannel (0x60/96)

Version 4, Supported and Controlled

Allows to communicate with internal parts of device called channels or instances. Implemented transparently by the library.

Data holders:

• endPoints: Number of endpoints
• [endPointId]: Endpoint ID
• aggregated: Number of aggregated endpoints
• [endPointId]: Aggregated endpoint ID (numbering starts from endPoints + 1)
• dynamic: Flag describing if endpoins are dynamic (their number and type can change over time)
• identical: Internal. Flag describing if endpoins are identical
• myInstance: Internal
• doneIds: Internal

Command MultiChannel Get

Syntax: Get(ccId, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_multichannel_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE cc_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send MultiChannel Get (MultiInstance V1 command). Reports number of channels supporting a defined Command Class. Depricated by MutliChannel V2, needed for old devices only

Parameter ccId: Command Class Id in question

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command MultiChannel EndpointFind

Syntax: EndpointFind(generic, specific, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_multichannel_endpoint_find(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE generic, ZWBYTE specific, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send MultiChannel Endpoint Find. Note that MultiChannel EndpointFind Report is not supported as useless. But one can still trap the response packet in logs

Parameter generic: Generic type in search

Parameter specific: Specific type in search

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command MultiChannel EndpointGet

Syntax: EndpointGet(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_multichannel_endpoint_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send MultiChannel Endpoint Get. Get the number of available endpoints

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command MultiChannel CapabilitiesGet

Syntax: CapabilitiesGet(endpoint, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_multichannel_capabilities_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE endpoint, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send MultiChannel Capabilities Get. Request information about the specified endpoint

Parameter endpoint: Endpoint in question

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command MultiChannel AggregatedMembersGet

Syntax: AggregatedMembersGet(endpoint, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_multichannel_aggregated_members_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE endpoint, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send MultiChannel Aggregated Members Get. Request information about endpoints in the specified aggregated endpoint (v4 and above)

Parameter endpoint: Aggregated endpoint in question

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command Class Node Naming (0x77/119)

Version 1, Supported and Controlled

Allows assigning a readable string for a name and a location to a physical device. The two strings are stored inside the device and can be obtained upon request. There are no restrictions to the name except the maximum length up to 16 characters.

Data holders:

• nodename: Node name
• nameEncoding: NodeName encoding
• location: Location
• locationEncoding: Location encoding

Command NodeNaming Get

Syntax: Get(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_node_naming_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send NodeNaming GetName and GetLocation

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: nodename, nameEncoding, location and locationEncoding updated

Command NodeNaming GetName

Syntax: GetName(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_node_naming_get_name(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send NodeNaming GetName

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: nodename and nameEncoding updated

Command NodeNaming GetLocation

Syntax: GetLocation(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_node_naming_get_location(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send NodeNaming GetLocation

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: location and locationEncoding updated

Command NodeNaming SetName

Syntax: SetName(name, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_node_naming_set_name(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWCSTR name, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send NodeNaming SetName

Parameter name: Value

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: nodename and nameEncoding updated

Command NodeNaming SetLocation

Syntax: SetLocation(location, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_node_naming_set_location(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWCSTR location, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send NodeNaming SetLocation

Parameter location: Value

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: location and locationEncoding updated

Command Class Thermostat SetPoint (0x43/67)

Version 3, Controlled

Allows to set a certain setpoint to a thermostat (set temperature to maintain). The command class can be applied to different kind of thermostats (heating, cooling, ...), hence it has various modes.

Data holders:

• [modeId]: Subtree for mode
• modeName: Mode description
• scale: Scale Id
• scaleString: Scale description
• val: Temperature to maintain
• setVal: Last set temperature to maintain (might differ from val until thermostat wakeup)
• min: Minimal temperature value supported by the device
• max: Maximal temperature value supported by the device
• size: Internal. Size of the value (1, 2 or 4 bytes)
• precision: Internal. Precision used in value (number of digits after decimal dot)
• deviceScale: Internal. Scale Id on the device side (if local conversion is used, like C->F)
• deviceScaleString: Internal. Scale description of the device
• modemask: Internal. Bit mask with supported modes
• danfossBugFlag: Internal

Command ThermostatSetPoint Get

Syntax: Get(mode = -1, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_thermostat_setpoint_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, int mode, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send ThermostatSetPoint Get

Parameter mode: Thermostat Mode. -1 requests for all modes

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: modeId subtree updated

Command ThermostatSetPoint Set

Syntax: Set(mode, value, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_thermostat_setpoint_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, int mode, float value, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send ThermostatSetPoint Set

Parameter mode: Thermostat Mode

Parameter value: temperature

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: modeId subtree updated

Command Class Thermostat Mode (0x40/64)

Version 3, Controlled

Allows to switch a heating/cooling actuator in different modes.

Data holders:

• modemask: Internal. Bit mask with supported modes
• mode: Current mode
• [modeId]: Mode subtree
• modeName: Mode description
• manufacturerSpecific: Manufacturer specific data for mode 0x1F

Command ThermostatMode Get

Syntax: Get(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_thermostat_mode_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send ThermostatMode Get

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: mode updated

Command ThermostatMode Set

Syntax: Set(mode, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_thermostat_mode_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE mode, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send ThermostatMode Set

Parameter mode: Thermostat Mode

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: mode updated

Command ThermostatMode SetManufacturerSpecific

Syntax: SetManufacturerSpecific(manufacturerSpecifc, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_thermostat_mode_set_manufacturer_specific(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, size_t manufacturerSpecifcSize, const ZWBYTE * manufacturerSpecifc, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send ThermostatMode Set Manufacturer Specific

Parameter manufacturerSpecifc: Manufacturer specific data

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: mode updated

Command Class Thermostat Fan Mode (0x44/68)

Version 4, Controlled

Allows to controls fan modes in thermostats.

Data holders:

• modemask: Internal. Bit mask with supported modes
• mode: Current mode
• [modeId]: Mode subtree
• modeName: Mode description
• on: Reports if fan is currently On (True) or Off (False)

Command ThermostatFanMode Get

Syntax: Get(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_thermostat_fan_mode_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send ThermostatFanMode Get

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: mode and on updated

Command ThermostatFanMode Set

Syntax: Set(on, mode, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_thermostat_fan_mode_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBOOL on, ZWBYTE mode, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send ThermostatFanMode Set

Parameter on: TRUE to turn fan on (and set mode), FALSE to comletely turn off (mode is ignored)

Parameter mode: Thermostat Fan Mode

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: mode and on updated

Command Class Thermostat Fan State (0x45/69)

Version 2, Controlled

Allows to determine the operating state of the fan. V2 is not yet implemented.

Data holders:

• state: Fan current state (0 Off, 1 Running)

Command ThermostatFanState Get

Syntax: Get(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_thermostat_fan_state_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send ThermostatFanState Get

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: state and on updated

Command Class Thermostat Operating State (0x42/66)

Version 2, Controlled

Allows to determine the operating state of the thermostat and state change history.

Data holders:

• state: Current operation state
• statemask: Internal. Bit mask of supported logs for each state
• [stateId]: Subtree with state log info
• today: Number of minutes thermostat was in this state today (since 0:00)
• yesterday: Number of minutes thermostat was in this state yesterday (since 0:00)

Command ThermostatOperatingState Get

Syntax: Get(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_thermostat_operating_state_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send ThermostatOperatingState Get

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: state updated

Command ThermostatOperatingState LoggingGet

Syntax: LoggingGet(state, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_thermostat_operating_state_logging_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE state, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send ThermostatOperatingState Logging Get

Parameter state: State number to get logging for. 0 to get log for all supported states

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: stateId subtree updated updated

Command Class Thermostat SetBack (0x47/71)

Version 1, Controlled

Allows to override a certain setpoint in a thermostat.

Data holders:

• overrideType: Override type (0 = No override, 1 = Temporary override, 2 = Permanent override)
• state: State (1 = Temperature shift is used, 2 = Frost protection, 3 = Energy Saving, 4 = Unused)
• val: Temperature shift relative to the set point

Command ThermostatSetBack Get

Syntax: Get(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_thermostat_setback_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send ThermostatSetBack Get

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: overrideType, state, val

Command ThermostatSetBack Set

Syntax: Set(overrideType, state, value, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_thermostat_setback_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, int overrideType, int state, float value, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send ThermostatSetBack Set

Parameter overrideType: Override type (0 = No override, 1 = Temporary override, 2 = Permanent override)

Parameter state: State (1 = Temperature shift is used, 2 = Frost protection, 3 = Energy Saving, 4 = Unused)

Parameter value: temperature shift in Kelvin degree

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: overrideType, state, val updated

Command Class Alarm Sensor (0x9C/156)

Version 1, Controlled

Deprecated Command Class. Now Alarm/Notification is used instead.

Data holders:

• alarmMap: Internal. Bit mask of supported alarm types
• alarms: Unused
• [alarmTypeId]: Alarm type subtree
• srcId: Source of event
• sensorState: Alarm state
• sensorTime: Alarm time (according to the sender)
• typeString: Name of alarm type

Command AlarmSensor SupportedGet

Syntax: SupportedGet(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_alarm_sensor_supported_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send AlarmSensor SupportedGet

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: List of supported types updated

Command AlarmSensor Get

Syntax: Get(type = -1, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_alarm_sensor_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, int type, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send AlarmSensor Get. Requests the status of the alarm sensor of a given type

Parameter type: Alarm type to get. -1 means get all types

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: Alarm type subtree updated

Command Class Door Lock (0x62/98)

Version 2, Controlled

Allows to operate an electronic door lock. This Command Class is ALWAYS encapsulated in Security. Door lock modes are the following:.

- 0x00 Door Unsecured (Open).

- 0x01 Door Unsecured with timeout.

- 0x10 Door Unsecured for inside Door Handles.

- 0x11 Door Unsecured for inside Door Handles with timeout.

- 0x20 Door Unsecured for outside Door Handles.

- 0x21 Door Unsecured for outside Door Handles with timeout.

- 0xFE Door/Lock Mode Unknown (bolt not fully retracted/engaged).

- 0xFF Door Secured (closed).

Data holders:

• mode: Operating mode of the lock
• targetMode: Mode the lock goes into
• duration: Time to reach the targetMode
• insideHandlesMode: Bit mask (4 bits) describing specific handles (1..4) state
• outsideHandlesMode: Bit mask (4 bits) describing specific handles (1..4) state
• remainingLockTimeout: Time remained before autolock (in seconds)
• latchLocked: Latch state
• boltLocked: Bolt state
• doorClosed: Door state
• operationType: 0x01 for constant operation, 0x02 for timed operation
• insideHandlesEnabled: Bit mask (4 bits) describing if a specific handle (1..4) can open the door from inside
• outsideHandlesEnabled: Bit mask (4 bits) describing if a specific handle (1..4) can open the door from outside
• lockTimeout: Time before lock in timed operation (in seconds)
• autolockTime: Autolock time (in seconds)
• holdReleaseTime: Hold and release time (in seconds)
• twistAssist: Twist Assist enabled
• blockToBlock: Block to Block enabled
• supportedOperationTypes: Supported operation types
• supportedModes: Supported modes
• insideHandlesSupported: Bit mask (4 bits) describing if a specific handle (1..4) is supported
• outsideHandlesSupported: Bit mask (4 bits) describing if a specific handle (1..4) is supported
• latchSupported: Is Latch state supported
• boltSupported: Is Bolt state supported
• doorSupported: Is Door state supported
• autolockSupported: Is Autolock supported
• holdReleaseSupported: Is Hold and release supported
• twistAssistSupported: Twist Assist enabled
• blockToBlockSupported: Is Block to Block supported

Command DoorLock Get

Syntax: Get(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_door_lock_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send DoorLock Get

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: mode, insideHandlesMode, outsideHandlesMode, latchLocked, boltLocked, doorClosed, remainingLockTimeout, targetMode, duration updated

Command DoorLock ConfigurationGet

Syntax: ConfigurationGet(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_door_lock_configuration_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send DoorLock Configuration Get

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: operationType, outsideHandlesEnabled, insideHandlesEnabled, lockTimeout, autolockTime, holdReleaseTime, twistAssist, blockToBlock updated

Command DoorLock Set

Syntax: Set(mode, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_door_lock_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE mode, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send DoorLock Set

Parameter mode: Lock mode

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: mode, insideHandlesMode, outsideHandlesMode, latchLocked, boltLocked, doorClosed, remainingLockTimeout, targetMode, duration updated

Command DoorLock ConfigurationSet

Syntax: ConfigurationSet(operationType, outsideHandlesEnabled, insideHandlesEnabled, lockTimeout, autolockTime, holdReleaseTime, twistAssist, blockToBlock, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_door_lock_configuration_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE operationType, ZWBYTE outsideHandlesEnabled, ZWBYTE insideHandlesEnabled, int lockTimeout, int autolockTime, int holdReleaseTime, ZWBOOL twistAssist, ZWBOOL blockToBlock, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send DoorLock Configuration Set

Parameter operationType: Operation type

Parameter outsideHandlesEnabled: State of outside door handle

Parameter insideHandlesEnabled: State of inside door handle

Parameter lockTimeout: Lock after a specified time if in timed operation mode (in seconds)

Parameter autolockTime: Autolock time (in seconds)

Parameter holdReleaseTime: Hold and release time (in seconds)

Parameter twistAssist: Twist assist enabled

Parameter blockToBlock: Block to block enabled

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: operationType, outsideHandlesEnabled, insideHandlesEnabled, lockTimeout, autolockTime, holdReleaseTime, twistAssist, blockToBlock updated

Command Class Door Lock Logging (0x4C/76)

Version 1, Controlled

Allows to receive reports about all successful and failed activities of the electronic door lock. Event types are the following:.

- 1 Lock Command: Keypad access code verified lock command.

- 2 Unlock Command: Keypad access code verified unlock command.

- 3 Lock Command: Keypad lock button pressed.

- 4 Unlock command: Keypad unlock button pressed.

- 5 Lock Command: Keypad access code out of schedule.

- 6 Unlock Command: Keypad access code out of schedule.

- 7 Keypad illegal access code entered.

- 8 Key or latch operation locked (manual).

- 9 Key or latch operation unlocked (manual).

- 10 Auto lock operation.

- 11 Auto unlock operation.

- 12 Lock Command: Z-Wave access code verified.

- 13 Unlock Command: Z-Wave access code verified.

- 14 Lock Command: Z-Wave (no code).

- 15 Unlock Command: Z-Wave (no code).

- 16 Lock Command: Z-Wave access code out of schedule.

- 17 Unlock Command Z-Wave access code out of schedule.

- 18 Z-Wave illegal access code entered.

- 19 Key or latch operation locked (manual).

- 20 Key or latch operation unlocked (manual).

- 21 Lock secured.

- 22 Lock unsecured.

- 23 User code added.

- 24 User code deleted.

- 25 All user codes deleted.

- 26 Master code changed.

- 27 User code changed.

- 28 Lock reset.

- 29 Configuration changed.

- 30 Low battery.

- 31 New Battery installed.

Data holders:

• maxRecords: Maximum number of records the lock can store. Olded records are reused first.
• [recordId]: Subtree storing log record
• time: Time of the event
• event: Event type
• uId: UserID (from UserCode Command Class)
• eventString: Event type description

Command DoorLockLogging Get

Syntax: Get(record = 0, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_door_lock_logging_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE record, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send DoorLockLogging Get

Parameter record: Record number to get, or 0 to get last records

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: record subtree updated

Command Class User Code (0x63/99)

Version 1, Controlled

Allows to define individual user entry code in electrnic door lock.

Data holders:

• masterCodeSupported: TRUE if device supports Master code
• masterCodeDeactivationSupported: TRUE if device supports deactivation of Master code
• masterCode: Master code
• checksumSupported: TRUE if device supports code database checksum
• checksum: Checksum of codes database
• multipleUserCodeReportSupported: TRUE if device supports multiple user codes in one ExtendedGet
• multipleUserCodeSetSupported: TRUE if device supports multiple user codes in one ExtendedSet
• supportedUserIdStatuses: Mask of supported statuses
• [id]: User status name
• supportedKeypadModes: Mask of supported keypad modes
• [id]: Keypad mode name
• supportedKeys: Array with supported keys chars
• maxUsers: Maximum number of supported users
• [userId]: User subtree
• code: User code
• status: Status of the user: 0 for available (no code set), 1 for occupied (code set), 2 for reserved by administrator
• hasCode: Flag if a valid code is set (in case device reports occupied, but code is not valid (less than 4 symbols) or code not set but old is still reported by the device)
• allUserCodesRequested: Internal. For requesting all codes one by one

Command UserCode Get

Syntax: Get(user = -1, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_user_code_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, unsigned int user, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send UserCode Get

Parameter user: User index to get code for (1...maxUsers). -1 to get codes for all users

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: userId subtree updated

Command UserCode GetAll

Syntax: GetAll(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_user_code_get_all(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send UserCode GetAll

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: all userId subtrees updated

Command UserCode Set

Syntax: Set(user, code, status, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_user_code_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, unsigned int user, ZWCSTR code, ZWBYTE status, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send UserCode Set

Parameter user: User index to set code for (1...maxUsers). 0 means set for all users

Parameter code: Code to set (4...10 characters long)

Parameter status: Code status to set

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: userId subtree updated

Command UserCode SetRaw

Syntax: SetRaw(user, code, status, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_user_code_set_raw(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, unsigned int user, ZWBYTE length, const ZWBYTE * code, ZWBYTE status, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send UserCode SetRaw

Parameter user: User index to set code for (1...maxUsers). 0 means set for all users

Parameter code: Code to set (4...10 bytes long)

Parameter status: Code status to set

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: userId subtree updated

Command UserCode MasterCodeGet

Syntax: MasterCodeGet(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_user_code_master_code_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send UserCode MasterCodeGet

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: masterCode updated

Command UserCode MasterCodeSet

Syntax: MasterCodeSet(code, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_user_code_master_code_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWCSTR code, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send UserCode MasterCodeSet

Parameter code: Code to set (4...10 characters long or zero length to deactivate)

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: masterCode updated

Command UserCode MasterCodeSetRaw

Syntax: MasterCodeSetRaw(code, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_user_code_master_code_set_raw(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE length, const ZWBYTE * code, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send UserCode MasterCodeSet

Parameter code: Code to set (4...10 characters long or zero length to deactivate)

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: masterCode updated

Command UserCode KeypadModeGet

Syntax: KeypadModeGet(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_user_code_keypad_mode_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send UserCode KeypadModeGet

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: keypadMode updated

Command UserCode KeypadModeSet

Syntax: KeypadModeSet(mode, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_user_code_keypad_mode_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE mode, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send UserCode KeypadModeSet

Parameter mode: Keypad mode

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: keypadMode updated

Command UserCode ChecksumGet

Syntax: ChecksumGet(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_user_code_checksum_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send UserCode ChecksumGet

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: checksum updated

Command Class Time (0x8A/138)

Version 2, Supported and Controlled

Allows to report to devices in Z-Wave network time and date as well as time zone offset and daylight savings parameters. The data formats are based on the International Standard ISO 8601.

Command Time TimeGet

Syntax: TimeGet(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_time_time_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Time TimeGet

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command Time DateGet

Syntax: DateGet(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_time_date_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Time DateGet

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command Time OffsetGet

Syntax: OffsetGet(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_time_offset_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Time TimeOffsetGet

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command Class Time Parameters (0x8B/139)

Version 1, Controlled

Used to set date and time. Time zone offset and daylight savings may be set in the Time Command Class. The data formats are based on the International Standard ISO 8601.

Command TimeParameters Get

Syntax: Get(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_time_parameters_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send TimeParameters Get

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command TimeParameters Set

Syntax: Set(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_time_parameters_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send TimeParameters Set

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command Class Clock (0x81/129)

Version 1, Supported and Controlled

Sync clock on the device with controller system clock.

Command Clock Get

Syntax: Get(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_clock_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Clock Get

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: reported value ignored

Command Clock Set

Syntax: Set(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_clock_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Clock Set

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command Class Scene Activation (0x2B/43)

Version 1, Supported and Controlled

Allows to activate scenes on devices and trap scene activation events from remotes.

Data holders:

• currentScene: Scene activated from remote
• dimmingDuration: Dimming duration for the activated scene

Command SceneActivation Set

Syntax: Set(sceneId, dimmingDuration = 0xff, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_scene_activation_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE sceneId, ZWBYTE dimmingDuration, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send SceneActivation Set

Parameter sceneId: Scene Id

Parameter dimmingDuration: Dimming duration

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command Class Scene Controller Conf (0x2D/45)

Version 1, Controlled

Allows to set scene Id to be activated using SceneActivation Command Class on a remote.

Data holders:

• [groupId]: Subtree for a given association group number (defined by Association Command Class)
• scene: Scene to activate for all devices in the group
• duration: Duration for scene activation

Command SceneControllerConf Get

Syntax: Get(group = 0, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_scene_controller_conf_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE group, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send SceneControllerConf Get

Parameter group: Group Id. 0 requests all groups

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: group subtree updated

Command SceneControllerConf Set

Syntax: Set(group, scene, duration = 0x0, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_scene_controller_conf_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE group, ZWBYTE scene, ZWBYTE duration, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send SceneControllerConf Set

Parameter group: Group Id

Parameter scene: Scene Id

Parameter duration: Duration

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: group subtree updated

Command Class Scene Actuator Conf (0x2C/44)

Version 1, Controlled

Allows to configure actuators to set specified level on a given scene activation by SceneActivation Command Class.

Data holders:

• [sceneId]: Subtree for scene
• level: Level to set on scene activation
• dimming: Default dimming duration to use
• currentScene: Currently activated scene

Command SceneActuatorConf Get

Syntax: Get(scene = 0, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_scene_actuator_conf_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE scene, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send SceneActuatorConf Get

Parameter scene: Scene Id. 0 means get current scene

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: scene subtree updated, currentScene updated (if scene = 0)

Command SceneActuatorConf Set

Syntax: Set(scene, level, dimming = 0xff, override = TRUE, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_scene_actuator_conf_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE scene, ZWBYTE level, ZWBYTE dimming, ZWBOOL override, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send SceneActuatorConf Set

Parameter scene: Scene Id

Parameter level: Level

Parameter dimming: Dimming

Parameter override: If false then the current settings in the device is associated with the Scene Id. If true then the Level value is used

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: scene subtree updated

Command Class Indicator (0x87/135)

Version 4, Supported and Controlled

Operates the indicator on the device if available. Can be used to identify a device or use the indicator for special purposes (show away/at home mode).

Data holders:

• [indicatorId]: Indicator Id
• description: Indicator name
• [propertyId]: Property Id
• state: Status of the indicator

Command Indicator Get

Syntax: Get(indicatorId, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_indicator_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE indicator_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Indicator Get

Parameter indicatorId: Indicator ID

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: stat updated

Command Indicator Set

Syntax: Set(indicatorId, propertyId, state, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_indicator_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE indicator_id, ZWBYTE property_id, ZWBYTE state, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Indicator Set

Parameter indicatorId: Indicator ID

Parameter propertyId: Property ID (type) of the indicator

Parameter state: Value to set

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: stat updated

Command Indicator SetMultiple

Syntax: SetMultiple(indicatorId, propertyIds, states, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_indicator_set_multiple(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE indicator_id, ZWBYTE length, const ZWBYTE * property_ids, ZWBYTE length, const ZWBYTE * states, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Indicator SetMultiple

Parameter indicatorId: Indicator ID

Parameter propertyIds: Property IDs (type) of the indicator

Parameter states: Values to set

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: stat updated

Command Indicator Identify

Syntax: Identify(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_indicator_identify(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Indicator Identify

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: stat updated

Command Class Protection (0x75/117)

Version 2, Controlled

Allows to disable local and RF control of the device.

Data holders:

• state: Local control state (0 = Unprotected, 1 = Protected by sequence, 2 = Protected)
• rfState: Control via RF state (0 = Unprotected, 1 = No RF control, 2 = No RF response at all)
• exclusive: Flag describing if exclusive control via RF is supported
• timeout: Flag describing if timeout of protection of control via RF is supported
• stateCap: Requires Z-Wave specification re-read. Please contact Trident IoT support
• rfStateCap: Requires Z-Wave specification re-read. Please contact Trident IoT support
• exclusiveCap: Requires Z-Wave specification re-read. Please contact Trident IoT support
• timeoutCap: Requires Z-Wave specification re-read. Please contact Trident IoT support

Command Protection Get

Syntax: Get(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_protection_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Protection Get

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: state, rfState updated

Command Protection Set

Syntax: Set(state, rfState = 0, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_protection_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE state, ZWBYTE rfState, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Protection Set

Parameter state: Local control protection state

Parameter rfState: RF control protection state

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: state and rfState updated

Command Protection ExclusiveGet

Syntax: ExclusiveGet(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_protection_exclusive_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Protection Exclusive Control Get

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command Protection ExclusiveSet

Syntax: ExclusiveSet(controlNodeId, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_protection_exclusive_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE controlNodeId, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Protection Exclusive Control Set

Parameter controlNodeId: Node Id to have exclusive control over destination node

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command Protection TimeoutGet

Syntax: TimeoutGet(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_protection_timeout_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Protection Timeout Get

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command Protection TimeoutSet

Syntax: TimeoutSet(timeout, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_protection_timeout_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, int timeout, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Protection Timeout Set

Parameter timeout: Timeout in seconds. 0 is no timer set. -1 is infinite timeout. max value is 191 minute (11460 seconds). values above 1 minute are rounded to 1 minute boundary

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command Class Schedule Entry Lock (0x4E/78)

Version 3, Controlled

Allows to define individual time intervals for access to a door lock per user. Refers to users defined by User Code Command Class.

Data holders:

• weekDaySlots: Number of weekday slots supported
• yearSlots: Number of date slots supported
• [userId]: Subtree for userId
• Weekday: Subtree for weekday schedule
• [slotId]: Subtree slotId
• dayOfWeek: Day of week
• startHour: Start hour
• startMinute: Start minute
• stopHour: Stop hour
• stopMinute: Stop minute
• Year: Subtree for date schedule
• [slotId]: Subtree slotId
• startYear: Start year
• startMonth: Start month
• startDay: Start day
• startHour: Start hour
• startMinute: Start minute
• stopYear: Stop year
• stopMonth: Stop month
• stopDay: Stop day
• stopHour: Stop hour
• stopMinute: Stop minute

Command ScheduleEntryLock Enable

Syntax: Enable(user, enable, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_schedule_entry_lock_enable(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, int user, ZWBOOL enable, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send ScheduleEntryLock Enable(All)

Parameter user: User to enable/disable schedule for. 0 to enable/disable for all users

Parameter enable: TRUE to enable schedule, FALSE otherwise

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command ScheduleEntryLock WeekdayGet

Syntax: WeekdayGet(user, slot, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_schedule_entry_lock_weekday_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, int user, ZWBYTE slot, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send ScheduleEntryLock Weekday Get

Parameter user: User to get schedule for. 0 to get for all users

Parameter slot: Slot to get schedule for. 0 to get for all slots

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: userId->Weekday->slotId subtree updated

Command ScheduleEntryLock WeekdaySet

Syntax: WeekdaySet(modifyErase, user, slot, dayOfWeek, startHour, startMinute, stopHour, stopMinute, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_schedule_entry_lock_weekday_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBOOL modifyErase, int user, ZWBYTE slot, ZWBYTE dayOfWeek, ZWBYTE startHour, ZWBYTE startMinute, ZWBYTE stopHour, ZWBYTE stopMinute, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send ScheduleEntryLock Weekday Set

Parameter modifyErase: TRUE if the the slot is modified, FALSE if erased

Parameter user: User to set schedule for

Parameter slot: Slot to set schedule for

Parameter dayOfWeek: Weekday number (0..6). 0 = Sunday. . 6 = Saturday

Parameter startHour: Hour when schedule starts (0..23)

Parameter startMinute: Minute when schedule starts (0..59)

Parameter stopHour: Hour when schedule stops (0..23)

Parameter stopMinute: Minute when schedule stops (0..59)

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: userId->Weekday->slotId subtree updated

Command ScheduleEntryLock YearGet

Syntax: YearGet(user, slot, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_schedule_entry_lock_year_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, int user, ZWBYTE slot, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send ScheduleEntryLock Year Get

Parameter user: User to enable/disable schedule for. 0 to get for all users

Parameter slot: Slot to get schedule for. 0 to get for all slots

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: userId->Year->slotId subtree updated

Command ScheduleEntryLock YearSet

Syntax: YearSet(modifyErase, user, slot, startYear, startMonth, startDay, startHour, startMinute, stopYear, stopMonth, stopDay, stopHour, stopMinute, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_schedule_entry_lock_year_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBOOL modifyErase, int user, ZWBYTE slot, ZWBYTE startYear, ZWBYTE startMonth, ZWBYTE startDay, ZWBYTE startHour, ZWBYTE startMinute, ZWBYTE stopYear, ZWBYTE stopMonth, ZWBYTE stopDay, ZWBYTE stopHour, ZWBYTE stopMinute, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send ScheduleEntryLock Year Set

Parameter modifyErase: TRUE if the the slot is modified, FALSE if erased

Parameter user: User to set schedule for

Parameter slot: Slot to set schedule for

Parameter startYear: Year in current century when schedule starts (0..99)

Parameter startMonth: Month when schedule starts (1..12)

Parameter startDay: Day when schedule starts (1..31)

Parameter startHour: Hour when schedule starts (0..23)

Parameter startMinute: Minute when schedule starts (0..59)

Parameter stopYear: Year in current century when schedule stops (0..99)

Parameter stopMonth: Month when schedule stops (1..12)

Parameter stopDay: Day when schedule stops (1..31)

Parameter stopHour: Hour when schedule stops (0..23)

Parameter stopMinute: Minute when schedule stops (0..59)

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: userId->Year->slotId subtree updated

Command Class Climate Control Schedule (0x46/70)

Version 1, Supported and Controlled

Obsolete but still partly implemented for legacy support.

Data holders:

• overrideType: Type of current override
• overrideState: State of override

Command ClimateControlSchedule OverrideGet

Syntax: OverrideGet(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_climate_control_schedule_override_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send ClimateControlSchedule Override Get

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command ClimateControlSchedule OverrideSet

Syntax: OverrideSet(overrideType, overrideState, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_climate_control_schedule_override_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE overrideType, ZWBYTE overrideState, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send ClimateControlSchedule Override Set

Parameter overrideType: Override type to set. (0 – no override, 1 – temporary override, 2 – permanent override)

Parameter overrideState: Override state. -128 (0x80) ... -1 (0xFF): setpoint -12.8 ... -0.1 degrees. 0 (0x00): setpoint. 1 (0x01) ... 120 (0x78): setpoint +0.1 ... +12 degrees. 121 (0x79): frost protection. 122 (0x7A): energy saving. 123 (0x7B) ... 126 (0x7D): reserved. 127 (0x7F): unused

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command Class MeterTableMonitor (0x3D/61)

Version 2, Controlled

Allows to read historical and accumulated values in physical units from a water meter or other metering device (gas, electric etc.) and thereby enabling automatic meter reading capabilities.

Data holders:

• adminId: Meter administrator ID
• Id: Customer ID
• rateType: Type of rate (export or import)
• payMeter: Specifies the way the account is done
• meterType: Meter type
• meterTypeString: Meter description
• dataSetMask: Internal. Bit mask with type of data set supported
• dataSetHistoryMask: Internal. Bit mask with type of data set history supported
• maxHistory: Max number of records the device can store
• statusMask: Internal. Bit mask with type of events supported
• maxEvents: Max number of events the device can store
• [dataSetId]: Subtree for data set
• val: Meter value for this data set
• time: Time corresponding to the value
• scale: Scale ID
• scaleString: Scale desctiption
• history: Requires Z-Wave specification re-read. Please contact Trident IoT support
• status: Subtree with statuses
• [statuseId]: Subtree with specific status ID
• statusString: Status descirption
• active: Requires Z-Wave specification re-read. Please contact Trident IoT support
• time: Requires Z-Wave specification re-read. Please contact Trident IoT support

Command MeterTableMonitor StatusDateGet

Syntax: StatusDateGet(maxResults = 0, startDate, endDate, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_meter_table_monitor_status_date_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE maxResults, time_t startDate, time_t endDate, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send StatusTableMonitor Status Get for a range of dates

Parameter maxResults: Maximum number of entries to get from log. 0 means all matching entries

Parameter startDate: Start date and time (local UNIX time)

Parameter endDate: End date and time (local UNIX time)

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command MeterTableMonitor StatusDepthGet

Syntax: StatusDepthGet(maxResults = 0, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_meter_table_monitor_status_depth_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE maxResults, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send StatusTableMonitor Status Get for specified depth

Parameter maxResults: Number of entries to get from log. 0 means current status only. 0xFF means all entries

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command MeterTableMonitor CurrentDataGet

Syntax: CurrentDataGet(setId = 0, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_meter_table_monitor_current_data_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE setId, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send StatusTableMonitor Current Data Get

Parameter setId: Index of dataset to get data for. 0 to get data for all supported datasets

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command MeterTableMonitor HistoricalDataGet

Syntax: HistoricalDataGet(setId = 0, maxResults = 0, startDate, endDate, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_meter_table_monitor_historical_data_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE setId, ZWBYTE maxResults, time_t startDate, time_t endDate, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send StatusTableMonitor Historical Data Get

Parameter setId: Index of dataset to get data for. 0 to get data for all supported datasets

Parameter maxResults: Maximum number of entries to get from log. 0 means all matching entries

Parameter startDate: Start date and time (local UNIX time)

Parameter endDate: End date and time (local UNIX time)

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command Class Alarm (0x71/113)

Version 5, Controlled

Also known as Notification Command Class. Used to report alarm events from binary sensors. Starting from version 3 all types are strictly defines:.

- 0x01 Smoke.

- 0x02 CO.

- 0x03 CO2.

- 0x04 Heat.

- 0x05 Water.

- 0x06 Access Control.

- 0x07 Burglar.

- 0x08 Power Management.

- 0x09 System.

- 0x0a Emergency.

- 0x0b Clock.

Data holders:

• V1supported: boolean flag saying if version 1 (deprecated) is supported
• V1event : structure to store V1 events
• alarmType: V1 alarm type
• level: V1 status
• typeMask: bit mask of supported alarm types
• [typeId]: subtree storing a specific alarm type
• typeString: name of the alarm type
• status: flag with alarm status (alarm enabled/disabled)
• sequence: internal; sequence number of the event
• eventMask: bit mask of supported events of this alarm type
• [eventId]: subtree storing a specific event type
• status: event status
• eventString: last event name
• parameters: last event parameters
• isState: TRUE if the event is a state change, FALSE if it is a notification of a stateless event
• oppositeTo: internal; ID of the opposite event. Used for statefull events pairs

Command Alarm Get

Syntax: Get(type = 0, event = 0, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_alarm_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE type, ZWBYTE event, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Alarm Get. Requests the status of a specific event of a specific alarm type

Parameter type: Type of alarm to get level for. 0 to get level for all supported alarms (v2 and higher). 0xFF to get level for first supported alarm (v2 and higher)

Parameter event: Notification event to get level for. This argument is ignored prior to Notification v3. Must be 0 if type is 0xFF

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: Alarm type subtree updated

Command Alarm Set

Syntax: Set(type, level, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_alarm_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE type, ZWBYTE level, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Alarm Set (v2 and higher). Enable/disable alarms of a specific type

Parameter type: Type of alarm to set level for

Parameter level: Level to set (0x0 = off, 0xFF = on, other values are reserved)

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: Alarm type subtree updated

Command Class PowerLevel (0x73/115)

Version 1, Supported and Controlled

Used to set device power level and to test the link to a other devices in the network.

Data holders:

• level: Current power level (0 for normal power, 1..9 for -1..-9 dBm)
• timeout: Timeout of the power level set (after timeout the device turns back to normal power)
• [nodeId]: Subtree with report of a test with nodeId
• status: Current test status (0 = Failed, 1 = Successfully finished, 2 = In progress)
• totalFrames: Total frames sent
• acknowledgedFrames: Acknowledged frames from total sent

Command PowerLevel Get

Syntax: Get(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_power_level_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send PowerLevel Get

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: level and timeout updated

Command PowerLevel Set

Syntax: Set(level, timeout, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_power_level_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE level, ZWBYTE timeout, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send PowerLevel Set

Parameter level: Power level to set (from 0 to 9)

Parameter timeout: Timeout in seconds

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: level and timeout updated

Command PowerLevel TestNodeGet

Syntax: TestNodeGet(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_power_level_test_node_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send PowerLevel Test Node Get

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: subtree with report for the given node updated

Command PowerLevel TestNodeSet

Syntax: TestNodeSet(testNodeId, level, frameCount, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_power_level_test_node_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE testNodeId, ZWBYTE level, int frameCount, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send PowerLevel Test Node Set. Starts sending specified number of NOP packets to a given device at a given power level. Once finished, unsolicited report MIGHT be sent by the device (at any time you can use TestNodeGet)

Parameter testNodeId: Node to set test packets to

Parameter level: Power level to use (from 0 to 9)

Parameter frameCount: Number of test frames to send (from 1 to 65535)

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: subtree with report for the given node updated

Command Class Z-Wave Plus Info (0x5E/94)

Version 2, Supported and Controlled

Describes device Z-Wave Plus role and type.

Data holders:

• plusVersion: Z-Wave Plus version
• roleType: Z-Wave Plus role type
• roleTypeString: Z-Wave Plus role type description
• nodeType: Z-Wave Plus node type
• installerIcon: Icon for installer
• userIcon: Icon for user

Command ZWavePlusInfo Get

Syntax: Get(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_zwave_plus_info_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send ZWave+ Info Get

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command Class Firmware Update (0x7A/122)

Version 7, Supported and Controlled

Allows to update firmware of the device (OTA, Over-The-Air upgrade).

Data holders:

• upgradeable: Flag representing if the firmware is upgradable
• firmwareCount: Number of firmwares that can be updated using OTA (for multi chip devices, 0 is Z-Wave chip only)
• updateStatus: Indicated the status of the update process
• waitTime: Time the device will take before rebooting with newly upgraded firmware
• manufacturerId: Manufacturere ID
• firmwareId: Firmware Id
• firmwareId[n]: Firmware Id of firmware [n]
• checksum: Checksum of the firmware
• fragmentTransmitted: Number of fragments transmitted (useful to make progress bar)
• fragmentCount: Number of fragments to be transmitted in total (useful to make progress bar)
• fragmentSize: Internal
• firmwareData: Internal

Command FirmwareUpdate Get

Syntax: Get(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_firmware_update_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Firmware Metadata Get

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: upgradeable, firmwareCount, updateStatus, manufacturerId, manufacturerId, firmwareId, firmware[n], checksum updated

Command FirmwareUpdate Perform

Syntax: Perform(manufacturerId, firmwareId, firmwareTarget, data, delayActivation = FALSE, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_firmware_update_perform(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, int manufacturerId, int firmwareId, ZWBYTE firmwareTarget, size_t length, const ZWBYTE * data, ZWBOOL delayActivation, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Firmware Update Request Get. On process start Z-Way sets fragmentCount:. devices.N.instances.0.commandClasses.122.data.fragmentCount = 3073 (0x00000c01). Then it asks the device to start the process. The device can refuse it (i.e. if local confirmation timed out). If confirmed, the device will send us a report with adjusted fragment size (if it wants Z-Way to send by smaller packets) and report "Ready" (updateStatus = 255, see below). devices.N.instances.0.commandClasses.122.data.updateStatus = 255 (0x000000ff). devices.N.instances.0.commandClasses.122.data.fragmentCount = 3277 (0x00000ccd). At this point fragmentTransmitted == 0. devices.N.instances.0.commandClasses.122.data.fragmentTransmitted =0. Then device starts asking Z-Way for different packets. Z-Way will update fragmentTransmitted to allow track the process. Once done (fragmentCount == fragmentTransmitted), the device will send again a report if the flashing was successful. updateStatus contains the status: checksum error = 0, assemble error = 1, success, restart manually = 254, success, automatic restart = 255. waitTime refers to the time device will take to reboot. devices.N.instances.0.commandClasses.122.data.updateStatus = 255 (0x000000ff). devices.N.instances.0.commandClasses.122.data.waitTime = 5 (0x00000005)

Parameter manufacturerId: Manufacturer Id (2 bytes)

Parameter firmwareId: Firmware Id (2 bytes)

Parameter firmwareTarget: Firmware target number (0 for main chip, 1..255 for additional chips). Used only for CC v3 and above

Parameter data: Firmware image data in binary format (use hex2bin to convert from Intel Hex)

Parameter delayActivation: Set to TRUE to delay the activation of the uploaded firmware. Use zway_cc_firmware_update_activation_set to initiate the activation

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: updateStatus, updateStatusStr, waitTime, fragmentData, fragmentCount, fragmentTransmitted updated

Command FirmwareUpdate Activation

Syntax: Activation(manufacturerId, firmwareId, firmwareTarget, data, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_firmware_update_activation(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, int manufacturerId, int firmwareId, ZWBYTE firmwareTarget, size_t length, const ZWBYTE * data, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Firmware Update Activation Set. Apply previously loaded firmware

Parameter manufacturerId: Manufacturer Id (2 bytes)

Parameter firmwareId: Firmware Id (2 bytes)

Parameter firmwareTarget: Firmware target number (0 for main chip, 1..255 for additional chips). Used only for CC v3 and above

Parameter data: Firmware image data in binary format (use hex2bin to convert from Intel Hex). This data is used to calculate (again) the CRC of the image and send it to the device to specify which firmware update to activate

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: activationStatus, activationStatusStr updated

Command FirmwareUpdate Prepare

Syntax: Prepare(manufacturerId, firmwareId, firmwareTarget, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_firmware_update_prepare(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, int manufacturerId, int firmwareId, ZWBYTE firmwareTarget, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Firmware Update Prepare Set. Fetch the firmware from the device

Parameter manufacturerId: Manufacturer Id (2 bytes)

Parameter firmwareId: Firmware Id (2 bytes)

Parameter firmwareTarget: Firmware target number (0 for main chip, 1..255 for additional chips). Used only for CC v3 and above

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: prepareStatus, prepareStatusStr updated

Command FirmwareUpdate Abandon

Syntax: Abandon(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_firmware_update_abandon(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Abandon an ongoing Firmware Update process. Stop responding to an ongoing update process and erase the firmware data prepared for the update. This call is executed synchroneously and does not fire success/failure callbacks

Parameter successCallback: Not used

Parameter failureCallback: Not used

Report: updateStatus, updateStatusStr, fragmentData, fragmentCount, fragmentTransmitted updated

Command Class Association Group Information (0x59/89)

Version 1, Supported and Controlled

Describes association groups defined by Association Command Class and command sent to group members.

Data holders:

• [groupId]: Subtree for grouId
• groupName: Group name
• profile: Group profile Id
• mode: Internal. Reserved.
• eventCode: Internal. Reserved
• commands: Subtree for commands
• [commandClassId]: Command Class Id of the command sent to group members
• [commandId]: Command Id corresponding to Command Class Id
• dynamic: Flag describing if the list can change and periodic request to update information is suggested

Command AssociationGroupInformation GetInfo

Syntax: GetInfo(groupId, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_association_group_information_get_info(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE groupId, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send AGI Get Info

Parameter groupId: Group Id to get info for (0 for all groups)

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command AssociationGroupInformation GetName

Syntax: GetName(groupId, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_association_group_information_get_name(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE groupId, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send AGI Get Name

Parameter groupId: Group Id to get info for (0 for all groups)

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command AssociationGroupInformation GetCommands

Syntax: GetCommands(groupId, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_association_group_information_get_commands(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE groupId, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send AGI Get Commands

Parameter groupId: Group Id to get info for (0 for all groups)

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command Class SwitchColor (0x33/51)

Version 3, Controlled

Allows to control color for multicolor lights including LED bulbs and LED strips. Device reports it's capabilities:.

- 0 Warm White (0x00...0xFF: 0...100%).

- 1 Cold White (0x00:...0xFF: 0...100%).

- 2 Red (0x00...0xFF: 0...100%).

- 3 Green (0x00...0xFF: 0...100%).

- 4 Blue (0x00...0xFF: 0...100%).

- 5 Amber (for 6ch Color mixing) (0x00...0xFF: 0...100%).

- 6 Cyan (for 6ch Color mixing) (0x00...0xFF: 0...100%).

- 7 Purple (for 6ch Color mixing) (0x00...0xFF: 0...100%).

- 8 Indexed Color (0x00...0x0FF: Color Index 0...255).

Data holders:

• overrideDefaultDuration: Override default duration (0xff) with this value
• capabilityMask: Internal. Bit mask with supported capabilities
• [capabilityId]: Subtree for capabilityId
• capabilityString: Capability description
• level: Level of capability

Command SwitchColor Get

Syntax: Get(capabilityId, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_switch_color_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE capabilityId, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send SwitchColor Get

Parameter capabilityId: Capability Id

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command SwitchColor Set

Syntax: Set(capabilityId, state, duration = 0xff, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_switch_color_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE capabilityId, ZWBYTE state, ZWBYTE duration, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send SwitchColor Set

Parameter capabilityId: Capability Id

Parameter state: State to be set for the capability

Parameter duration: Duration of change:. 0 instantly. 0x01...0x7f in seconds. 0x80...0xfe in minutes mapped to 1...127 (value 0x80=128 is 1 minute). 0xff use device factory default

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command SwitchColor SetMultiple

Syntax: SetMultiple(capabilityIds, states, duration = 0xff, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_switch_color_set_multiple(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE length, const ZWBYTE * capabilityIds, ZWBYTE length, const ZWBYTE * states, ZWBYTE duration, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send SwitchColor SetMultiple

Parameter capabilityIds: Array of capabilities to set

Parameter states: Array of state values to be set for the capabilities

Parameter duration: Duration of change:. 0 instantly. 0x01...0x7f in seconds. 0x80...0xfe in minutes mapped to 1...127 (value 0x80=128 is 1 minute). 0xff use device factory default

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command SwitchColor StartStateChange

Syntax: StartStateChange(capabilityId, dir, duration = 0xff, ignoreStartLevel = TRUE, startLevel = 50, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_switch_color_start_state_change(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE capabilityId, ZWBYTE dir, ZWBYTE duration, ZWBOOL ignoreStartLevel, ZWBYTE startLevel, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send SwitchColor StartStateChange

Parameter capabilityId: Capability Id to start changing state for

Parameter dir: Direction of change: 0 to incrase, 1 to decrase

Parameter duration: Duration of change:. 0 instantly. 0x01...0x7f in seconds. 0x80...0xfe in minutes mapped to 1...127 (value 0x80=128 is 1 minute). 0xff use device factory default

Parameter ignoreStartLevel: If set to True, device will ignore start level value and will use it's curent value

Parameter startLevel: Start level to change from

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command SwitchColor StopStateChange

Syntax: StopStateChange(capabilityId, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_switch_color_stop_state_change(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE capabilityId, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send SwitchColor StopStateChange

Parameter capabilityId: Capability Id to stop changing state for

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command Class SoundSwitch (0x79/121)

Version 2, Controlled

Allows to play tones and configure volume.

Data holders:

• currentTone: Currently played tone Id
• currentVolume: The volume of the currently played tone
• defaultTone: Default tone Id
• defaultVolume: Default volume
• tonesNumber: Number of tones
• [toneId]: Subtree for toneId
• toneName: Tone name
• duration: Duration in seconds

Command SoundSwitch TonePlayGet

Syntax: TonePlayGet(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_sound_switch_tone_play_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send SoundSwitch TonePlayGet

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command SoundSwitch TonePlaySet

Syntax: TonePlaySet(toneId, volume = 0x00, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_sound_switch_tone_play_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE toneId, ZWBYTE volume, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send SoundSwitch TonePlaySet

Parameter toneId: Tone Id. 1...254 tone Id. 255 play default tone

Parameter volume: Tone volume:. 0 use default. 1...100 specific volume. 255 last used volume

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command SoundSwitch ConfigurationGet

Syntax: ConfigurationGet(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_sound_switch_configuration_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send SoundSwitch ConfigurationGet

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command SoundSwitch ConfigurationSet

Syntax: ConfigurationSet(toneId, volume = 0x00, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_sound_switch_configuration_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE toneId, ZWBYTE volume, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send SoundSwitch ConfigurationSet

Parameter toneId: Tone Id. 1...254 tone Id. 255 play default tone

Parameter volume: Tone volume:. 0 use default. 1...100 specific volume. 255 last used volume

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command Class BarrierOperator (0x66/102)

Version 1, Controlled

Allows to control barriers and garage doors as well as their signal lamps.

Data holders:

• state: Barrier state
• signalMask: Internal. Bit mask of available signals
• [signalId]: Subtree for signal
• signalTypeString: Signal description
• state: Signal state

Command BarrierOperator Get

Syntax: Get(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_barrier_operator_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send BarrierOperator Get

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command BarrierOperator Set

Syntax: Set(state, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_barrier_operator_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE state, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send BarrierOperator Set

Parameter state: State to set

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command BarrierOperator SignalGet

Syntax: SignalGet(signalType, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_barrier_operator_signal_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE signalType, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send BarrierOperator Signal Get

Parameter signalType: Signal subsystem type to get state for

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command BarrierOperator SignalSet

Syntax: SignalSet(signalType, state, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_barrier_operator_signal_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE signalType, ZWBYTE state, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send BarrierOperator Signal Set

Parameter signalType: Signal subsystem type to set state for

Parameter state: State to set

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command Class SimpleAVControl (0x94/148)

Version 4, Supported and Controlled

Allows to control A/V devices.

Data holders:

• bitmask: Bit mask with supported keys
• bitmasks: Internal
• sequenceNumber: Internal
• reportsNumber: Internal

Command SimpleAVControl Set

Syntax: Set(keyAttribute, avCommand, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_simple_av_control_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE keyAttribute, unsigned int avCommand, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send SimpleAVControl Set

Parameter keyAttribute: 0 for key Down, 1 for key Up, 2 for key Alive (repeated every 100...200 ms)

Parameter avCommand: Command to be sent. One of 465 predefined in Z-Wave protocol

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command Class Security (0x98/152)

Version 1, Supported and Controlled

This Command Class is transparently implemented in the library. There are no functions to execute.

Data holders:

• controller->data->secureControllerId: Node Id of secure controller: node that established secure channel when we are secondary controller (this data is on controller data tree)
• device->data->secureChannelEstablished: Flag describing if security interview was successful and secure channel is established (this data is on device data tree)
• secureNodeInfoFrame: Secure Node Information Frame
• securityAbandoned: Security interview failed
• scheme: Secure scheme supported
• securityRequested: Internal
• rNonce: Internal
• rNonceAckWait: Internal
• canStream: Internal
• firstPart: Internal
• sequenceId: Internal
• toFollow: Internal

Command Security Inject

Syntax: Inject(data, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_security_inject(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE length, const ZWBYTE * data, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Security Inject

Parameter data: Data to set

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command Class SecurityS2 (0x9F/159)

Version 1, Supported and Controlled

This Command Class is transparently implemented in the library. There are no functions to execute.

Data holders:

• ctrlDevice->data->secureControllerId: Node Id of secure controller: node that established secure channel when we are secondary controller (this data is on controller data tree)
• device->data->secureChannelEstablished: Flag describing if security interview was successful and secure channel is established (this data is on device data tree)
• secureNodeInfoFrames: Secure Node Information Frames for each security level
• securityAbandoned: Security interview failed
• securityRequested: Internal
• requestedKeys: Subtree of requested keys
• S0: True if requested
• S2Unauthenticated: True if requested
• S2Authenticated: True if requested
• S2Access: True if requested
• grantedKeys: Subtree of granted keys
• S0: True if granted
• S2Unauthenticated: True if granted
• S2Authenticated: True if granted
• S2Access: True if granted
• device->data->securityS2ExchangedKeys: Mask of granted keys (for re-interview)
• publicKey: Public key of the device
• publicKeyVerified: Verified public key of the device by the user
• publicKeyAuthenticationRequired: True if the user have to verify
• controller->data->S2RequireCSA: Require Client Side Authentication during joining network as secondary

Command SecurityS2 Inject

Syntax: Inject(data, keyClass, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_security_s2_inject(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE length, const ZWBYTE * data, ZWBYTE keyClass, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send Security S2 Inject

Parameter data: Data to set

Parameter keyClass: Security S2 key class

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command Class EntryControl (0x6F/111)

Version 1, Controlled

Receive codes from entry control devices like security panels.

Data holders:

• sequence: Sequence number to prevent duplicates. Internal
• event: Event Id
• eventData: Additional data to the event
• keys: Array with supported keys Id
• dataTypes: Array with supported data types
• eventTypes: Array with supported event type Id
• keyCacheSize: Key cache size before sending to the controller
• keyCacheSizeMin: Minimum supported keyCacheSize
• keyCacheSizeMax: Maximum supported keyCacheSize
• keyCacheTimeout: Key cache timeout before sending to the controller, in seconds
• keyCacheTimeoutMin: Minimum supported keyCacheTimeout
• keyCacheTimeoutMax: Maximum supported keyCacheTimeout

Command EntryControl ConfigurationGet

Syntax: ConfigurationGet(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_entry_control_configuration_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Request keyCacheSize and keyCacheTimeout

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command EntryControl ConfigurationSet

Syntax: ConfigurationSet(keyCacheSize, keyCacheTimeout, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_entry_control_configuration_set(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZWBYTE keyCacheSize, ZWBYTE keyCacheTimeout, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Set keyCacheSize and keyCacheTimeout

Parameter keyCacheSize: Key cache size before sending to the controller

Parameter keyCacheTimeout: Key cache timeout before sending to the controller, in seconds

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command Class UserCredential (0x83/131)

Version 1, Controlled

Manage user credentials in locks, entry control devices and security panels.

Data holders:

• users: Users subtree
• [userId]: User subtree
• userType: User type
• userTypeName: User type name
• active: User activity state
• credentialRule: Credential rule to be applied to the user
• expiringTimeoutMinutes: Timeout for the user active state
• userNameEncoding: User name encoding
• userName: User name
• modifierType: Type of the last user modifier of the user
• modifierNodeId: Id of the last user modifier of the user
• credentials: Credentials subtree
• [credentialType]: Credential type subtree
• typeName: Credential type name
• maxCredentials: Maximum number of credential slots
• minDataLength: Minimum credential data length
• maxDataLength: Maximum credential data length
• learnSupported: Is learn process supported
• learnSteps: Number of learn steps
• learnRecommendedTimeout: Recommended timeout for learn process
• [credentialId]: Credential slot subtree
• userId: User Id
• data: Credential data
• credentialReadAccess: Can credential be read back
• modifierType: Type of the last user modifier of the slot
• modifierNodeId: Id of the last user modifier of the slot
• credentialLearn: Credential Learn subtree
• userId: User Id to be assigned to the learnt credential
• credentialType: Credential Type to be learnt
• credentialId: Credential slot Id to be used to save the learnt credential
• operationType: Credential learn operation
• timeout: Credential learn timeout
• maxUsers: Maximum number of users
• maxUserNameLength: Maximal user name length
• supportedUserTypesMask: Supported User Types mask
• supportedUserTypes: Supported User Types
• supportedCredentialRulesMask: Supported Credential Rules mask
• supportedCredentialRules: Supported Credential Rules
• userScheduleSupported: Is user schedule supported
• allUsersChecksumSupported: Is all users checksum supported
• userChecksumSupported: Is user checksum supported
• credentialChecksumSupported: Is credential checksum supported
• learnSupported: Is learn process supported
• nextUserRequested: Internal fields
• nextCredentialRequested: Internal fields

Command UserCredential UserGet

Syntax: UserGet(user, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_user_credential_user_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, unsigned int user, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Get user info

Parameter user: User Id

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command UserCredential UserGetWithCredentials

Syntax: UserGetWithCredentials(user, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_user_credential_user_get_with_credentials(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, unsigned int user, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Get user info and credential slots for this user

Parameter user: User Id

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command UserCredential AllUsersGet

Syntax: AllUsersGet(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_user_credential_all_users_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Get user info and credential slots for all users

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command UserCredential UserAdd

Syntax: UserAdd(user, userType, userActiveState, credentialRule, expiringTimeoutMinutes, userNameEncoding, userName, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_user_credential_user_add(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, unsigned int user, ZWBYTE userType, ZWBOOL userActiveState, ZWBYTE credentialRule, unsigned int expiringTimeoutMinutes, ZWBYTE userNameEncoding, ZWCSTR userName, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Add user

Parameter user: User Id

Parameter userType: User type

Parameter userActiveState: User activity state

Parameter credentialRule: Credential rule to apply to the user

Parameter expiringTimeoutMinutes: User activity expiration time in minutes

Parameter userNameEncoding: User name encoding

Parameter userName: User name

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command UserCredential UserModify

Syntax: UserModify(user, userType, userActiveState, credentialRule, expiringTimeoutMinutes, userNameEncoding, userName, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_user_credential_user_modify(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, unsigned int user, ZWBYTE userType, ZWBOOL userActiveState, ZWBYTE credentialRule, unsigned int expiringTimeoutMinutes, ZWBYTE userNameEncoding, ZWCSTR userName, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Modify user

Parameter user: User Id

Parameter userType: User type

Parameter userActiveState: User activity state

Parameter credentialRule: Credential rule to apply to the user

Parameter expiringTimeoutMinutes: User activity expiration time in minutes

Parameter userNameEncoding: User name encoding

Parameter userName: User name

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command UserCredential UserDelete

Syntax: UserDelete(user, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_user_credential_user_delete(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, unsigned int user, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Delete user

Parameter user: User Id

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command UserCredential CredentialGet

Syntax: CredentialGet(user, credentialType, credentialId, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_user_credential_credential_get(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, unsigned int user, ZWBYTE credentialType, unsigned int credentialId, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Get credential info

Parameter user: User Id

Parameter credentialType: Credential type

Parameter credentialId: Credential Id

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command UserCredential CredentialAdd

Syntax: CredentialAdd(userId, credentialType, credentialId, credentialData, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_user_credential_credential_add(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, unsigned int userId, ZWBYTE credentialType, unsigned int credentialId, ZWBYTE credentialLength, const ZWBYTE * credentialData, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Add credential

Parameter userId: User Id

Parameter credentialType: Credential type

Parameter credentialId: Credential Id

Parameter credentialData: Credential data

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command UserCredential CredentialModify

Syntax: CredentialModify(userId, credentialType, credentialId, credentialData, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_user_credential_credential_modify(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, unsigned int userId, ZWBYTE credentialType, unsigned int credentialId, ZWBYTE credentialLength, const ZWBYTE * credentialData, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Modify credential

Parameter userId: User Id

Parameter credentialType: Credential type

Parameter credentialId: Credential Id

Parameter credentialData: Credential data

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command UserCredential CredentialDelete

Syntax: CredentialDelete(userId, credentialType, credentialId, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_user_credential_credential_delete(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, unsigned int userId, ZWBYTE credentialType, unsigned int credentialId, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Delete credential

Parameter userId: User Id

Parameter credentialType: Credential type

Parameter credentialId: Credential Id

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command UserCredential CredentialLearnStartAdd

Syntax: CredentialLearnStartAdd(userId, credentialType, credentialId, learnTimeout, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_user_credential_credential_learn_start_add(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, unsigned int userId, ZWBYTE credentialType, unsigned int credentialId, ZWBYTE learnTimeout, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Start learn process adding credential

Parameter userId: User Id

Parameter credentialType: Credential type

Parameter credentialId: Credential Id

Parameter learnTimeout: Learn process timeout

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command UserCredential CredentialLearnStartModify

Syntax: CredentialLearnStartModify(userId, credentialType, credentialId, learnTimeout, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_user_credential_credential_learn_start_modify(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, unsigned int userId, ZWBYTE credentialType, unsigned int credentialId, ZWBYTE learnTimeout, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Start learn process modifying credential

Parameter userId: User Id

Parameter credentialType: Credential type

Parameter credentialId: Credential Id

Parameter learnTimeout: Learn process timeout

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command UserCredential CredentialLearnCancel

Syntax: CredentialLearnCancel(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_cc_user_credential_credential_learn_cancel(ZWay zway, ZWNODE node_id, ZWBYTE instance_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Cancel an ongoing learn process

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Command Class Hail (0x82/130)

Version 1, Controlled

This Command Class is transparently implemented in the library to trap unsolicited reports via Hail in legacy devices.

Data holders:

• hail: Updated every time Hail command is received

Command Class CRC16 (0x56/86)

Version 1, Supported and Controlled

This Command Class is transparently implemented in the library to use better 16 bits packet checksum. There are no functions to execute.

Data holders:

• crc16Requested: Internal

Command Class MultiCmd (0x8F/143)

Version 1, Supported and Controlled

This Command Class is transparently implemented in the library to save battery life time. There are no functions to execute.

Data holders:

• maxNum: Max number of packets to be encapsulated. Can be tunned to lower (to workaround buggy devices, 1 to turn off) or rise (to get bettery performance)

Command Class Supervision (0x6C/108)

Version 2, Supported and Controlled

This Command Class is transparently implemented in the library to guarantee delivery report on every command (even on Set). There are no functions to execute.

Data holders:

• [sessionId]: Subtree with session status
• status: Current session status (0 = Not supported, 1 = Working, 2 = Fail, 3 = Busy, 255 = Success)
• duration: Expected time to finish the operation
• moreStatusUpdates: True if more updates on the session status are expected
• lastSession: Internal

Command Class Application Status (0x22/34)

Version 1, Supported and Controlled

This Command Class is transparently implemented in the library to retry on device Busy report. There are no functions to execute.

Command Class Version (0x86/134)

Version 2, Supported and Controlled

Allows to get version of each Command Class supported by the device as well as firmware version.

Data holders:

• commandClass->data->version: Version of specific Command Class (this data is on Command Class data tree)
• ZWLib: SDK library type
• ZWProtocolMajor: SDK version major
• ZWProtocolMinor: SDK version minor
• SDK: SDK description
• applicationMajor: Application version major
• applicationMinor: Application version minor
• hardwareVersion: Hardware revision of the device
• firmwareCount: Number of chips (firmwares) in the device (excluding Z-Wave chip)
• [firmwareId]: Subtree for firmwareId information
• major: Additional chip application version major
• minor: Additional chip application version major

Command Class DeviceResetLocally (0x5A/90)

Version 1, Supported and Controlled

Reports to the controller that device was resetted locally (using local button operation).

Data holders:

• reset: Becomes True if the device sent us DeviceResetLocally notification. This means the device is certainly not in our network anymore

Command Class Central Scene (0x5B/91)

Version 3, Supported and Controlled

Allows to receive central controller oriented scene actions. Scenes are triggered by pushing a button on a remote control or wall controller. Note that Z-Way supports only V1, but in most cases you don't need it to be enabled in the NIF. Controlled version is V3.

Data holders:

• maxScenes: Number of scenes supported
• slowRefreshSupport: Flag to indicate if the device supports Slow Refresh mode
• slowRefresh: Flag to indicate if the device is currently in Slow Refresh mode
• currentScene: Last activated scene
• keyAttribute: Button (or key) action: 0 for key press, 1 for key release, 2 for key held down (should bre repeated at least every 200ms)
• sequence: Internal. To ignore duplicate packats.
• sceneSupportedKeyAttributesMask: Holds the list of supported key attributes for each scene
• [sceneId]: Array of supported key attributes for Scene Id: 0 for 1 press, 1 for release after hold, 2 for hold, 3..6 for 2..5 presses

Function Class Reference

Function Class GetSerialAPICapabilities

Syntax: GetSerialAPICapabilities(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_get_serial_api_capabilities(ZWay zway, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Request Serial API capabilities

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: capabilities, manufacturerId, manufacturerProductId, manufacturerProductType, APIVersion, vendor

Function Class SerialAPISetTimeouts

Syntax: SerialAPISetTimeouts(ackTimeout, byteTimeout, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_serial_api_set_timeouts(ZWay zway, ZWBYTE ackTimeout, ZWBYTE byteTimeout, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Set Serial API timeouts

Parameter ackTimeout: Time for the stick to wait for ACK (in 10ms units)

Parameter byteTimeout: Time for the stick to assemble a full packet (in 10ms units)

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: curSerialAPIAckTimeout10ms, curSerialAPIByteTimeout10ms, oldSerialAPIAckTimeout10ms, oldSerialAPIByteTimeout10ms

Function Class SerialAPIGetInitData

Syntax: SerialAPIGetInitData(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_serial_api_get_init_data(ZWay zway, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Request initial information about devices in network

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: ZWVersion, ZWaveChip, list of Z-Wave devices is generated

Function Class SerialAPIApplicationNodeInfo

Syntax: SerialAPIApplicationNodeInfo(listening, optional, flirs1000, flirs250, genericClass, specificClass, nif, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_serial_api_application_node_info(ZWay zway, ZWBOOL listening, ZWBOOL optional, ZWBOOL flirs1000, ZWBOOL flirs250, ZWBYTE generic_class, ZWBYTE specific_class, ZWBYTE nif_size, const ZWBYTE * nif, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Set controller node information

Parameter listening: Listening flag

Parameter optional: Optional flag (set if device supports more CCs than described as mandatory for it's Device Type)

Parameter flirs1000: FLiRS 1000 flag (hardware have to be based on FLiRS library to support it)

Parameter flirs250: FLiRS 250 flag (hardware have to be based on FLiRS library to support it)

Parameter genericClass: Generic Device Type

Parameter specificClass: Specific Device Type

Parameter nif: New NIF

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class WatchDogStart

Syntax: WatchDogStart(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_watchdog_start(ZWay zway, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Start WatchDog

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class WatchDogStop

Syntax: WatchDogStop(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_watchdog_stop(ZWay zway, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Stop WatchDog

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class GetHomeId

Syntax: GetHomeId(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_get_home_id(ZWay zway, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Request Home Id and controller Node Id

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: homeId, nodeId

Function Class GetControllerCapabilities

Syntax: GetControllerCapabilities(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_get_controller_capabilities(ZWay zway, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Request controller capabilities (primary role, SUC/SIS availability)

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: isInOthersNetwork, isPrimary, isRealPrimary, isSUC, isSUC, SISPresent

Function Class GetVersion

Syntax: GetVersion(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_get_version(ZWay zway, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Request controller hardware version

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: ZWLib, ZWProtocolMajor, ZWProtocolMinor, libType, SDK, devices[ctrlId].data.ZWLib, devices[ctrlId].data.ZWProtocolMajor, devices[ctrlId].data.ZWProtocolMinor, devices[ctrlId].data.SDK

Function Class GetSUCNodeId

Syntax: GetSUCNodeId(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_get_suc_node_id(ZWay zway, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Request SUC Node Id

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: SUCNodeId

Function Class EnableSUC

Syntax: EnableSUC(enable, sis, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_enable_suc(ZWay zway, ZWBOOL enable, ZWBOOL sis, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Enable or disable SUC/SIS functionality of the controller

Parameter enable: True to enable functionality, False to disable

Parameter sis: True to enable SIS functionality, False to enable SUC only

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class SetSUCNodeId

Syntax: SetSUCNodeId(nodeId, enable, sis, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_set_suc_node_id(ZWay zway, ZWNODE node_id, ZWBOOL enable, ZWBOOL sis, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Assign new SUC/SIS or disable existing

Parameter nodeId: Node Id to be assigned/disabled as SUC/SIS

Parameter enable: True to enable, False to disable

Parameter sis: True to assign SIS role, False to enable SUC role only

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class MemoryGetByte

Syntax: MemoryGetByte(offset, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_memory_get_byte(ZWay zway, unsigned short offset, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Read single byte from EEPROM

Parameter offset: Offset in application memory in EEPROM

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: memoryGetData, memoryGetAddress

Function Class MemoryGetBuffer

Syntax: MemoryGetBuffer(offset, length, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_memory_get_buffer(ZWay zway, unsigned short offset, ZWBYTE length, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Read multiple bytes from EEPROM

Parameter offset: Offset in application memory in EEPROM

Parameter length: Number of byte to be read

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: memoryGetData, memoryGetAddress

Function Class MemoryPutByte

Syntax: MemoryPutByte(offset, data, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_memory_put_byte(ZWay zway, unsigned short offset, ZWBYTE data, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Write single byte to EEPROM

Parameter offset: Offset in application memory in EEPROM

Parameter data: Byte to be written

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class MemoryPutBuffer

Syntax: MemoryPutBuffer(offset, data, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_memory_put_buffer(ZWay zway, unsigned short offset, ZWBYTE length, const ZWBYTE * data, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Write multiple bytes to EEPROM

Parameter offset: Offset in application memory in EEPROM

Parameter data: Bytes to be written

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class NVMGetId

Syntax: NVMGetId(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_nvm_get_id(ZWay zway, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Read type of extended EEPROM

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: memoryCapacity, memoryManufacturerId, memoryType

Function Class NVMExtReadLongByte

Syntax: NVMExtReadLongByte(offset, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_nvm_ext_read_long_byte(ZWay zway, unsigned int offset, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Read single byte from extended EEPROM

Parameter offset: Offset in application memory in EEPROM

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: memoryGetData, memoryGetAddress

Function Class NVMExtReadLongBuffer

Syntax: NVMExtReadLongBuffer(offset, length, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_nvm_ext_read_long_buffer(ZWay zway, unsigned int offset, unsigned short length, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Read multiple bytes from exended EEPROM

Parameter offset: Offset in application memory in EEPROM

Parameter length: Number of byte to be read

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: memoryGetData, memoryGetAddress

Function Class NVMExtWriteLongByte

Syntax: NVMExtWriteLongByte(offset, data, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_nvm_ext_write_long_byte(ZWay zway, unsigned int offset, ZWBYTE data, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Write single byte to extended EEPROM

Parameter offset: Offset in application memory in EEPROM

Parameter data: Byte to be written

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class NVMExtWriteLongBuffer

Syntax: NVMExtWriteLongBuffer(offset, data, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_nvm_ext_write_long_buffer(ZWay zway, unsigned int offset, unsigned short length, const ZWBYTE * data, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Write multiple bytes to extended EEPROM

Parameter offset: Offset in application memory in EEPROM

Parameter data: Bytes to be written

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class IsFailedNode

Syntax: IsFailedNode(nodeId, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_is_failed_node(ZWay zway, ZWNODE node_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Checks if node is failed

Parameter nodeId: Node Id to be checked

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: device[node_id].data.isFailed

Function Class SendDataAbort

Syntax: SendDataAbort(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_send_data_abort(ZWay zway, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Abort send data. Note that this function works unpredictably in multi callback environment !

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class SerialAPISoftReset

Syntax: SerialAPISoftReset(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_serial_api_soft_reset(ZWay zway, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Soft reset. Restarts Z-Wave chip

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class SendData

Syntax: SendData(nodeId, data, description = NULL, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_send_data(ZWay zway, ZWNODE node_id, ZWBYTE length, const ZWBYTE * data, ZWCSTR description, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send data. Packets are sent in AUTO_ROUTE mode with EXPLRER_FRAME enabled for listening devices (ignored if not supported by the hardware [based on 5.0x branch])

Parameter nodeId: Destination Node Id (NODE_BROADCAST to send non-routed broadcast packet)

Parameter data: Paket payload

Parameter description: Packet description for queue inspector and logging

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: devices[node_id].data.lastSend

Function Class SendDataSecure

Syntax: SendDataSecure(nodeId, data, description = NULL, keyClass = 0, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_send_data_secure(ZWay zway, ZWNODE node_id, ZWBYTE length, const ZWBYTE * data, ZWCSTR description, ZWBYTE key_class, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send data using security. Packets are sent in AUTO_ROUTE mode with EXPLRER_FRAME enabled for listening devices (ignored if not supported by the hardware [based on 5.0x branch]). Explicitelly use security

Parameter nodeId: Destination Node Id (NODE_BROADCAST to send non-routed broadcast packet)

Parameter data: Paket payload

Parameter description: Packet description for queue inspector and logging

Parameter keyClass: Security class to use: 0 - S0, 1 - S2 Unauthenticated, 2 - S2 Authenticated, 4 - S2 Access

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: devices[node_id].data.lastSend

Function Class GetNodeProtocolInfo

Syntax: GetNodeProtocolInfo(nodeId, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_get_node_protocol_info(ZWay zway, ZWNODE node_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Get node protocol info

Parameter nodeId: Node Id of the device in question

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: devices[node_id].data.isListening, devices[node_id].data.isRouting, devices[node_id].data.optional, devices[node_id].data.sensor1000, devices[node_id].data.sensor250, devices[node_id].data.infoProtocolSpecific

Function Class GetRoutingTableLine

Syntax: GetRoutingTableLine(nodeId, removeBad = FALSE, removeRepeaters = FALSE, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_get_routing_table_line(ZWay zway, ZWNODE node_id, ZWBOOL remove_bad, ZWBOOL remove_repeaters, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Get routing table line

Parameter nodeId: Node Id of the device in question

Parameter removeBad: Exclude failed nodes from the listing

Parameter removeRepeaters: Exclude repeater nodes from the listing

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: devices[node_id].data.neighbours

Function Class AssignReturnRoute

Syntax: AssignReturnRoute(nodeId, destId, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_assign_return_route(ZWay zway, ZWNODE node_id, ZWNODE dest_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Assign return route to specified node

Parameter nodeId: Node Id of the device that have to store new route

Parameter destId: Destination Node Id of the route

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class AssignSUCReturnRoute

Syntax: AssignSUCReturnRoute(nodeId, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_assign_suc_return_route(ZWay zway, ZWNODE node_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Assign return route to SUC

Parameter nodeId: Node Id of the device that have to store route to SUC

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class DeleteReturnRoute

Syntax: DeleteReturnRoute(nodeId, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_delete_return_route(ZWay zway, ZWNODE node_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Delete return route

Parameter nodeId: Node Id of the device that have to delete all assigned return routes

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class DeleteSUCReturnRoute

Syntax: DeleteSUCReturnRoute(nodeId, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_delete_suc_return_route(ZWay zway, ZWNODE node_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Delete return route to SUC

Parameter nodeId: Node Id of the device that have to delete route to SUC

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class SetDefault

Syntax: SetDefault(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_set_default(ZWay zway, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Reset the controller. Note: this function will delete ALL data from the Z-Wave chip and restore it to factory default !. Sticks based on 4.5x and 6.x SDKs will also generate a new Home Id

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: lastExcludedDevice, lastIncludedDevice

Function Class SendSUCNodeId

Syntax: SendSUCNodeId(nodeId, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_send_suc_node_id(ZWay zway, ZWNODE node_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send SUC Node Id. Informs portable and static controllers about new or deleted SUC/SIS

Parameter nodeId: Node Id of the device that have to be informed about new or deleted SIC/SIS

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class SendNodeInformation

Syntax: SendNodeInformation(nodeId, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_send_node_information(ZWay zway, ZWNODE node_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send NIF of the stick

Parameter nodeId: Destination Node Id (NODE_BROADCAST to send non-routed broadcast packet)

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class RequestNodeInformation

Syntax: RequestNodeInformation(nodeId, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_request_node_information(ZWay zway, ZWNODE node_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Request NIF of a device

Parameter nodeId: Node Id to be requested for a NIF

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: devices[node_id].data.nodeInfoFrame

Function Class RemoveFailedNode

Syntax: RemoveFailedNode(nodeId, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_remove_failed_node(ZWay zway, ZWNODE node_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Remove failed node from network. Before removing SDK will check that the device is really unreachable

Parameter nodeId: Node Id to be removed from network

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: lastExcludedDevice

Function Class ReplaceFailedNode

Syntax: ReplaceFailedNode(nodeId, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_replace_failed_node(ZWay zway, ZWNODE node_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Replace failed node with a new one. Be ware that a failed node can be replaced by a node of another type. This can lead to probles!. Always request device NIF and force re-interview after successful replace process

Parameter nodeId: Node Id to be replaced by new one

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: lastIncludedDevice, controllerState

Function Class RequestNetworkUpdate

Syntax: RequestNetworkUpdate(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_request_network_update(ZWay zway, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Request network topology update from SUC/SIS. Note that this process may also fail due more than 64 changes from last sync. In this case a re-inclusion of the controller (self) is required

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class RequestNodeNeighbourUpdate

Syntax: RequestNodeNeighbourUpdate(nodeId, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_request_node_neighbour_update(ZWay zway, ZWNODE node_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Request neighbours update for specific node

Parameter nodeId: Node Id to be requested for it's neighbours

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: devices[node_id].data.neighbours

Function Class SetLearnMode

Syntax: SetLearnMode(startStop, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_set_learn_mode(ZWay zway, ZWBOOL startStop, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Set/stop Learn mode. Tries first classical inclusion then falls back to NWI automatically. Use zway_controller_set_learn_mode instead to get correctly set up the environment after inclusion

Parameter startStop: Start Learn mode if True, stop if False

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: controllerState, lastExcludedDevice, lastIncludedDevice

Function Class AddNodeToNetwork

Syntax: AddNodeToNetwork(startStop, highPower = TRUE, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_add_node_to_network(ZWay zway, ZWBOOL startStop, ZWBOOL highPower, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Start/stop Inclusion of a new node. Available on primary and inclusion controllers

Parameter startStop: Start inclusion mode if True, stop if False

Parameter highPower: Use full power during this operation if True. On False use low power mode

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: controllerState, lastExcludedDevice, lastIncludedDevice

Function Class SmartStartEnable

Syntax: SmartStartEnable(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_smart_start_enable(ZWay zway, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Enable Smart Start mode

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class RemoveNodeFromNetwork

Syntax: RemoveNodeFromNetwork(startStop, highPower = FALSE, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_remove_node_from_network(ZWay zway, ZWBOOL startStop, ZWBOOL highPower, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Start/stop exclusion of a node. Note that this function can be used to exclude a device from previous network before including in ours. Available on primary and inclusion controllers

Parameter startStop: Start exclusion mode if True, stop if False

Parameter highPower: Use full power during this operation if True. On False use low power mode

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: controllerState, lastExcludedDevice, lastIncludedDevice

Function Class RemoveNodeIdFromNetwork

Syntax: RemoveNodeIdFromNetwork(nodeId, startStop, highPower = FALSE, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_remove_node_id_from_network(ZWay zway, ZWNODE nodeId, ZWBOOL startStop, ZWBOOL highPower, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Start/stop exclusion of a node id. Note that this function can be used to exclude a device from previous network before including in ours. Available on primary and inclusion controllers

Parameter nodeId: NodeId to exclude. If 0 or > 232, any node will be excluded (like with zway_fc_remove_node_from_network / RemoveNodeFromNetwork)

Parameter startStop: Start exclusion mode if True, stop if False

Parameter highPower: Use full power during this operation if True. On False use low power mode

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: controllerState, lastExcludedDevice, lastIncludedDevice

Function Class ControllerChange

Syntax: ControllerChange(startStop, highPower = TRUE, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_controller_change(ZWay zway, ZWBOOL startStop, ZWBOOL highPower, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Set new primary controller (also known as Controller Shift). Same as Inclusion, but the newly included device will get the role of primary. Available only on primary controller

Parameter startStop: Start controller shift mode if True, stop if False

Parameter highPower: Use full power during this operation if True. On False use low power mode

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: controllerState, lastExcludedDevice, lastIncludedDevice

Function Class CreateNewPrimary

Syntax: CreateNewPrimary(startStop, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_create_new_primary(ZWay zway, ZWBOOL startStop, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Create new primary controller by SUC controller. Same as Inclusion, but the newly included device will get the role of primary. Available only on SUC. Be careful not to create two primary controllers! This can lead to network malfunction!

Parameter startStop: Start create new primary mode if True, stop if False

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: controllerState, lastExcludedDevice, lastIncludedDevice

Function Class ZMEFreqChange

Syntax: ZMEFreqChange(freq, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_zme_freq_change(ZWay zway, ZWBYTE freq, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Change Z-Wave.Me Z-Stick 4 frequency. This function is specific for Z-Wave.Me hardware

Parameter freq: 0x00 EU. 0x01 RU. 0x02 IN. 0x03 US. 0x04 ANZ. 0x05 HK. 0x06 CN. 0x07 JP. 0x08 KR. 0x09 IL. 0x0A MY. 0x0B US Long Range. 0xFF request current frequency (ZME firmwares prior to 5.03 don't support 0xFF feature)

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: frequency

Function Class RFPowerLevelSet

Syntax: RFPowerLevelSet(level, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_rf_power_level_set(ZWay zway, ZWBYTE level, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Set RF power level to specified value

Parameter level: 0 to 9

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class RFPowerLevelGet

Syntax: RFPowerLevelGet(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_rf_power_level_get(ZWay zway, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Get RF power level current value

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class SendTestFrame

Syntax: SendTestFrame(nodeId, level, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_send_test_frame(ZWay zway, ZWNODE node_id, ZWBYTE level, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Send test frame to a node at a specified RF level

Parameter nodeId: Node Id to make test against

Parameter level: 0 to 9

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class FlashAutoProgSet

Syntax: FlashAutoProgSet(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_flash_auto_prog_set(ZWay zway, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Put Z-Wave chip in Atuo Prog mode for USB/UART reflashing

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class ExploreRequestInclusion

Syntax: ExploreRequestInclusion(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_explore_request_inclusion(ZWay zway, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Request NWI. Called from SetLearnMode

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class ExploreRequestExclusion

Syntax: ExploreRequestExclusion(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_explore_request_exclusion(ZWay zway, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Request NWE

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class ZMEBootloaderFlash

Syntax: ZMEBootloaderFlash(seg, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_zme_bootloader_flash(ZWay zway, ZWBYTE seg, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Start reflashing bootloader of Z-Wave.Me firmware for 5th generation Z-Wave chip. This function is specific for Z-Wave.Me hardware

Parameter seg: address of new bootloader location in 2K segments

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class ZMEBootloaderLoadFlash

Syntax: ZMEBootloaderLoadFlash(data, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_zme_bootloader_load_flash(ZWay zway, size_t length, const ZWBYTE * data, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Load and start reflashing bootloader of Z-Wave.Me firmware for 7th generation Z-Wave chip. This function is specific for Z-Wave.Me hardware

Parameter data: Firmware image data in binary format (use hex2bin to convert from Intel Hex)

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class ZMECapabilities

Syntax: ZMECapabilities(data = NULL, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_zme_capabilities(ZWay zway, ZWBYTE length, const ZWBYTE * data, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Get or set firmware capabilities. This function is specific for Z-Wave.Me hardware

Parameter data: data to set (NULL to get)

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: caps, uuid

Function Class ZMELicenseSet

Syntax: ZMELicenseSet(data = NULL, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_zme_license_set(ZWay zway, ZWBYTE length, const ZWBYTE * data, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Set Z-Wave.Me firmware capabilities. This function is specific for Z-Wave.Me hardware

Parameter data: data to set (NULL to get)

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: caps

Function Class ZMEPHISetLED

Syntax: ZMEPHISetLED(led, status, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_zmephisetled(ZWay zway, ZWBYTE led, ZWBYTE status, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Activate LEDs on Philio hw. This function is specific for Philio hardware

Parameter led: LED id: 0x10 (Logo), 0x11 (Around), 0x12 (Misc)

Parameter status: LED status 2 (Off), 4 (On), 8 (Flash), 16 (Slow flash), 32 (Slow dimming)

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class ZMEPHIGetButton

Syntax: ZMEPHIGetButton(button, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_zmephigetbutton(ZWay zway, ZWBYTE button, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Get button state on Philio hw. This function is specific for Philio hardware

Parameter button: 0: Tamper Key, 1: Function Key A, 2: Function Key B

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: philiohw.tamper, philiohw.funcA, philiohw.funcB

Function Class ZMEPHIGetPower

Syntax: ZMEPHIGetPower(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_zmephigetpower(ZWay zway, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Get power state on Philio hw. This function is specific for Philio hardware

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: philiohw.powerFail, philiohw.batteryLevel, philiohw.charging, philiohw.batteryFail

Function Class ZMEPHIGetBattery

Syntax: ZMEPHIGetBattery(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_zmephigetbattery(ZWay zway, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Get battery state on Philio hw. This function is specific for Philio hardware

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: philiohw.batteryADCLevel

Function Class ZMEPHIGetRTC

Syntax: ZMEPHIGetRTC(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_zmephigetrtc(ZWay zway, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Get RTC from Philio hw. This function is specific for Philio hardware

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: set system time

Function Class ZMEPHISetRTC

Syntax: ZMEPHISetRTC(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_zmephisetrtc(ZWay zway, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Set RTC on Philio hw. This function is specific for Philio hardware

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class InjectPacket

Syntax: InjectPacket(nodeId, data, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_application_command_handler_inject(ZWay zway, ZWNODE node_id, ZWBYTE length, const ZWBYTE * data, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Inject command in Z-Way as it was received via Z-Wave. This function is for debugging only

Parameter nodeId: Source Node Id

Parameter data: Paket payload (should looks like ccId, ccCmd, data, ....)

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class GetBackgroundRSSI

Syntax: GetBackgroundRSSI(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_get_background_rssi(ZWay zway, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Get background noise level

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class SerialAPISetupSetIMA

Syntax: SerialAPISetupSetIMA(enable, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_serial_api_setup_set_ima(ZWay zway, ZWBOOL enable, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Enable Advanced IMA in Z-Wave.Me firmware

Parameter enable: Set feature state: True to enable, False to disable

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class SerialAPISetupGetTxPower

Syntax: SerialAPISetupGetTxPower(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_serial_api_setup_get_tx_power(ZWay zway, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Get Tx power in Z-Wave.Me firmware

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: txPower

Function Class SerialAPISetupSetTxPower

Syntax: SerialAPISetupSetTxPower(power, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_serial_api_setup_set_tx_power(ZWay zway, ZWBYTE power, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Set Tx power in Z-Wave.Me firmware

Parameter power: Power level in 10*dBm

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Report: txPower

Function Class ClearNetworkStats

Syntax: ClearNetworkStats(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_clear_network_stats(ZWay zway, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Clear statistics gathered by the Z-Wave protocol

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class GetNetworkStats

Syntax: GetNetworkStats(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_get_network_stats(ZWay zway, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Get statistics gathered by the Z-Wave protocol

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class GetPriorityRoute

Syntax: GetPriorityRoute(nodeId, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_get_priority_route(ZWay zway, ZWNODE node_id, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Get the route with the highest priority

Parameter nodeId: Node ID we are interested in

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class SetPriorityRoute

Syntax: SetPriorityRoute(nodeId, repeater1, repeater2, repeater3, repeater4, routeSpeed, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_set_priority_route(ZWay zway, ZWNODE node_id, ZWBYTE repeater1, ZWBYTE repeater2, ZWBYTE repeater3, ZWBYTE repeater4, ZWBYTE route_speed, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Set the route with the highest priority

Parameter nodeId: Node ID we are interested in

Parameter repeater1: Hop #1 in the route. Value 0 means direct range. Values > 232 clears the priority route and LWR (Last Working Route is selected by the protocol)

Parameter repeater2: Hop #2 in the route. Value 0 means end of route

Parameter repeater3: Hop #3 in the route. Value 0 means end of route

Parameter repeater4: Hop #4 in the route. Value 0 means end of route

Parameter routeSpeed: Baudrate to use: 1 for 9.6 kbps, 2 for 40 kbps, 3 for 100 kbps

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class SetPromiscuousMode

Syntax: SetPromiscuousMode(enable, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_set_promiscuous_mode(ZWay zway, ZWBOOL enable, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Enable or disable promiscuous mode

Parameter enable: True to enable functionality, False to disable

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class AssignPriorityReturnRoute

Syntax: AssignPriorityReturnRoute(nodeId, destId, repeater1, repeater2, repeater3, repeater4, routeSpeed, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_assign_priority_return_route(ZWay zway, ZWNODE node_id, ZWNODE dest_id, ZWBYTE repeater1, ZWBYTE repeater2, ZWBYTE repeater3, ZWBYTE repeater4, ZWBYTE route_speed, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Assign priority return route to specified node

Parameter nodeId: Node Id of the device that have to store new route

Parameter destId: Destination Node Id of the route

Parameter repeater1: Hop #1 in the route. Value 0 means direct range

Parameter repeater2: Hop #2 in the route. Value 0 means end of route

Parameter repeater3: Hop #3 in the route. Value 0 means end of route

Parameter repeater4: Hop #4 in the route. Value 0 means end of route

Parameter routeSpeed: Baudrate to use: 1 for 9.6 kbps, 2 for 40 kbps, 3 for 100 kbps

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class AssignPrioritySUCReturnRoute

Syntax: AssignPrioritySUCReturnRoute(nodeId, repeater1, repeater2, repeater3, repeater4, routeSpeed, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_assign_priority_suc_return_route(ZWay zway, ZWNODE node_id, ZWBYTE repeater1, ZWBYTE repeater2, ZWBYTE repeater3, ZWBYTE repeater4, ZWBYTE route_speed, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Assign priority return route to SUC

Parameter nodeId: Node Id of the device that have to store route to SUC

Parameter repeater1: Hop #1 in the route. Value 0 means direct range

Parameter repeater2: Hop #2 in the route. Value 0 means end of route

Parameter repeater3: Hop #3 in the route. Value 0 means end of route

Parameter repeater4: Hop #4 in the route. Value 0 means end of route

Parameter routeSpeed: Baudrate to use: 1 for 9.6 kbps, 2 for 40 kbps, 3 for 100 kbps

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class ZMESerialAPIOptionsJammingDetectionSet

Syntax: ZMESerialAPIOptionsJammingDetectionSet(ch1Threshold, ch2Threshold, ch3Threshold, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_zme_serialapi_options_jamming_detection_set(ZWay zway, ZWBYTE ch1_threshold, ZWBYTE ch2_threshold, ZWBYTE ch3_threshold, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Set Jamming Detection threshold. Jamming detection fine tuning in NVM:. address 6530, 3 bytes: ch1_threshold ch2_threshold ch3_threshold. address 6533, 2 bytes: how many times should measurements exceed in last 10 seconds to trigger the alarm, default 2 times. address 6535, 2 bytes: repeat the alarm in N*0.1 seconds if the jamming persists, default 0100 = 25.6 sec

Parameter ch1Threshold: Threshold for channel 1

Parameter ch2Threshold: Threshold for channel 2

Parameter ch3Threshold: Threshold for channel 3

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class ZMESerialAPIOptionsAdvancedIMASet

Syntax: ZMESerialAPIOptionsAdvancedIMASet(enable, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_zme_serialapi_options_advanced_ima_set(ZWay zway, ZWBOOL enable, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Enable/disable advanced IMA by Z-Wave.Me that includes incoming route path information

Parameter enable: Turn on or off

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class ZMESerialAPIOptionsStaticAPISet

Syntax: ZMESerialAPIOptionsStaticAPISet(enable, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_zme_serialapi_options_static_api_set(ZWay zway, ZWBOOL enable, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Switch between Static and Bridge API for Z-Wave.Me firmware

Parameter enable: Turn on or off Static API

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class ZMESerialAPIOptionsUARTSpeedSet

Syntax: ZMESerialAPIOptionsUARTSpeedSet(speed = 115200, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_zme_serialapi_options_uart_speed_set(ZWay zway, speed_t speed, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Set high speed for UART interface for Z-Wave.Me firmware

Parameter speed: UART speed. Valid values are listed in UART_SPEEDS macro definition

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class GetLongRangeChannel

Syntax: GetLongRangeChannel(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_get_long_range_channel(ZWay zway, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Get Long Range channel

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class SetLongRangeChannel

Syntax: SetLongRangeChannel(channel, successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_set_long_range_channel(ZWay zway, ZWBYTE channel, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Set Long Range channel

Parameter channel: Long Range channel. 1 for channel A. 2 for channel B

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Function Class GetLongRangeNodes

Syntax: GetLongRangeNodes(successCallback = NULL, failureCallback = NULL)

C Syntax: ZWError zway_fc_get_long_range_nodes(ZWay zway, ZJobCustomCallback successCallback, ZJobCustomCallback failureCallback, void* callbackArg)

Description: Get Long Range nodes

Parameter successCallback: Custom function to be called on function success. NULL if callback is not needed

Parameter failureCallback: Custom function to be called on function failure. NULL if callback is not needed

Z-Way C API Quick Develop Introduction

Z-Way library is a middleware between Z-Wave transceiver and your application. Z-Way offers pretty high level API to control Z-Wave devices and manage wireless network.

Interaction with the library covers three aspects:

1. sending commands to Z-Wave devices;
2. sending network management commands to the transceiver;
3. receiving updates from the network.

Sending commands

Every command request generates an outgoing packet (job). Before generating a packet, library will validate parameters and check whether the command is supported by recipient. In case of failure command will return error immediately.

Once a job is generated, it is placed into outgoing queue for future send. The queued jobs are handled internally by Z-Way engine according to commands priorities, nodes states and capabilities, transceiver state etc.

Once the job is sent, it must be first confirmed it was successfully delivered to Z-Wave stack, and then confirmed it was delivered to recipient. All these operations are performed asynchronously, so command may provide a callback function to call in case of success or failure if it is needed to know delivery result.

After the delivery was confirmed, command is considered executed. If it was a state request command (i.e. SensorMultilevel Get), response packet may be delayed (or even not sent at all), so command's success/failure callbacks cannot be used to get requested state immediately.

Receiving updates

All incoming packets from Z-Wave network are automatically parsed by Z-Way and stored in special variables called data holders. Data holder is a named variable that stores a value along with it's data type and time the value was last updated and "invalidated". Each data holder may also contain a set of child data holders, so they form a hierarchical data storage. Data holders also support callbacks, so custom code may be executed each time the value is updated.

For example, level data holder stores dimming level of a dimmer. Once application executes a Get command for that dimmer, Z-Way will update invalidateTime property on the level data holder, so application knows the current value is assumed to be outdated, but the new one was not received yet.

Once Z-Way received a packet with new value of the dimmer, it will store it in level data holder and update updateTime property. Since updateTime is greater that invalidateTime, the value is considered valid now.

Some Z-Wave packets contain multiple values. In that case multiple data holders are updated. To have them all already updated in your callback function subscribe to the last modified data holder. The order of update of data holders from one packet is always the same. Some values are stored in data holders subtrees. In that case the subtree parent is updated the last, so the callback is better to be registered on that data holder.

Z-Wave device can also send unsolicited state reports to controller (without a request from controller's side; e.g. due to local operation or periodically). Due to asynchronous nature of Z-Wave protocol, controller can't tell whether the packet was sent unsolicited or it is a response to the previous command. So unsolicited packet will be handled the same way exactly.

Command Classes

Z-Way inherits structure of Z-Wave protocol and divides data holders and command on different Command Classes (CC). Command Classes are building blocks of Z-Wave functionality. For example, dimming is provided by Command Class SwitchMultilevel, relay operation by CC SwitchBinary, sensors by CCs SensorMultilevel and SensorBinary etc. Please consult Z-Wave protocol basics to understand Z-Wave Command Classes.

All Command Classes share a minimal subset of common data holders:

• supported says if CC is supported by device (it implements that functionality) or only controlled (it can control other devices implementing that functionality).
• version stores version of the CC. Used internally to know how to deal with that Command Class.
• security tells if CC communications should be encrypted using Z-Wave AES security mechanism.
• interviewDone and interviewCounter describe the status of initial interview process during which Z-Way asks the device about it's CC capabilities. If the interview is incomplete, Z-Way might fail to use some Command Classes with this device. All Z-Wave certified devices MUST pass interview process.

All the other data holders are specific to each Command Class. For example, SwitchMultilevel Command Class contains level data holder, SensorBinary has two-level storage, grouping data by sensor types: 0 → {sensorTypeString, level}, 5 → {sensorTypeString, level}, ... where type identifiers are Z-Wave specific constants. Every Z-Wave specific constant value will have corresponding verbal description (in case of SensorBinary it is in sensorTypeString data holder).

Some Command Classes are hidden under the hood of Z-Way: MultiCmd, Security, SecurityS2, CRC16, MultiChannel, ApplicationStatus, Supervision, Transport Services. They're handled internally by Z-Way software, and shouldn't be used directly.

Some Command Classes have no public APIs, but their data holders may be very useful in your application: AssociationGroupInformation, DeviceResetLocally, ManufacturerSpecific, Version, ZWavePlusInfo.

All the remaing Command Classes have their Get and Set commands specific to functionality of the Command Class. Consult CommandClassesPublic.h header file for more info about available commands for different Command Classes and their meaning.

Network management

Z-Way offers API for network management operations: include new devices, exclude devices, discover neighbor devices, remove failed nodes, frequency selection, controller reset etc. These functions are described in ZWayLib.h header file.

Z-Way also provides a low level access to Z-Wave transceiver functionality through Z-Wave Serial API. These functions are provided by Function Classes. You should use them only if you have deep knowledge of Z-Wave networking. Check FunctionClassesPublic.h for more info.

Using Z-Way

To use Z-Way one need to include few header files:

#include <ZWayLib.h>
#include <ZLogging.h>

Z-Way will need to know where to write the log to, so first of all you need to create logging context using zlog_create() call. You can disable logging by passing NULL instead of logging context to Z-Way.

Then create new Z-Way context using zway_init(). It will only allocate memory, read log files, initialize internal structures. At this point you can already attach your handlers on new device/instance/Command Class creation (you will also be able to do it at any time later). Do it using zway_device_add_callback() call. Warning: you should initialize ZWay pointer with NULL before passing it to zway_init!

Executing zway_start() will open serial port and start a new thread that will handle all communications with the transceiver. From now Z-Way can receive packets from the network, but can not parse them yet, since devices were not discovered yet. All received packets will just be queued to be parsed later after discovery process.

Last step to run Z-Way is zway_discover() call. It will start communications with the Z-Wave transceiver and ask about devices in the network, their capabilities, network state etc. During discovery phase Z-Way will create structures for all devices and load saved data from file stored in config/zddx folder.

From now on, Z-Way is ready to operate. Incoming events will trigger callback functions attached by application, and executing commands will put new packets in the queue.

You will also need few other functions zway_is_running(), zway_is_idle(), zway_stop(), zway_terminate() to handler termination process.

We suggest you to check the z-way-test project on the (releases page and look on comments in header files.

Z-Way run platform

The core of Z-Way — Z-Way Library — will compile and run on any POSIX-compliant platform as well as Linux, Mac OS X and other Unix-like systems. It also runs on Windows. The full Z-Way solution with home automation engine has more requirements to the OS, CPU and memory, but still runs on most platforms from router-based OpenWRT to advanced desktop and server machines running Linux or Windows.

Z-Way relies on several open-source libraries:

• libarchive (13)
• libxml2 (2)
• libcrypto (1.0)
• libssl (1.0)
• libz (1)
• libcurl (4) *
• libWebSockets (8) * (optional, WebSocket support)
• libmosquitto (2) * (optional, MQTT support)
• libcares (2) * (optional, async DNS resolver support)
• libdns_sd (1), libavahi_client (3) * (optional, HomeKit support)
• and their dependencies

* — needed only for full Z-Way solution including HTTP API and JavaScript engine.

Most of them are provided by OS, some requires latest versions to be compiled (like libxml2, libmosquitto and libcrypto). This is ususally not a big deal to do.

How to install Z-Way

Raspberry Pi image with preinstalled Z-Way

Download the complete SD Card image of latest Raspberry Pi OS including Z-Way software and various other tools from:

To prepare the SD Card please refer to the guidance on raspberrypi.org.

After installing Z-Way

Wait about 1 minute then open a web browser and point to find.z-wave.me. Below the login screen you will see the IP address of your Raspberry Pi system. Click on it to access the Z-Way user interface.

Z-Way for Debian and Ubuntu

Currently supported platforms:
1. Debian Bookworm amd64
2. Debian Bullseye amd64
3. Debian Bookworm armhf (can run on aarch64 too, suitable for Raspberry Pi)
4. Ubuntu 24.04 (noble) amd64
5. Ubuntu 22.04 (jammy) amd64
6. Ubuntu 20.04 (focal) amd64

To install Z-Way for your Debian-based Linux, open the terminal and execute the following commands under root (do `sudo -s` to gain root access). This will add Trident IoT repository to your system and install Z-Way.

# Not to fail on old key
rm -f /etc/apt/sources.list.d/tridentiot.list

# Install additional packages that help to add Trident IoT repository
apt-get update -y
apt-get install dirmngr apt-transport-https gnupg wget lsb-release -y

# Get the distro type
distro=$(lsb_release -a 2>/dev/null | grep Codename | awk '{print $2}')
distro_id=$(lsb_release -a 2>/dev/null | grep "Distributor ID" | awk '{print $3}' | tr '[:upper:]' '[:lower:]')

# Check architecture
architecture=$(uname -m)
if [ "$architecture" == "aarch64" ]; then arch_tag="[arch=armhf]"; arch_apt=":armhf"; dpkg --add-architecture armhf && apt-get update; fi

# Fetch the public key for signatures
wget "https://keyserver.ubuntu.com/pks/lookup?op=get&search=0x79006366B9B20A6B4D7E1C27AD242992ACAB4528" -O /etc/apt/trusted.gpg.d/tridentiot.asc

# Add to the APT list
echo "deb ${arch_tag} https://tridentiot.github.io/z-way-deb-repo/${distro_id} ${distro} main" >/etc/apt/sources.list.d/tridentiot.list
apt-get update -y

# Install Z-Way
apt-get install -y z-way-server${arch_apt}

After installation, z-way will start automatically. Open web browser and go to http://IP:8083

You can manually download and install Z-Way from the deb package or tar.gz archive

To manually start and stop Z-Way use commands:

sudo systemctl start z-way-server

sudo systemctl stop z-way-server

Z-Way for Windows through WSL

Requirements:

• WSL / Ubuntu running on your Windows machine
• Z-Way for Ubuntu downloaded Z-Way Download

Install Z-Way:

1. Open Ubuntu and copy the `z-way-ubuntu-...deb` file from Windows to WSL:

sudo cp /mnt/c/username/downloads/z-way-ubuntu-...deb ./

2. Install the package on Ubuntu

sudo apt install ./z-way-ubuntu-*.deb

3. Now, you should have the z-way-server folder inside of /opt
4. Attach your USB device from Windows to your WSL through PowerShell

# show available devices
usbipd

# 4-4 is an example of the usb port
usbipd bind --busid 4-4

usbipd attach --wsl --busid 4-4

5. Now, with your USB device attached, you will be able to target it within WSL. Start your Z-Way Server from within the /z-way-server directory with the command

./z-way-server

6. Ensure that your Z-Way is pointing to the correct port within the protocol settings, and you are good to start controlling devices!

Z-Way with Home Assistant

Z-Way can also be installed on Home Assistant Yellow and other supervised Home Assistant installations. Use buttons bellow to install Z-Way add-on and Z-Way intergrationon your Home Assistant:

Once installed, Z-Way interface can be accessed on port http://homeassistant.local:8083. Detailed instruction is available here

Z-Way in Docker

Docker allows running services in an isolated space without installing them into the system, thus you can run Z-Way-Server on your Linux server and macOS. We have already prepared a corresponding repository with everything you need as well as assembled images. In the article below, we will show you how to run the Z-Way server and consider several ways to do this.

Quick Start

Prerequisites

Make sure Docker is installed on your system. Refer to the official Docker documentation for installation instructions:

• Installing Docker on Linux
• Installing Docker on Mac *

* ­­— Note that accessing Z-Wave and Zigbee hardware by Z-Way in Docker on MacOS or Windows is not possible, due to Docker on macOS and on Windows not supporting passing USB from host to Docker container. On Windows use Z-Way in WSL instead. On macOS use a Unix/TCP sockets instead of accessing the hardware directly.

Running the Container

Create a directory for the Z-Way server and navigate into it:

mkdir z-way-server
cd z-way-server

Run the following command to start the Z-Way container:

Linux

docker run -d -it \
    --name z-way-server \
    --device=/dev/ttyUSB0 \
    --device=/dev/ttyUSB1 \
    -p 8083:8083 \
    -v "$(pwd)/data:/data" \
    ghcr.io/tridentiot/z-way-docker:latest

In this example, we specified 2 ttyUSB0 and ttyUSB1 devices; if you are going to use only 1 interface, you can omit the additional line --device=/dev/ttyUSB1 \.

macOS

Use a Unix/TCP sockets to access USB device from docker container.

docker run --rm -it -p 8083:8083 z-way-docker

In the docker container:

socat -d -d -d UNIX-LISTEN:/tmp/zwave,reuseaddr,fork TCP:host.docker.internal:8088

In the mac:

socat -d -d -d TCP-LISTEN:8088,reuseaddr,fork FILE:/dev/cu.SLAB_USBtoUART,nonblock,ispeed=115200,ospeed=115200

Make sure you use /dev/cu. instead /dev/tty.

Open SmartHome UI in browser localhost:8083, go to Menu -> Apps -> Z-Wave Network Access and set Serial port to unix:/tmp/zwave.

Using Docker Compose

Cloning the Repository

Clone the repository and navigate to the project directory:

git clone https://github.com/tridentiot/z-way-docker.git
cd z-way-docker

Configuration

Make sure the `docker-compose.yml` file is correctly configured for your devices. You can specify multiple devices such as Z-Wave, ZigBee, EnOcean, or Z-Station (Z-Wave + Zigbee USB station):

services:
  z-way-server:
    build:
      context: .
    container_name: z-way-container
    devices:
      - /dev/ttyUSB0:/dev/ttyUSB0 # For Z-Wave UZB Stick or Z-Station
#      - /dev/ttyUSB1:/dev/ttyUSB1 # For an additional interface, such as Z-Station or ZigBee stick
    ports:
      - "8083:8083"
    volumes:
      - ./data:/data
    restart: unless-stopped

Running the Container

To create and run the container:

docker compose up -d

Viewing Logs

To view real-time logs:

docker logs -f z-way-container

Stopping the Container

To stop the container:

docker compose down

Building from Source Code

Cloning the Repository

Clone the repository and navigate to the project directory:

git clone https://github.com/tridentiot/z-way-docker.git
cd z-way-docker

Building the Image

Build the Docker image:

docker compose build

Running the Container

Run the container using Docker Compose:

docker compose up -d

Viewing Logs

To view real-time logs:

docker logs -f z-way-container

Stopping the Container

To stop the container:

docker compose down

How to build Z-Way-Srv-Test

Z-Way-Srv-Test - this is a test application that gives you a quick start in developing your own controller using HTTP or Websocket API.

Get from https://github.com/tridentiot/z-way-builds/releases/

# Install additional libraries
sudo apt-get install libxml2-dev libarchive-dev libssl-dev libwebwockets-dev

# Link to libraries and include files
mkdir libzwaysrv
cp /opt/z-way-server/libzway/*.h libzwaysrv/
cp /opt/z-way-server/libzwaysrv/*.h libzwaysrv/
cp /opt/z-way-server/libs/libz{commons,s2,way,waysrv}.so libzwaysrv/

# Compile
make

# Run
LD_LIBRARY_PATH=libzwaysrv ./z-way-srv-test /dev/ttyUSB2 8083 0 0 0 0

For a Raspberry Pi with 64-bit architecture (aarch64) use 64-bit libs z-way-packages-debian-bookworm-armhf.

How to build Z-Way-Test

Z-Way-Test - this is a test application that gives you a quick start how to use Z-Way C-functions.

Get from https://github.com/tridentiot/z-way-builds/releases/

# Install additional libraries
sudo apt-get install zlib1g-dev libxml2-dev libarchive-dev libssl-dev

# Link to libraries and include files
mkdir libzway
cp /opt/z-way-server/libzway/*.h libzway/
cp /opt/z-way-server/libs/libz{commons,s2,way}.so libzway/

# Check the port and speed in zway_init function call in main.c

# Compile
make

# Run
// Make sure to shutdown other Z-Way instances like z-way-server
LD_LIBRARY_PATH=libzway ./z-way-test

How to build and run Z-Way for ESP32

1. Toolchain Setup

To build Z-Way for ESP32, you need to install the ESP-IDF toolchain. There are two installation options: via the VSCode extension or using the command-line interface (CLI).

Installation Links:

• VSCode Extension: ESP-IDF VSCode Extension
• CLI Setup:
  • Linux/macOS
  • Windows

Make sure Python 3 is installed. In some cases, ESP-IDF will install it automatically.

2. Prepare the Z-Way Source

1. Download the latest z-way-esp32 artifacts.
2. Extract the z-way-esp32-src.zip archive to a folder of your choice.
3. Open a terminal in that folder.

3. Build the Firmware

Run the following command:

python3 py_scripts/esp_builder.py build -d <build_variant> -r

• Use -d to specify the build variant.
• Use -r for a release build (omit for debug).

Available Build Variants:

• prod-esp32N8R2: Main production version (8MB flash, 2MB RAM).
  Z-Wave connected via ESP_RX: IO18, ESP_TX: IO19.

• dev-esp32: For chips without external memory (4MB flash minimum). Limited functionality.
  Z-Wave connected via ESP_RX: IO18, ESP_TX: IO19.

• dev-esp32s3: For ESP32-S3 with 8MB+ flash and 2MB+ RAM.
  Z-Wave connected via ESP_RX: IO18, ESP_TX: IO17.

• dev-wrov1: For ESP WROVER modules (4MB+ flash, 2MB RAM).
  Z-Wave connected via ESP_RX: IO18, ESP_TX: IO19.

If no variant is specified, all available builds will be generated.

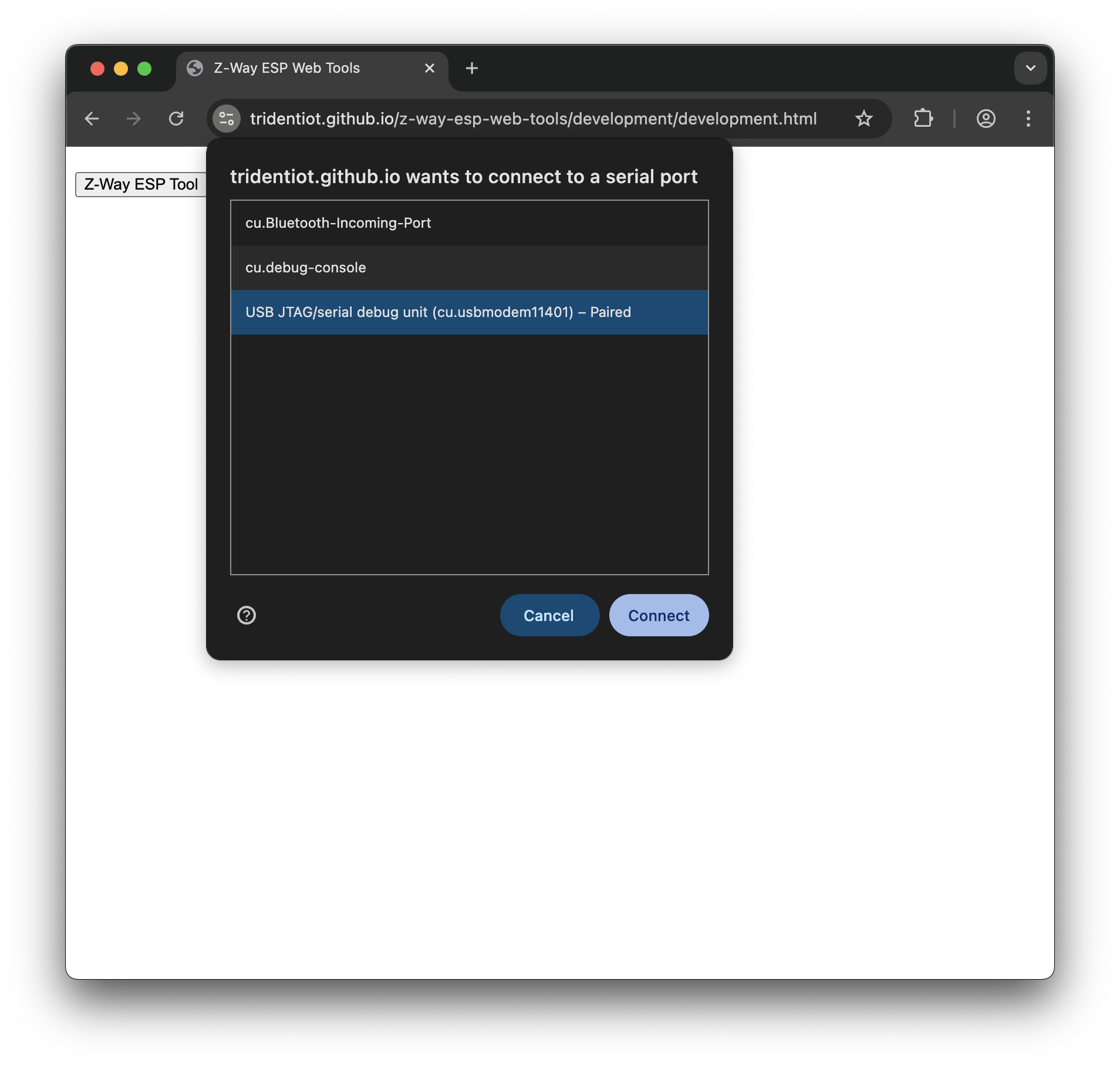

4. Flash the Firmware

After building, find the firmware image in the bin folder.

Make sure your Z-Wave module is connected properly and flashed with the SerialAPI firmware.

Flash your device:

python3 py_scripts/esp_builder.py flash <firmware_file.zip> -p <esp32_port>

Example:

python3 py_scripts/esp_builder.py flash bin/z-way-esp32-prod-esp32N8R2.zip -p /dev/ttyUSB0

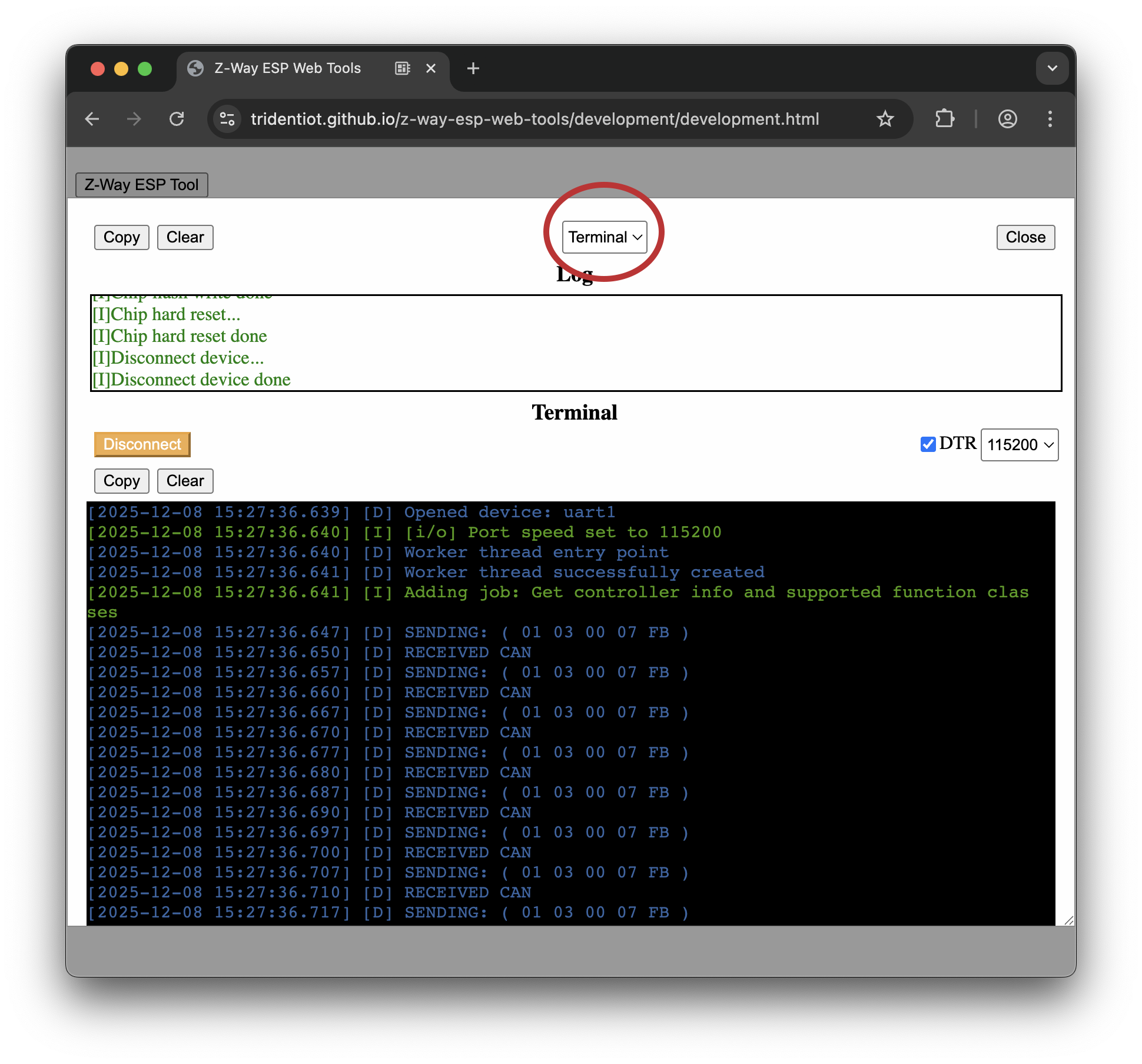

5. Open the Monitor Console

Start the interactive monitor:

python3 py_scripts/esp_builder.py monitor -p <esp32_port> -b 921600

For WROVER boards, use baud rate -b 460800.

This opens the Z-Way command-line interface.

6. Connect to the Device

The device will start in SoftAP mode. Connect using:

• SSID: ZWAY-ESP-XXXX
• Password: 12345678

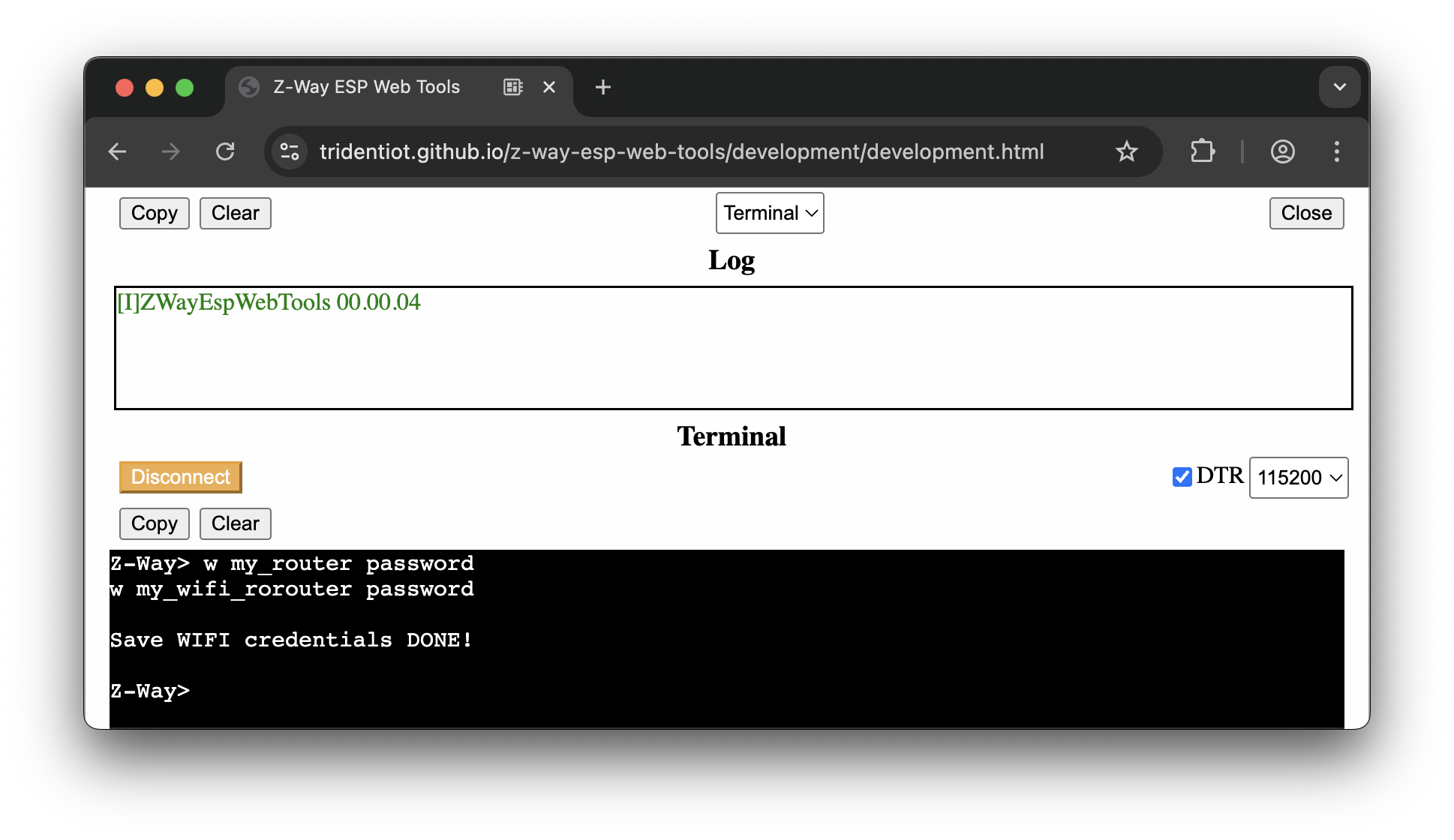

To connect the device to your own Wi-Fi:

ZWay> w <YourSSID> <YourPassword>

Reboot:

ZWay> x

7. Access the Web Interface

To find the device's IP address:

ZWay> I

Open your browser and enter the IP address. You will see the Web User Interface (WUI) of Z-Way.

You can now manage Z-Wave devices directly from your browser.

The Z-Wave Expert User Interface

The Z-Wave Expert User Interface is designed for installers, technically savvy people, and other users that know how to build and maintain a Z-Wave-based wireless network. Hence, it uses some Z-Wave specific-language and offers detailed insight into the work and data structure of the Z-Wave network. It allows users to:

• Add (include) and remove (exclude) Z-Wave devices and manage the network.
• Configure Z-Wave devices.
• Operate Z-Wave devices.
• Manage Associations between wireless devices.
• Access all data generated by the devices and perform all kind of functions and actions to the device.
• Look behind the scene into the data structures, routing mechanisms, and timings of the Z-Wave control stack. This is particularly useful for debugging and software development.

• Control: Access to functions of the wireless devices included in the network
• Device: Access to information about devices
• Configuration: Configure the devices after inclusion if needed
• Network: Add and remove devices and manage the network
• Analytics: Allows debugging the wireless network (Please note that this mean item is only shown and it's corresponding functions are unlocked in the transceivers firmware

Besides the menu items, there is a configuration setting (wheel icon), a time indicator showing the time at the time zone of the gateway and a job queue indicator. Clicking on this job queue indicator opens a new tab displaying the job queue of Z-Way. Please refer to Chapter 7.8 for more information about the job queue.

All values shown in the Z-Wave Expert User Interface are assigned to a time stamp indicating when the value of status information was received from the wireless network. A red color of the time stamp indicates that the update request from the controller to the device for this value is pending.

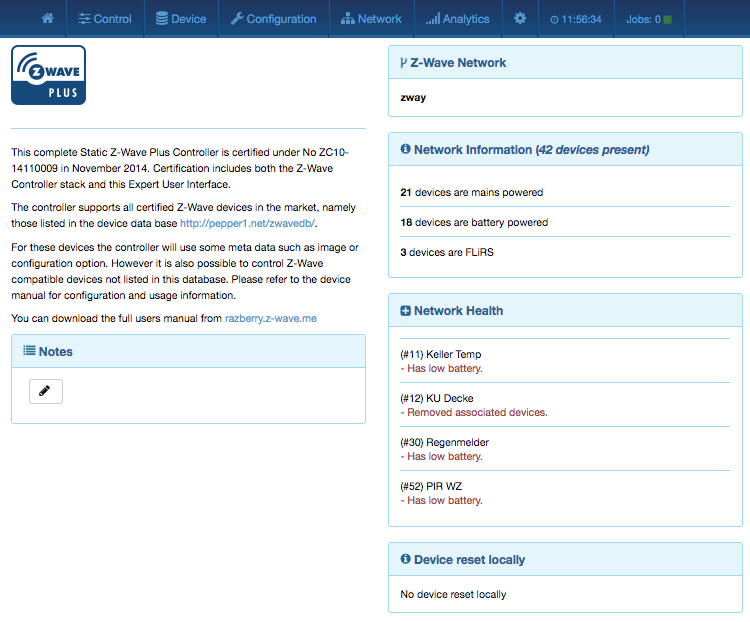

Figure 7.1: Sceenshot of the Expert User Interface Home Screen

Home Screen

The home screen shown in Figure 7.1 offers some high level of information about the software and a notepad where the user or installer can leave important information for future use.

The section 'Network Information' box offers some statistics about the number of devices in the network and how many of them are mains or battery-operated. The network health box will list devices that have problems:

• Low battery.
• Incomplete interview.
• Device failed.
• Inconsistencies on Association settings.

Clicking on the statement will lead to a help page explaining the problems and giving guidance for remediation.

The last infobox will contain information about devices that were removed using the device reset function. In this case, the device will leave the network but informing the controller. There is no exclusion process applied.

Control

The tab Control allows operating the various types of device and shows the reported values in case of sensors or meters. In case the control options offered here are not sufficient, please refer to Configuration > Expert Command for a full set of functions supported by the device.

Switch

Figure 7.2: Control Interface for Switches, Dimmers and Motor Controls

The switch dialog shown in Figure 7.2 lists all devices of the network supporting switching, dimmer, or motor control capabilities. The device name and Z-Wave ID, as well a the current status of the switch, are given and the time of the last status update. The Update button forces an immediate update of the switch (if mains powered device). A 'Switch All' Icon shows whether or not the specific device will react to a All ON or All Off command. A green triangle indicates that the device will react to the command shown. All actuators can be switched on or off. Dimmer and motors controls can be operated using a slider. For dimmer, there is a button On and Full. Full turns the dimmer always to 100 %, diming value while On turns to the last dimming state before the dimmer was turned off. Clicking on the table heads reorders the table view of the data.

Sensors

Figure 7.3: Control Interface for Sensors

The sensor dialog shown in Figure 7.3 lists all devices of the network providing sensor information. Device name and ID, the type of the sensor, the actual sensor value and the sensor scale is listed. The date/time column indicates when the given sensor value was received. It’s possible to call for a sensor update but bear in mind that battery-operated device will only respond after the next wakeup.

Meters

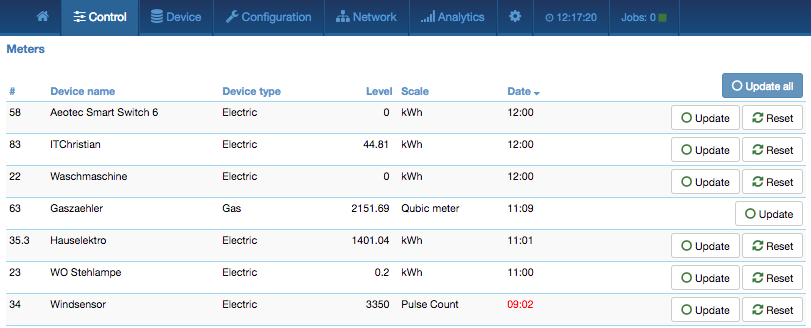

Figure 7.4: Control Interface for Meters

The meter dialog shown in Figure 7.4 lists all devices of the network providing (accumulating) meter information. Device name and id, the type of the meter, the actual meter value and the meter scale is listed. The date/time column indicates when the given sensor value was received. It’s possible to call for a meter update but bear in mind that battery-operated device will only respond after the next wakeup. Clicking on the table heads reorders the table view of the data. A meter reset button is shown for device supporting this function.

Thermostats

Figure 7.5: Control Interface for Thermostats

The thermostat dialog shown in Figure 7.5 lists all thermostat devices of the network. Device name and ID and the current set point temperature is shown. The date/time column indicates when the given set point temperature was transferred to the device. The set point temperature can be changed using the + or - buttons or the slider. Clicking on the table heads reorders the table view of the data.

Some thermostats may offer different modes such as heating, cooling, off, etc. For these devices, a drop-down list shows all modes available. In this case, the setpoint is only valid for the mode selected.

Locks

Figure 7.6: Control Interface for Locks

The door lock dialog shown in Figure 7.6 lists all door lock devices of the network. Device name and ID, the current status of the lock, and the last time of the change of the status are listed. The lock can be opened or closed. Clicking on the table heads reorders the table view of the data.

Notifications

Figure 7.7: Control Interface for Notification Devices

The notification dialog shown in Figure 7.7 lists all notification devices. Notification devices act like binary sensors, albeit offering some more capabilities. Per notification device multiple events can be reported. The notification device also allows deactivating the notification for certain events. Please note that not all devices make use of these functions.

Device

The menu Device gives access to overview pages with more detailed information about the devices in the network and their actual status.

Status

Figure 7.8: Device status overview

This dialog in Figure 7.8 shows the actual network status of all devices. All devices are listed by their node ID and name. The date/time indicates the time of the last successful communications between the controller and this device (either confirmed sending or reception). The green checkmark indicates that the device is alive. A red sign indicates that the controller assumes the device not being active anymore. Mains powered devices can be checked for their network availability by hitting the o button on the right-hand side.

In case the device interview and configuration were not performed properly, a little question mark icon will indicate this. Clicking on the question mark will open a window displaying the details of the interview process. The correct loading of a Device Description File is indicated as well. For a battery-operated device, the time of the last wakeup, the time of the next wakeup, and the current wakeup status are shown. Clicking on the table heads reorders the table view of the data. Clicking on the table heads reorders the table view of the data.

Type Info

Figure 7.9: Device information overview

The type info dialog shown in Figure 7.9 lists all devices of the network and indicates if they support enhanced Z-Wave functions such as Security and Z-Wave Plus. Additionally, the Z-Wave protocol version, the application version and the device type indicator of the device is shown.

The security icon determines what kind of security the device supports:

• : Device does not support any security class
• : Device supports security version 1
• : Device supports security version 2
• : Device supports security version 2 but authentication failed

The last column shows the security keys granted for the device.

Clicking on the table heads reorders the table view of the data.

Battery

Figure 7.10: Battery status overview

This dialog shown in Figure 7.10 gives an overview of the battery status of the battery-operated devices in the network. Devices are listed by name and id. The last reported battery level (0–100 %) including update time is shown as well as the number and type of battery if known. The Update All button will request a status update from the device. The new status will be available after the next wakeup of the device. Clicking on the table heads reorders the table view of the data.

Active Associations

Figure 7.11: Active association overview

This overview page shown in Figure 7.11 lists the current association set in the network. The Lifeline is an association to the gateway to report status changes and heard beat and can be hidden if needed. A Change button leads right to the configuration page of the device to change association settings.

Configuration

The tab Configuration allows configuring the functions of a particular device. Pick the device to be configured from the drop-down list or pick the device from the full list shown on the left-hand side. The functions of the device are grouped into 6 tabs.

Interview

Figure 7.12: Device interview

Configuration > Interview, as shown in Figure 7.12, documents the result of the device interview. In this process, the controller tries to get information about the device. In case the controller finds a device description record for the device, it will display further information about the device that cannot be obtained from the device itself:

• Product Image
• Information regarding how to include the device
• Information for battery-operated devices about how to wake them up manually
• Human-readable meanings of configuration parameters and values

If the software will not automatically recognize the device and load the description record a button Select Device Description Record allows doing this manually. However, the description file must be present. Chapter 13.5 gives further information on how to create an own Device Description Record and load it into Z-Way.

The interview stage line gives information about the progress of the device interview.

There are a few reasons why an interview is not complete: In most cases the devices went to deep sleep too early to have some wireless connectivity problems. The button Force Interview allows re-doing the whole interview. The button Call for NIF requests a Node Information Frame from the device and the Button View Interview Result allows displaying the information about the different command classes found during the interview. It is also possible to force the interview of a certain command class only.

The button ZDDX Code Creator allows creating an XML description file usable for certain device databases.

The only configuration option on this tab is to change the given name of the device. During inclusion, the software generates a generic name, but it is highly recommended to change this name. The given name should be descriptive but not too long.

Configuration

Figure 7.13: Configuration - convenient view

Configuration > Configuration shown in Figure 7.13 allows configuring the device. If the specific device was recognized correctly the different configuration values are translated into human-readable dialogs. Every configuration comes with standard dialog options:

• Time Stamp, when the configuration value was last updated
• Set Value as integer
• Information about the default value of this particular parameter
• Button to reset to default value given by the device itself
• Button to save the parameter into the device

If the device is not known (means there is no Device Description File assigned to it) it is still possible to set configuration values. Figure 7.14 shows the generic configuration dialog used in this case. The specific configuration parameters and it's values need to be read from the device manual.

Figure 7.14: Configuration - generic view

There are four more command classes that may need additional configuration and are displayed in the same dialog if the device supports them.

• Wakeup: Define the wakeup interval and the node is of the main controller taking care of the wakeup sequence. The controller will set a standard wakeup time of 1800 seconds unless the devices sets a different minimal or maximal wakeup time. In most cases the node ID of the controller is the correct setting for the target node ID and should not be changed. In case this controller is only a secondary controller, this value may change. A tool tip on the input field shows the allowed minimum and maximum wakeup time as reported by the device.
• Protection: In case the device supports local protection, meaning suppressing local use of the device, the behavior of this function can be defined. The protection command class offers more options than displayed here. Refer to the Configuration > Expert Commands tab for a complete set of controls.
• Switch All configuration: Z-Wave supports the so-called switch all function as a broadcast to all switches and dimmers. This setup defines the reaction of the device to such a Switch All command. The setting is also displayed in the Control > Switches section as little gray/green icon.

Note: For mains-powered and FLIRS devices, the button Save this parameter or Save into Device will activate the changes within few seconds. For battery-operated devices, the commands are stored to the next wakeup. It’s possible and recommended to wake up the device manually to speed up the change of configuration values.

Association

Figure 7.15: Association dialog

Associations allow switching a Z-Wave Device B (target) as a result of an event in Z-Wave Device A (source). Z-Wave Device A manages a list of devices to be controlled for each event supported. The device list associated to a specific event—also called association groups—and the devices that are associated with it are shown in the association tab in Figure7.15.

In case the information is provided either by the device or by the device record stored in the software, the meaning of the events is written. Otherwise, the event group is shown unnamed as number only. In this case, refer to the devices manual for more information about the association group meaning.

The stored devices can be called from the actual device using a button. The buttons +/- used to add and remove device from the group. A dialog is opened and a device can be picked. In case this device has multiple instances, an instance drop-down list will appear allowing to choose the right instance of the target device. The node ID and—if applicable—the instance ID are shown in the target device list. Move the mouse over the ID to show the complete given name of this device. The color of the device name or ID indicate the status of the association entry:

• Yellow: Selected in user interface but not stored in device.
• Grey: Active in device but not selected in user interface.
• Blue: Selected in user interface and stored in device.

Link Health

Figure 7.16: Link health

Modern versions of Z-Wave allow testing the quality of a link between two devices in direct wireless range. The dialog shown in Figure 7.16 lists all devices in wireless range and gives an indication about the quality of this link. The following colors are used:

• grey: untested
• green: good quality
• yellow: reasonable quality
• red: link quality insufficient

Individual links can be retested using the Test all links button. It is also possible to test all links from a given device. However, please keep in mind that this process may take several minutes to complete.

Expert Commands

Figure 7.17: Experts commands

Configuration > Expert Commands as shown in Figure 7.17 displays the status values and possible commands in a very generic way. On the left-hand side, the different instances (channels) of the device are listed in a column. In case there is only one channel (that’s the case for most devices), only channel/instance 0 is shown. Clicking on the number opens a dialog showing all internal variables for the channel. The next column shows all the command classes exposed by the device. Again, clicking on the name opens a dialog with more internal status variable information for this command class. On the right-hand side, there is a list of commands. This dialog form is auto-generated from the information provided by the command class itself and not optimized for daily usage.

Firmware Update

In case the device supports a firmware update “over the air,’’ this dialog is shown to perform such a firmware update. The firmware file to be uploaded must be available in a raw “BIN’’ or the Intel hex “HEX’’ file. The target field allows specifying the target memory/processor for the update process. For updating the Z-Wave firmware part a “0’’ must be set. The firmware updating process will take up to 10 minutes. Please don’t do any other operation during this time. It may be required to activate the firmware update mode on the device to be updated. Please refer to the manual for further information about activation.

Network

The network section of the user interface focuses on the network as such and offers all controls and information to build, manage, and repair the wireless network of the controller.

Control

Network > Control summarizes all commands needed to manage the network and the controller. The page is structured in four boxes.

Device Management

Figure 7.18: Network Management

The device management box as shown in Figure 7.18 allows including and excluding Z-Wave devices. A status display shows the status of the controller. The Include Device and Exclude Device button turn the controller into the Inclusion and Exclusion mode. In this case the status display changes and the resp. buttons turns into a Stop function. The inclusion and exclusion modes will time out after about 20 seconds but can always be terminated using the Stop buttons.

Another way to stop the inclusion mode is to actually include a new device. In this case the inclusion mode will stop and the node ID of the new device is shown. The controller generated a default name of the device as combination of it's primary function and the new node ID. Clicking on this default name leads to the Configuration page where the name can be changed and other configuration tasks can be performed.

Please refer to the devices manual on how to do an inclusion. In case the inclusion does not work as expected, please exclude the device first. More than 90 % of all inclusion problems are caused by still included in a different network and can then not being included again.

The Exclusion mode also stops when one device was successfully excluded. This function can exclude devices from other networks too but the device need be available and functioning. To remove nonfunctioning or disappeared devices please refer to Replace Failed node or Remove Failed node.

In case the new device supports enhanced security function (Security Command Class), this controller will include the device securely. After this all data exchange between the controller and the new device is encrypted using AES encryption. For performance reasons, it mays be desired not to use the security function. The slider Force unsecure inclusion turns the controller into a mode where all security functions are suppressed for the included device. Security functions of other devices are not impacted. In case the new device supports Security S2 right after inclusion, a pop-up window will appear asking the user to grant the S2 security keys. A few basics about this process: Security in Z-Wave means among others that all communication between two nodes over the air is encrypted. Encryption however requires a key to encrypt and all the device communicating shall have the very same key—usually called network key. Z-Wave Security 2 handles 4 different network key. They differ by their level of trust.

• S0:The network key is needed to communicate with a device capable of Security CC Version 1. Hence, this is more for backward compatibility.
• S2 Unauthenticated: The device-specific key of the device included is not verified. In case the device has it's key (as PIN number of QR Code) on the enclosure, it is possible to compare the two numbers but the key assignment does not verify this choice.
• S2 Authenticated: Right after inclusion, the device-specific key (as a PIN or AR code) must be manually provided to the included controller in order to verify the identity of the device just included.
• S2 Access Control: This key requires similar authentication than S2 authenticated. This additional key is provided to separate control of door locks and other access devices from other devices.

Figure 7.19: Z-Wave Expert User Interface - S2 key selection

Each device will request one of more network keys according to the device usage and implementation idea. The default key is likely S2 Authenticated but Door Locks will ask for S2 Access control and small devices without external label request S2 Unauthenticated only. Figure 7.19 shows the dialog to grant the keys. The requested key is displayed in bold letters. The user has 20 seconds to select the keys to be granted. If no selection is made with 20 seconds, the process will time out and the device is included unsecure. Please note that some devices may still offer valid functions while other will deny any function outside a secure environment. It is recommended to grant the keys requested, but there may be certain environments where other selections may make sense.

Figure 7.20: Z-Wave Expert User Interface - S2 key display

Once the selection is made before timeout a second window will request the authentication of the device. In case of S0 or S2 Unauthenticated, the window displays the device-specific key for information only as shown in Figure 7.20. If a key is visible on the device, it is recommended to compare the numbers. However, the key is granted without any further interaction by the user.

Figure 7.21: Expert User Interface - S2 authentication

In case S2 Authenticated or S2 Access Control keys were requested the dialog windows asks for providing the Device information by the user. This can be done by typing in the 5-digit PIN code (first 5 numbers of the device-specific key) as shown in Figure 7.21 or by scanning the QR code on the device shown in Figure 7.25.

In case of Access or Authentication, the user must insert either a PIN number or scan a QR code from the device just included. This insures 100% that the device just included is really the device in hand. If authentication fails, an error message is displayed. It is not possible to redo the key authentication only. You must exclude and re-include the device.

Smart Start

Smart Start is a new way to include devices into Z-Wave using the QR code provided with S2 authentication. The user scans the QR code thats is stored in an internal so called provisioning list. Smart Start Devices will then announce to be included when powered up. In case the S2 key is in the provisioning list the controller will automatically include this new device without any further user interaction.

Smart Start is controlled by the button Activate/Deactivate Smart Start. The button Smart Start opens a submenu allowing to register Device keys either by typing the 8 groups of numbers as shown in Figure 7.22 or using a QR code scanner as shown in Figure 7.23. Please note that a standard web browser running on a standard PC may not provide the capability to scan QR codes.

Figure 7.22: Smart Start - enter Device Key (DSK)

Figure 7.23: Smart Start - scan QR code (on smart phones only

Figure 7.24: Smart Start Provisioning list

Figure 7.24 finally shows the lost of Device keys already registered in the system and not used. Used means in this context that the corresponding device was powered up in proximity of the controller and got included automatically. Please note that the Razberry Shield or UZB or any hardware used must provide a firmware with SDK >=6.81. Otherwise Smart Start will not work.

Enter/Leave different Network

This button will only be active if Z-Way is in factory default state. Only in this case the controller can be added to a different network as secondary controller. The controller of the other network must be in either the Inclusion or in the Exclusion mode, and the Learn button confirm the process.

Figure 7.25: Z-Way- own key for authentication

In case the new primary controller supports Security S2 a dialog window will pop up right after finishing the inclusion by the new controller. This dialog window will show the PIN number and the QR Code of this Z-Way controller needed to authenticate against the new controller.

The Start Change Controller function actively hands over the role of the primary controller of the network to a controller that will be included using the normal inclusion process. The controller status dialog shows the mode and it's termination.

Backup and Restore

The next dialog box of the page allows creating and using a backup. The backup file is stored on the local computer. Please note that any restore will overwrite the existing network. The restore operation must therefore be confirmed in another message box. A checkbox defines if the node information in the Z-Wave chip itself will be overwritten as well. This operation result in a possible loss of all network relationships and may require a re-inclusion of devices. Handle with care!

Controller Maintenance

The controller maintenance offers two reset buttons. The Z-Wave Chip Reboot restarts the operating system of the Z-Wave transceiver chip. This can be done safely all the time.

The Reset Controller turns the controller back into factory reset. All connections to included devices and all configurations and settings are lost. This function must be handles with extreme case. An additional dialog requires to explicitly confirm the function. Only use this function if you know what you do!

Operating Frequency

This dialog allows changing the operating frequency. Please note that a wrong frequency will block all Z-Wave traffic and make the device inoperable. Frequencies can only be changed within one frequency group. These are the frequencies shown side by side (e.g. EU, RU, IN, ...). Changing to a frequency outside this group will technically work but the wireless range will be few centimeters only. Hence, this for workbench testing only. The device will reboot after a frequency change so please allow some time for restart.

Network Maintenance

The function Remove Failed Node allows removing a node that is no longer communicating with the controller. After multiple failed communications with a device the controller will mark this device as failed and avoid further communication. This function finally removes such a device from the network configuration. The drop-down list will only show IDs of failed nodes. If this list is empty this is a good sign!

It is also possible to Replace a Failed node with a new node. This is a combination of removing the failed node and adding a new node. Using this function makes sure the next included node has the same node ID as the failed node. The drop-down list will only show IDs of failed nodes. If this list is empty this is a good sign! Battery-operated devices are mainly in deep-sleep state and will not answer to communication requests. Hence, the controller will never automatically detect if a certain device is defect or gone. The function Mark battery device as failed manually marks battery-operated devices as failed so that they can be removed or replaced. The drop-down list shows all battery-operated devices but this does not mean that they are failed.

The Request NIF from all devices function is just a convenient way to retrieve a Node Information Frame from all devices of the network.

SUC/SIS Management

The SUC/SIS Management pane allows manipulating the self-organization of the Z-Wave network. Don’t use this unless you are a developer who knows when and why this is needed for testing purposes.

Neighbors

Figure 7.26: Neighbors

This table in Figure 7.26 shows the neighborhood relationship of devices. The id, the name and the type of the node are listed. Green indicates that the two devices are in direct wireless neighborhoods and don’t need any other device to forward their signals. A red color between two nodes indicated that routing is needed between these devices. The Update button calls the device to scan it's neighborhood and report back the result to update it's own line of the routing table.

Reorganization

Figure 7.27: Reorganization

The reorganization page controls as shown in Figure 7.27 an algorithm that reorganizes the network relationships and fixes problems. With checkboxes various stages of the algorithm can be selected. The result of the reorganization is shown in a log and can be downloaded. The network reorganization calls for every node to redetect it's neighbors. This operation will work if there is a working route to this device and this device is not sleeping. If the operation fails, the algorithm will have three more attempts to reflect possible routes to the very device that may be reestablished during the reorganization. Detection of neighbors for battery-operated devices will be started after all mains-operated devices are processed. The requests to battery-operated devices will be queued. For more information about job queuing, please refer to Chapter JOB_QUEUE.

Route Map

The Route Map is a way to map the network is an extremely powerful, informative but the same time very complex viewgraph of the network situation in a home. The chart visualizes the possible links between the nodes and how they are used. If provided by the devices the chart will furthermore show complete routes and the signal strength of the individual links of a route. However only devices with SDK greater or equal to 6.71 will provide this additional information.

Initially all nodes are displayed with equal distances. It is possible to drag and drop the nodes to match the distances between them with the real distances. This will always work quite well if the Z-Wave network is in one floor only. A 2D map can be uploaded as background image to support the mapping. If the network is distributed on multiple floors it is recommended to do a best guess to keep the round initial view.

Figure 7.28 shows a typical chart. By clicking on a certain node and then moving the mouse over it again, it is possible to analyse the traffic from and to this very node. This allows focusing on the situation of this node only.

Figure 7.28: Route Map

The lines between the nodes represent the wireless connections and the communication between the nodes. The following information is encoded in these lines:

• Color: The color indicates the wireless signal strength of the connection if it can be measured. Red means a very high wireless signal. The device is likely very closed or in direct sight of the each other. A black color means a standard wireless strength, gray indicates that the received signal strength (RSSI value) is not known.
• Thickness: The Thickness of the line indicates the amount of traffic running over this line. This can be direct communication between the two links or routed traffic. If a route exist there will be a single pixel line. Every line thicker than a pixel shows real traffic.
• Dotted versus solid: A dotted line indicates that this link is sometimes just not working.

Timing Info

Figure 7.29: Timing Info

The Timing tab in Figure 7.29 shows some very valuable timing information of communications between the controller and other devices. All other devices the controller has communicated with are shown in a list. The number of packets and the percentage of successful communication are shown. This can give an indication about the stability of the communication link between the controller and this device. On the right-hand side, the timing delay of each communication is shown and color-coded. A red number indicates that this communication finally failed. A communication without rerouting attempts as shown as green and a rerouting attempt is coded in black. The fact that a communication failed (red) may indicate that there is a severe problem in the network or in the device. It is however also possible that a battery-operated device just went back to sleep too fast. Z-Wave professionals can read a lot out of this timing information particularly when combined with the routing table. Please refer to Chapter 8 for more details on troubleshooting Z-Wave networks.

Link Status

Figure 7.30: Link Status

The link status map, as shown in Figure 7.30, summarizes the device-specific link status information from the configuration sections.

The following colors are used:

• grey: untested
• green: good quality
• yellow: reasonable quality
• red: link quality insufficient

The links from one device can be retested using the Test link button. However, please keep in mind that this process may take several minutes to complete. For devices that do not offer a link status function in their firmware, there is a simple connection test to the Z-Way controller using a “NOP.’’ Please note that this function does not test a direct wireless connection but the route to the controller only.

Controller Info

Figure 7.31: Controller Info

This menu item as shown in Figure 7.31 provides some internal and very technical information about the Z-Way controller software, hardware, and firmware. The different submenu items are self-explaining.

Some buttons allow special maintenance functions:

• View Job Queue: This button opens a new tab with a list of all wireless jobs in the system. For more information about this, please refer to Chapter JOB_QUEUE. This is needed for debugging purposes only.
• Send Controller NIF: Sends out the Node Information Frame of the Z-Way controller. This is needed for debugging purposes only.
• Debug Mode: When active this button is shown in green. Active debugging unlocks some special function embedded in the rest of the Expert User Interface. Among them is the user interface to edit so-called “Postfix Records.’’ The postfix function allows changing device capabilities after the device interview. Typical postfix entries suppress certain functions that are announced by the Node Information Frame of certain command classes but not or wrongly implemented. Postfix is also used to rename certain functions to more meaningful terms. Post fix entries are typically created during device testing.
• Show controller data and Show controller's device data: The controller is a special node in the network but still a node. Therefore, buttons allow accessing the device specific data of the controller and issue a Node Information Frame. A third button gives access to the controller specific data. Most of these data is only relevant to developers.
• Firmware Update: This function allows updating the function of the Z-Wave transceiver used by Z-Way. Only valid update files will be offered. It is possible to add so-called tokens. These is a special string used to identify special function firmware or beta firmware. They are sued to make sure that this special firmware is only available to those that really need, e.g. for testing.

The last block of the dialog shows the availability of the function calls on the serial API between the Z-Wave transceiver and Z-Way. “Not implemented’’ means that Z-Way is either not knowing about the function indicated by the function ID or does not make any use of it. A red function call ID or name indicated that Z-Way can use this function, but the transceiver’s firmware did not report to offer this service.

Annex gives a full overview of the Functions used and supported by Z-Way.

Basic Set Handling

Z-Wave protocol defines a minimal level of interoperability via Basic Command Class. Most devices do act on Basic Set commands mapping it to Switch Binary Set or Thermostat Mode Set or some other. Z-Way is able to control other devices using speical Command Classes or using Basic Set.

Z-Way is handling incoming Basic Set and creates a virtual device that reflects the state of the last Basic Set command recieved. This allows to work with old devices that do not send Reports or Central Scene Notification to the LifeLine association group. Z-Way is ignoring Basic Get commands.

Security Considerations

Z-Way supports both Security S2 and Security S0 protocols and implements very strict security rules. See Table 7.1 for more information.

Analytics

The analytics menu offers functions to troubleshoot a Z-Wave network. Details about the dialogs are provided in Chapter 8.

Setup

The setup dialog offers various options to adapt the behavior of the Z-Wave Expert User Interface :

• Language: Pick your user interface language by clicking on one of the flags.
• System Settings: This option allows setting the date format and the time zone.
• Report Problem: This option allows reporting user interface bugs. Please note that the form will transmit the test, he option email address for questions and answers plus some internal version and status information.

Job Queue

Figure 7.32: Job Queue

The job queue, as shown in Figure 7.32, offers some deep insight into the dynamics of the controller software. It visualizes the (wireless) task execution of the system. Every communication attempt of the controller is queued and then handed over to the Z-Wave chip for execution. The list shows the jobs pending and the jobs that are completed or failed.

A legend informs about the meaning of the different flags n, U, D, E, S, and W. The timeout value counts back from 20 seconds once the job was sent. Even when it is completed, the job will stay in the queue marked as done (D) for some more time to allow inspection. The target node ID, a description of the communication message, information about the process, and the real bytes of the message are shown as well.

Authentication

In order to access the API one need to authenticate itself. Z-Way uses sessions to authenticate users. Z-Way session is called ZWAYSession.

If remote access is used, the find.z-wave.me service will issue an additional token called ZBW_SESSID.

Please read in TOKEN_LIFETIME about the token lifetime, permanent tokens and token usage guide before selecting your preferred authentication method.

First login

The first access should be made from the local network to set the initial administrator password. The administrator user is called admin. Access thru the remote access service (desribed in REMOTE_AUTHENTICATION) is not available until the administrator password is set.

To be able to send API requests, you need to get the session token using GET request to the URL

/ZAutomation/api/v1/system/first-access

The session token is stored in the reply as:

• ZWAYSession header, and
• ZWAYSession cookie.

Below is an example of the session token request with curl.

curl -X GET http://192.168.1.109:8083/ZAutomation/api/v1/system/first-access -D -

Example of a successful response:

[Successful response]
HTTP/1.1 200 OK
Server: Mongoose/6.4
Content-Type: application/json; charset=utf-8
X-API-VERSION: 2.0.1
ZWAYSession: 75817f4d-1ad2-a595-fb21-2bda3d053510
Set-Cookie: ZWAYSession=75817f4d-1ad2-a595-fb21-2bda3d053510; Path=/
Access-Control-Allow-Origin: *
Access-Control-Allow-Methods: GET, PUT, POST, DELETE, OPTIONS
Access-Control-Allow-Headers: Authorization, Accept-Ranges, Content-Encoding, Content-Length, Content-Range, Content-Type, ETag, X-API-VERSION, Date, Cache-Control, If-None-Match, Content-Language, Accept-Language, X-ZBW-SESSID, ZWAYSession
Access-Control-Expose-Headers: Authorization, Accept-Ranges, Content-Encoding, Content-Length, Content-Range, Content-Type, ETag, X-API-VERSION, Date, Cache-Control, If-None-Match, Content-Language, Accept-Language, X-ZBW-SESSID, ZWAYSession
Connection: keep-alive
Date: Wed, 02 Mar 2022 13:17:41 GMT
Content-Length: 667

{
  "data": {
    "defaultProfile": {
      "id": 1,
      "role": 1,
      "login": "admin",
      "name": "Administrator",
      "lang": "en",
      "dashboard": [],
      "interval": 2000,
      "devices": [],
      "rooms": [
        0
      ],
      "expert_view": true,
      "hide_all_device_events": false,
      "hide_system_events": false,
      "hide_single_device_events": [],
      "email": "admin@mail.com",
      "skin": "",
      "night_mode": false,
      "beta": false,
      "uuid": "03b97bd3-964b-4cb4-884f-e83183e8071e",
      "sid": "75817f4d-1ad2-a595-fb21-2bda3d053510",
      "showWelcome": true
    },
    "firstaccess": true,
    "uuid": "42e955ed-c166-c19d-59c4-acf391cf9f0a",
    "serial": "42e955ed-c166-c19d-59c4-acf391cf9f0a",
    "mac": "b8:27:eb:f3:ed:9f",
    "remote_id": 177252,
    "ip_address": "192.168.1.109"
  },
  "code": 200,
  "message": "200 OK",
  "error": null
}

The administrator password can be set by sending the new password in JSON format using PUT to the URL

/ZAutomation/api/v1/auth/update/1

{"id": 1, "password": "12345678", "passwordConfirm": "12345678", "email": "admin@mail.com"}

Below is an example of the administrator password setup:

curl -X PUT -H "ZWAYSession: 75817f4d-1ad2-a595-fb21-2bda3d053510" -H "Content-Type: application/json" -d '{"id":1,"password":"12345678","passwordConfirm":"12345678","email":"admin@mail.com"}' http://192.168.1.109:8083/ZAutomation/api/v1/auth/update/1 -D -

Local authentication

If used in local network, Z-Way can be directly addressed via

http://IP:8083

Note that if Z-Way is used in trusted network and only Z-Wave API is supposed to be used, you might consider to skip authentication and check option Public API access in Z-Wave Binding app.

Z-Way session can be obtained by sending login and password in JSON format using POST to URL

/ZAutomation/api/v1/login

{"login":"admin", "password":"admin"}

It is also possible to use Basic Authentication to transmit login and password.

In return the session will be sent in three forms:

• as data.sid field in JSON structure (only for login using JSON),
• as a header called ZWAYSession,
• as a cookie called ZWAYSession.

Example of successful login will look like:

{
    "data": {
        "sid": "ba69cb5b-b2fd-5ce0-5b75-9bae3e8bc369",
        "id": 1,
        "role": 1,
        "name": "Administrator",
        "lang": "en",
        "color": "#dddddd",
        "dashboard": [],
        "interval": 2000,
        "rooms": [
            0
        ],
        "hide_all_device_events": false,
        "hide_system_events": false,
        "hide_single_device_events": []
    },
    "code": 200,
    "message": "200 OK",
    "error": null
}

Wrong login/password reply

{
    "data": null,
    "code": 401,
    "message": "401 Unauthorized",
    "error": "User login/password is wrong."
}

Once obtained, the session can be sent to the Z-Way server via the following ways:

• as an HTTP header called ZWAYSession,
• as a cookie called ZWAYSession,
• as an HTTP Authentication Bearer header (see TOKEN_LIFETIME)

Below are few examples of local authentication.

With cURL using Authentication Bearer token:

curl -H "Authorization: Bearer .../..." http://192.168.0.62:8083/ZAutomation/api/v1/...

With cURL using cookies:

curl -H "Accept: application/json" -H "Content-Type: application/json" -X POST -d '{"form": true, "login": "admin", "password": "admin"}' http://192.168.0.62:8083/ZAutomation/api/v1/login -c cookie.txt

curl http://192.168.0.62:8083/ZAutomation/api/v1/... -b cookie.txt

With cURL using Basic Authentication:

curl -u admin:admin http://192.168.0.62:8083/ZAutomation/api/v1/...

With wget using Basic Authentication:

wget –auth-no-challenge –user=admin –password=pwd 192.168.0.62:8083/ZAutomation/api/v1/...

From the browser using jQuery and Basic Authentication:

jQuery('img').click(function() {
    jQuery.ajax({
        url: "http://192.168.0.62:8083/ZAutomation/api/v1/...",
        beforeSend: function (xhr) { xhr.setRequestHeader ("Authorization", "Basic " + btoa("admin" + ":" + "password")); }
    });
});

Remote authentication

If not disabled by the user, Z-Way provides remote access service to the controller via

https://find.z-wave.me

This service accepts Z-Way Platform ID , username and password, checks entered credentials agains your Z-Way and if accepted returns back two sessions ZWAYSession and ZBW_SESSID in two forms:

• as a header,
• as a cookie.

The session can be obtained by

• logging in the form on

  https://find.z-wave.me/zboxweb

• sending a POST request to

  https://find.z-wave.me/zboxweb

  with form data act=auth&login=id/admin&pass=password
• sending a GET request to

  https://find.z-wave.me/zboxweb?act=auth&login=id/admin&pass=password

• sending a POST request to

  https://find.z-wave.me/zboxweb

  with form data act=login&boxid=id&login=admin&pass=password

POST request with act=login will set cookies and redirect to the / of the Z-Way (in most cases it then redirects to /smarthome/). If you want the user to be redirected to some specific URL after log in add one more parameter ruri=... (see examples below).

GET and POST request with act=auth will return the token and set cookies accordingly. No redirect takes place in this case. This way is better for integrations thru the API.

The obtained session will be returned

• as an HTTP header,
• as a cookie,
• in the body (for act=auth).

The credential can be used in subsequent requests in one of the three forms listed below (in order they are checked in Z-Way):

• as HTTP Authentication: Bearer header (see below),
• as HTTP X-ZBW-SESSID and ZWAYSession headers,
• as ZBW_SESSID and ZWAYSession cookies.

Below are examples of remote authentication.

With cURL using Authentication Bearer token:

curl -H 'Authorization: Bearer .../...' https://find.z-wave.me/ZAutomation/api/v1/...

With cURL using cookies:

curl -H 'Accept: application/json' -X POST -d 'act=login&boxid=132339&login=admin&pass=admin1' https://find.z-wave.me/zboxweb -c cookie.txt

curl https://find.z-wave.me/ZAutomation/api/v1/... -b cookie.txt

If you want the user to be redirected to a specific page after login, you can also use the following url:

https://find.z-wave.me/zboxweb?ruri=/expert

https://find.z-wave.me/zboxweb?ruri=/expert&id=123456&login=admin

In some cases one might need to get a remote authentication token based on a local authentication token and remote ID. To do this make a request to

https://find.z-wave.me/zboxweb?act=session_login&zboxid=id

For example:

curl -H 'Authorization: Bearer /0fa324dc-b089-754e-8379-01fc8ec5a446' 'https://find.z-wave.me/zboxweb?act=session_login&zboxid=123456' -c cookie.txt

Remote authentication and access error handling

The tables below describe possible errors returned by the remote access service. Errors are order exactly as the request is handled.

Authentication on https://find.z-wave.me/zboxweb with act=login:

Authentication on https://find.z-wave.me/zboxweb with act=auth:

Subsequent requests to https://find.z-wave.me/PATH, where PATH is not equal to zboxweb or zboxweb/*:

Token lifetime

Each time you log in using methods described above a new session is created. This session will live for one week (might be changed on Z-Way side and on find.z-wave.me side, do not rely on this period).

Those login methods are good to obtain the token once to the access the API via token or for rare single actions. Creating a new session each time will pollute user profile in Z-Way.

Tokens can be deleted at any time in User management (4.3.1) panel. This will lead to log-out of the application that is using this token. This application will loose access to Z-Way and will require again a log in via username and password.

To use tokens long term we recommend to make them permanent. You can make any token permanent by pressing a button in User management (4.3.1). Permanent token do never expire until deleted. Only Z-Way token can be made permanent that way.

To make both find.z-wave.me and Z-Way token permanent use Authentication Bearer way to transmit tokens.

Both find.z-wave.me remote access service and Z-Way do support Authentication Bearer HTTP header. This header is commonly used in OAuth2 authentication protocol, but you can use it without OAuth2 too.

Z-Way and find.z-wave.me will automatically mark tokens as permanent if they are received in Authentication Bearer header.

The format of the header is: Authorization: Bearer ZBW_SESSID/ZWAYSession. Note that if direct access is needed (not via find.z-wave.me), ZBW_SESSID can be omitted. In this case a slash / should still preceed ZWAYSession

A typical application should take usename and password to log in via find.z-wave.me and get both ZWAYSession and ZBW_SESSID tokens to form Authentication Bearer token. The username and password should then be erased from the memory, while Authentication Bearer token should be saved for future use. It is not recommended to save user credentials.

Like other tokens user can delete the permanent token in the User management (4.3.1) panel.

OAuth2

Z-Way do also support OAuth2 authentication method to provide access to smart home devices to third party services like voice assistances (Amazon Alexa, Google Home, Yandex Alice), IFTTT and some others.

To get integrated one should provide to the Trident IoT team redirect_uri and get back OAuth2 server URL, client_id and client_secret. Please contact support@tridentiot.com.

To let the user authenticate and grant access to his devices you should redirect him to one of the two pages:

https://z-wave.me/oauth2/?state=...&redirect_uri=https://...&response_type=code&client_id=...

https://find.z-wave.me/zboxweb?lang=...&hide_diruris=1&ruri=/smarthome/%23/oauth2%3Fstate%3D...%26redirect_uri%3Dhttps%3A%2F%2F...%26response_type%3Dcode%26client_id%3D...

In this request:

• lang (optional — English if omitted) — pre-selects the find.z-wave.me interface language (see ZBW_IFLANG cookie for the correct value)
• ruri — URL encoded link to the target page in Z-Way user interface to OAuth2 page:

  /smarthome/#/oauth2?state=...&redirect_uri=https://...&response_type=code&client_id=...

  • state — specific value used by your service to match the OAuth2 reply with the original request — used with redirected to redirect_uri
  • redirect_uri — the URL to redirect the user to once the authorization was granted
  • response_type — the type of OAuth2 authorization; only code is currently supported
  • client_id — id of the client that should match redirect_uri on Trident IoT OAuth2 server.

After the user logs in to Z-Way he is asked to mark rooms and devices to be granted access to. A new user will then be created with the corresponding permissions and a session token will be generated. The session is saved on the Trident IoT OAuth2 server together with an authorization code.

On the next step the user is redirected back to the service using URL

redirect_uri?state=...&code=...

• state — specific value used by your service to match the OAuth2 reply with the original request (see above)
• code — the authorization code to be used to get access token from the OAuth2 server

The service can now make a POST request to the Trident IoT OAuth2 server on

/token

The resulting access_token is to be used in the Authentication Bearer HTTP header. This token never expires unless deleted by the user.

[Request of Access token via Authorization code (JSON format)]
Content-type: application/json
{
    "client_id": "...",
    "client_secret": "...",
    "code": "..."
}

[Request of Access token via Authorization code (URL encoded form)]
Content-Type: application/x-www-form-urlencoded
client_id=...&client_secret=...&code=... (URL encoded!)

[Request of Access token via Authorization code (form data)]
Content-Type: multipart/form-data; boundary=----WebKitFormBoundarytufRVLxOz9VdsQbA

------WebKitFormBoundarytufRVLxOz9VdsQbA
Content-Disposition: form-data; name="client_id"

...
------WebKitFormBoundarytufRVLxOz9VdsQbA
Content-Disposition: form-data; name="client_secret"

...
------WebKitFormBoundarytufRVLxOz9VdsQbA
Content-Disposition: form-data; name="code"

...
------WebKitFormBoundarytufRVLxOz9VdsQbA--

[Access token successfuly retrieved]
{
    "access_token": ".../...",
    "token_type": "bearer"
}

[Authorization code is invalid (400 Bad request)]
{
    "error": "invalid_grant"
}

[Wrong credentials (400 Bad request)]
{
    "error": "invalid_client"
}

Running Z-Wave Serial API over TCP

You can run Z-Way on one machine and plug the Z-Wave transceiver on another one.

1. On the machine where Z-Way is running run the following command in terminal:

   socat -d -d -d UNIX-LISTEN:/tmp/zwave,reuseaddr,fork TCP:192.168.0.100:8088

2. On the machine where the Z-Wave transceiver is, execute:

   socat -d -d -d TCP-LISTEN:8088,reuseaddr,fork FILE:/dev/ttyUSB0,nonblock

3. For z-way-srv-test: change the port name to unix:/tmp/zwave like shown here:

   LD_LIBRARY_PATH=./libs ./z-way-srv-test unix:/tmp/zwave 8083 0 0 0 0

   For Z-Way Server: change port in SmartHome UI:
   Go in Management->Apps->Active->Z-Wave->change the port /dev/ttyUSB0 to unix:/tmp/zwave.

Make sure to adjust the IP address of the machine where the Z-Wave transceiver is. You can also change the location of Unix socket /tmp/zwave and the port 8888 to something else.

Running Z-Wave Serial API over a Unix socket

In some cases (like using Docker with no access to TCP/IP), you might want to pass the Z-Wave transceiver via Unix sockets.

1. On the host machine where the Z-Wave transceiver is, execute:

   socat -d -d -d UNIX-LISTEN:/data/zwave FILE:/dev/ttyUSB0,nonblock

2. For z-way-srv-test: change the port name to unix:/data/zwave like shown here:

   LD_LIBRARY_PATH=./libs ./z-way-srv-test unix:/data/zwave 8083 0 0 0 0

   For Z-Way Server: change port in SmartHome UI:
   Go in Management->Apps->Active->Z-Wave->change the port /dev/ttyUSB0 to unix:/data/zwave.

Here /data/ is a folder on the host mapped inside the Docker as /data/ using -v /data:/data. You can also change both folders to something else.

Remote Access

Install Remote Access service

Remote access service is provided by the zbw package. To install it, please follow the guide below:

distro=$(lsb_release -a 2>/dev/null | grep Codename | awk '{print $2}') &&
distro_id=$(lsb_release -a 2>/dev/null | grep "Distributor ID" | awk '{print $3}' | tr '[:upper:]' '[:lower:]') &&
architecture=$(uname -m) && \
if [ "$architecture" == "aarch64" -o "$architecture" == "armv7l" ]; then arch_tag="[arch=armhf]"; arch_apt=":armhf"; dpkg --add-architecture armhf; fi &&
if [ "$architecture" == "aarch64" -o "$architecture" == "armv7l" -o "$architecture" == "armhf" ]; then zbw_distro_id="raspbian"; else zbw_distro_id="${distro_id}"; fi &&
wget "https://keyserver.ubuntu.com/pks/lookup?op=get&search=0xbc04cd36834c6ad41c8b9eb15b2f88a91611e683" -O /etc/apt/trusted.gpg.d/z-wave-me.asc &&
echo "deb ${arch_tag} https://repo.z-wave.me/z-way/${zbw_distro_id} ${distro} main" >/etc/apt/sources.list.d/z-wave-me.list &&
apt-get update -y &&
apt-get install -y zbw${arch_apt}

Use Remote Access service

After installation, you can find the remote ID in SmartHome UI in the Menu -> Settings -> Remote Access.

To get remote access to Z-Way, go to the https://find.z-wave.me, enter your ID, username, and password.

NOTE: Please note that this service is provided by a third party company. Trident IoT is not responsible for its operation!

Using Trident IoT Development Board

To use Trident IoT Neptune development board (DKNCZ20) you need to install elcap, build the serial API project and flash it in the DKNCZ20 board.

1. Select the latest release for your platform from the releases page. Unzip it and add the executable (elcap on MacOS and Linux, elcap.exe on Windows) to your path.

2. Create a new project called serial_api using Z-Wave SDK based on serial_api template and build it:

   $ ./elcap new
   Creating a new project...
   Project Name: serial_api
   name has been set to serial_api
   Project Path (serial_api):
   path has been set to serial_api
   1. v2025.03.00-beta00
   Select SDK Version (1):
   1. bootloader
   2. zigbee
   3. z-wave
   Select category (1): 3
   1. led_bulb
   2. sensor_pir
   3. door_lock_keypad
   4. power_strip
   5. serial_api
   6. wall_controller
   7. switch_on_off
   8. window_sensor
   9. multilevel_sensor
   Select template (1): 5
   1. T32CZ20B
   Select target (1):
   ******
   [project]
   name = "serial_api"
   category = "z-wave"
   target = "T32CZ20B"
   default_hex = "neptune_usb_t32cz20_signed_combined.hex"

   [sdk]
   version = "v2025.03.00-beta00"
   ******
   Do you confirm generation? [y/n] (y):
   $ cd serial_api/
   $ ../elcap build

3. Find device Serial Number

   > ../elcap device discover
   Connection | Serial Number | IP Address |         Name
   -----------+---------------+------------+----------------------
      USB     |   900039398   |            | J-Link-OB-K22-CortexM



4. Flash the board:

   $ ../elcap flash --usb 900039398 --file zw_serial_api_controller_1.0.0_00000000_neptune_usb_t32cz20_us_lr_debug_signed_combined.hex

   Make sure to change the usb id of to your board id

Consult elcap documentation for more information.
